RJ45 8P8C Ethernet Screw Terminal Mini Breakout Board ST-RJ45-R-MIN
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Mounting Style | Stand Alone |
| Brand | SchmalzTech |
| PCB Type | Double-Sided PCB |
| Type | RJ45 Breakout |
| Material | FR-4 |
| MPN | ST-RJ45-R-MIN |
| Item Length | 1.1 in |
| Item Width | 1.5 in |

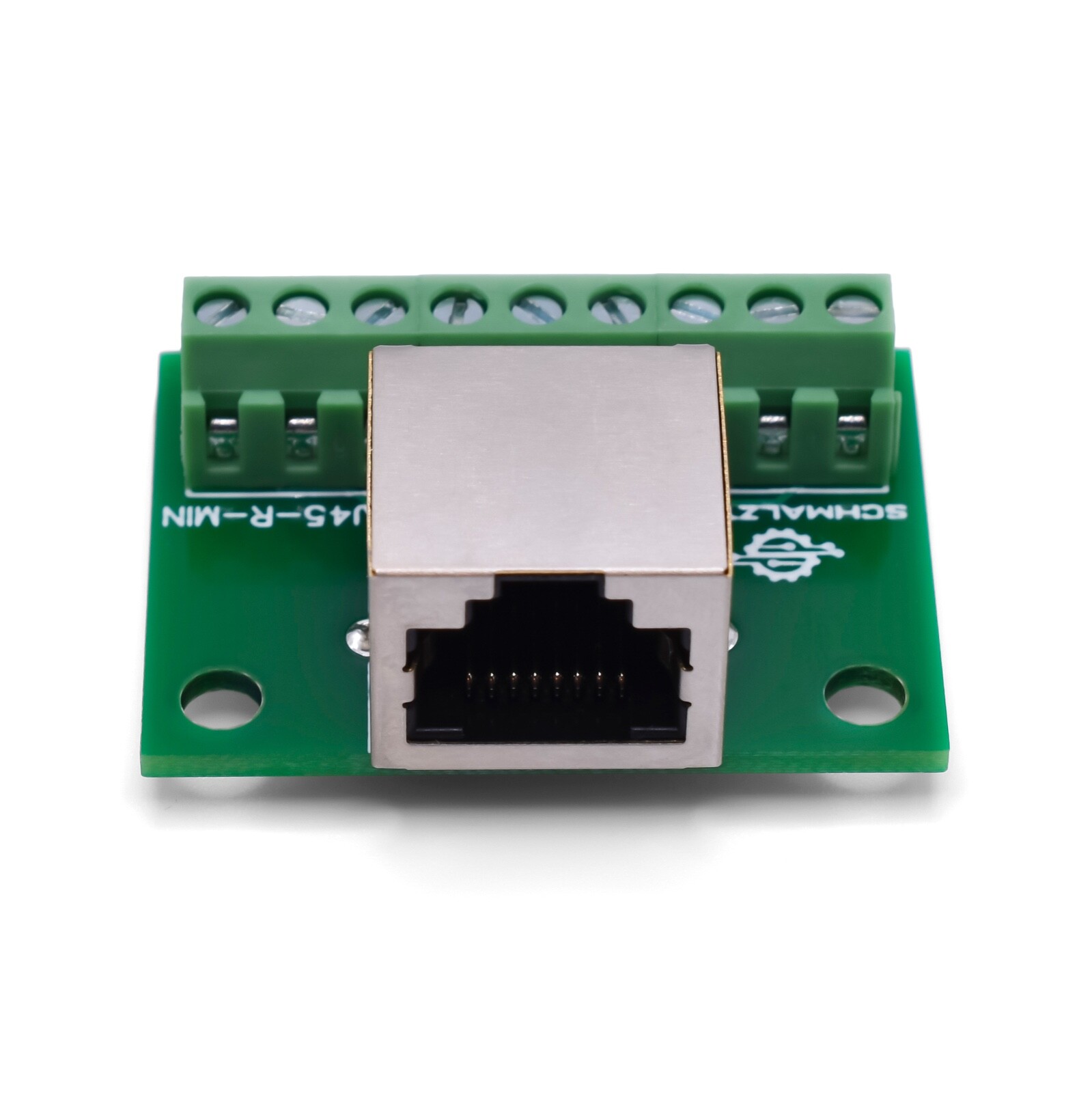

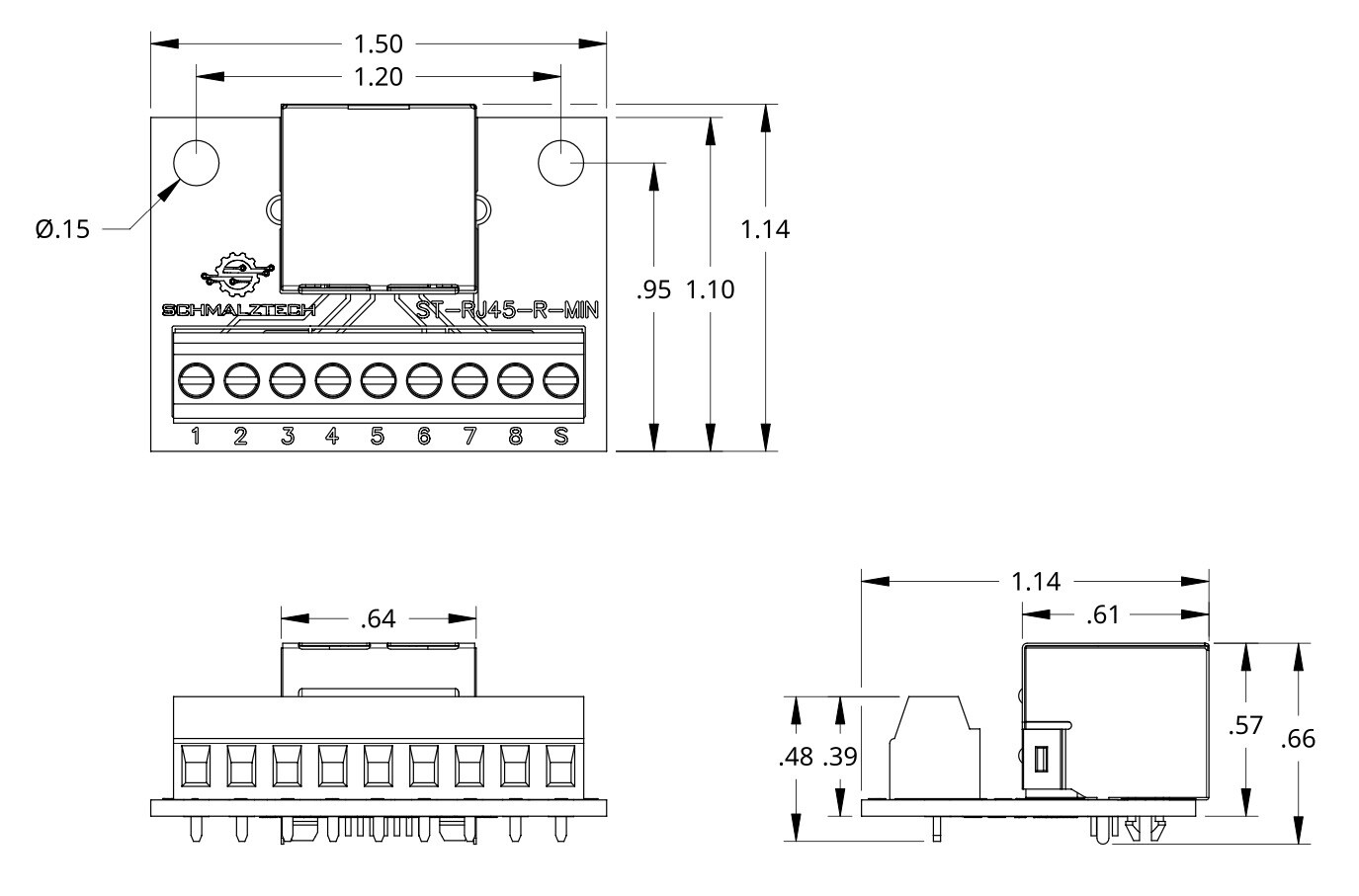

SchmalzTech, LLC ST-RJ45-R-MIN RJ45 Mini Screw Terminal Breakout Board Breaks out all 8 contacts and the shieldScrew terminals for fast connectionsCompact form factor to fit in tight spacesMounting holes for fixturing Specifications Wire Range (stranded)16-24 AWG Wire Range (solid)16-24 AWGConnector8P8C + Shield PCB Surface FinishLF HASL Temperature Rating-25°C to +70°C This RJ45 breakout board provides a convenient method of accessing all the contacts of an 8P8C connector, including the shield. Each of the 9 connections are brought out to a screw terminal for fast and secure termination to wires. This board was designed to be as small as possible while still breaking out all of the contacts of the RJ45 connector. This compact form factor will fit in tight spaces and has mounting holes to allow it to be securely fastened ensuring a solid connection. Mechanical Drawings Electrical Connections Each pin of the RJ45 connector is electrically connected to one screw terminal. Custom Designs Can't find what you need? We can design and produce a custom board to fit your exact needs. Please reach out to us for additional information and pricing. © 2021 SchmalzTech, LLC
