RJ45 8P8C Ethernet Screw Terminal Breakout Board / Interface Module ST-RJ45-R-FT
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Mounting Style | Stand Alone |
| Brand | SchmalzTech |
| PCB Type | Double-Sided PCB |
| Type | RJ45 Breakout |
| Material | FR-4 |
| MPN | ST-RJ45-R-FT |
| Item Length | 2 in |
| Item Width | 2.2 in |

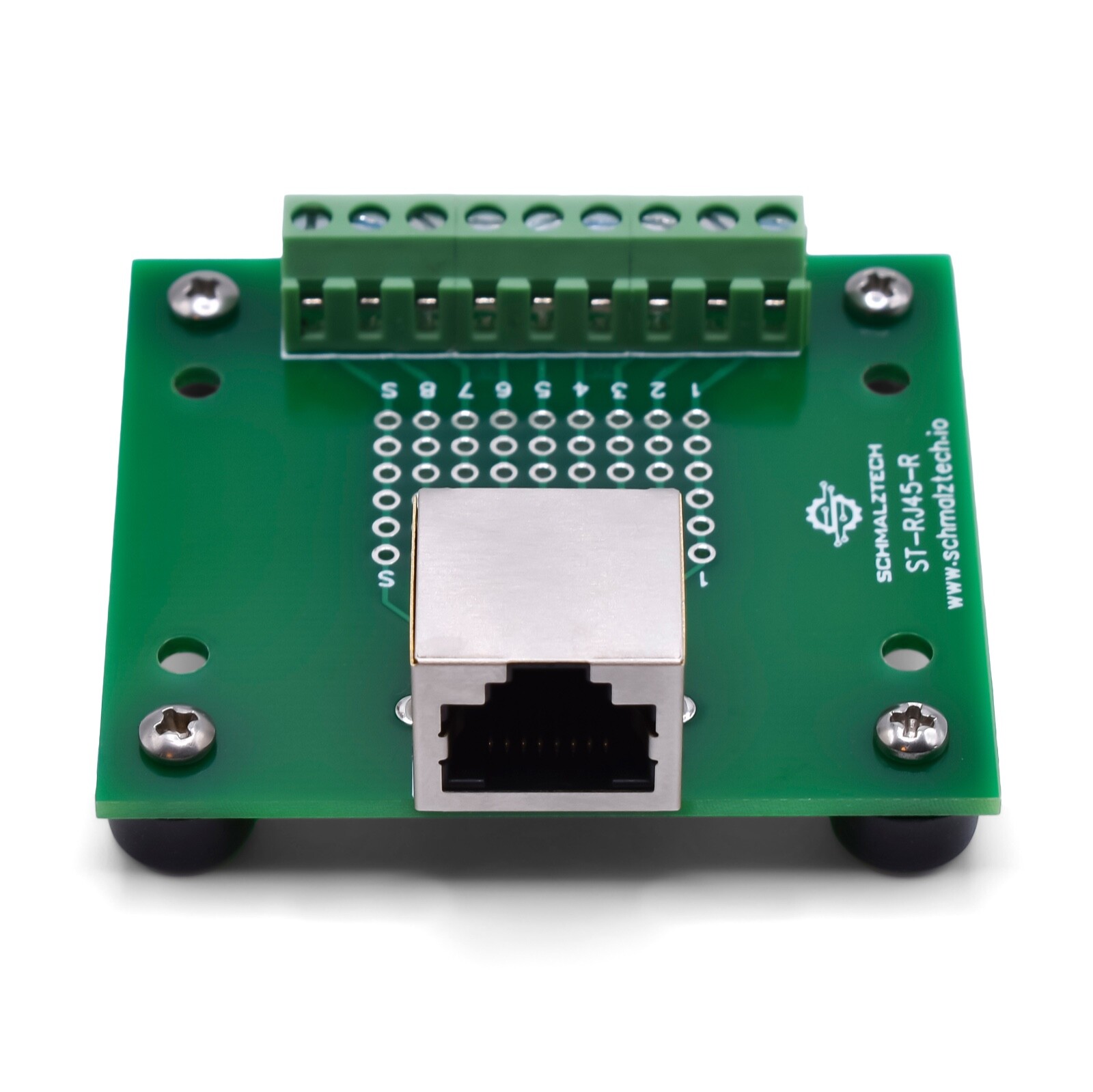

SchmalzTech, LLC ST-RJ45-R-FT RJ45 Screw Terminal Breakout Board with Rubber Feet Breaks out all 8 contacts and the shieldScrew terminals for fast connectionsPrototyping area for in-circuit modificationsEasy access for probing and debuggingRubber feet provide a stable base Specifications Wire Range (stranded)16-24 AWG Wire Range (solid)16-24 AWG Connector8P8C + Shield PCB Surface FinishLF HASL Temperature Rating-15°C to +70°C This RJ45 breakout board provides a convenient method of accessing all the contacts of an 8P8C connector, including the shield. Each of the 9 connections are brought out to a screw terminal for fast and secure termination to wires. This board also features a prototyping area to enable in-circuit modifications as well as easy probing/diagnostics. The prototyping grid has a standard 0.1" pattern to enable compatibility with a variety of components. The rubber feet on this model provide clearance for the connections on the bottom making it perfect for a lab environment where it can be placed directly on a bench. Mechanical Drawings Electrical Connections Each pin of the RJ45 connector is electrically connected to a single row of the prototyping area and to one screw terminal. Custom Designs Can't find what you need? We can design and produce a custom board to fit your exact needs. Please reach out to us for additional information and pricing. © 2021 SchmalzTech, LLC
