Ring Terminals Copper Wire Crimp Connectors USA Made 3M Adhesive Heat Shrink
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Compatible Mounting Type | Wire |
| Country/Region Of Manufacture | United States |
| Body Material | Copper |
| Contact Material | Copper |
| MPN | HSR-ASST |
| Brand | Battery Cables USA |
| Termination Type | Crimp |

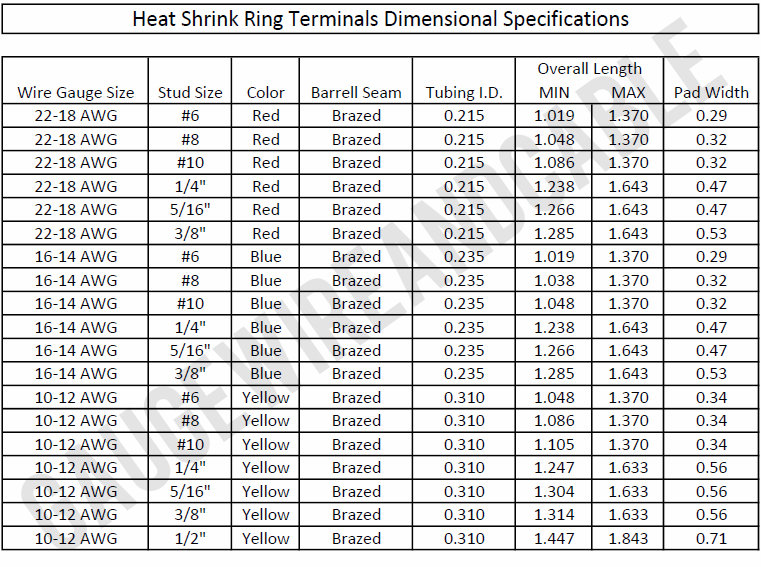

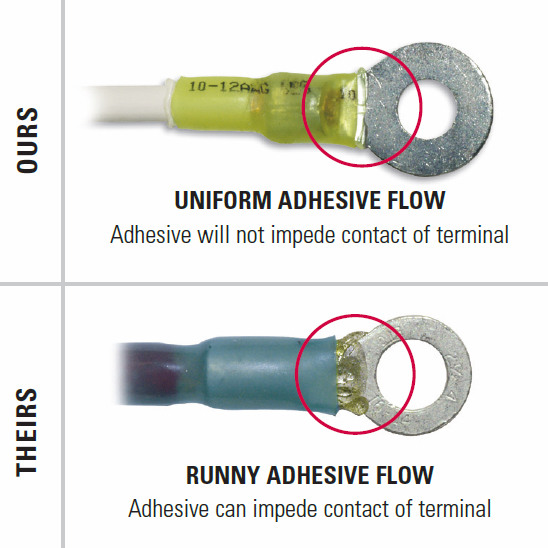

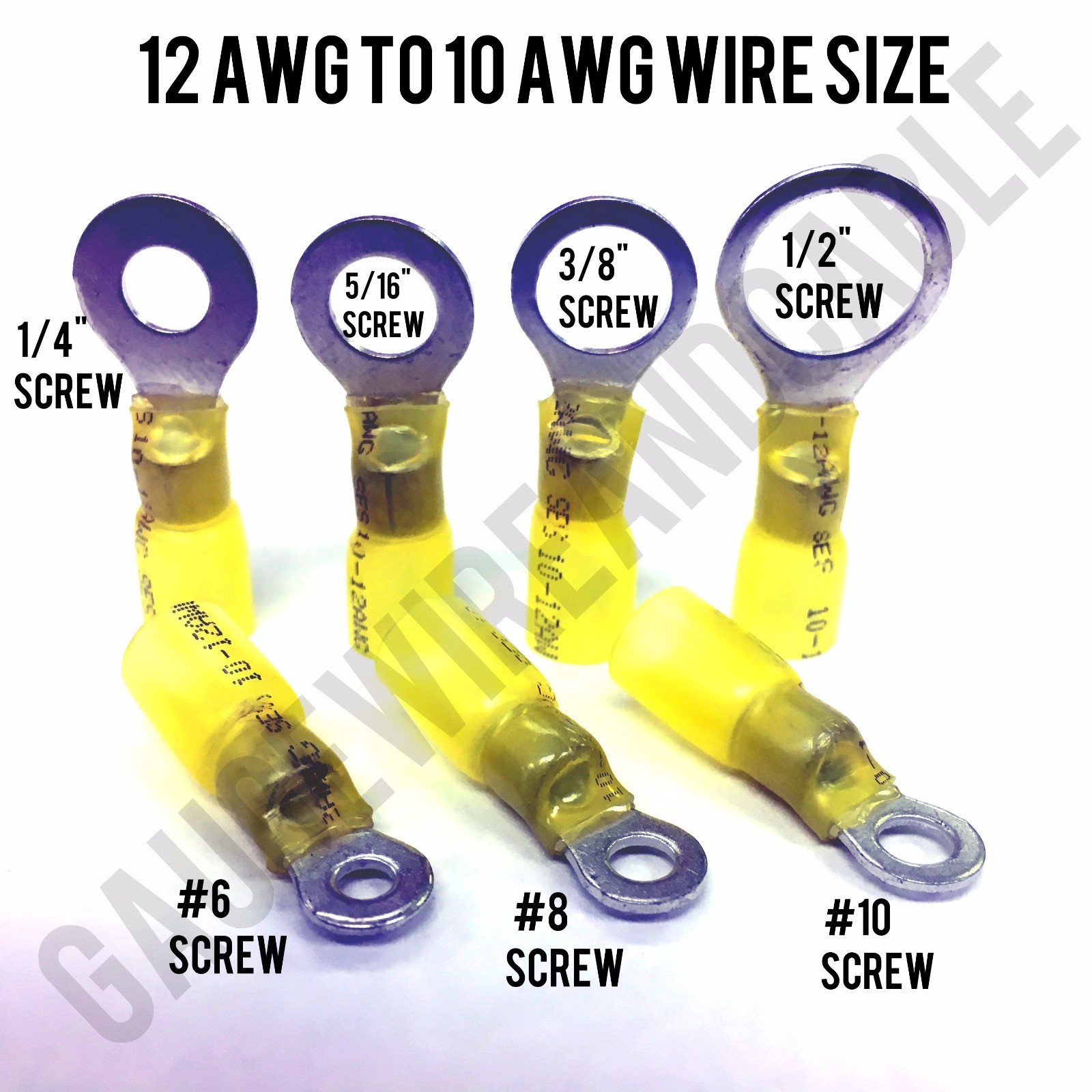

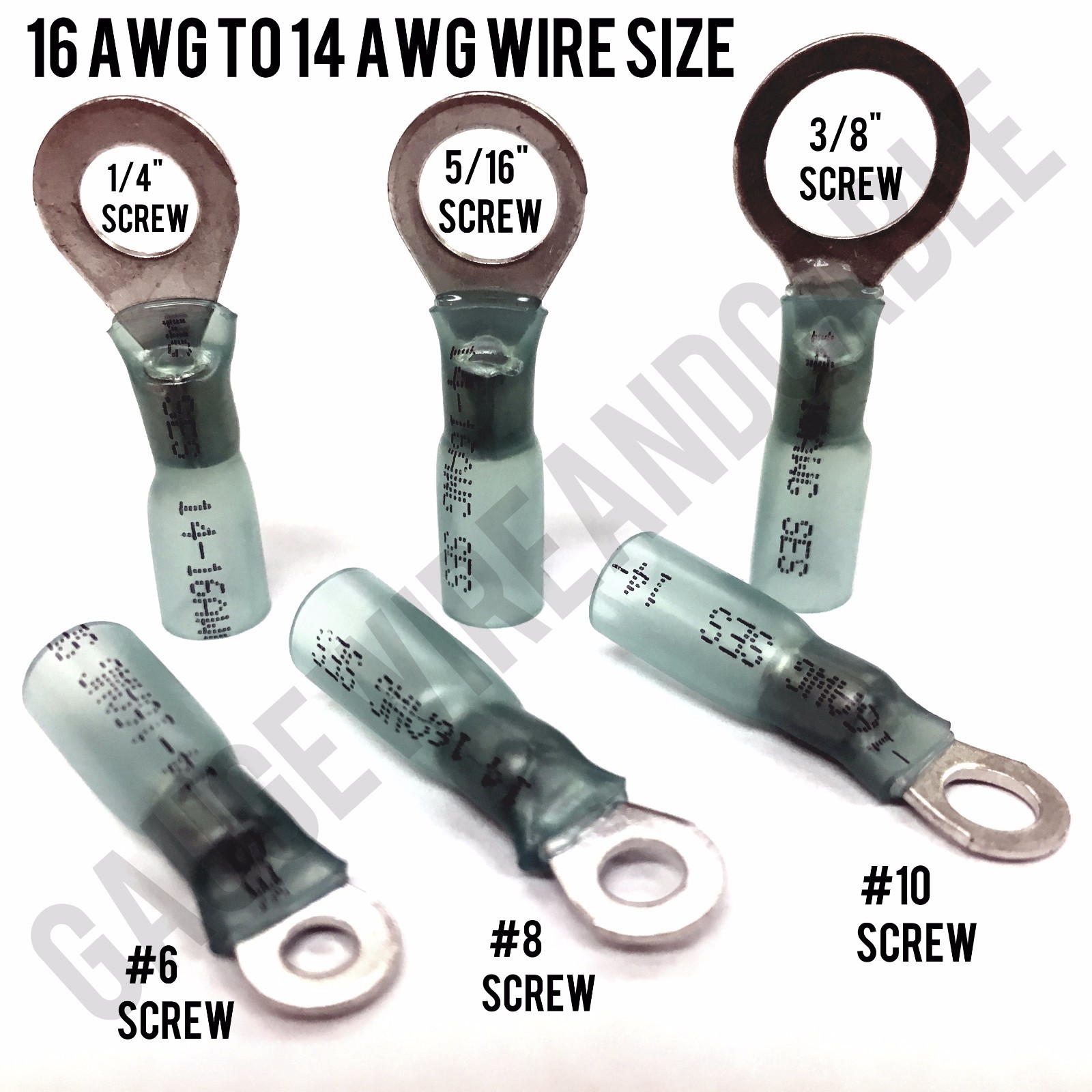

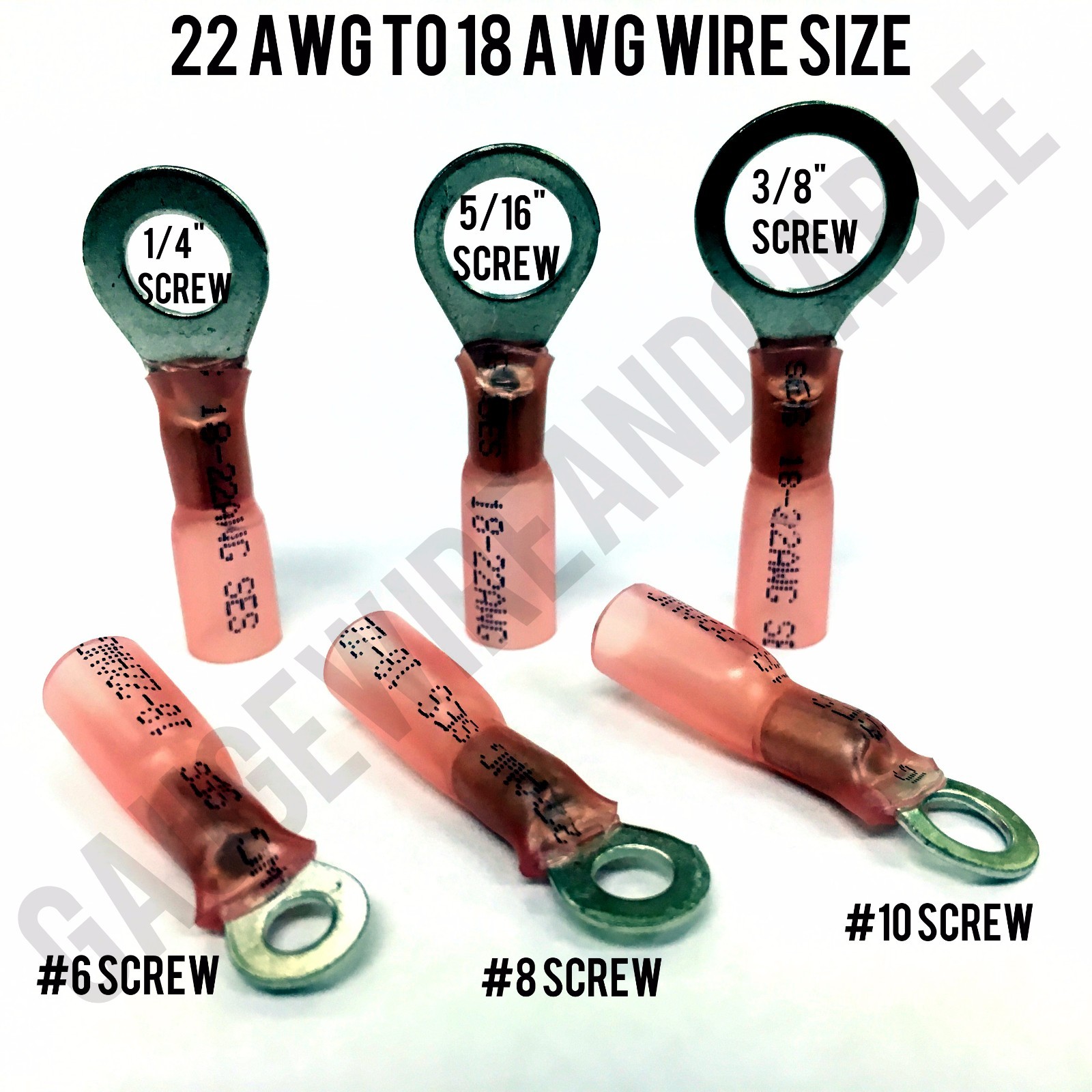

Ring Terminals - 3M Adhesive Lined Heat ShrinkPure Copper with Tin Plating to Prevent CorrosionMADE IN THE USACreate your own assortment! Simply choose the wire range size, hole size and quantity in the pack to get only the rings you actually need instead of a useless mix of oddball sizes. *Ring terminal dimensional specifications are in an image above in this listing if you need more precise measurements. Hole sizes of the rings are "nominal" meaning they are "named" to fit the screw or bolt so a 1/4 inch hole terminal will fit a 1/4 inch screw and so on. 22-18 AWG are Red and available in 3/8, 5/16, 1/4, #10, #8 and #6 holes16-14 AWG are Blue and available in 3/8, 5/16, 1/4, #10, #8 and #6 holes12-10 AWG are Yellow and available in 1/2, 3/8, 5/16, 1/4, #10, #8 and #6 holesPackage quantities offered are 5, 10, 20 and 50 packs so mix and match and add all items to your cart and checkout ONLY after you have all items and take advantage or our combined shipping FEATURES & BENEFITS Pure Copper for Maximum Conductivity including an electro-tin plating which resists corrosion keeping the connection secureTranslucent, adhesive-lined 3M polyolefin tubing allows visual inspection, prevents wire corrosion, and provides a waterproof seal.Conforms to automotive manufacturers? specifications for wiring repairs, necessary for maintaining electrical warranties.Exceeds ABYC Marine Grade standards for use on boatsSeamless butt connectors & brazed seam rings and spades prevent opening of connector barrel.Color-coded tubing with wire gauge imprint provides easy identification of the correct part for the job.Brazed Seam Crimp Barrel VS Butted Seam Crimp BarrelButted Seam Connectors Formed when metal is stamped, rolled, and butted to create the connector barrel. Should only be used with stranded wire and must be crimped in the proper place to avoid opening the seam. Brazed Seam Connector Advantages Better wire contactLess voltage dropIncreases current flowSuperior tensile strengthPrevents wiring failuresReduces equipment downtimeWe individually bag each item in small zip lock packs as well as mark each bag with the wire size, hole size and quantity.
