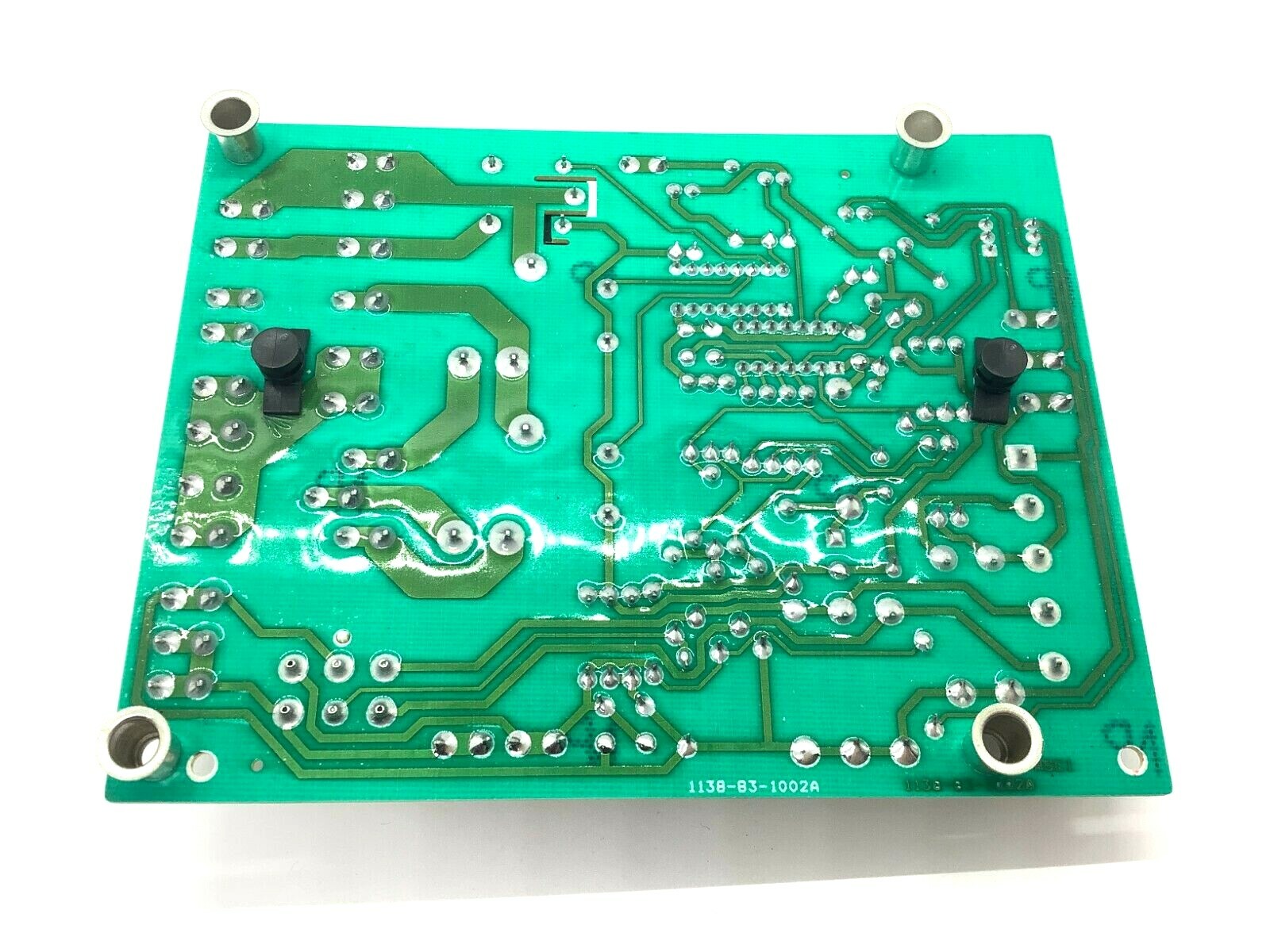

R40403-003 Furnace Blower Control Board Repl R40403-001 R40403-002 20054502
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Item Thickness | 1 in |
| Power Source | Corded Electric |
| MPN | R40403-003 |
| Year Manufactured | Unknown |
| Item Length | 8 in |
| Power Phase | 1 Phase |
| Unit Type | Unit |
| Manufacturer Warranty | 1 Month |
| Voltage | 24 V |
| Amperage | 30 A |
| Item Width | 6 in |
| Compatible Brand | For Armstrong |
| Compatible Model | R40403-001 |
| Material | Plastic |
| Brand | Armstrong |
| Type | Blower Control Board |
| Model | R40403-003 |
| Country/Region Of Manufacture | Unknown |
| Item Weight | 1 lb |
R40403-003 Armstrong Furnace Blower Control Circuit Board Replaces: R40403-001, R40403-002, 20054502Operating Line Voltage: 85 to 135 VAC, 50/60HzSecondary Control Voltage: 18.0 to 30.0 VAC, 50/60HzMaximum Blower Loading: 15FLA, 30LRA @ 120 VAC; 7.5FLA, 15LRA @ 240 VACMaximum Inducer Loading: 3FLA, 10LRA @ 120 VAC; 1.5FLA, 5LRA @ 240 VAC Armstrong Furnace Blower Control Circuit Board (# R40403-003) The Armstrong R40403-003 blower control replaces all 40403-001, 40403-002 and ST9120A, B or C blower controls. The R40403-003 blower control provides outputs for a 2 speed indoor blower motor and single speed inducer motor. The control receives inputs from the thermostat (W, Y, and G), pressure switch, and high temperature limit switches. The control also provides user selectable blower delays through dip switch settings. The 24 volt circuit of this control is protected by a 5 amp replaceable automotive type fuse. FITS: EG7H100DC20-1, EG6G50DC8-4, EG6G75DC8-4, EG6G75DC10-4, EG6G100DC12-4, EG6G100DC20-4, EG6G125DC12-4, EG6G125DC20-4, EG6G150DC20-4, EG6G75DC16-4, EG6G50DC14-4, EG8G50DC8-1, EG8G75DC10-1, EG8G75DC12-1, EG8G100DC14-1, EG8G100DC16-1, EG8G125DC14-1, EG8G125DC20-1, EG8G150DC20-1, EG8G50DC14-1, EG8G100DC20-1, EG8G75DC16-1, EG8G50DC8-2, EG8G75DC12-2, EG8G100DC14-2, EG8G125DC14-2, EG8G50DC14-2, EG7G50DC8-1, EG7G75DC10-1, EG7G100DC14-1, EG7G100DC16-1, EG7G125DC20-1, EG7G150DC20-1, EG5G100DC12-1, EG5G125DC16-1, EG5G150DC20-1, EG5G75DC12-1, EG6H40DC8-1, EG6H40DC14-1, EG6H60DC8-1, EG6H60DC14-1, EG6H80DC14-1, EG6H80DC20-1, EG6H100DC20-1, EDG6H40DC8-1, EDG6H60DC8-1, EDG6H60DC14-1, EDG6H80DC14-1, EDG6H100DC20-1, EG7H40DC12-1, EG7H60DC14-1, EG7H80DC16-1, EG7H100DC20-1, GUJ050D10-1, GUJ075D10-1, GUJ075D14-1, GUJ100D12-1, GUJ100D14-1, GUJ100D20-1, GUJ125D14-1, GUJ125D20-1, GUJ150D20-1, GUJ075D09-1, GUJ050D10L-1, GUJ075D10L-1, GUJ075D14L-1, GUJ100D12L-1, GUJ100D14L-1, GUJ100D20L-1, GUJ125D14L-1, GUJ125D20L-1, GUJ150D20L-1, GUJ075D09L-1, GUJ050D10-2, GUJ075D10-2, GUJ075D14-2, GUJ100D12-2, GUJ100D14-2, GUJ100D20-2, GUJ125D14-2, GUJ125D20-2, GUJ150D20-2, GUJ075D09-2, GUJ050D10L-2, GUJ075D10L-2, GUJ075D14L-2, GUJ100D12L-2, GUJ100D14L-2, GUJ100D20L-2, GUJ125D14L-2, GUJ125D20L-2, GUJ150D20L-2, GUJ075D09L-2, GUJ050D10-3, GUJ075D10-3, GUJ075D14-3, GUJ100D12-3, GUJ100D14-3, GUJ100D20-3, GUJ125D14-3, GUJ125D20-3, GUJ150D20-3, GUJ075D09-3, GUJ050D10L-3 and many more models. Replaces: R40403-001, R40403-002, 20054502 Operating Line Voltage: 85 to 135 VAC, 50/60Hz Secondary Control Voltage: 18.0 to 30.0 VAC, 50/60Hz Maximum Blower Loading: 15FLA, 30LRA @ 120 VAC; 7.5FLA, 15LRA @ 240 VAC Maximum Inducer Loading: 3FLA, 10LRA @ 120 VAC; 1.5FLA, 5LRA @ 240 VAC
