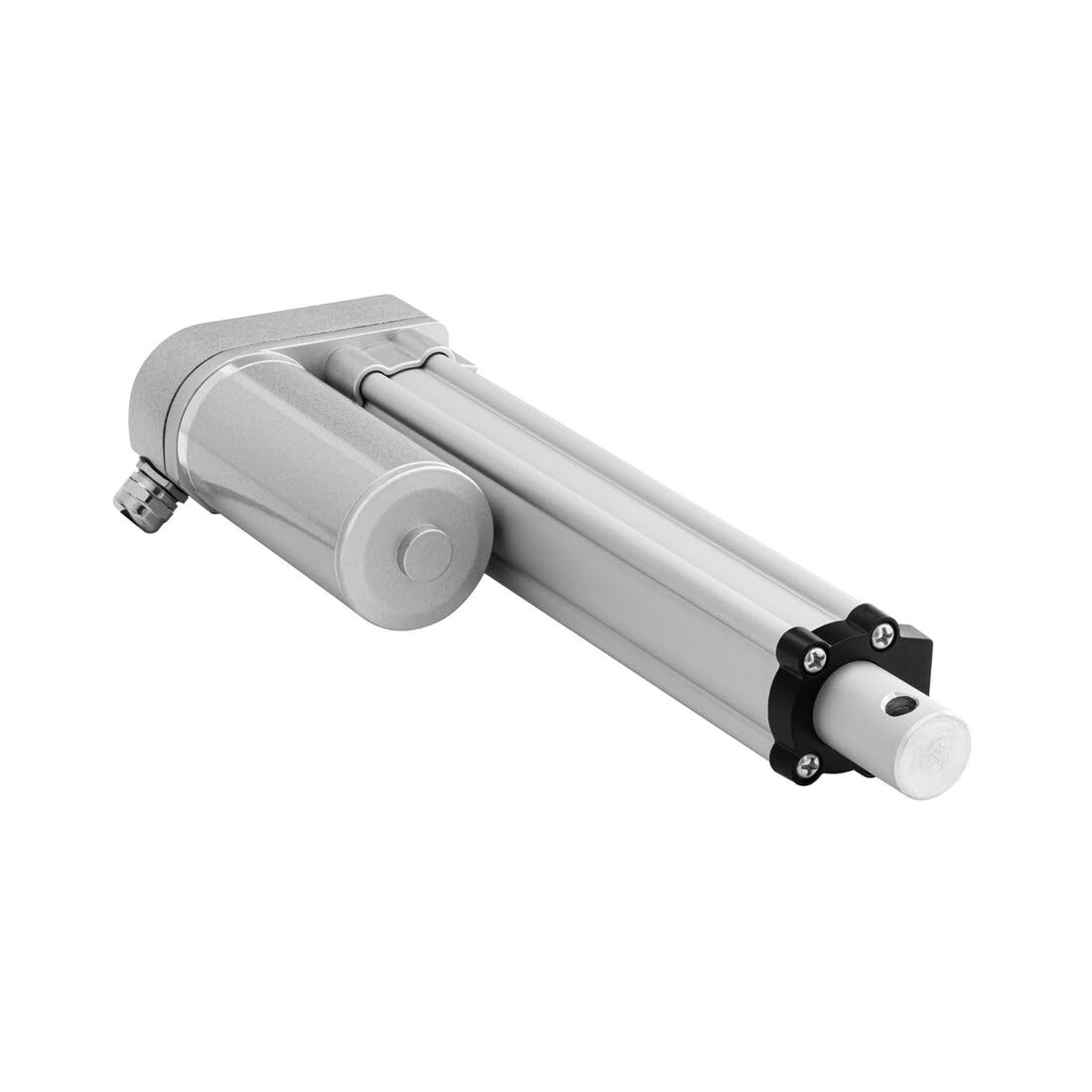

Progressive Automations 12V Mini Linear Actuator IP65 Brushed DC Electric Motor
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Brand | Progressive Automations |
| Unit Type | Unit |
| Voltage | 12V |
| Model | PA-01 |

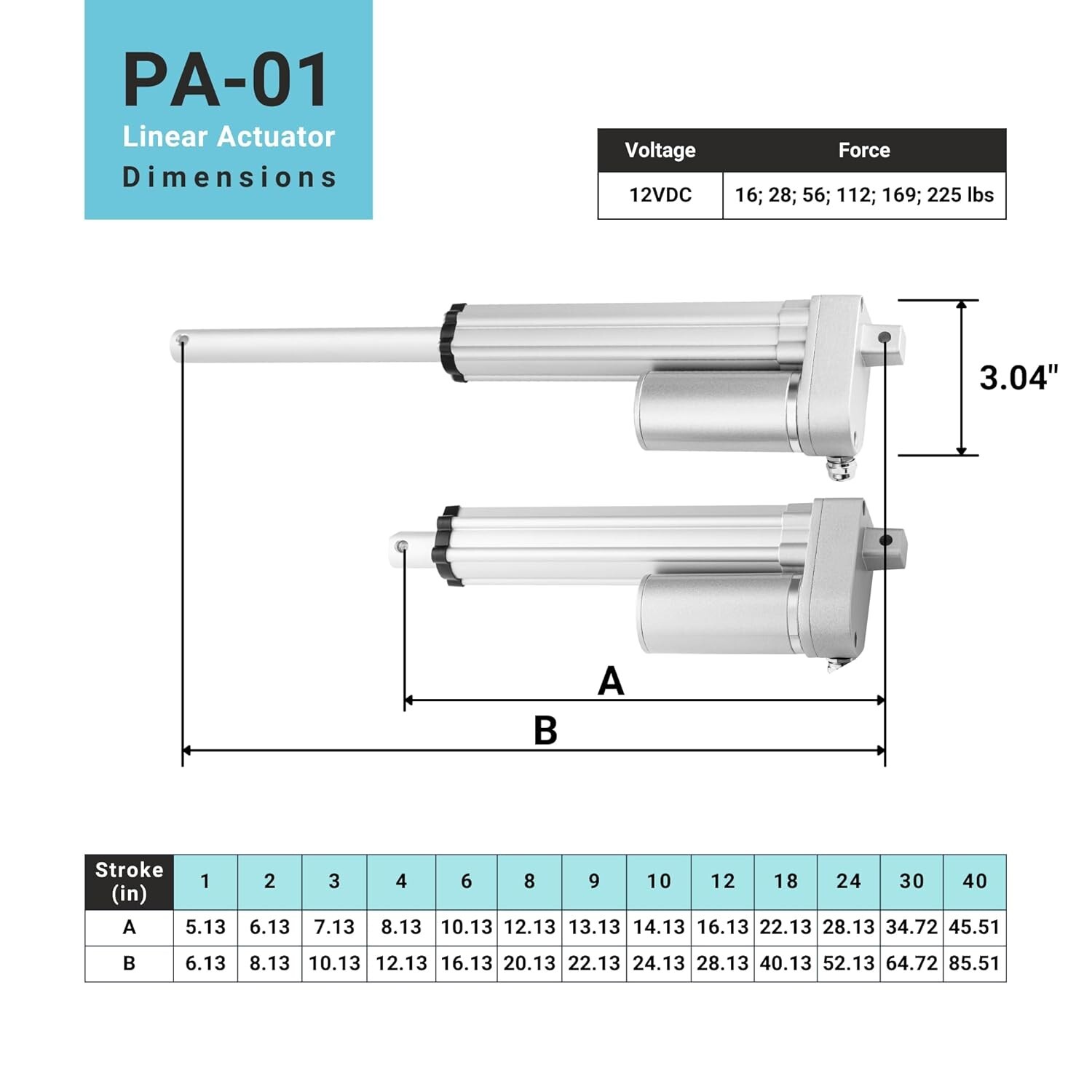

| Stroke Length | 20mm (1 in) |
| Country/Region Of Manufacture | China |
| Rated Load | 112 lbs |

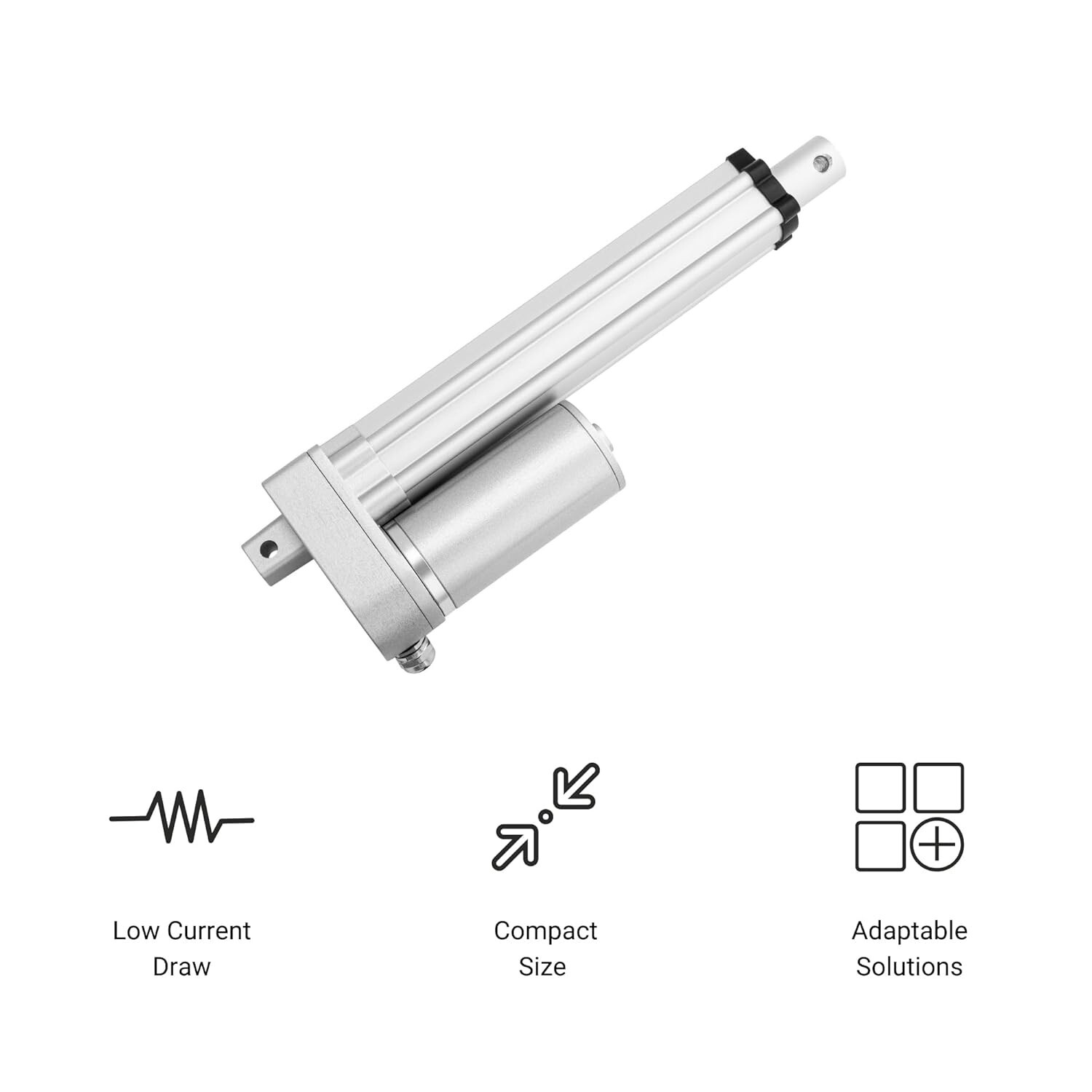

The PA-01 linear actuator has a compact design available off the shelf in 12VDC option, a wide stroke range from 1” to 12”, and ratings that can handle a dynamic and static force ranging from 16 lbs to 225 lbs. High-quality materials such as the stainless steel stroke rod and aluminum alloy housing combined with a water-resistant IP65 protection rating ensure high protection for the PA-01 mini actuator to handle harsh environments. The PA-01 actuator has a low current draw ideal for industries such as food and beverages, home automation, general automation, and medical industries. Our small electric actuator features a standard 2-Pin Molex Mini-Fit Jr connector, simplifying installation and integration into existing systems. Progressive Automations is ISO 9001:2015 certified and committed to bringing top-quality products to ensure durability and performance that serves you well over the years! Use Cases - Compact with medium force capabilities, the PA-01 linear actuator has a low current draw ideal for industries such as food and beverages, home automation, general automation, and medical industries.
