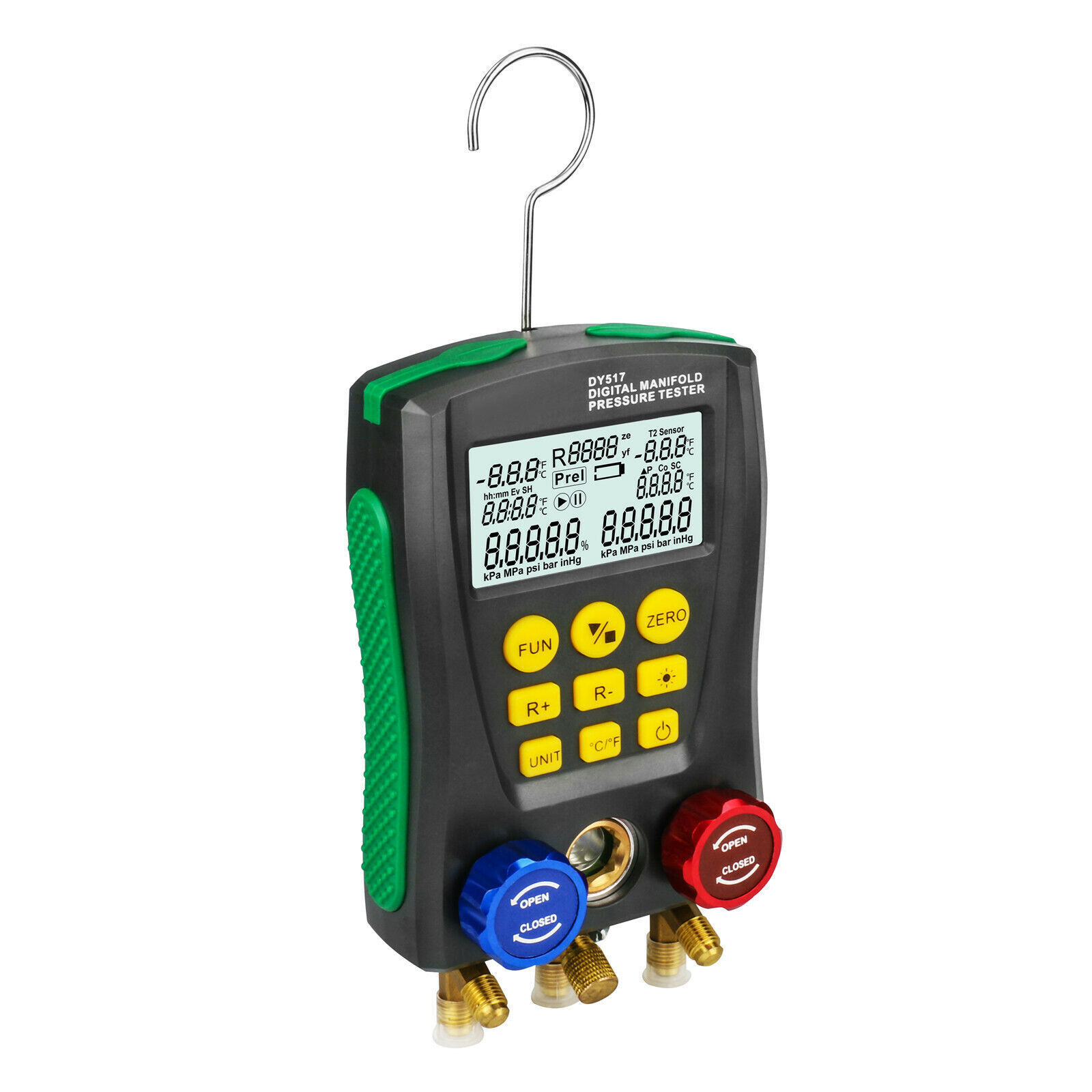

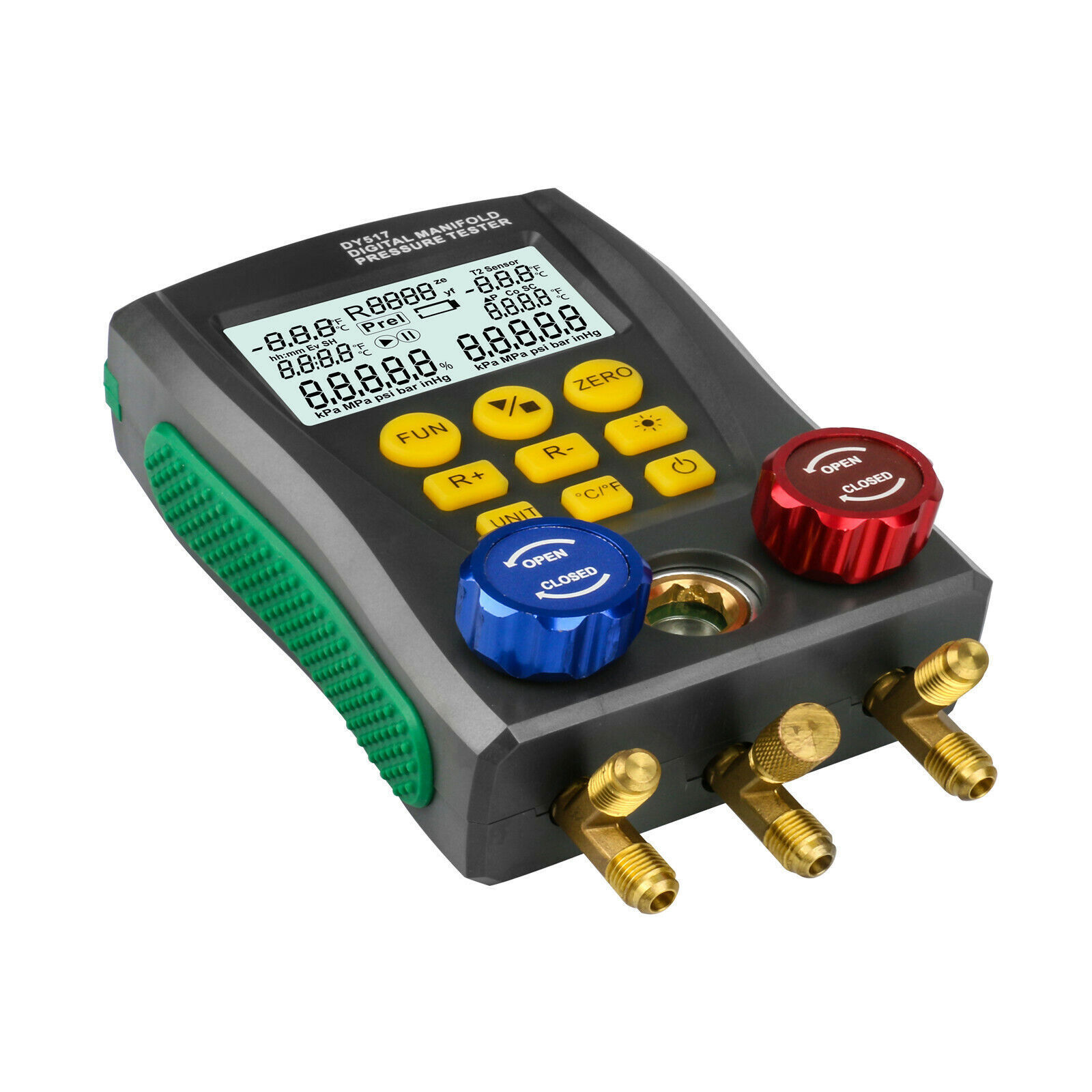

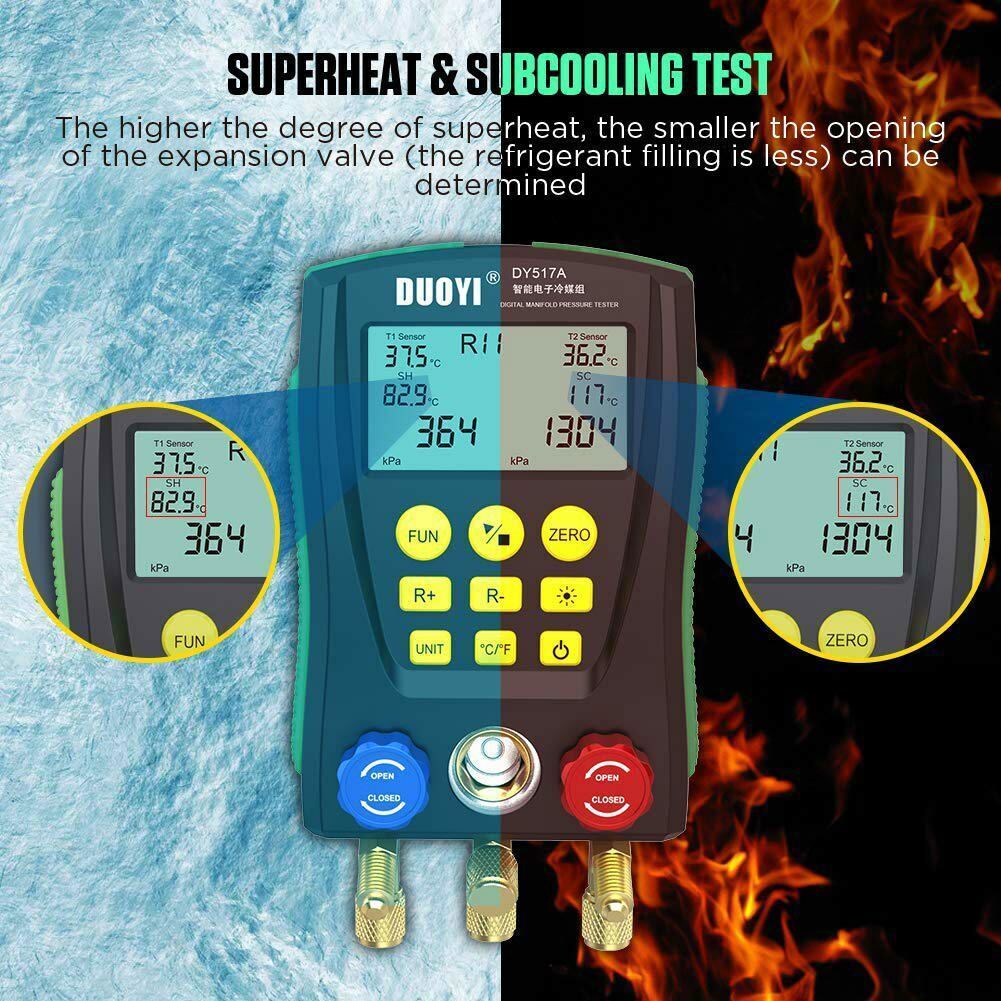

Professional Refrigeration Manifold Gauge Kit – Digital HVAC System Tester
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Brand | DUOYI |
| Country/Region Of Manufacture | China |
| Gauge Purpose | Pressure |
| Refrigerant | R-12 |
| Gauge Fill | Liquid |

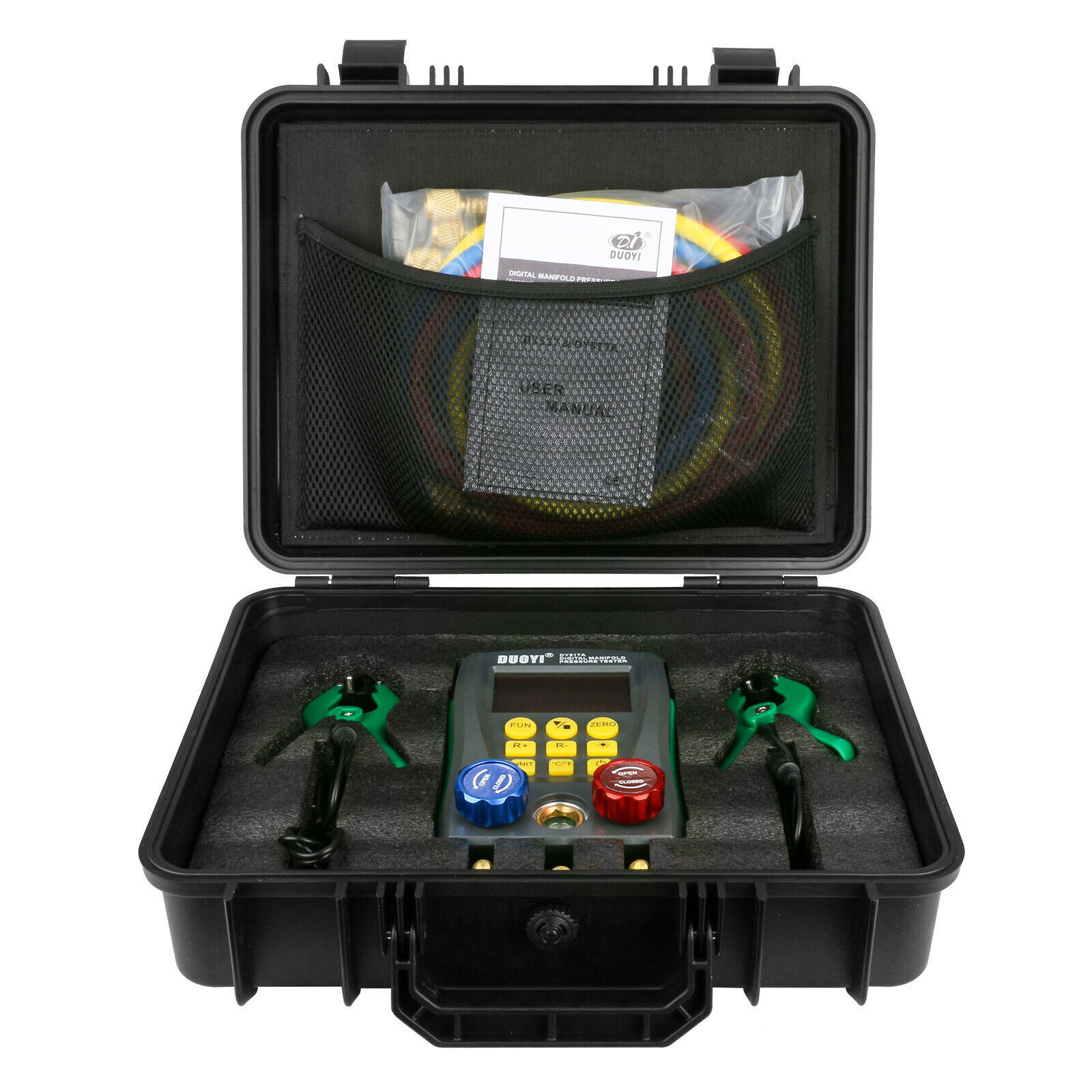

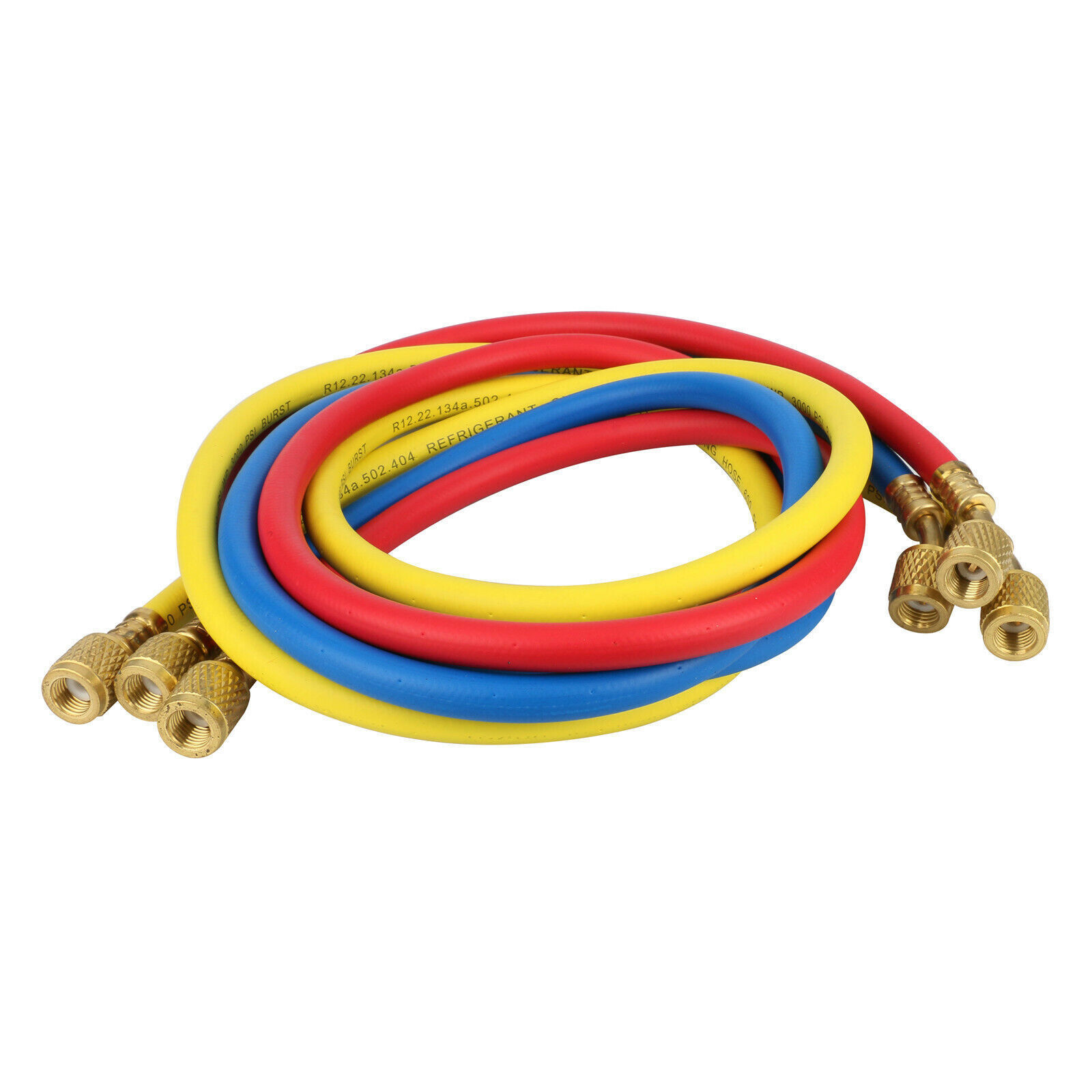

| Items Included | Blue Low Side Hose |
| MPN | DY517A |
| Model | DY517A |
| Item Weight | 3.1kg |
| Features | Digital |
| Color | Black |
| Item Width | 120mm（4.72inch） |
| Item Length | 210mm（8.27inch） |
| Manufacturer Warranty | 1 Year |
| Pressure Test Resolution | 1 Kpa |
| Pressure Test Accuracy | +/- 0.5 %(FS)+ 5dgt |
| Vacuum Test | Relative Vacuum |
| Vacuum Test Resolution | 1 Kpa |

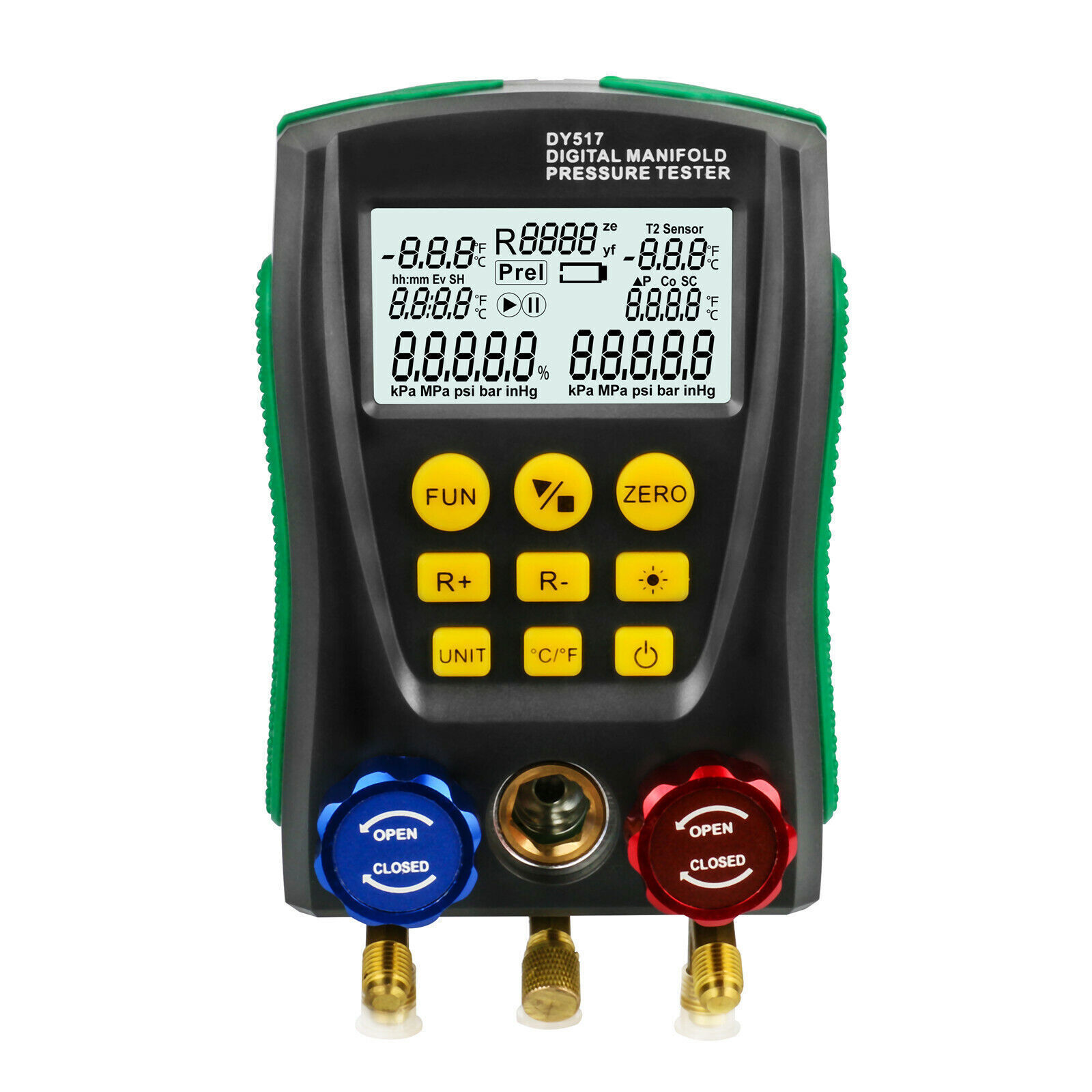

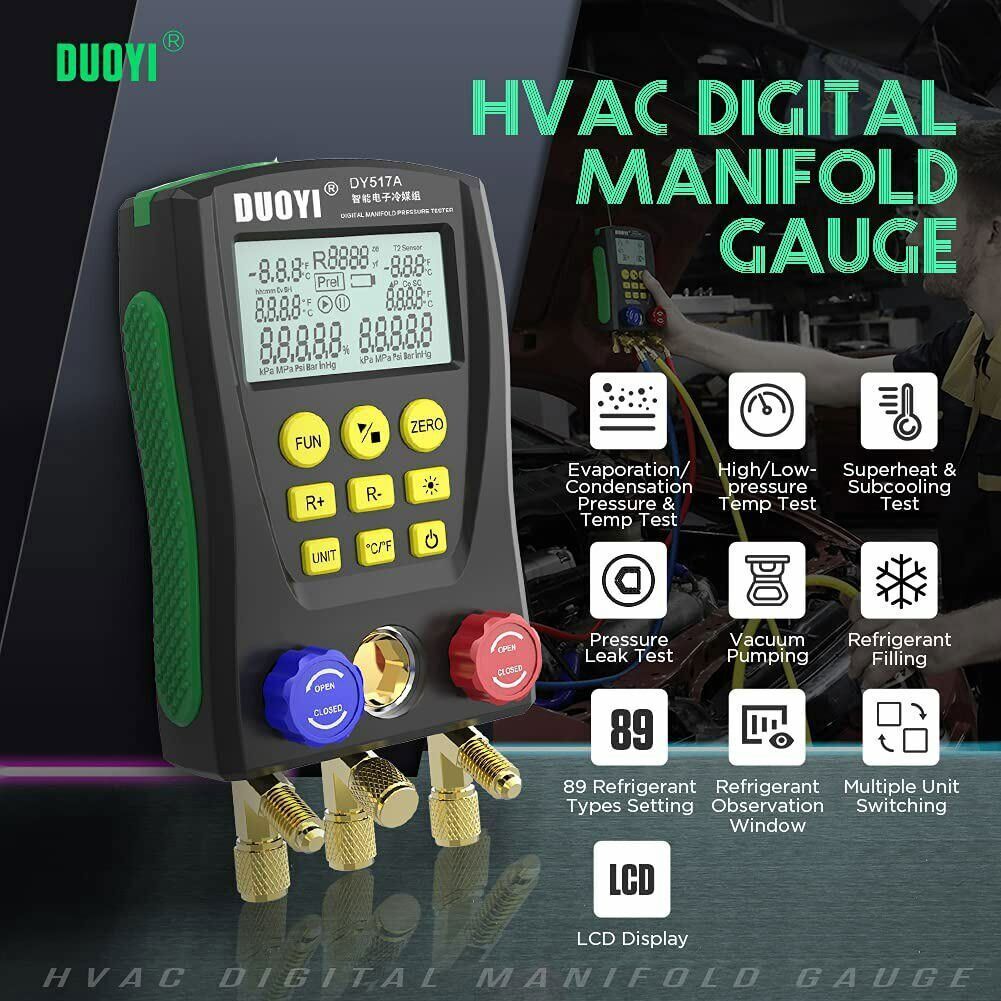

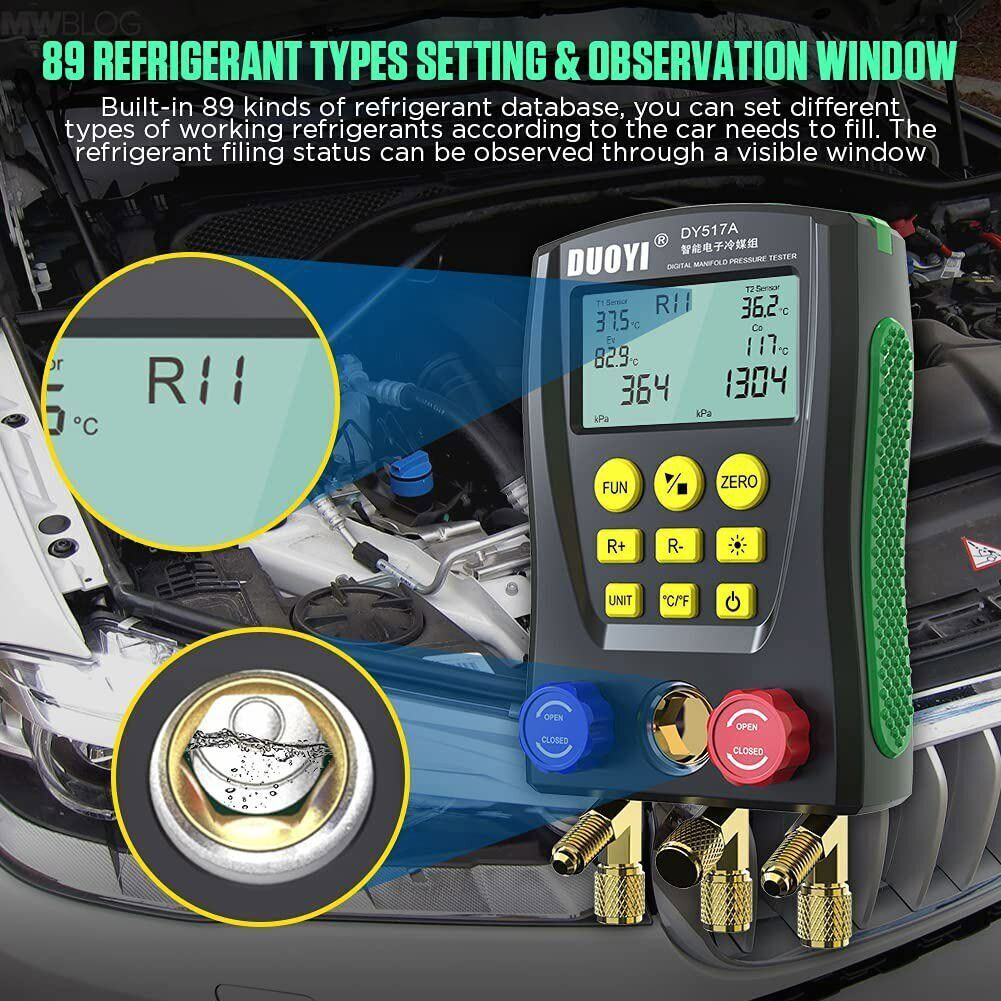

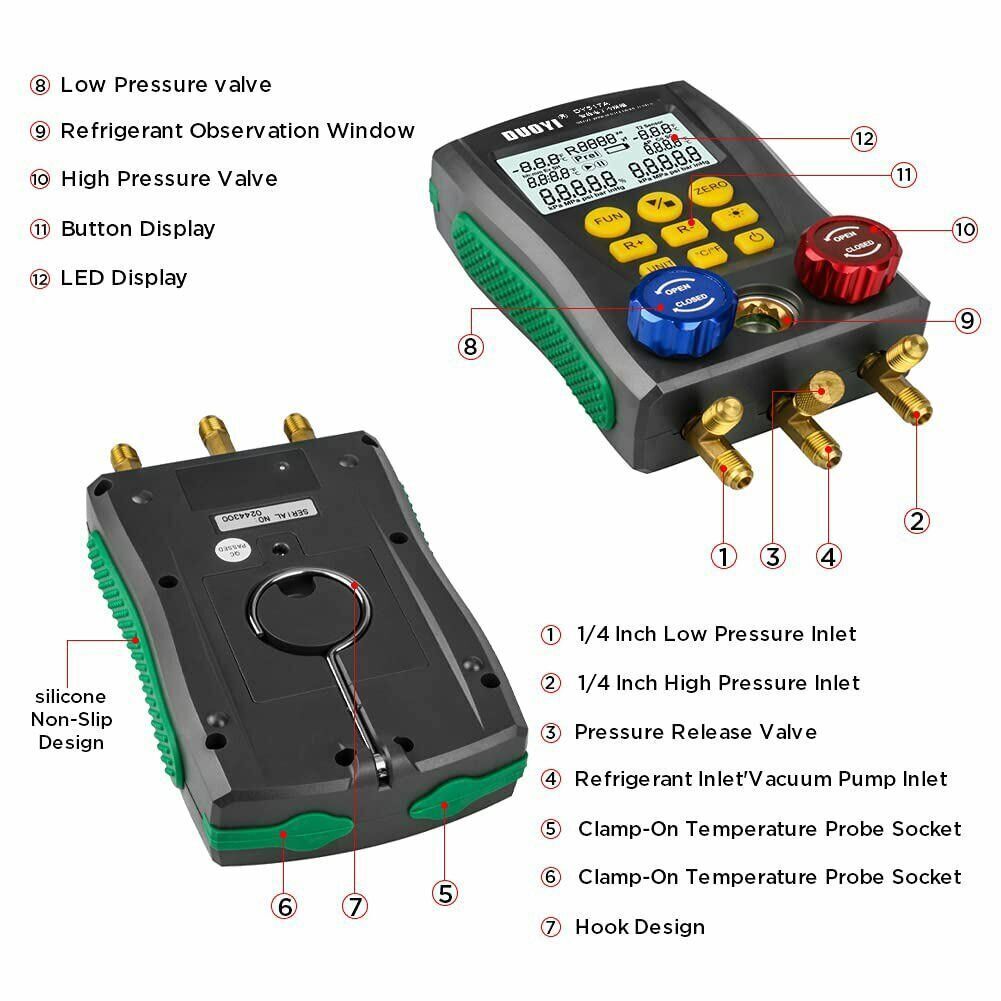

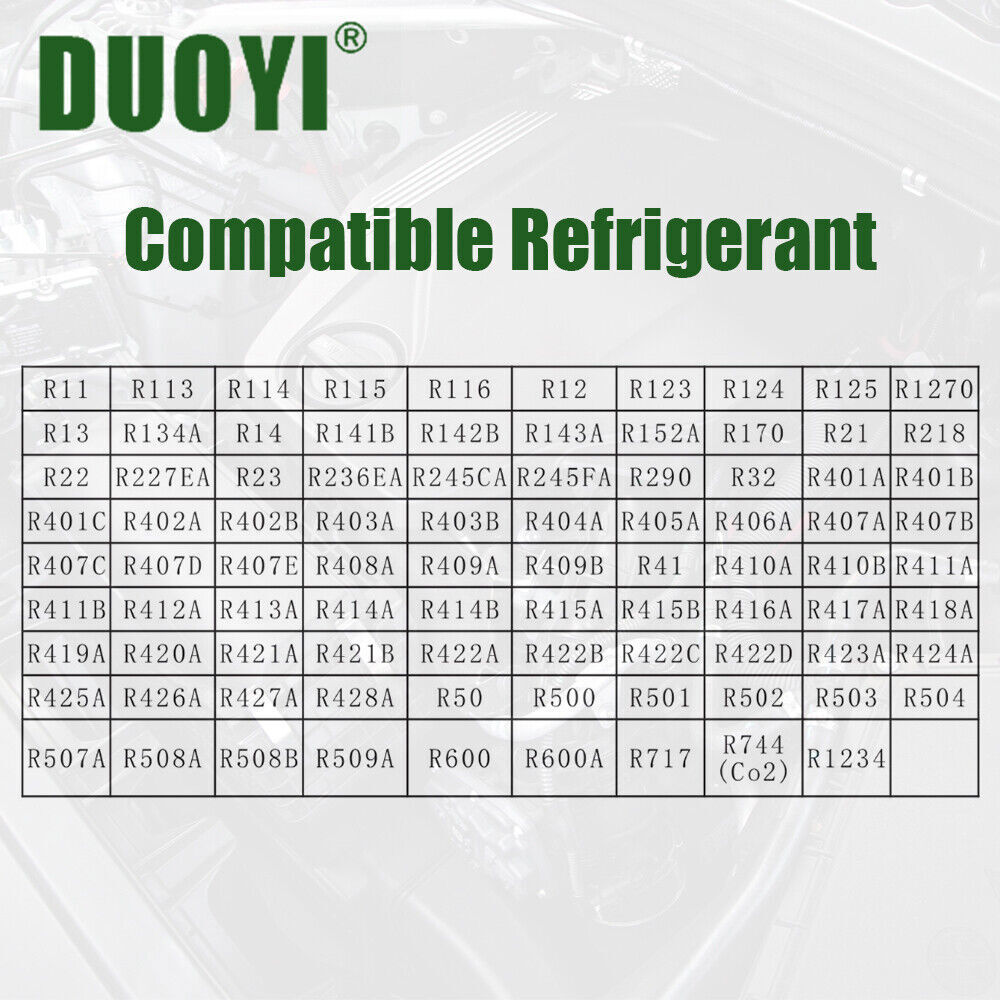

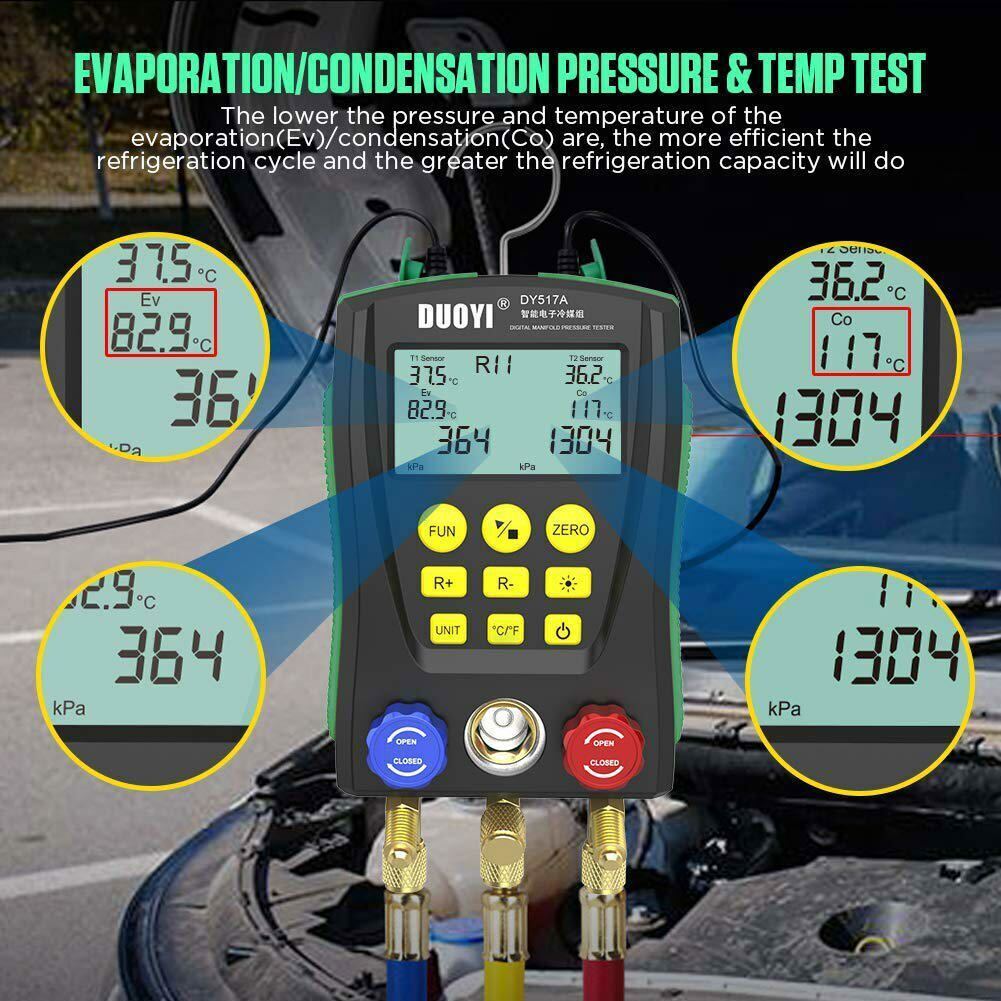

Refrigeration Manifold Gauge Meter AC/HVAC Pressure Vacuum Temperature Test Kit Description The intelligent electronic refrigerant group instrument is an auxiliary instrument for the installation, testing and maintenance of refrigeration equipment such as air conditioners,fridge and cold storage. The instrument has double pressure test, dual temperature test , digital readout, multi-unit switching, multi-mode function and built-in refrigerant database. The instrument uses high-strength engineering plastics and flexible non-slip silicone design, the whole machine is solid and comfortable to hold. Built-in 32-bit digital processing unit and high-precision data acquisition unit, high data and stability. Large-size liquid crystal display, LCD backlight support, data display clear and easy to read, convenient light operation. Long-life valve switch, 1/4-inch standard interface design to ensure that the instrument's durability and versatility. Refrigeration Digital Manifold Gauge Built-in 89 kinds of refrigerant NIST: According to AmericanNIST standard Product features The instrument uses high-strength engineering plastics and flexible non-slip silicone design.High data and stability.Large-size liquid crystal display.Long-life valve switch.Built-in 89 kinds of refrigerant pressure-evaporation temperature database.It tests percentage of vacuum measurement.Multi-functional、accurate. Package List 1 * Refrigerantion Digital Manifold Gauge1 * User Manual2 * Temperature Clip3 * Test PipePackage List:1 * Refrigerantion Digital Manifold Gauge1 * User Manual2 * Temperature Clip3 * Test Pipe Specifications Pressure test: gauge pressurePressure test unit: Kpa; Mpa; bar; inHg; PSI.Pressure test range: 0 Kpa – 6000 KpaPressure test resolution: 1 KpaPressure test accuracy: +/- 0.5 %(FS)+ 5dgtPressure overload limit: 10000 Kpa (10 Mpa; 100 bar;)Vacuum test: relative vacuumVacuum test unit: Kpa; Mpa; bar; inHg; PSI.Vacuum test range: -101 Kpa – 0 KpaVacuum test resolution: 1 KpaTemperature test unit: °C (Celsius), °F (Fahrenheit)Temperature test range: -40°C–150°C (-40°F–302°F)Temperature test resolution:0.1°C (-40°C–99.9°C), 1°C (100°C–150°C)0.1°F (-40°F–99.9°F), 1°F (100°F–302°F)Temperature test accuracy: +/- 0.5 °C + 2dgt +/- 0.9 °F + 2dgtBuilt-in 89 kinds of refrigerant NIST: According to American NIST standardPower Supply: 4 X 1.5V (SIZE.AA / LR6) Battery not includeDimensions: 170*110*50mm weight: 950g EC/EN61010-1 Safety Standards for Design and Production. 1) The pressure measured by the digtal manifold pressure tester is gauge pressure.2) Pressure testing ranges from -101Kpa to 6Mpa (-0.1bar to 60bar).3) The limit pressure is 10 Mpa (100 bar).4) The maximum operating pressure of standard hose is 600 PSI ( approximate 4.13 Mpa, 41.3 bar ). The limit pressure is 3000 PSI approximate 20.68 Mpa, 206.8 bar ).5) Please confirm the rated pressure value of the tested equipment before testing. Do not use it if it exceeds the range of the instrument. Also for DY517A, if the packedhoses does not match the pressure requirement, you can use suitable replacements for testing.6) Do not use and store the instrument in high temperature, high humidity, flammable, explosive and strong electromagnetic fields.7) Please do not change the instrument internal circuit, to avoid any damage of the instrument or danger occurring.8) Please wear qualified protective equipment to protect user during testing.9) Please use the instrument in a well-ventilated environment to prevent inhalation of toxic gases.
