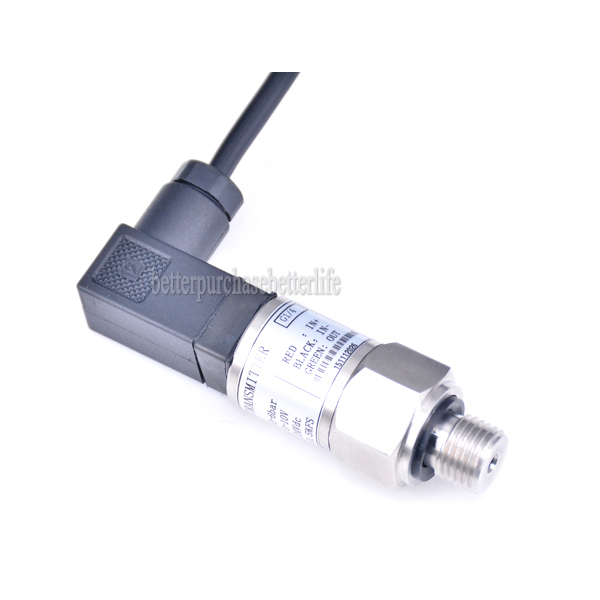

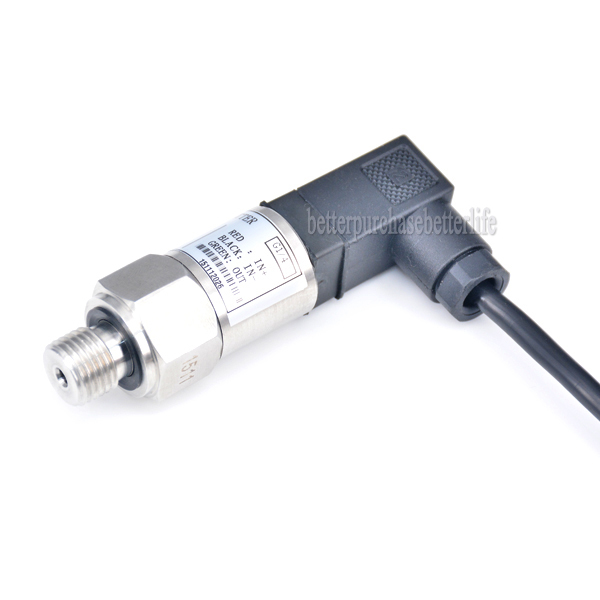

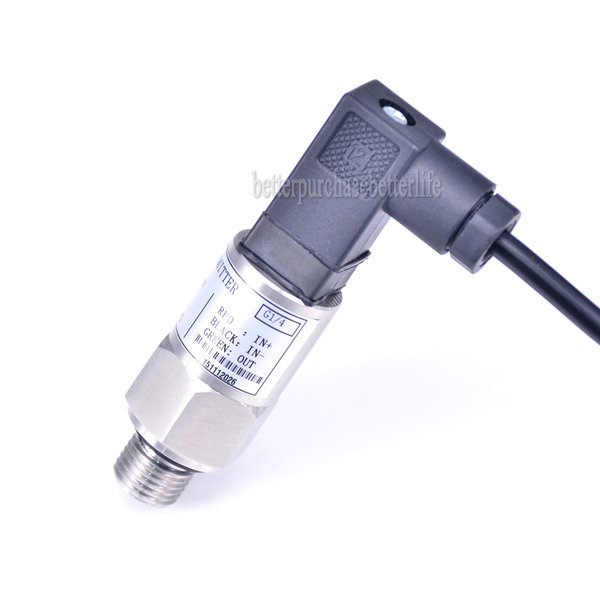

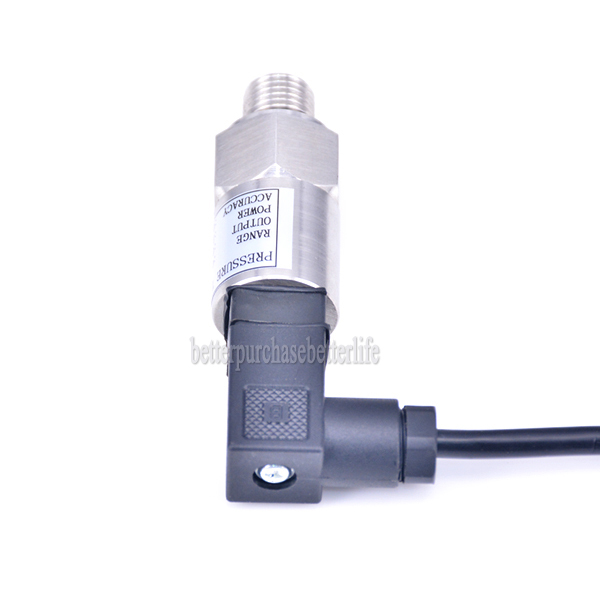

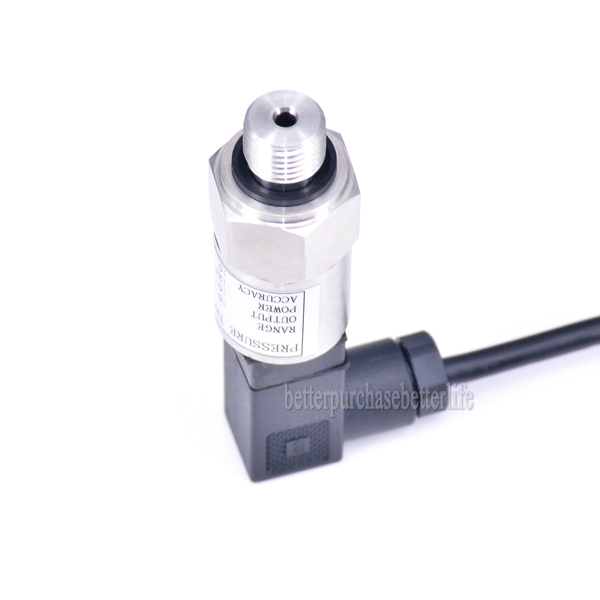

Pressure Transmitter Pressure Transducer 0-10bar 9-32VDC G1/4 4-20mA output 0.5%
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Brand | BENXU |
| MPN | BX-PT208 |
| Country/Region Of Manufacture | China |
| Certificate | CE and RoHS |
| Other Model | Can be Customized |
Parameters:Capacity Range:0-10bar(gauge pressure);Comprehensive Precision:0.5%FS;Output Signal:4-20mA;Overload Capacity:2-4 timesUsing Temperature Range:-40 to 110C;Power Supply:9-32VDC;Pressure Medium:Non-corrosive liquid or air;Temperature Effect on Zero:Typical:0.02%FS/C;Maximal:0.05%FS/C;Temperature Drift on Sensitivity:Typical:0.02%FS/C;Maximal:0.05%FS/C;Shock Resistance:1000g;Housing Material:Stainless Steel;Pressure Connection:DIN type;Blast Proof Class:ExiaIICT6;Long-term Stability:less than 0.1%FS/year;Defend Grade:IP68;Pressure Connection:G1/4;Cable Connection:Red(IN+); Black(IN-) Applications:Air compressor and pump;Liquid pressure and air pressure system;Energy resources and water treatment system;Refrigerating equipment;Automatic detection system;Locomotive brake;Environmental protection field;Agriculture application and mechanical automation. Have stocks for following parameters:0-10bar;0-16bar;0-25bar;0-40bar;0-59bar with G1/4 or NPT1/4 connection,the items can be customized according to the technical parameters.Please view in our store:http://stores.ebay.com/Ahead-Instruments-and-Electronics/Pressure-Transmitter-/_i.html?_fsub=5475108013&_sid=1086435763&_trksid=p4634.c0.m322 Suitable display meter for the pressure transmitter:http://www.ebay.com/itm/Pressure-Transducer-Display-Meter-Sensor-Display-Meter-Output-4-20mA-0-3-F-S-/182090423573?hash=item2a656f5d15 Shipping:1,Delivery time: e-Packet to USA: 10-15 working days; China Post with tracking number to Europe,Asia and other developed countries:15-20 working days; China Post with tracking number to other countries:15-60 working days;Sometimes the delay will be taken place on account of the weekends,bad weather,holiday etc,so please be more patient.2,We will arrange the shipment according to the address from paypal the buyer provided,so please confirm and check the address details you leave when purchase.3,You can choose DHL,UPS,FedEx,TNT or EMS if need in rush,please ask for the freight charge,don't leave us PO box address if choose those fast shipping method.4,We always lower down the declared value to avoid the customs duty from our clients.5,Any tracking information updated will inform you in time,you can also get the tracking information from official website.
