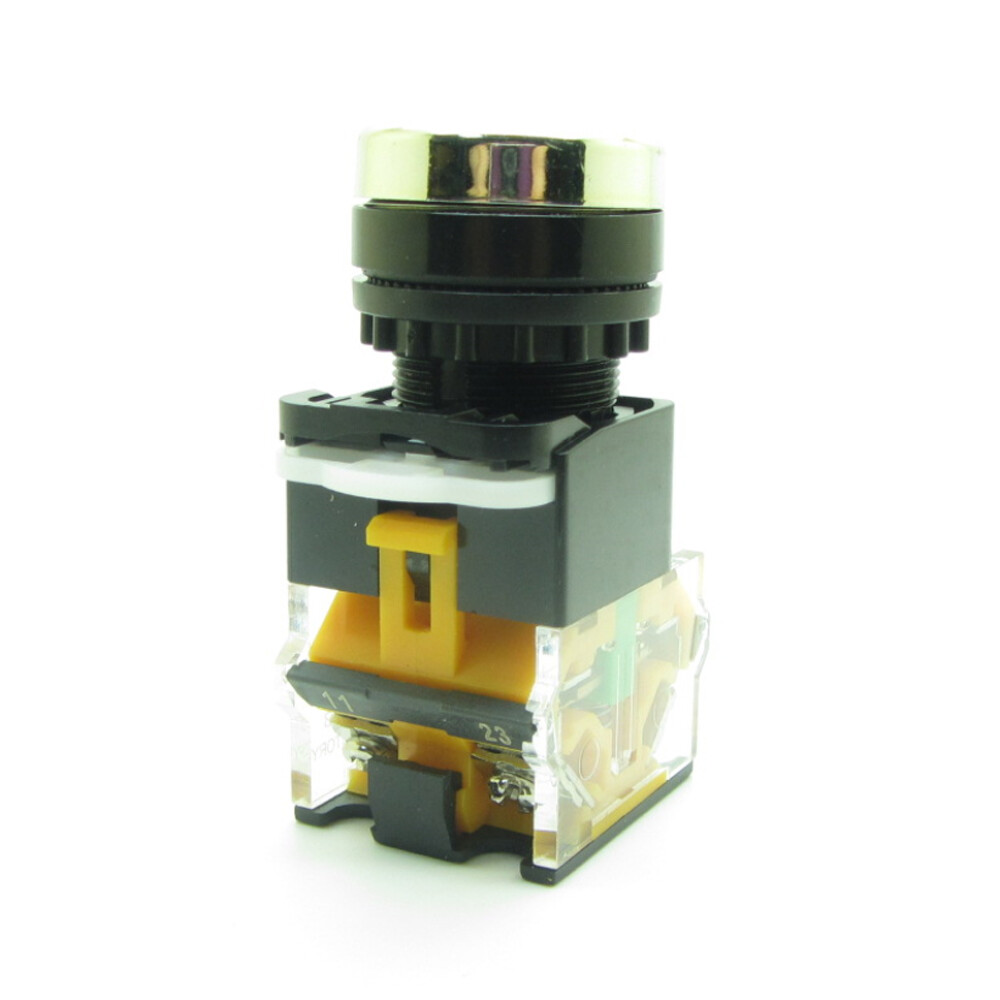

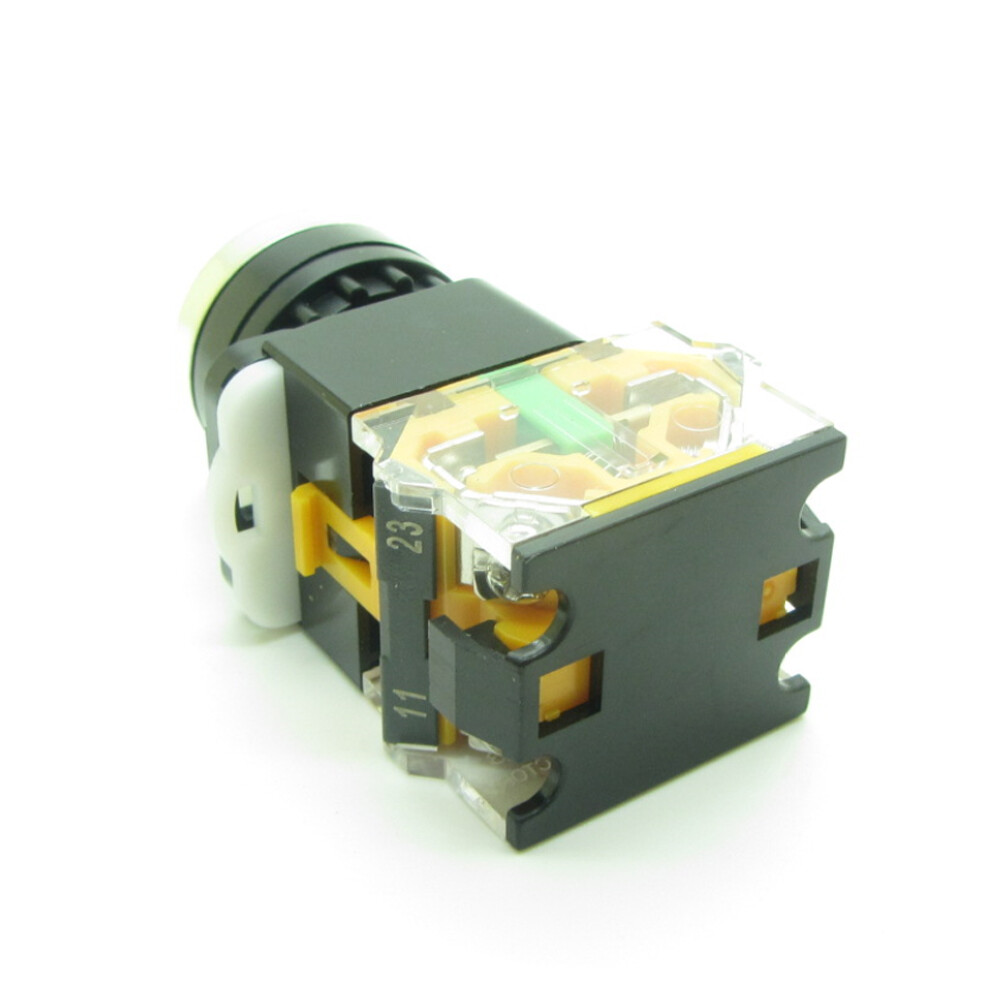

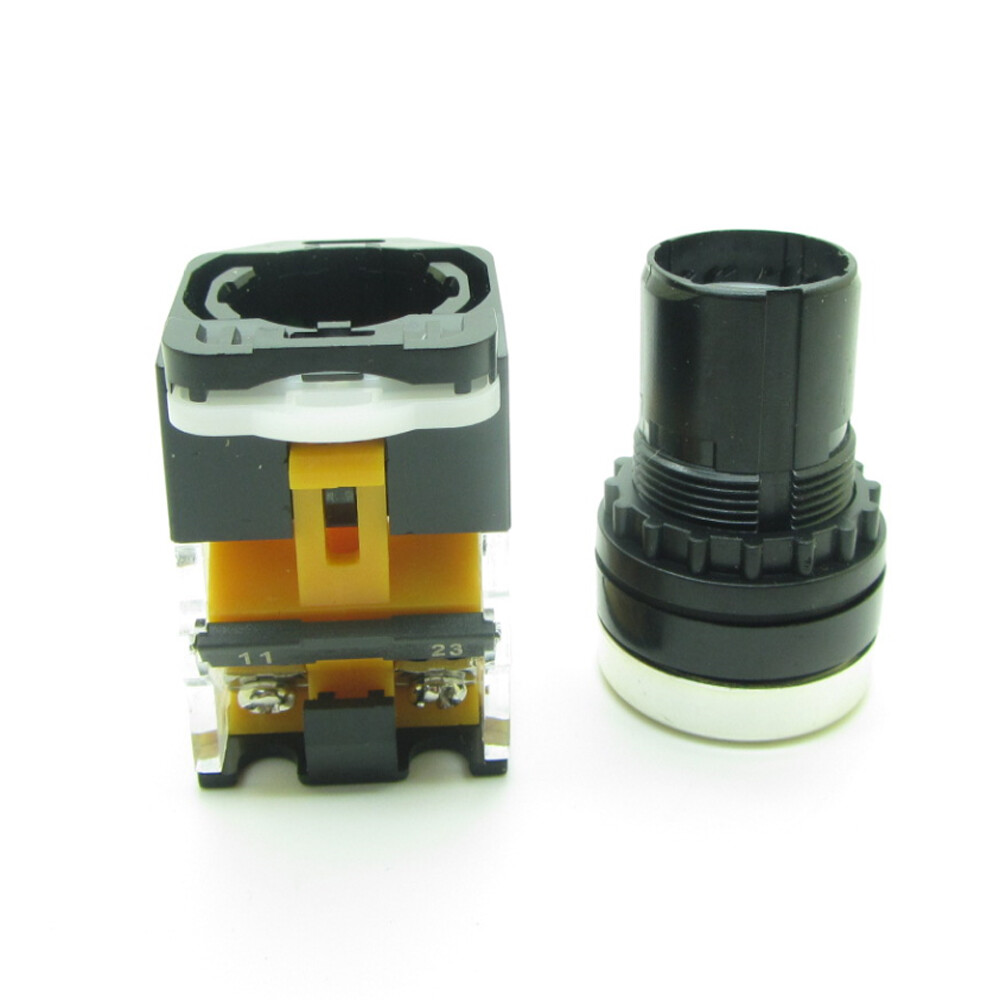

Press Push Button Switch Power Starter Round Panel 22mm Momentary Latching 10A
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 60 Days |
| Current Rating | 0-10 A |
| Maximum Amperage | 10 A |
| Mounting Style | Panel |
| Current Type | AC/DC |
| Switch Style | Push Button/Retractive |
| Type | Momentary / Latching |
| Features | On/Off Switch |
| Contact Material | Brass |
| MPN | LA38-11S/R/G/B/Y/W |
| Operation Method | On/Off |
| Brand | Unbranded |
| Suitable For | Interior |
| Application | Automotive |
| Termination Type | Screw |

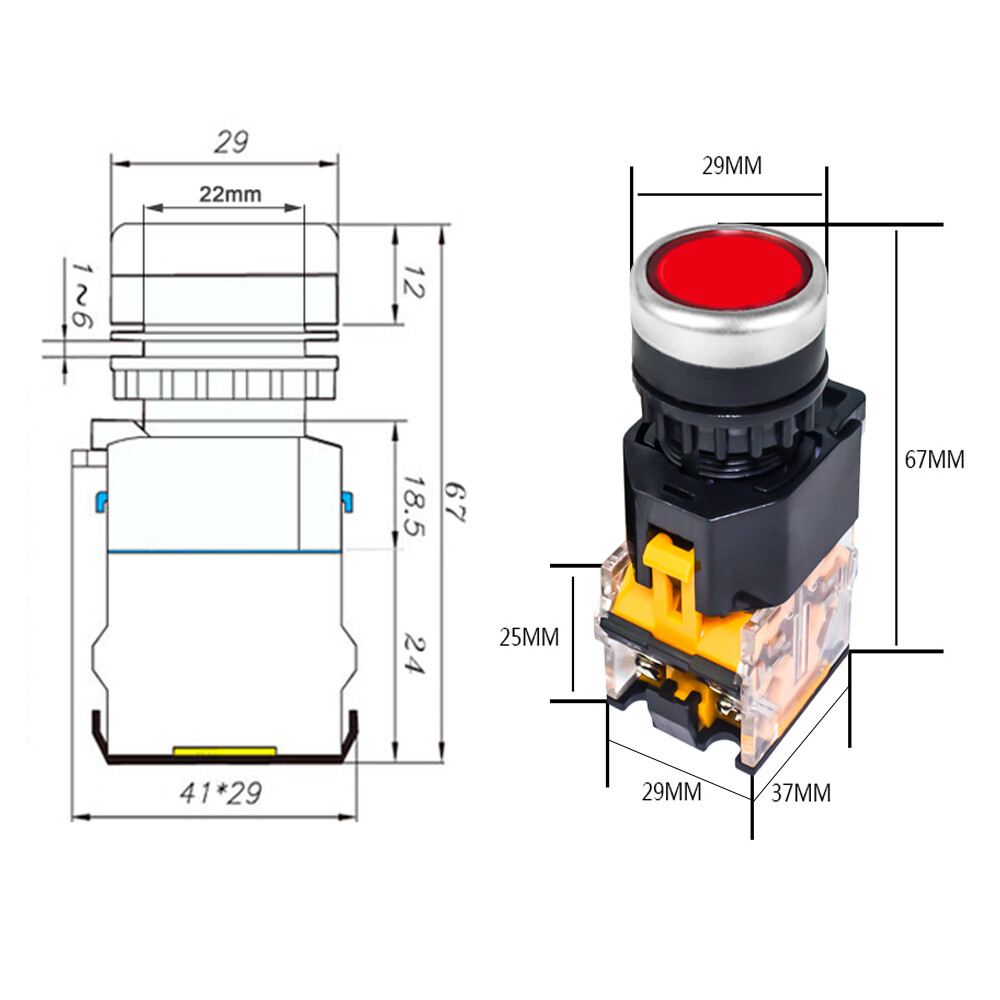

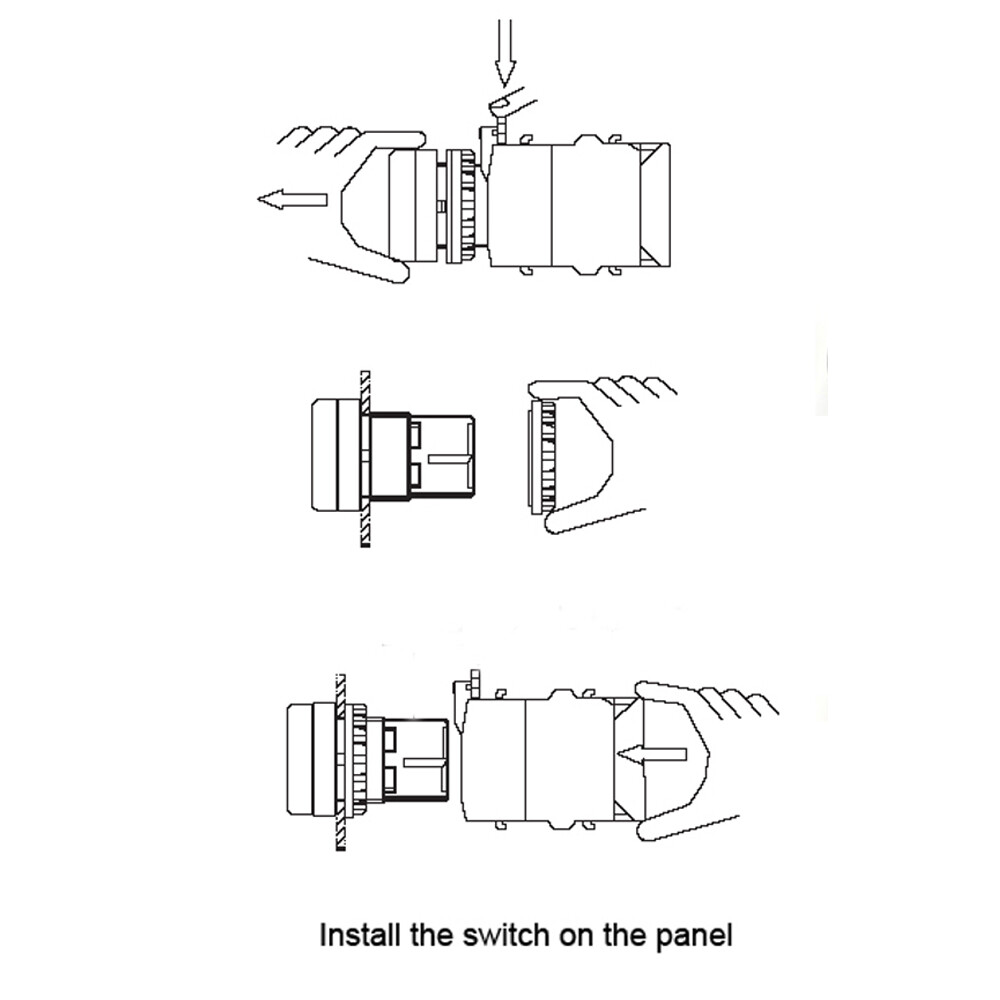

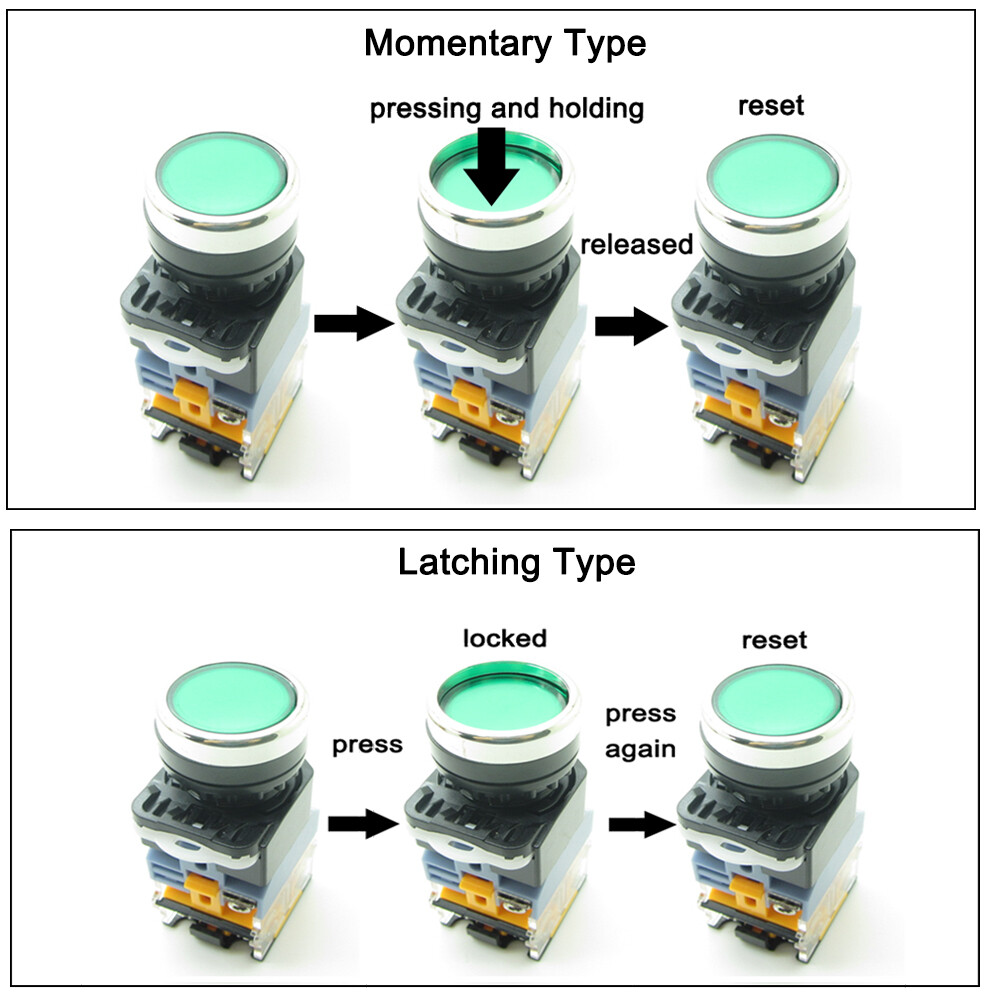

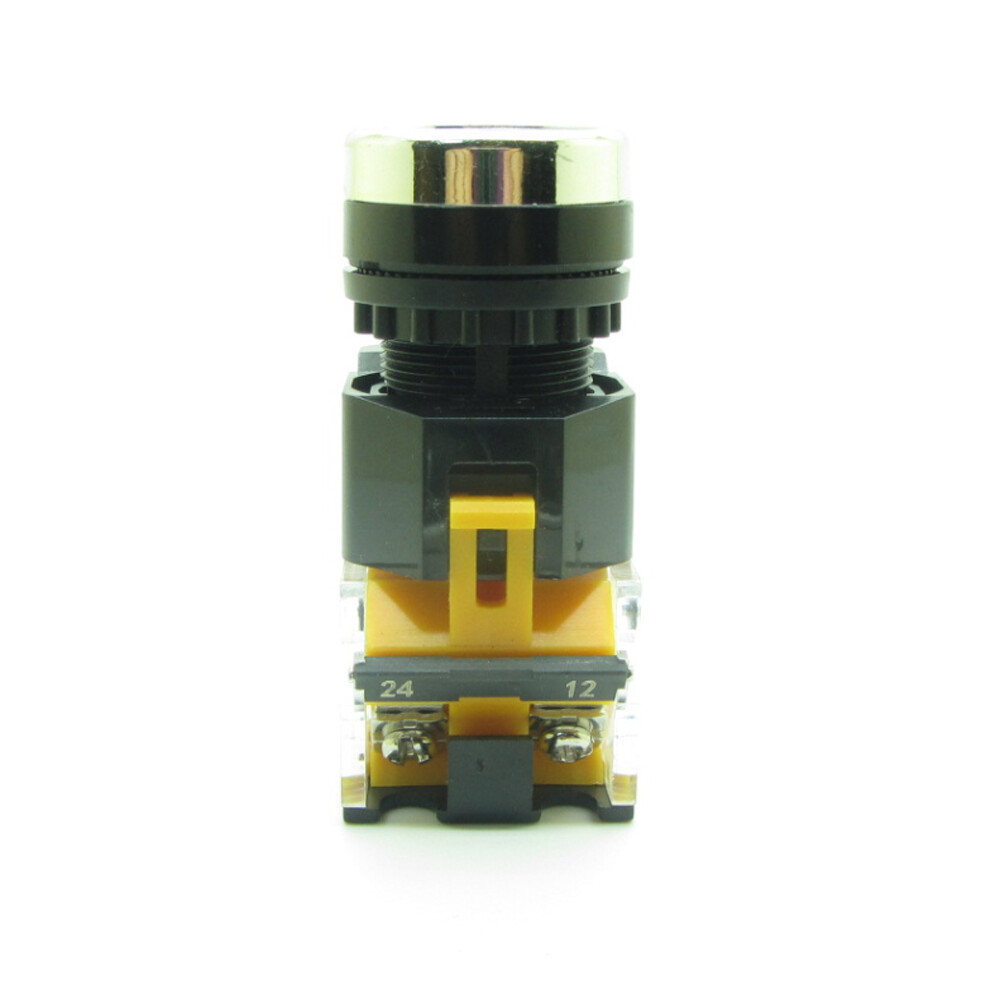

Specification Action Type:Momentary/Latching(please select) Momentary:Push and hold to ON,release to OFF Latching:Push to ON and LOCKED,push again to OFF Push Button Color:Red/Green/Blue/Yellow/White (please select) Contact Type:1 NO+1 NC Contact Rating:380V 10A(max.) Number of Terminals:4 screws N.O.(normally open):number 23-24 N.C.(normally closed):number 11-12 Mounting Hole:22mm(0.87") Mounting Panel Thickness:0-6mm (0-0.24") Overall Size:41x29x67mm(1.61"x1.42"x2.64") LxWxH Package content: 1 x Switch Payment All payment must be received within 14 days after the auction ends / purchasing day. Shipping Item will be shipped to worldwide by air-mail to your eBay registered address. If you need to change your address. please make an annotation or leave us a message when you pay through PayPal. We usually ship the order within 1 business days( excluding Saturday and Sunday) .It takes about 11-23 business days for you to get the package. If you want express shipping ,please contact us. Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer’s responsibility.
