Plug and Play 4S 100A 12v 16.8v Li-ion Lithium BMS Battery Balance

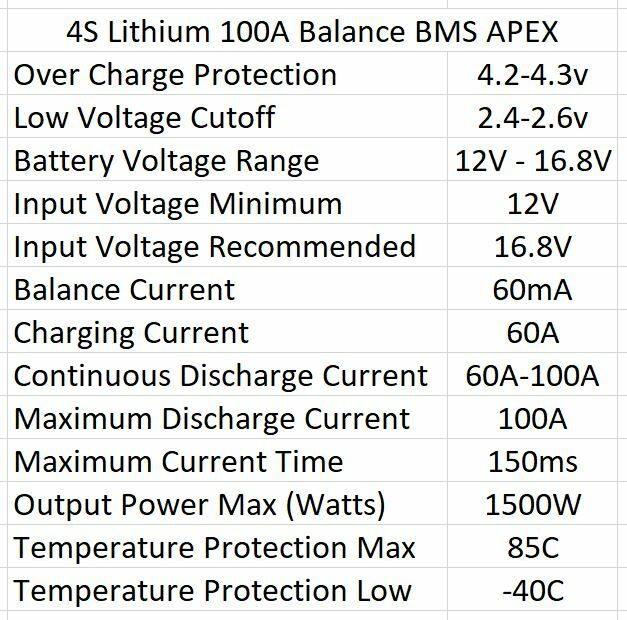

Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Nominal Voltage Rating (DC) | 12 V |
| Maximum Continuous Output Current | 100 A |
| Nominal Current Rating | 100 A |
| Nominal Voltage Rating (AC) | 12 V |
| Current Conversion | DC to DC |

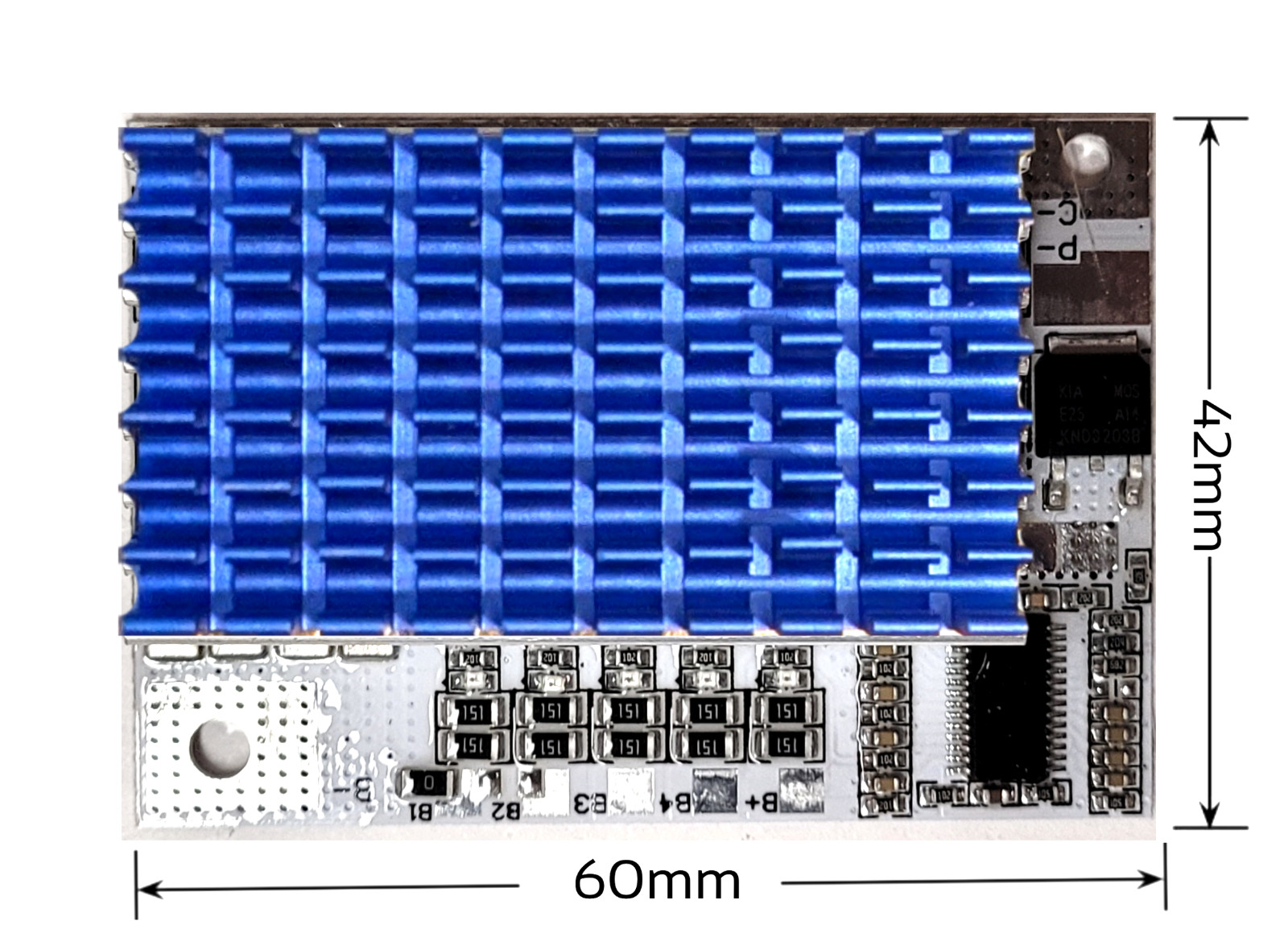

| Size | 6cm x 4.2cm |
| Color | White |
| Nominal Power Rating | 1200W |
| Charging Voltage | 16.8V |
| MPN | Does Not Apply |
| Minimum Operating Temperature | -40 °C (-40 °F) |
| Brand | APEX |
| Type | BMS |
| Output Voltage Rating (DC) | 16.8v |
| Inrush Current Rating | 60 A |
| Input Voltage Range | 12V - 16.8V |
| Maximum Operating Temperature | 85 °C (185 °F) |
| Country/Region Of Manufacture | United States |
| Output Voltage Range | 12V - 16.8V |
| Maximum Peak Output Current | 100 A |

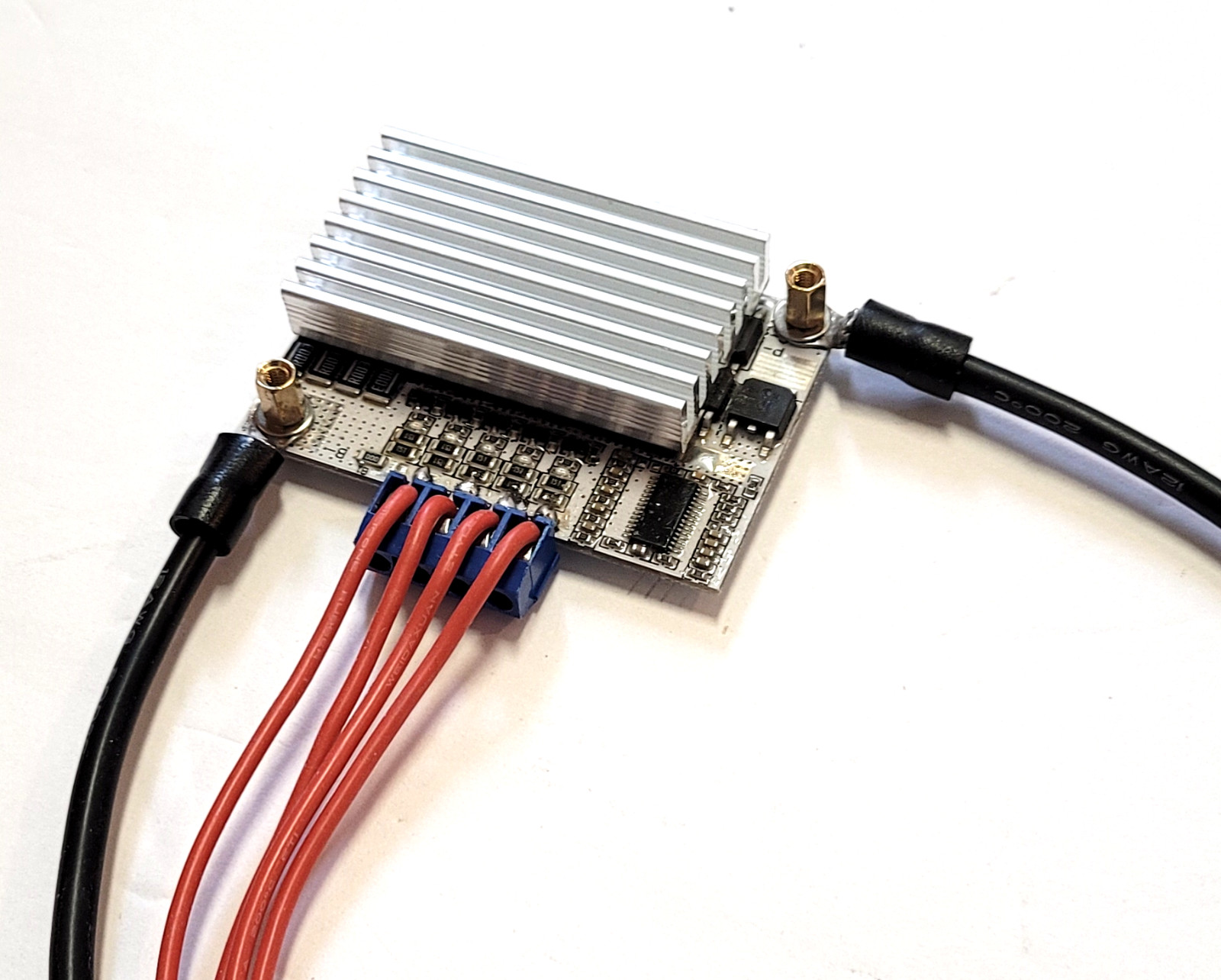

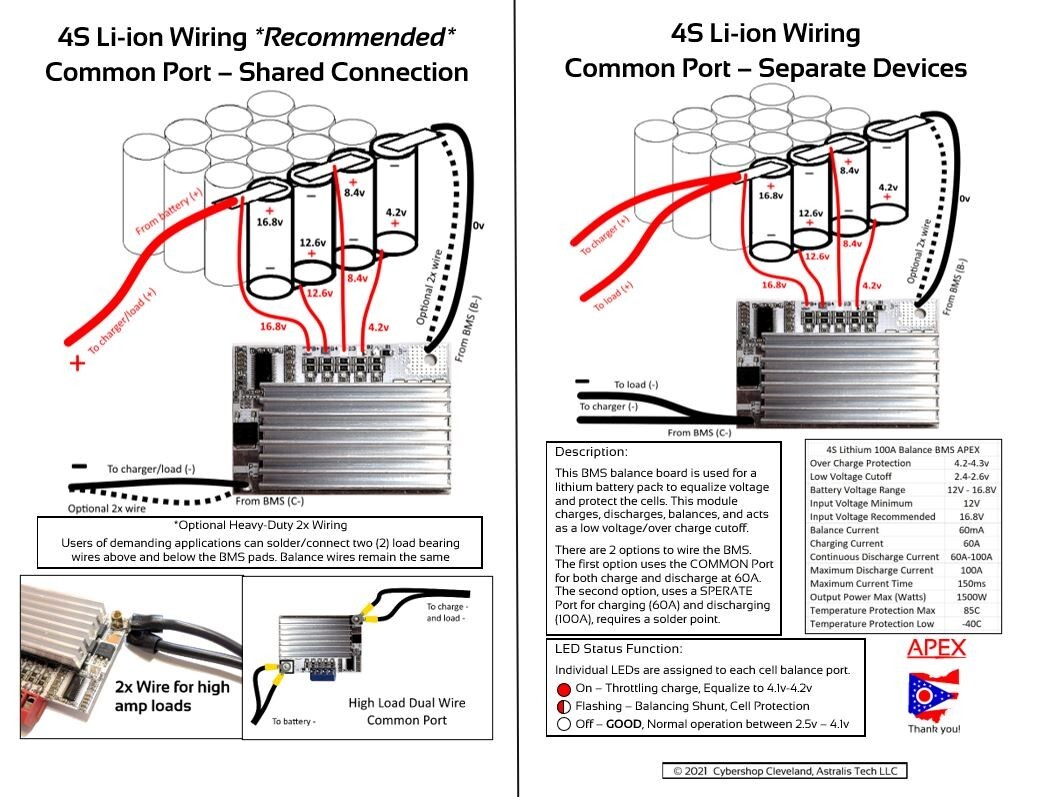

Note: This BMS is a custom model that comes pre assembled for easy install (no soldering needed) and is for Lithium-ion (Li-ion) and certain Lithium-polymer (LiPo) batteries. LiFePO4 based BMS boards are in my other listings. We offer professional design consultation and services. Please let us know about your project! Purchase price of item will be credited a full 100% towards consultation information and services. Billed @$65 per hour, in 15min increments. Description: This BMS balance board is used for a lithium battery pack to equalize voltage and protect the cells. This module charges, discharges, balances, and acts as a low voltage/over charge cutoff. We have pre installed a screw based connection block for the easy connection of balance wires to the BMS. The BMS is assembled to use a COMMON Port setup for both charge and discharge at 60A (continuous) and discharge at 100A (burst). The following is the BMS parts list: (1) BMS Board Lithium-ion (Li-ion), Lithium-polymer (LiPo)(2) Ring Terminal Connectors M3, 8-16AWG Wire Compatibility (2) Ring Terminal Screws and Washers(1) Pre-installed balance wire connection block, 16-24AWG Wire Compatibility *Wires are not included. Balance wires of 16-24AWG will fit in the balance connection terminal and primary wires of 8-16AWG can be used in the ring connectors. Larger gauge primary wires can be used with larger ring connectors or solder points. Battery compatibility: Voltage of 2.5V - 4.2V lithium battery (18650, 26650, LiPo, Li-ion)Charging input voltage: 16.8VMaximum starting current: 100AMaximum continuous current: 60ACharge current: 60AMaximum continuous current (additional solder point): 100ABoard Size: approx. 42*60*7.4mmPackage includes: 1 x Li-ion Lithium Battery Protection Board Condition is New. Shipped with USPS First Class.
