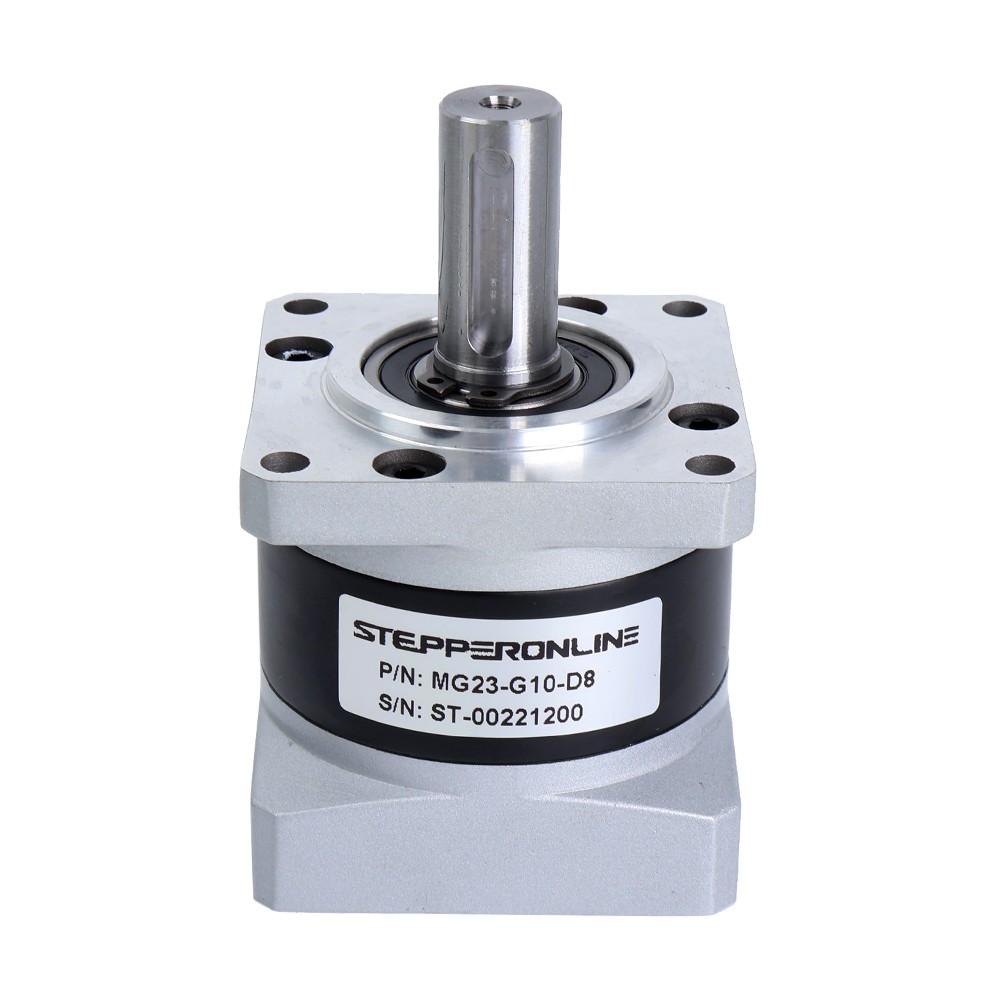

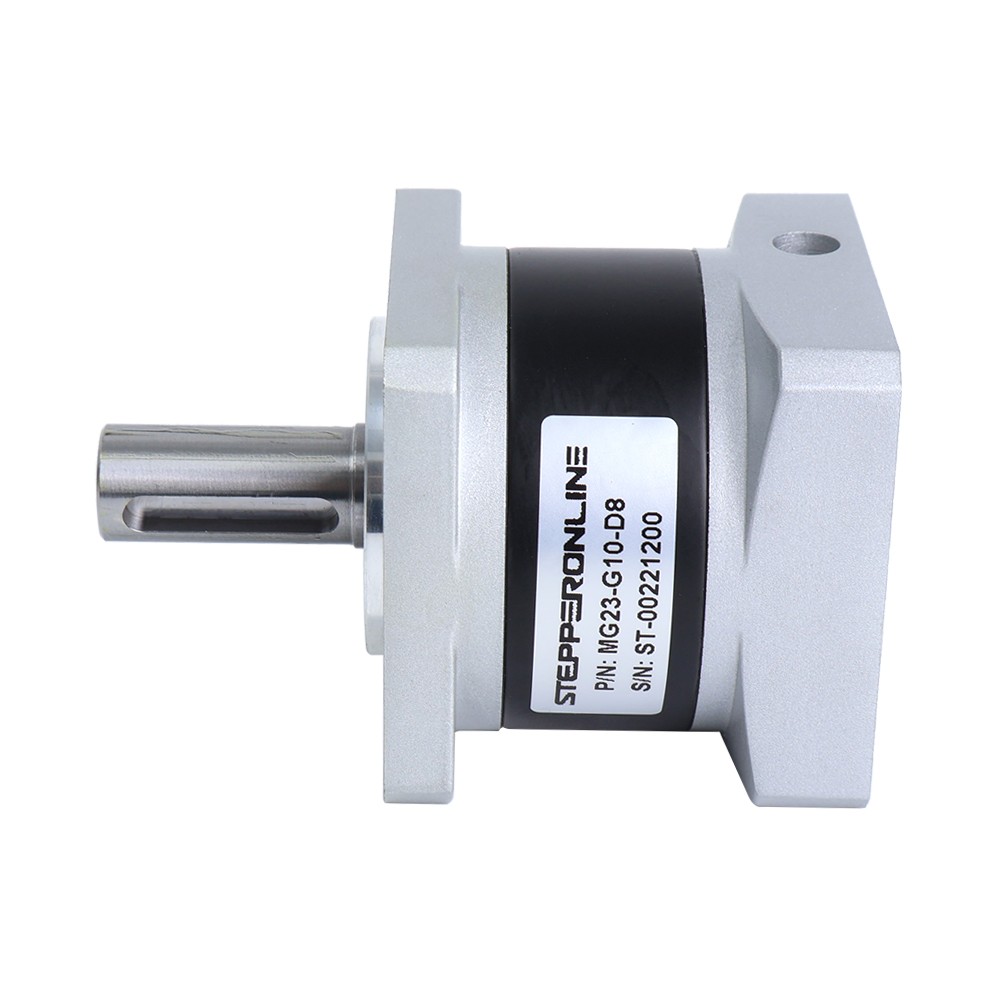

Planetary Gearbox 10:1 Backlash 30arc-min for 8mm Shaft Nema 23 Stepper Motor
Planetary Gearbox 10:1 Backlash 30arc-min for 8mm Shaft Nema 23 Stepper Motor Planetary Gearbox 10:1 Backlash 30arc-min for 8mm Shaft Nema 23 Stepper Motor Planetary Gearbox 10:1 Backlash 30arc-min for 8mm Shaft Nema 23 Stepper Motor

Planetary Gearbox 10:1 Backlash 30arc-min for 8mm Shaft Nema 23 Stepper Motor

USD 34.10 USD
SKU: ffYW3fHo
Brand: STEPPERONLINE
MPN: MG23-G10-D8
GTIN: 742803047164
Condition: New
Tags: 0.13kg·cm² 0742803047164 1-30 min. 101 34mm 55.5mm 742803047164 8-14mm 8mm China IP54 Key way MG23-G10-D8 Powder Metallurgy Spur Planetary STEPPERONLINE Φ14mm
Categories: Woodworking Equipment

Specifications

Country Of OriginChina
BrandSTEPPERONLINE
Nominal Ratio10:1
MPNMG23-G10-D8
UPC742803047164
EAN0742803047164
Output Shaft DiameterΦ14mm
Output Shaft TypeKey way
Rotor Inertia0.13kg·cm²
Gearbox Length55.5mm
Gearbox TypeSpur Planetary
Input Shaft Length8-14mm
Output Shaft Length34mm
Waterproof RatingIP54
Input Shaft Diameter :8mm
Gear Material:Powder Metallurgy

This high-precision planetary gearbox is belong to MG series gearbox, it with gear ratio 10:1 and a maximum 30arc-min backlash. Backlash at No-load: <=30arcmin. Gearbox Type: Planetary. Note : When the rated input speed of the gearbox is 1000RPM, the noise value is <=55dB; when the rated input speed is 3000RPM, the noise value is <=65dB.
