Pittman 9234 High Torque 5.9:1 Ratio Gearbox Motor – 24V DC – 1000 RPM – 3/16 D.
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Full Load Amps | 1.5 A |
| MPN | GM99234E992 |
| Actual Rated Input Voltage | 24 V |
| DC Stator/Winding Type | Permanent Magnet |
| Shaft Type | Straight |
| Nominal Rated Input Voltage | 24 V |
| Model | GM9234 |
| Starting/Locked Rotor Torque | 242 oz-in |
| Reversible/Non-Reversible | Reversible |
| Rated/Full-Load Torque | 36 oz-in |
| Shaft Diameter | 0.188 in |
| Base RPM | 1000 RPM |
| Brand | Pittman |

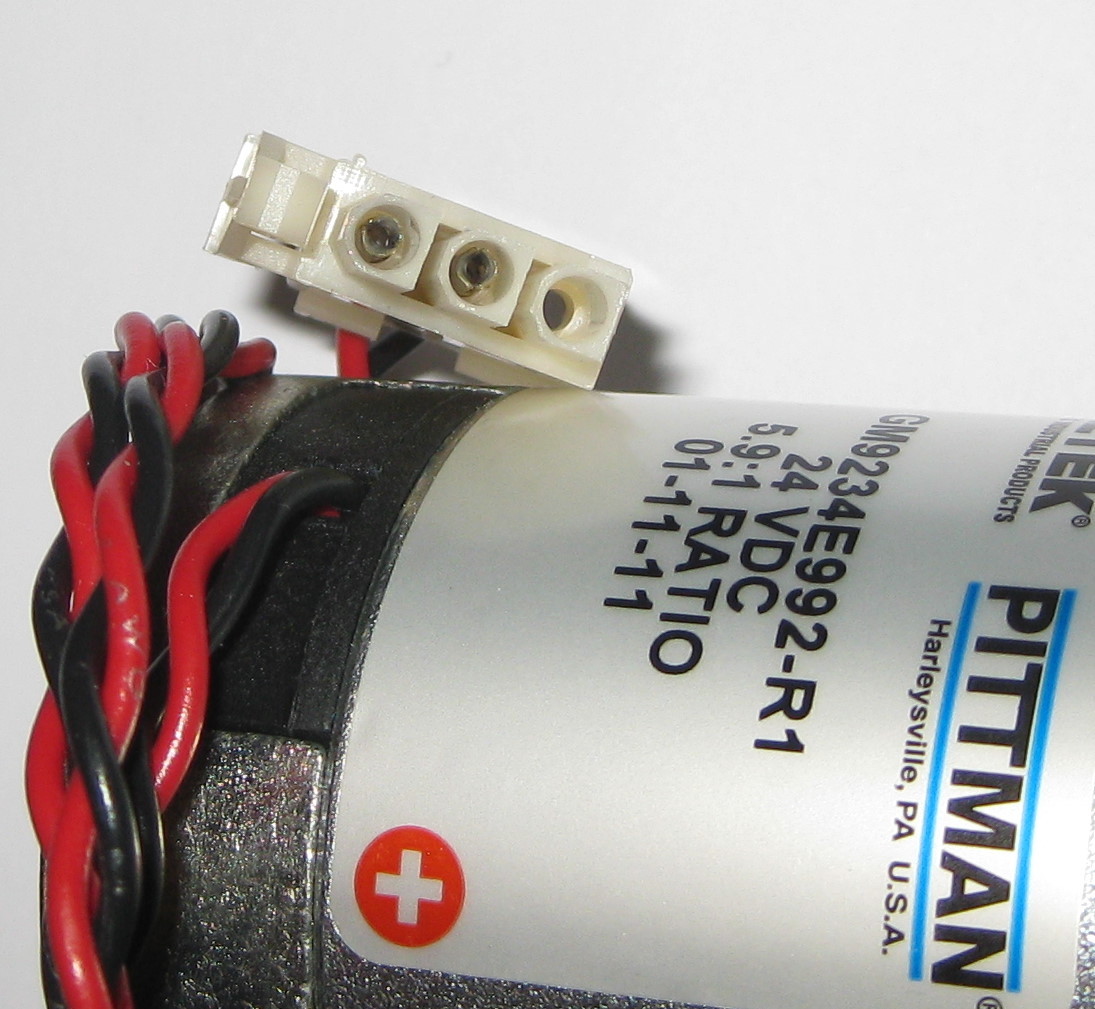

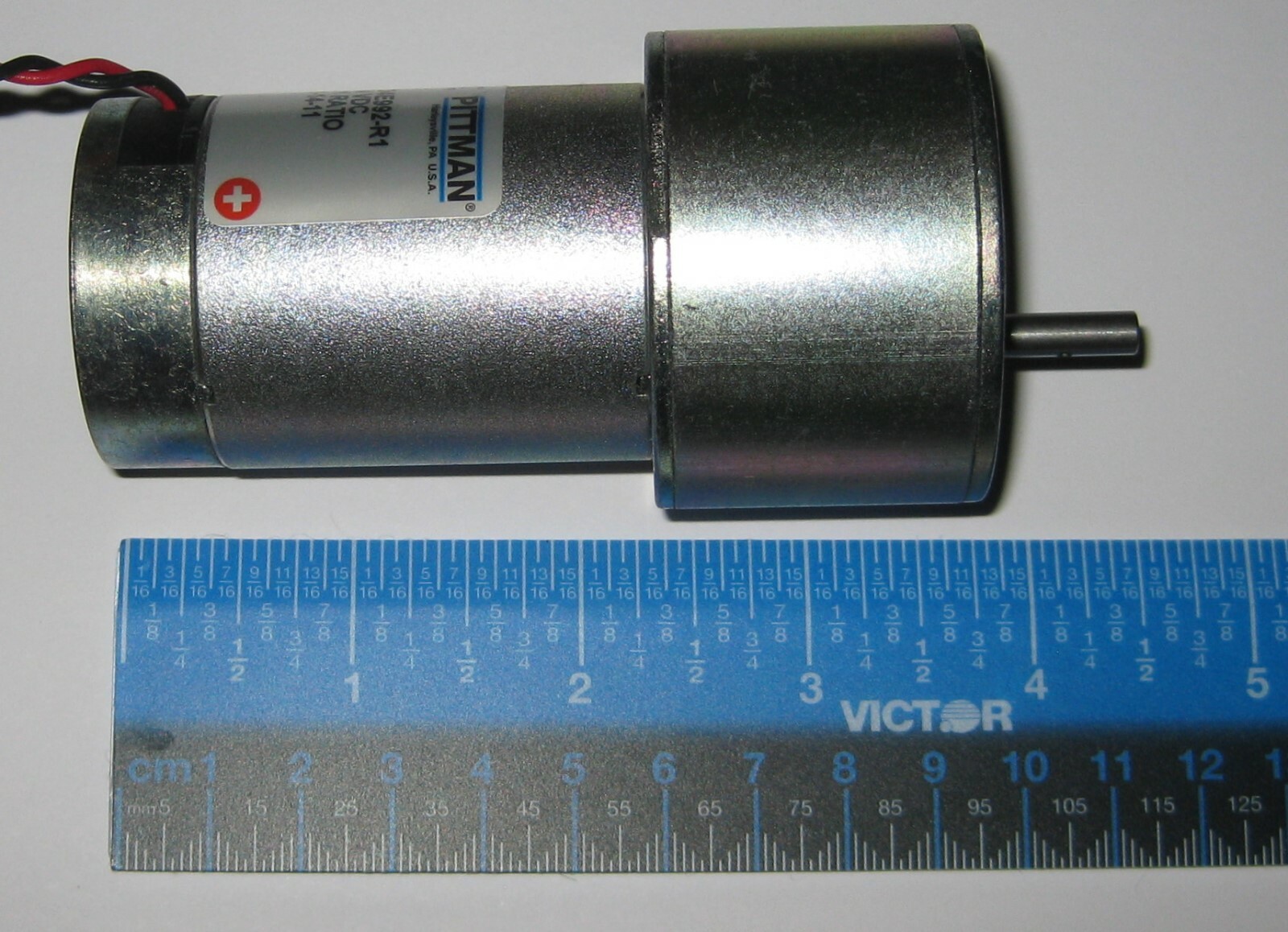

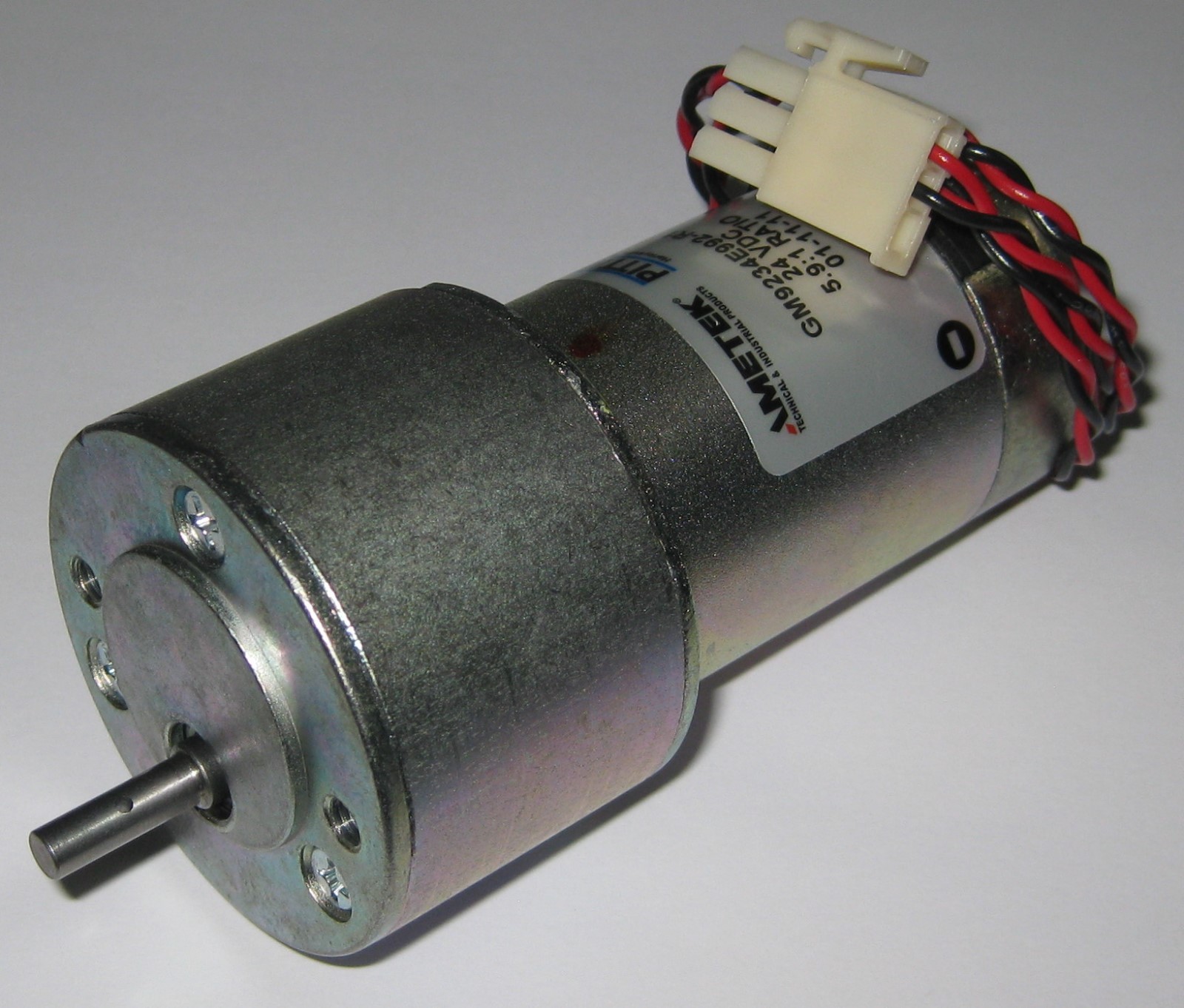

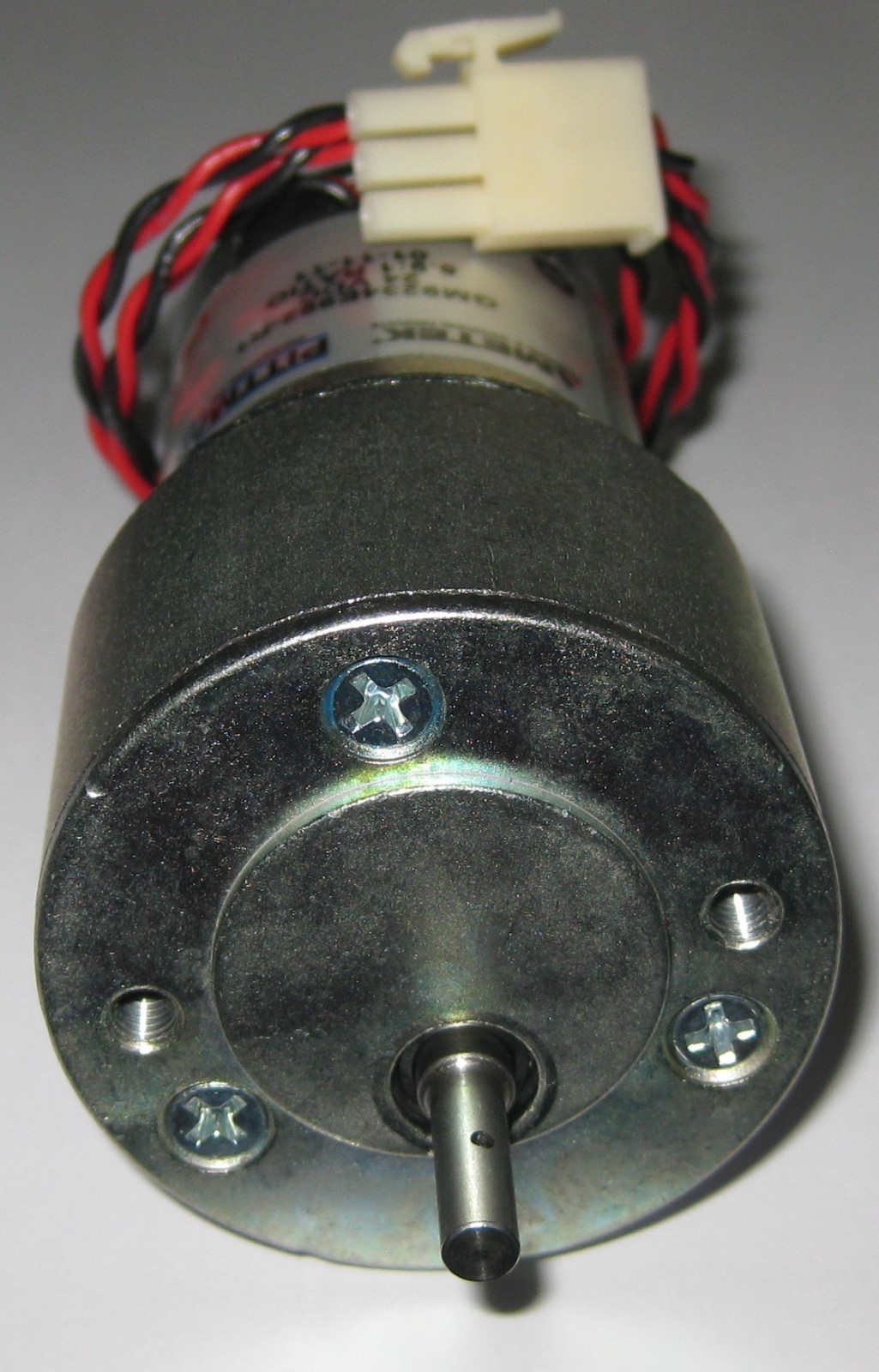

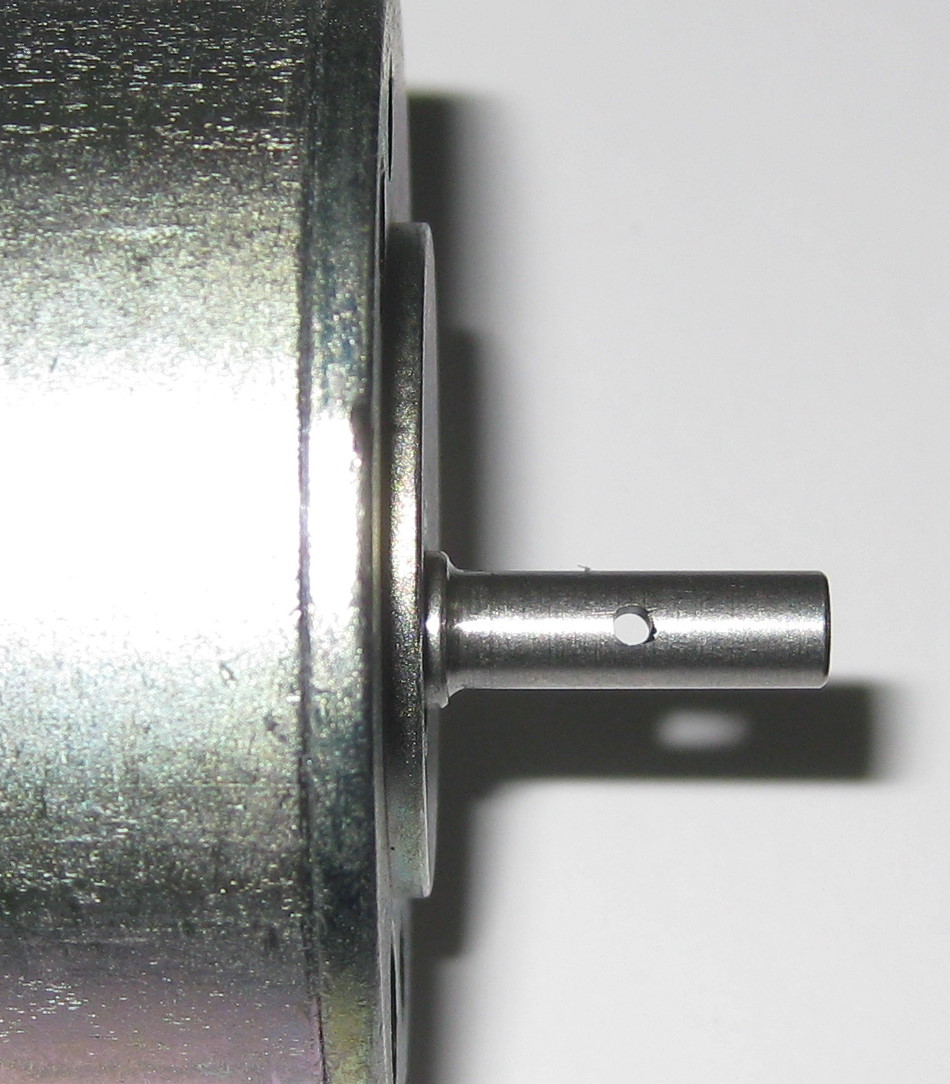

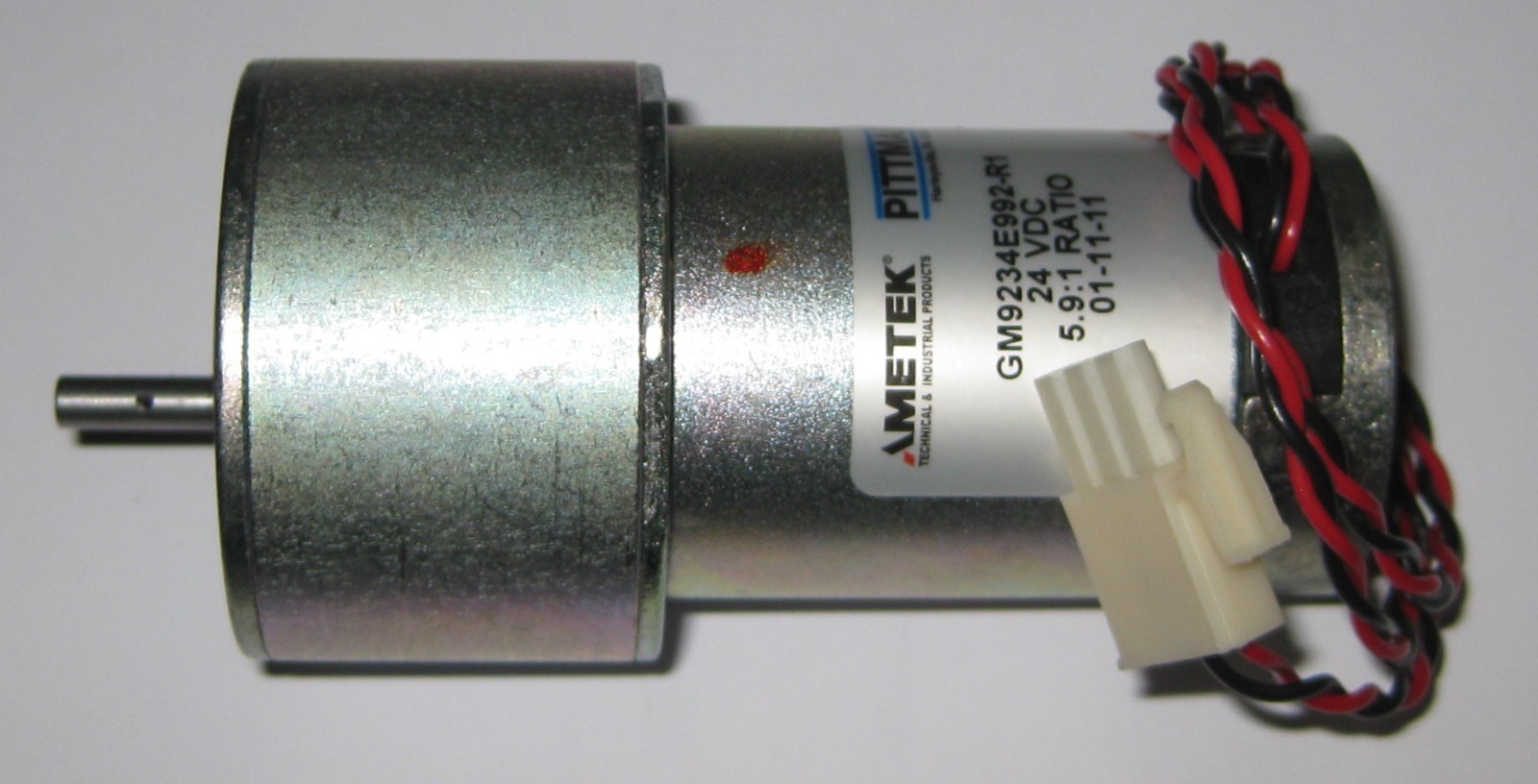

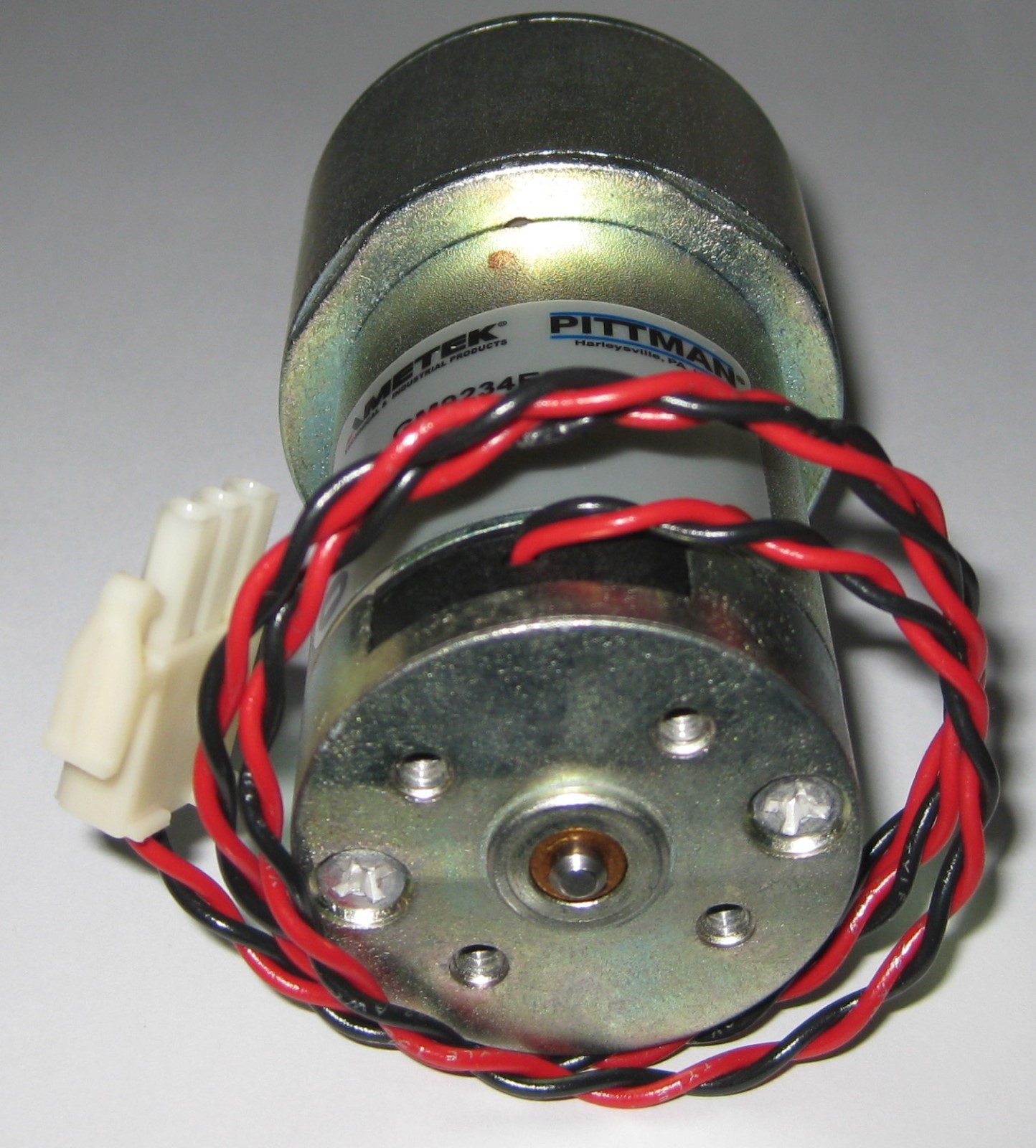

Pittman 9234 High Torque 5.9:1 Ratio Gearbox Motor - 24V DC - 1000 RPM - 3/16" Diameter Electric DC gearhead motor manufactured by Pittman Motor model: 9234 Spur gearbox model: G51ANominal voltage: 24 VDC No load current: 0 .16 Amperes Gearhead ratio: 5.9 : 1 Torque output: 36 oz-in (0.254 Nm) Rated load current: 1.5 A Speed: 1,000 RPMOutput power: 23 WattsMaximum torque at stall: 242 oz-in (1.71 Nm)Maximum current: 8.1 ATerminal resistance: 2.96 Ohms Preferred rotation: Clockwise Shaft dimensions: 16 mm L x 4.75 mm Dia. ( 0.675" L x 0.188" Dia. ) Motor / gearbox dimensions (not including shaft): 95 mm long x 51 mm diameter Gearbox dimensions: 35 mm long x 51 mm diameter 16" long outgoing cables terminated with a 3 pin female connector (2 pins used) Weight: 16.8 oz (475 g) Features four tapped (6-32) mounting holes on back end of motor on a 25 mm diameter Two tapped (10-32) mounting holes on front end (shaft end) of motor on a 38 mm diameter 2 pole permanent magnet stator and 7 slot armatureCopper graphite brushesSintered bronze bearingsSilicon steel armature laminations
