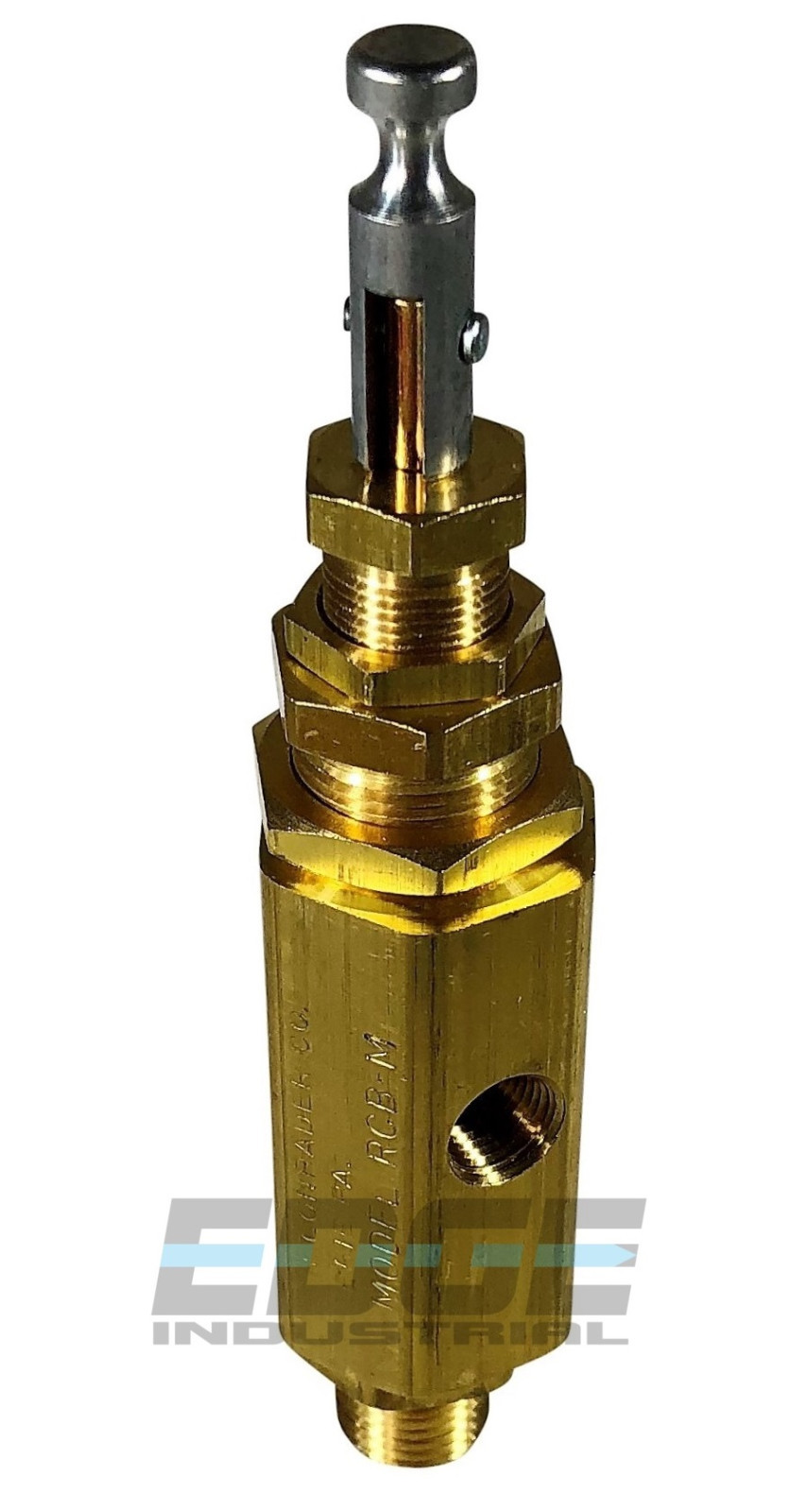

Pilot Unloader valve for Jenny air compressor 141-1047 95-125 PSI, Male NPT
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 60 Days |
| Refund Will Be Given As | Money Back |
| Country/Region Of Manufacture | United States |
| MPN | Conrader Valves |
| Brand | Conrader |
| Type | Pneumatic |
| Construction Type | Brass Construction |
BRAND NEW!!! Replaces Dewalt 5130236-00 Jenny 141-1047 Rolair 131 95-125 factory preset. 30-40 psi adjustable up or down 1/4" Male NPT inlet & 1/8" FNPT discharge Outlet pilot valves are used in compressed air systems to actuate another device using a pneumatic (air) signal. pilot valves always work in conjunction with another device. examples of usage include - actuating a throttle control to slow down or speed up and engine - opening and closing a discharge valve to vent air to the atmosphere - operating intake unloaders in the compressors head. Pilot valves operate in a set pressure range. The range has an unload setting and a load setting. As a compressor operates in this range, it is said to by cycling. At the unload setting, the pilot valve opens and actuates another device (throttle control, discharge valve). At the load setting, the pilot valve closes and returns the compressor to normal operation. NEED A THROTTLE CONTROL CABLE??? Visit our ebay store for numerous sizes and ratings on throttle control cables. we do combine shipping on all of our products. Operating Pressure MAX: 250 psi Operating Temperature Range: -15° to 400°F Inlet Connection Type: NPT
