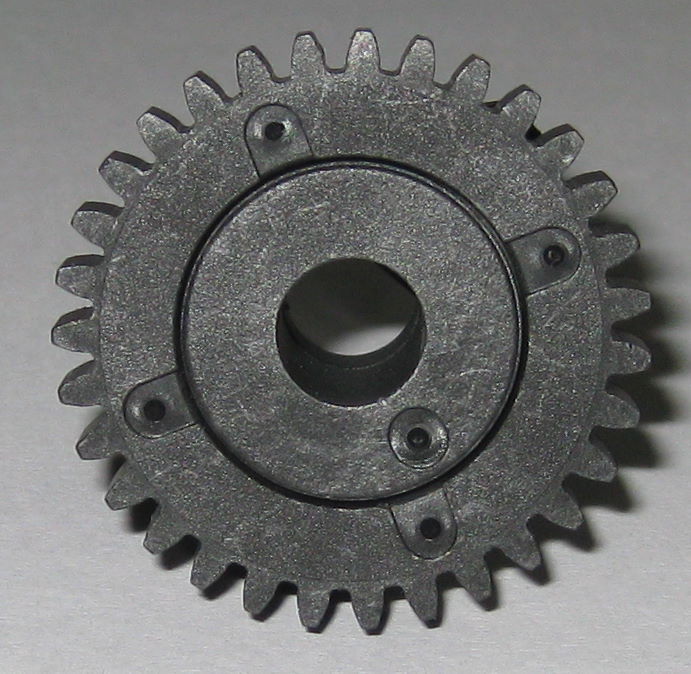

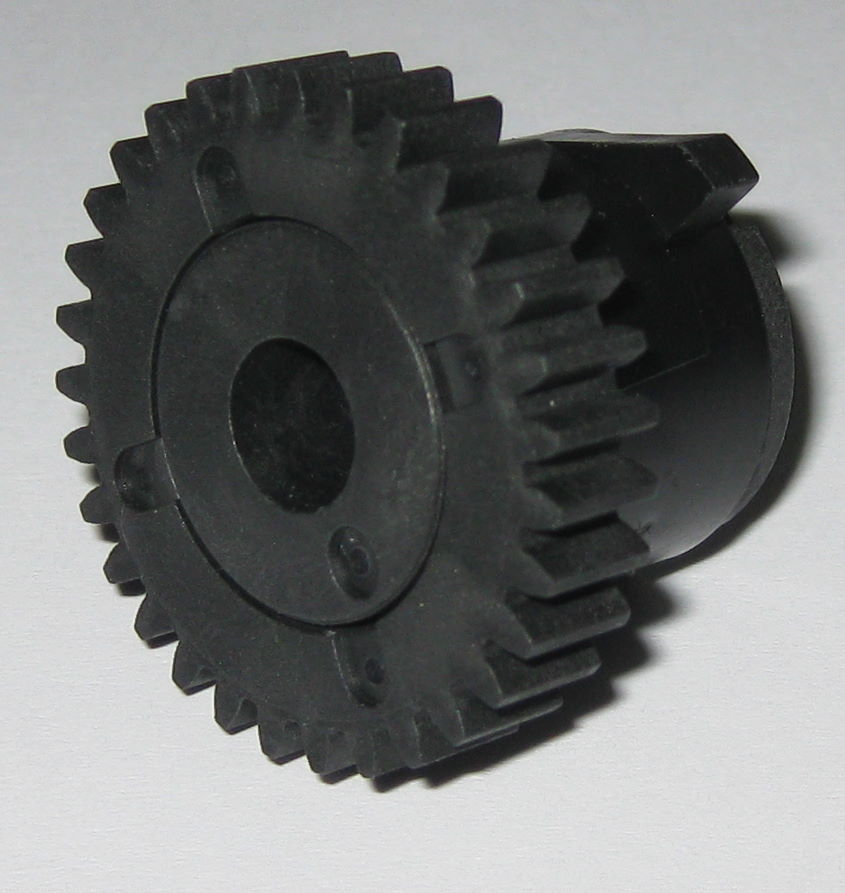

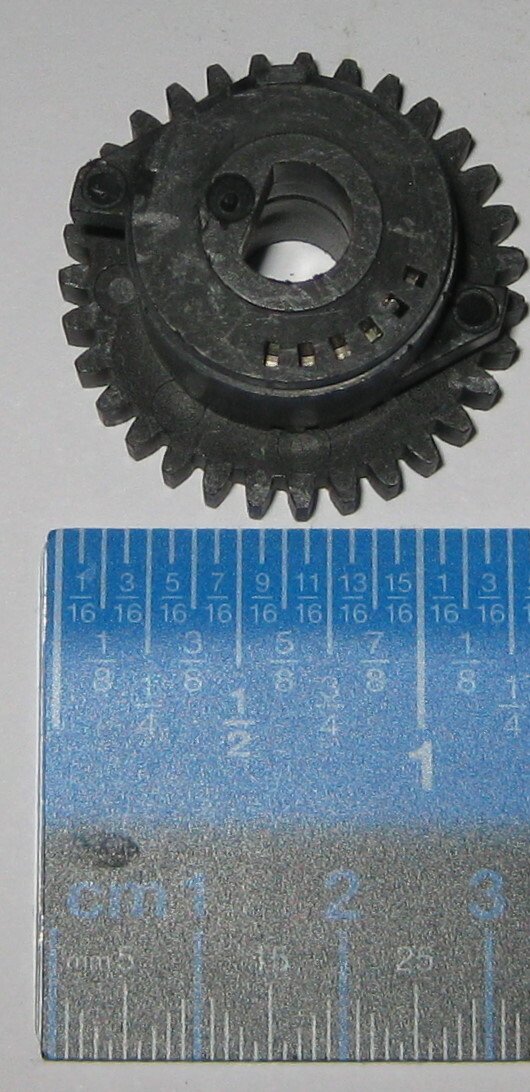

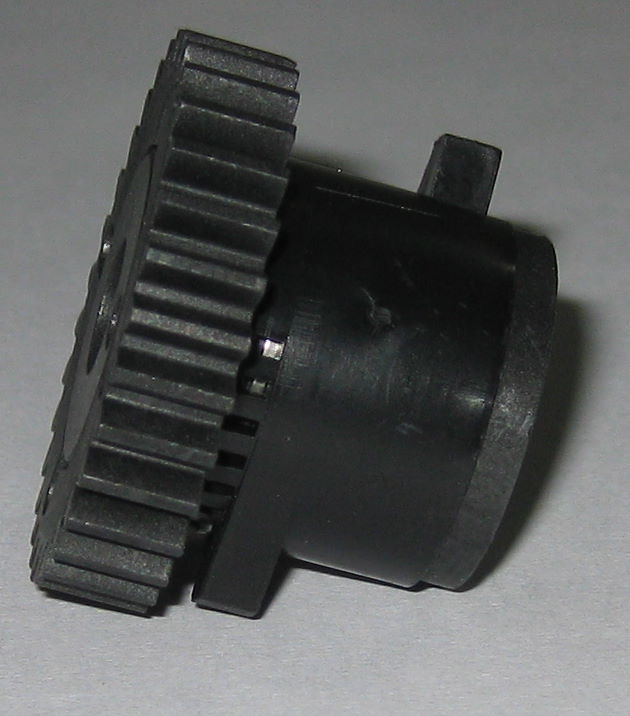

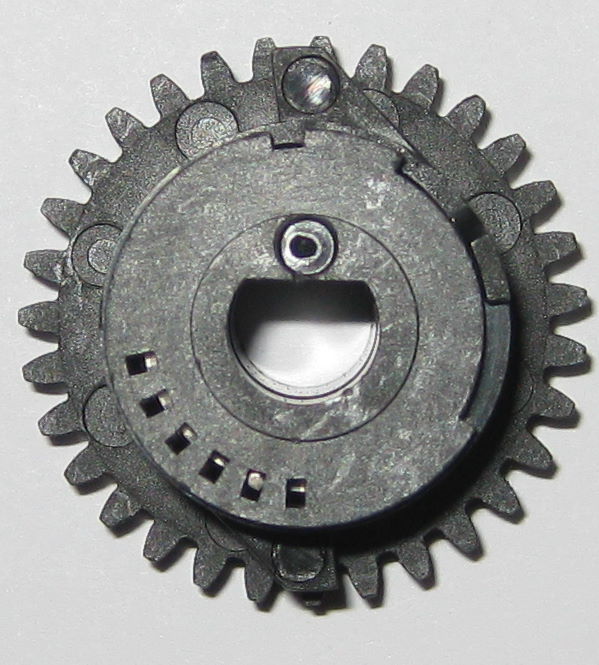

One Way Spring Wrap Clutch with Spur Gear- Anti Reverse Adjustable Spring Clutch
USD 6.95 USD
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| MPN | Does Not Apply |
| Gear Material | Plastic |
| Brand | Unbranded |
| Bore Diameter | 8 mm |
One Way Spring Wrap Clutch with Spur Gear- Anti Reverse Adjustable Spring Clutch One way spring clutch with spur gear Gear made from molded thermoplastic Metric spur gear has 31 teeth Overall dimensions: 24 mm long x 32.7 mm outside diameter of gear 8 mm plain inside bore with an insert at one end for 8 mm D-Type shafts Internally mounted one-way clutch allows torque transfer in one direction and near free motion in opposite direction Power transfer is in the counter clockwise directionAnti reverse mechanism uses an adjustable spring wrap clutch for smooth operation and minimal backlash Internal spring inside diameter 15.5 mm (0.612"), spring outside diameter 17.1 mm (0.675")Weight: .2 oz (6 g)
