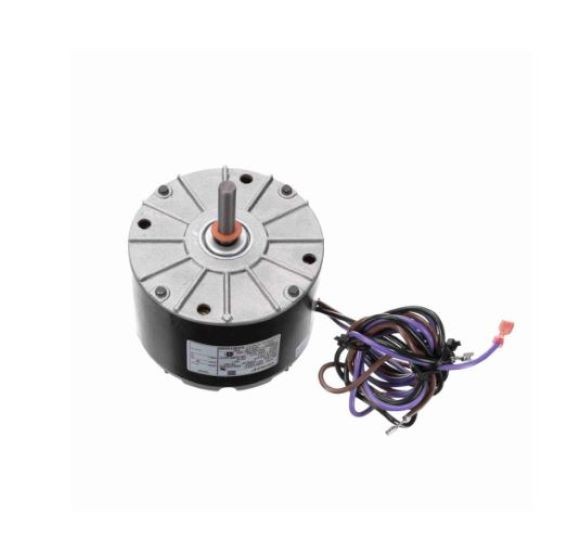

OAM10088 Century Motor 825 RPM Single Speed 1/12 HP for HVAC Condenser
OAM10088 Century Motor 825 RPM Single Speed 1/12 HP for HVAC Condenser OAM10088 Century Motor 825 RPM Single Speed 1/12 HP for HVAC Condenser OAM10088 Century Motor 825 RPM Single Speed 1/12 HP for HVAC Condenser

OAM10088 Century Motor 825 RPM Single Speed 1/12 HP for HVAC Condenser

USD 187.65 USD
SKU: 0RMJmtIk
Brand: Century
MPN: OAM10088
Condition: New
Tags: 0.06 KW 0.5-0.6 Ampere 0.5-6/1-12 RPM 0.500 in (12.7mm) 1 Year 1/12 HP 13.37 in (339.598mm) 2.3 in (58.42mm) 208–230 Volts 3.25 in (82.55mm) 40 °C 48Y 60 Hz 825 RPM Across The Line Air Over Automatic CENTURY Clockwise Lead End Extended Studs Flat Horizontal motor OAM10088 Recognized Rolled Steel Sleeve Universal
Categories: Verbandstoffe & Wundversorgung

Specifications

MPNOAM10088
BrandCentury
Compatible Equipment MakeUniversal
Part TypeMotor
Horsepower Output1/12 Hp
Kilowatt Output0.06 KW
Voltage208-230 Volts
Warranty1 Year
Speed825 RPM
Frame48Y
Thermal ProtectionAutomatic
Ambient Temperature40 °C
Frequency60 Hz
Current0.5-0.6 Ampere
DutyAir Over
ULRecognized
Starting MethodAcross The Line
RotationClockwise Lead End
MountingExtended Studs
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Overall Length13.37 in (339.598mm)
Frame Length3.25 in (82.55mm)
Shaft Diameter0.500 in (12.7mm)
Shaft Extension2.3 in (58.42mm)

Speed: 825 RPM, 8-pole. 1 YR WARRANTY. HVAC blowers & fan assemblies. Horsepower: 1/12 HP (0.06 kW). Both thedrive end and opposite drive end bearings are sleeve-type, designed for smooth and quiet performance in horizontal operation.
