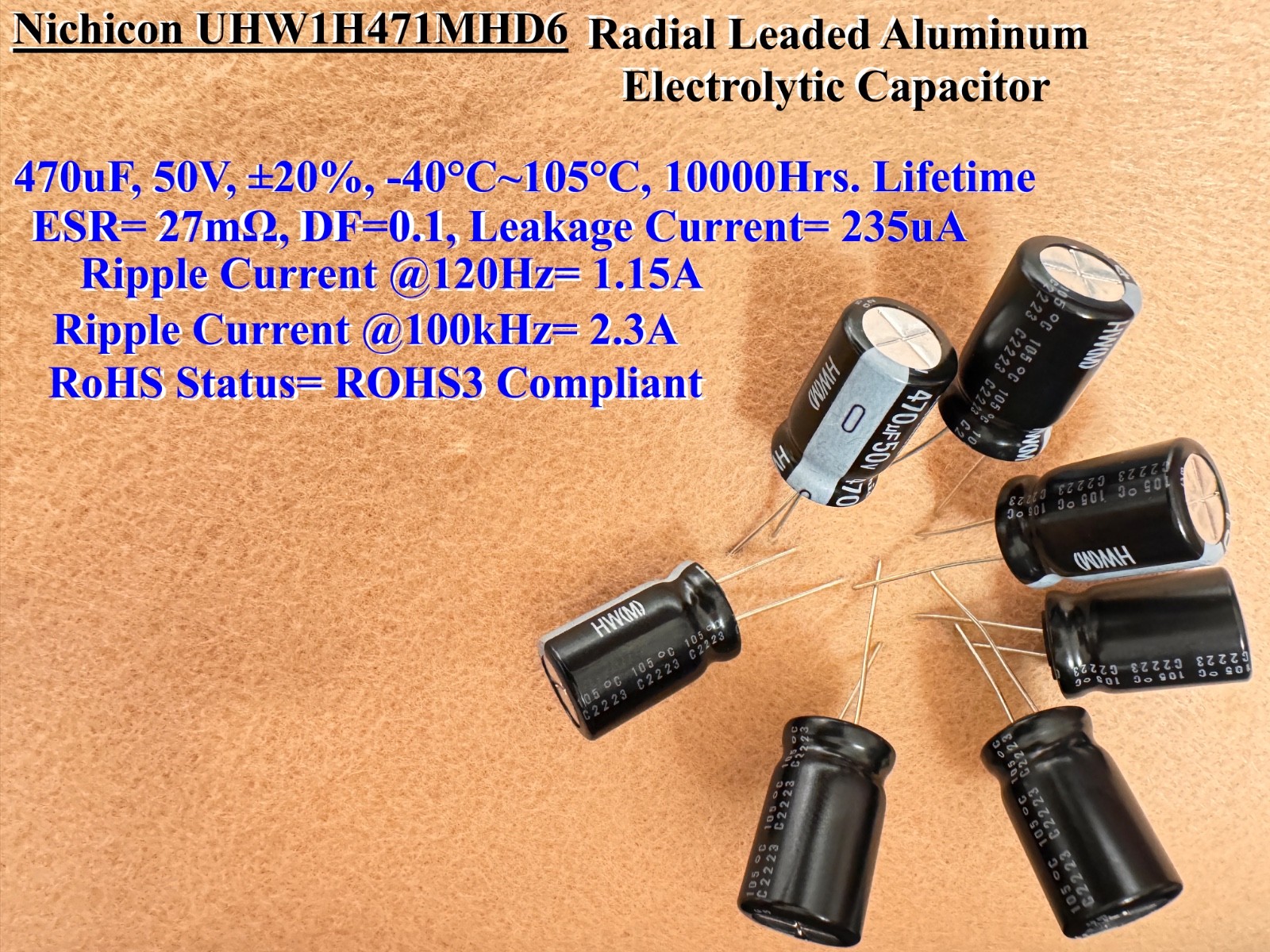

Nichicon UHW1H471MHD6 Radial Capacitor,470uF,50V,±20%,ESR=27mΩ,10000Hrs Lifetime
Nichicon UHW1H471MHD6 Radial Capacitor,470uF,50V,±20%,ESR=27mΩ,10000Hrs Lifetime Nichicon UHW1H471MHD6 Radial Capacitor,470uF,50V,±20%,ESR=27mΩ,10000Hrs Lifetime Nichicon UHW1H471MHD6 Radial Capacitor,470uF,50V,±20%,ESR=27mΩ,10000Hrs Lifetime Nichicon UHW1H471MHD6 Radial Capacitor,470uF,50V,±20%,ESR=27mΩ,10000Hrs Lifetime Nichicon UHW1H471MHD6 Radial Capacitor,470uF,50V,±20%,ESR=27mΩ,10000Hrs Lifetime Nichicon UHW1H471MHD6 Radial Capacitor,470uF,50V,±20%,ESR=27mΩ,10000Hrs Lifetime Nichicon UHW1H471MHD6 Radial Capacitor,470uF,50V,±20%,ESR=27mΩ,10000Hrs Lifetime Nichicon UHW1H471MHD6 Radial Capacitor,470uF,50V,±20%,ESR=27mΩ,10000Hrs Lifetime Nichicon UHW1H471MHD6 Radial Capacitor,470uF,50V,±20%,ESR=27mΩ,10000Hrs Lifetime Nichicon UHW1H471MHD6 Radial Capacitor,470uF,50V,±20%,ESR=27mΩ,10000Hrs Lifetime Nichicon UHW1H471MHD6 Radial Capacitor,470uF,50V,±20%,ESR=27mΩ,10000Hrs Lifetime

Nichicon UHW1H471MHD6 Radial Capacitor,470uF,50V,±20%,ESR=27mΩ,10000Hrs Lifetime

USD 32.50 USD
SKU: jsURyoJM
Brand: Nichicon
MPN: UHW1H471MHD6
Condition: New
Tags: -40 °C (-40 °F) ±20 % 0, 1 0.6mm 1.15A 105 °C (221 °F) 12.5mm 2.3A 20mm 22mm 235uA 27 mΩ 27mm 4.02g 470uF 50 MΩ 50 V 5mm Aluminum Bulk Electrolytic Capacitor Japan Nichicon PCB Mount Radial Through Hole ROHS3 Compliant Round Metal Can UHW UHW1H471MHD6
Categories: Medical, Lab & Dental Supplies

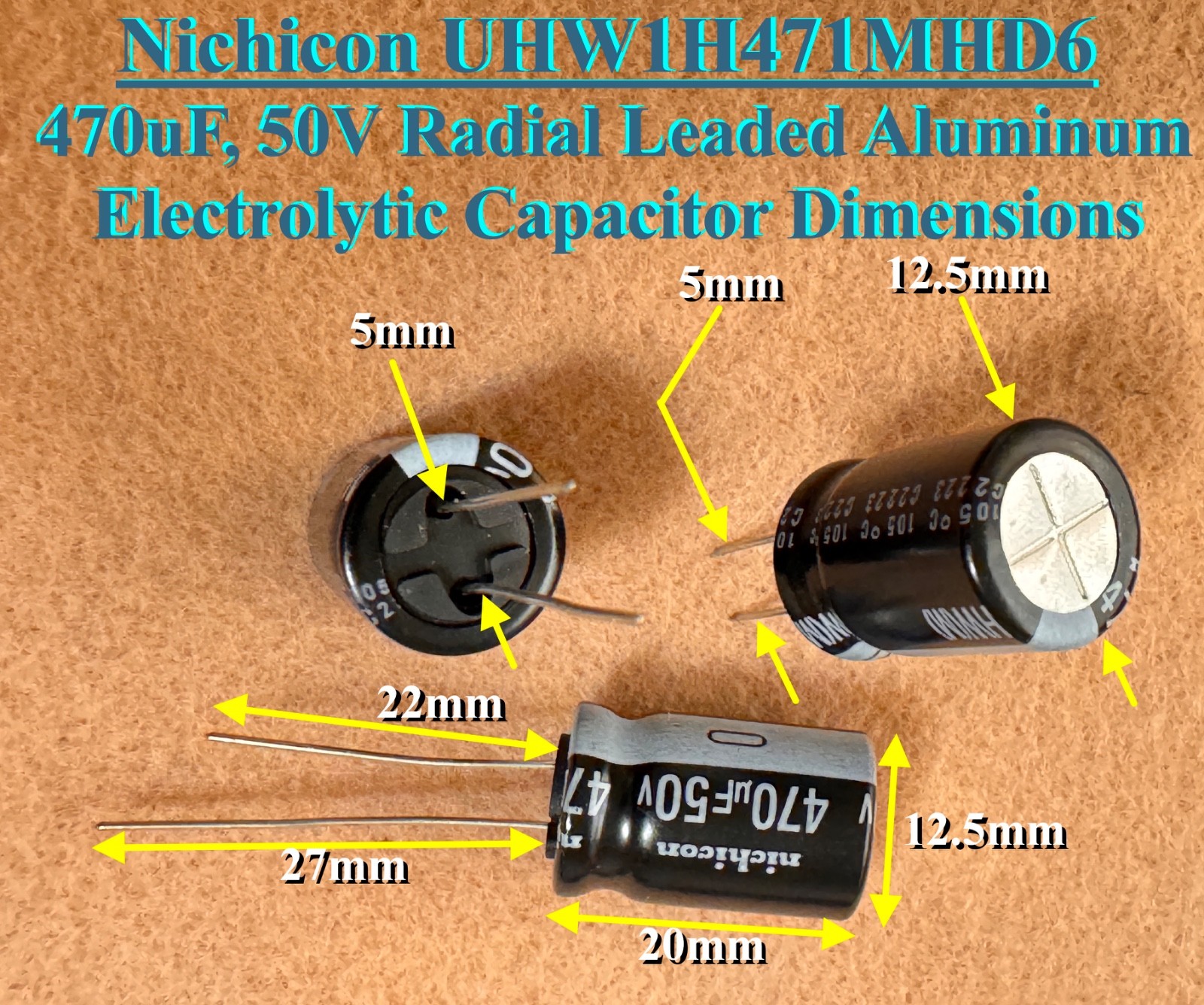

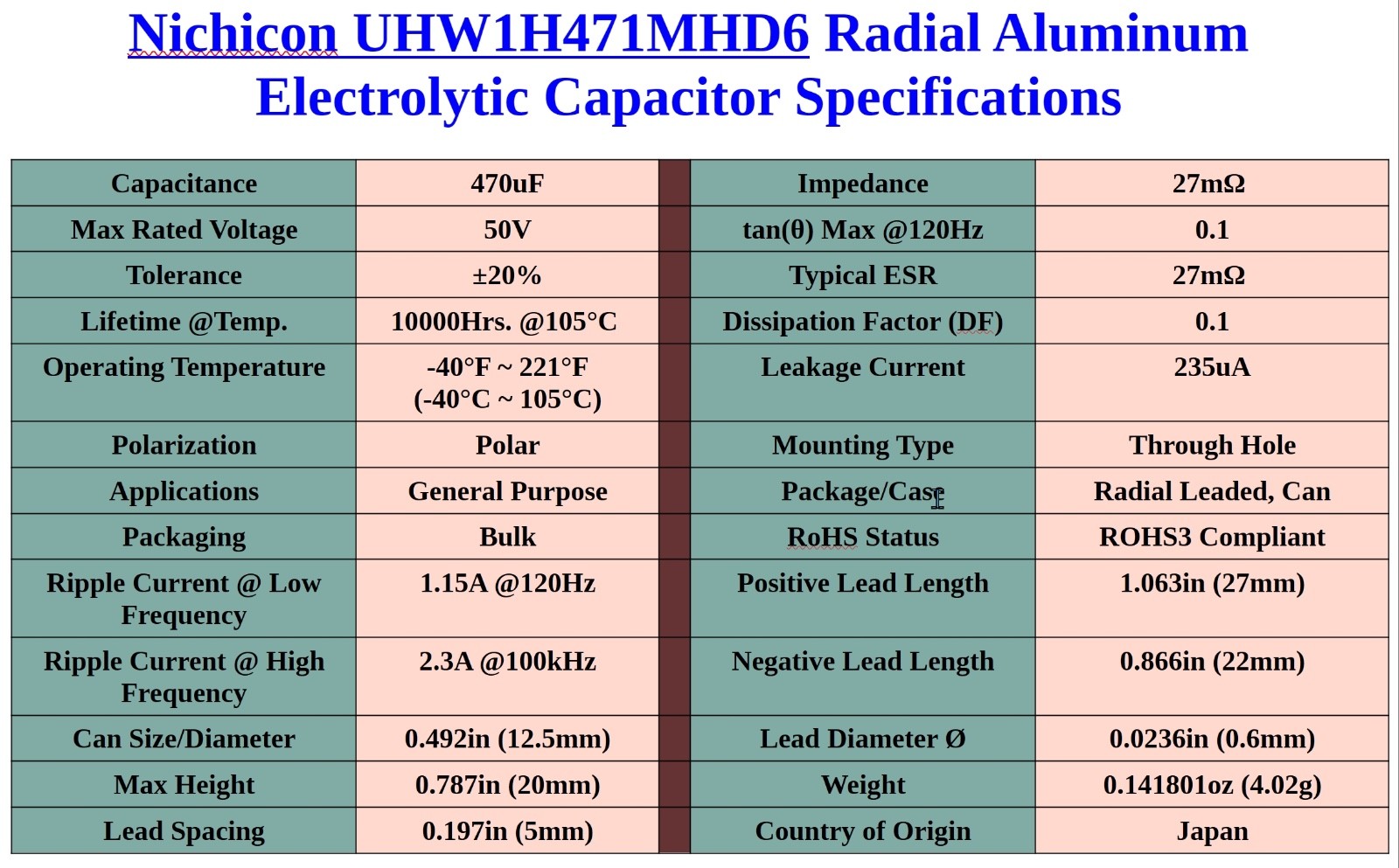

Specifications

ShapeRound Metal Can
Lead Diameter0.6mm
Capacitance Rating470uF
MPNUHW1H471MHD6
Lead Spacing5mm
Leakage Current235uA
Negative Lead Length22mm
Item Height20mm
Maximum Operating Temperature105 °C (221 °F)
Item Width12.5mm
RoHS StatusROHS3 Compliant
Maximum Operating Voltage50 V
Mounting StylePCB Mount
Termination StyleRadial Through Hole
Item Diameter12.5mm
MaterialAluminum
Ripple Current @120Hz1.15A
Dissipation Factor (DF)0.1
Minimum Operating Temperature-40 °C (-40 °F)
Weight4.02g
BrandNichicon
SeriesUHW
TypeElectrolytic Capacitor
Tolerance Rating±20 %
PackagingBulk
Resistance Rating27 mΩ
Ripple Current @100kHz2.3A
Country Of OriginJapan
Positive Lead Length27mm

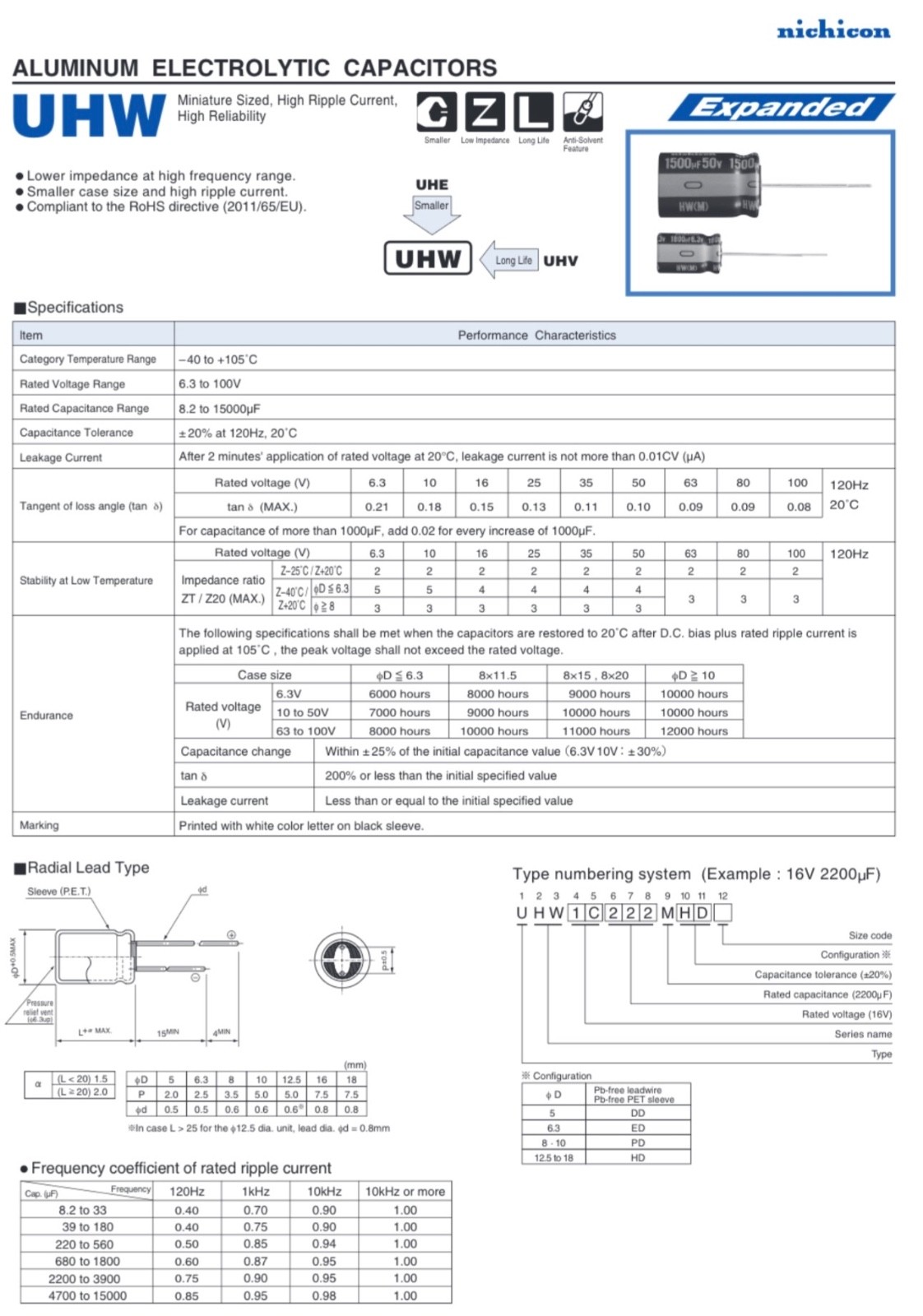

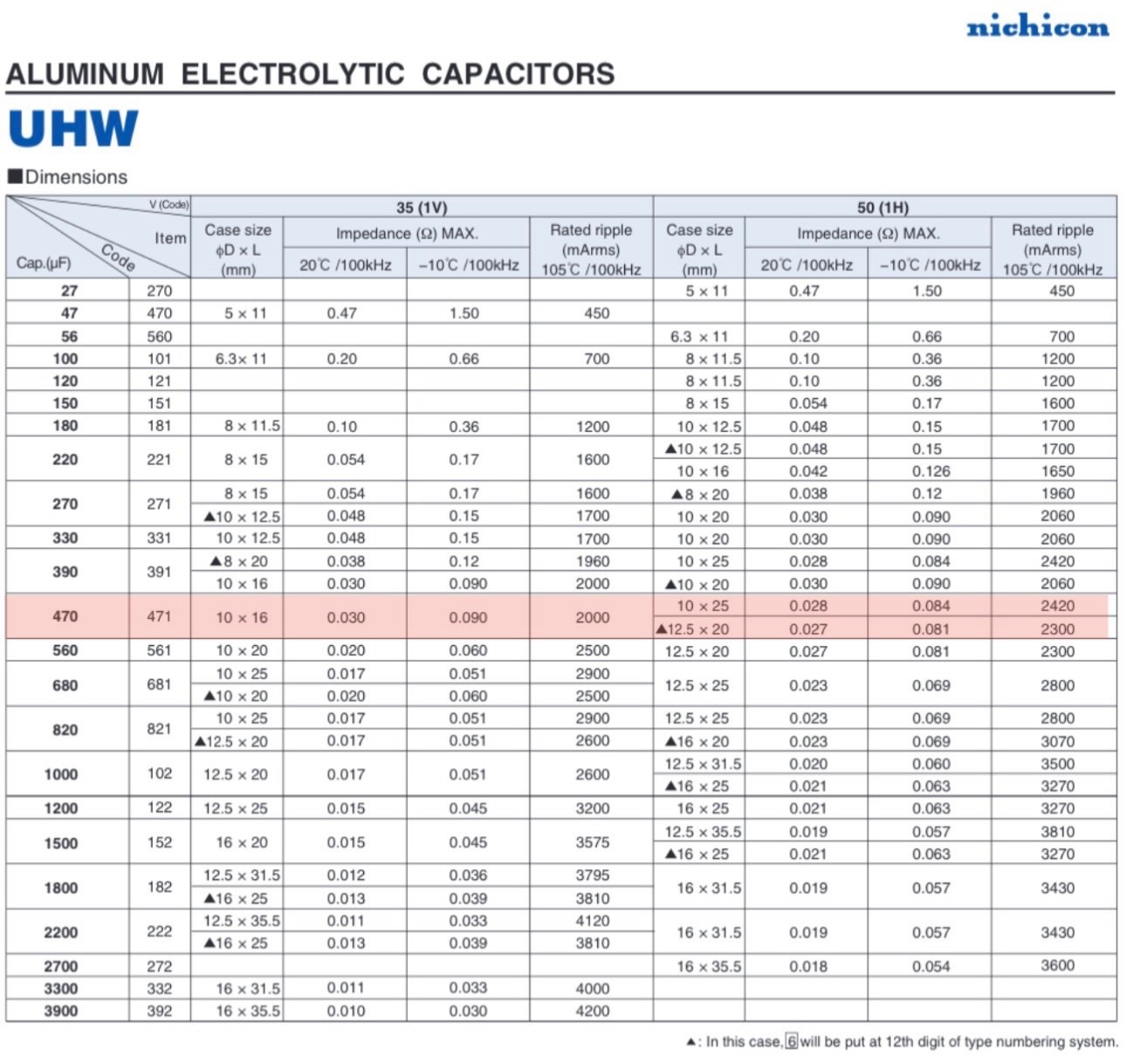

UHW1H471MHD6 • 470uF, 50V, Radial Leaded Aluminum Electrolytic Capacitor. Nichicon Specifications for Typical ESR. 10000 Hrs @ 105°C. Radial Leaded, Can. Ripple Current @ Low Frequency. Ripple Current @ High Frequency.
