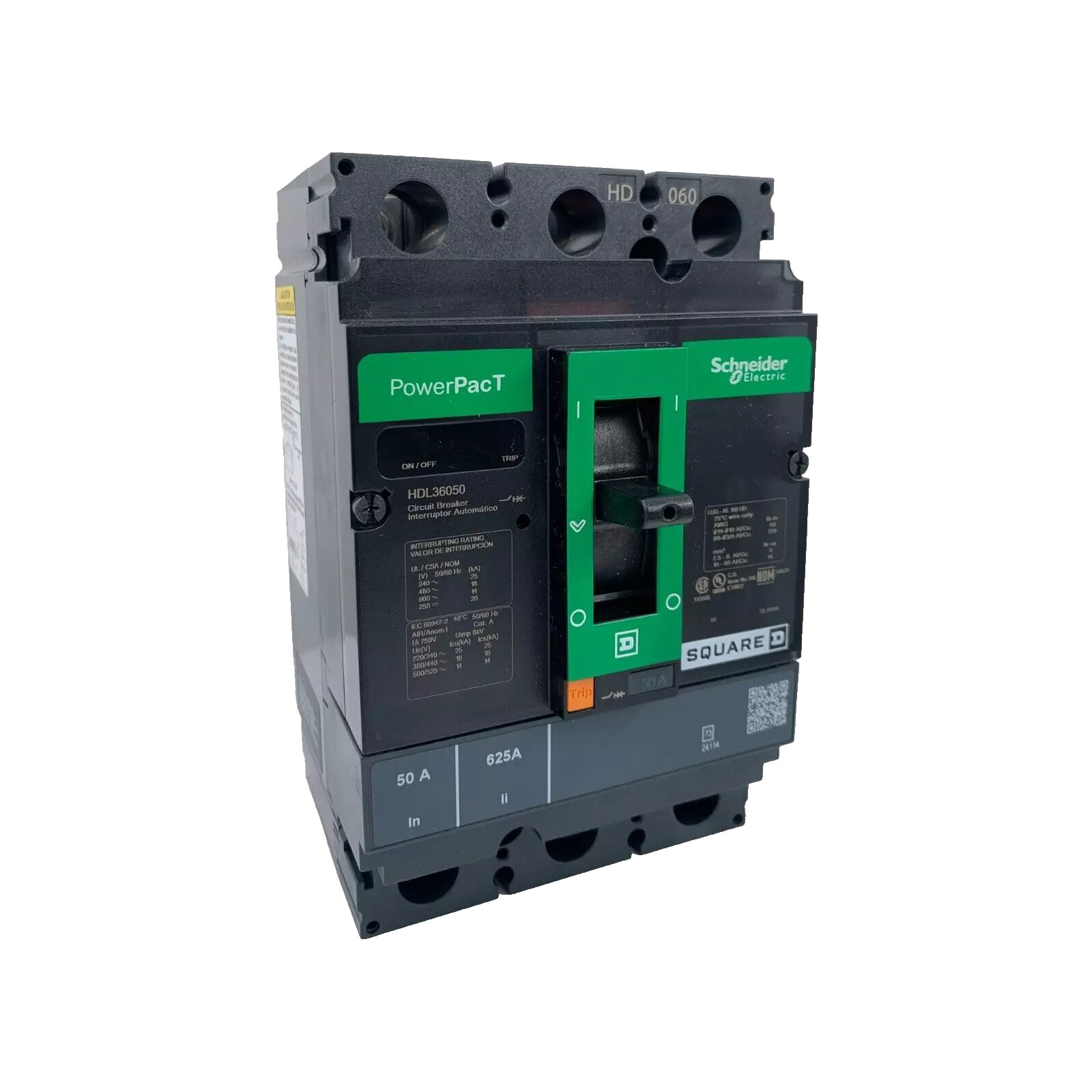

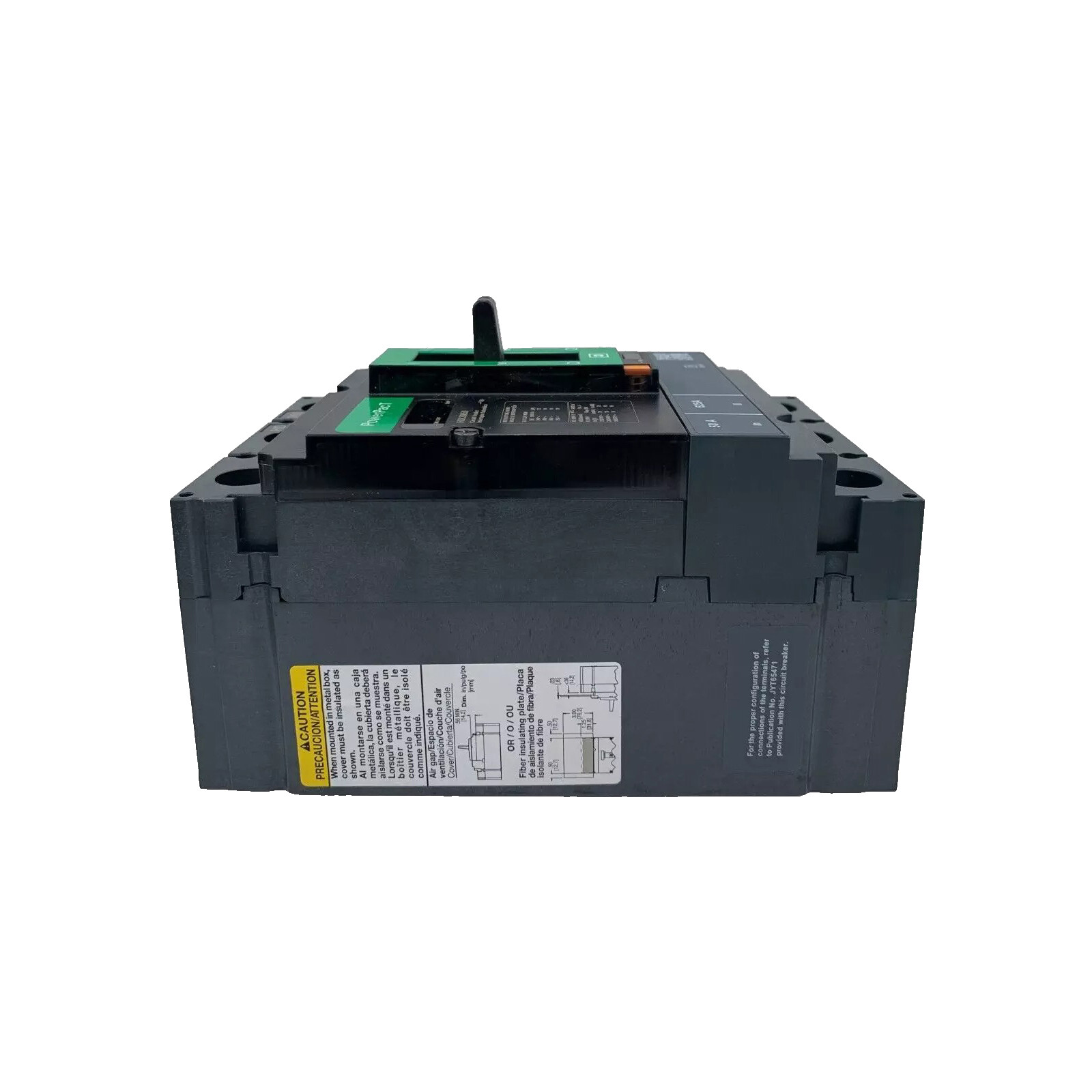

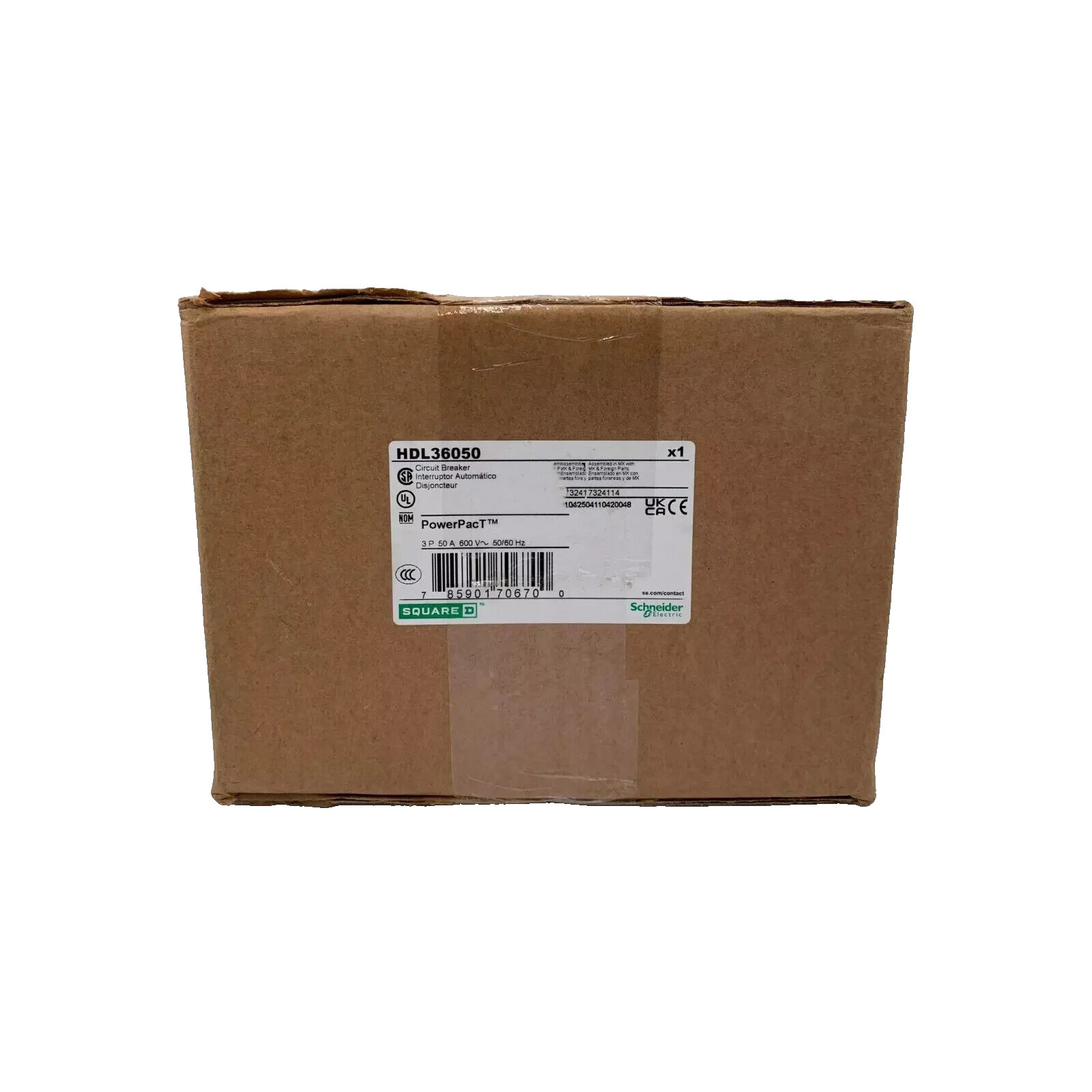

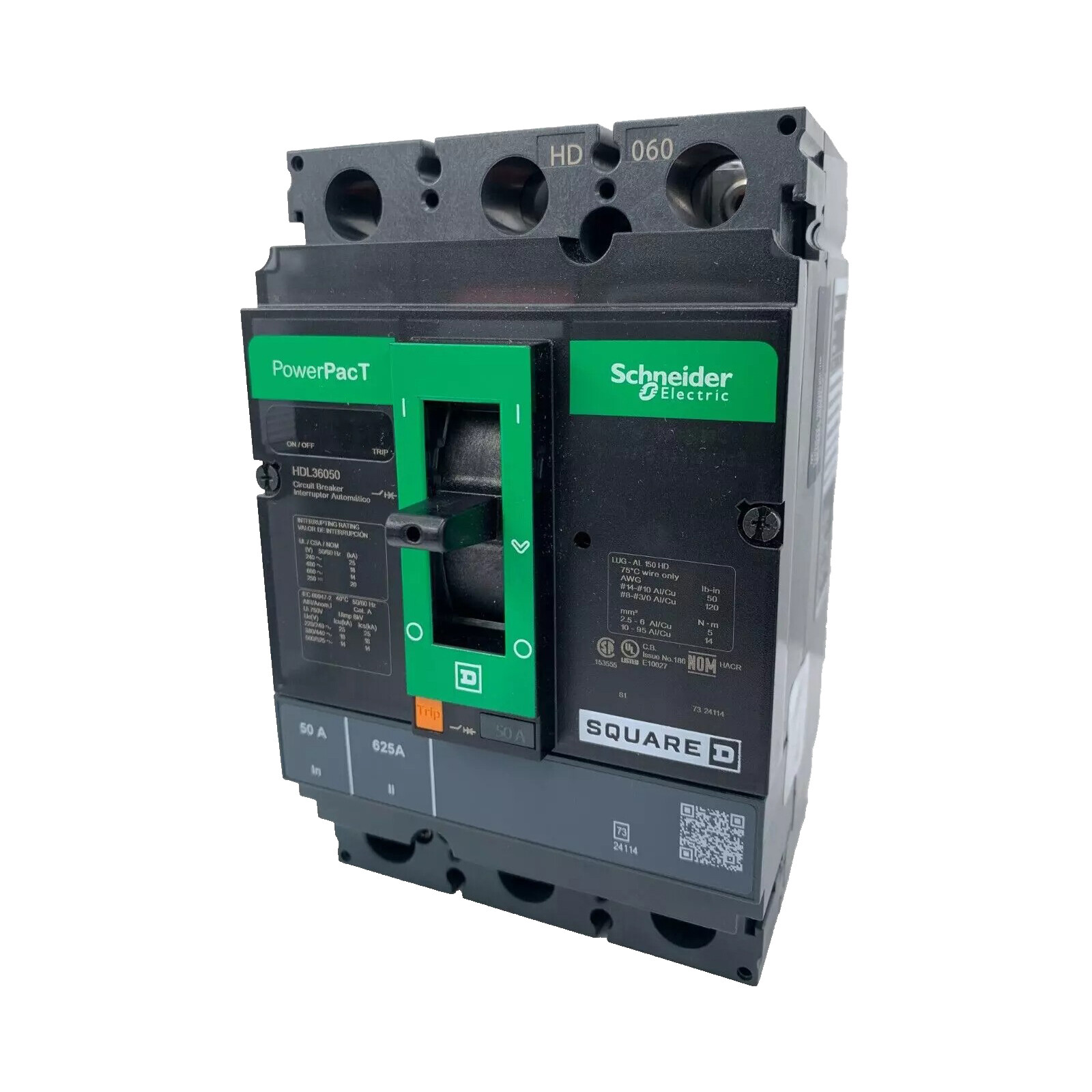

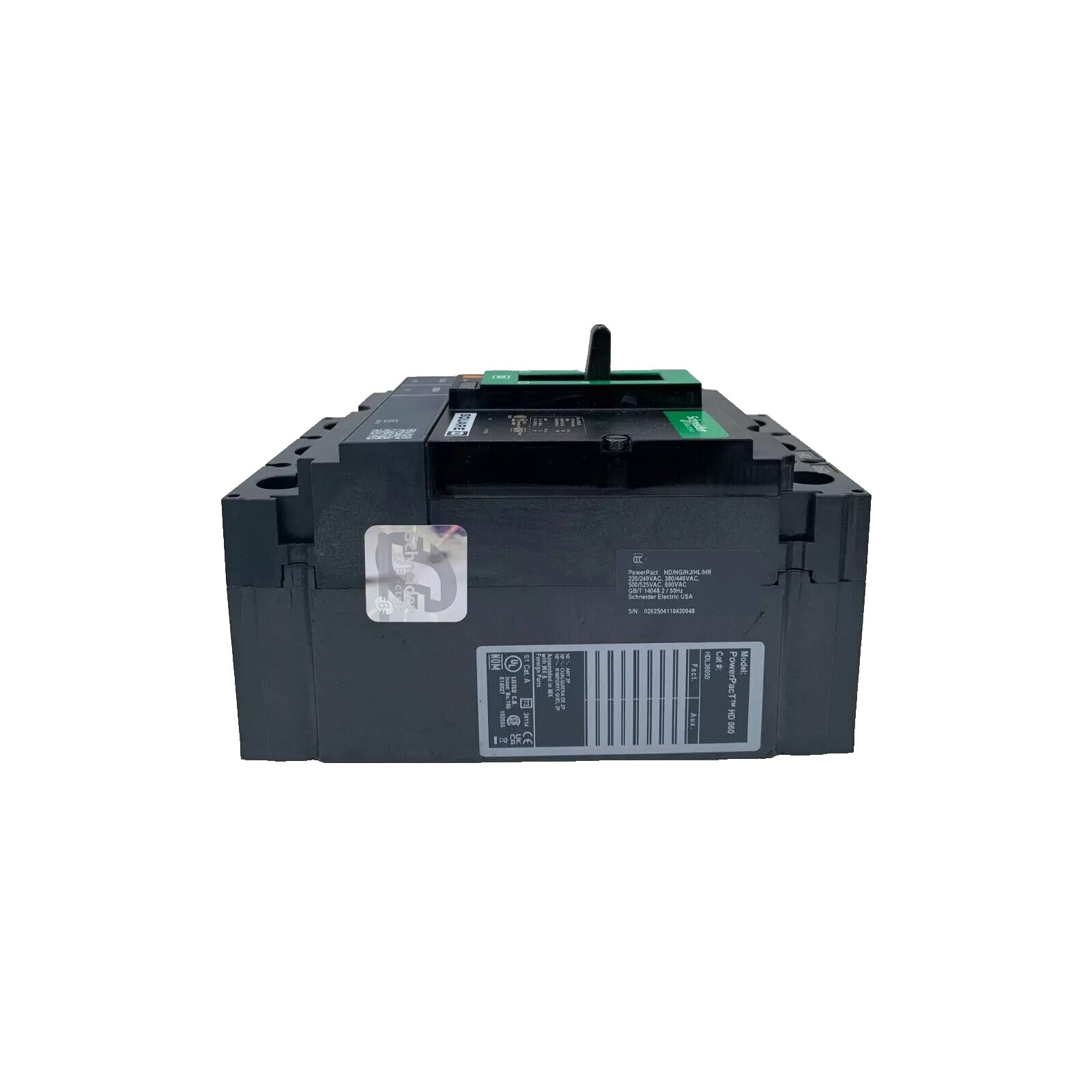

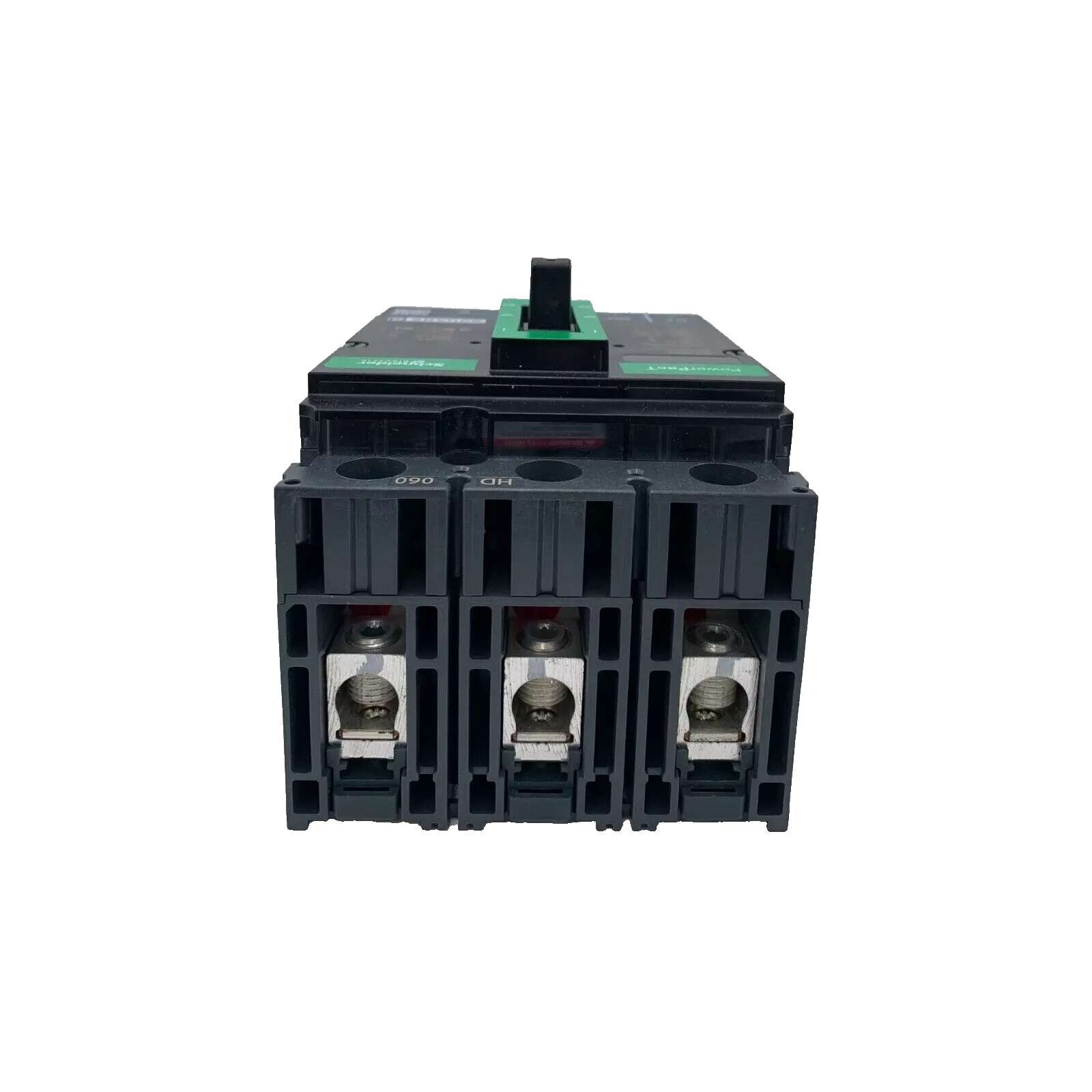

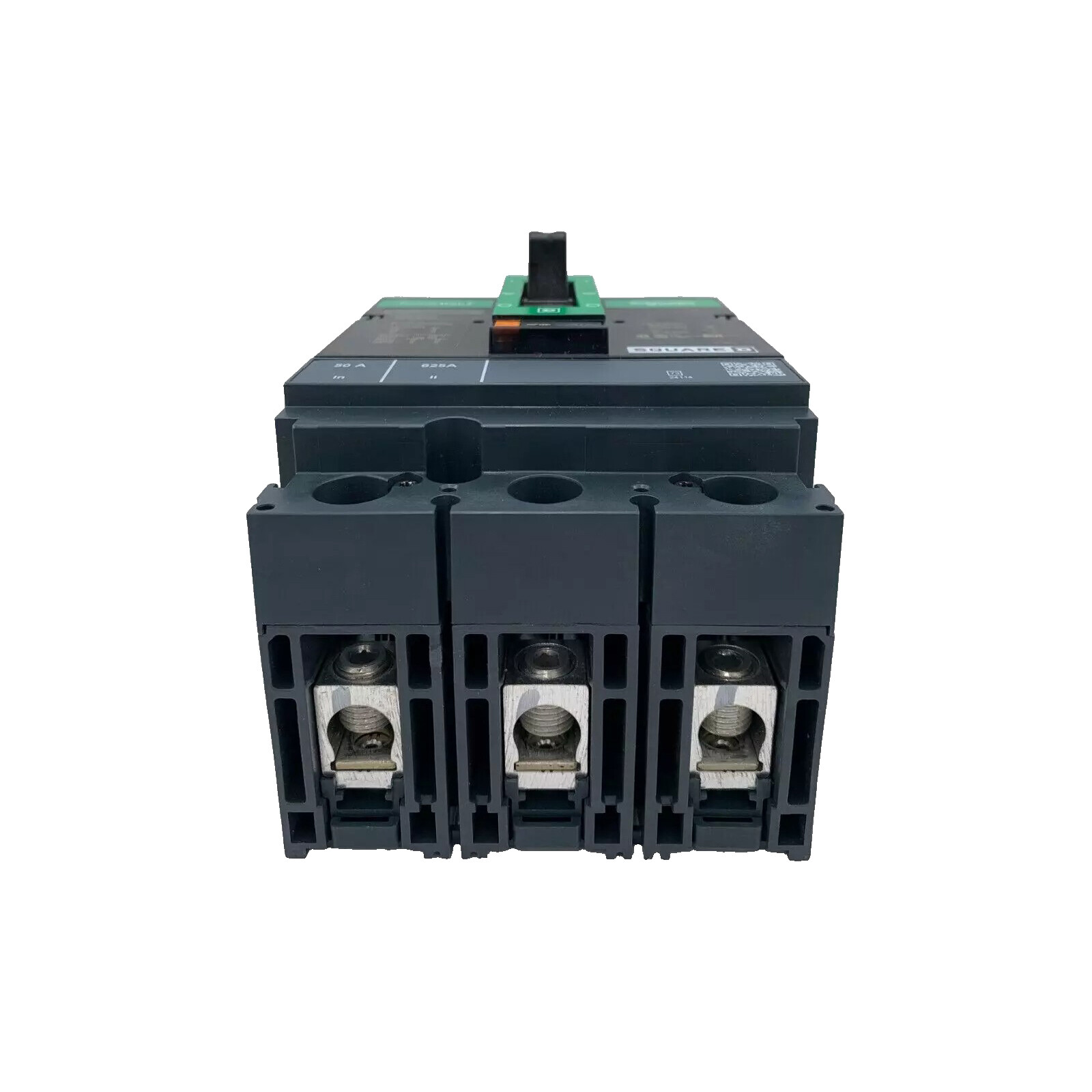

NIB – Square D – HDL36050 – 50A, 3-Pole, 600Vac Powerpact H Circuit Breaker
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| MPN | HDL36060 |
| Suitable For | Wall |
| Item Height | 6.4in. |
| Item Width | 4.12in. |
| Color | Black |
| Brand | Square D |
| Operation Method | On/Off |
| Application | Branch Circuit |
| Interruption Type | Thermal Circuit Breaker |
| Voltage | 600V |
| Features | Phase control |
| Room | Any Room |
| Mounting Style | Bolt-On |
| Maximum Amperage | 60 A |
| Current Rating | 60 A |
| Material | Aluminum |
| Type | Circuit Breaker |
| Model | HDL36060 |
| Number Of Circuits | 1-10 |
NIB - Square D - HDL36050 - 50A, 3-Pole, 600Vac Powerpact H Circuit Breaker The PowerPact H circuit breaker from Schneider Electric is a 50A, 3-pole breaker designed for distribution applications. It offers breaking capacities of up to 25 kA at 240V AC and meets various international standards. Product Name: PowerPact H Product Or Component Type: Circuit breaker Device Application: Distribution Line Rated Current: 50A Number Of Poles: 3P Protected Poles Description: 3t Control Type: Toggle Breaking Capacity: 25 kA @ 240 V AC, 50/60 Hz UL 489 18 kA @ 480 V AC, 50/60 Hz 14 kA @ 600 V AC, 50/60 Hz 20 kA @ 250 V DC Rated Operational Voltage: 690 V AC, 50/60 Hz IEC 60947-3 Network Frequency: 50/60 Hz Rated Service Breaking Capacity: 25 kA @ 220/240 V AC, 50/60 Hz IEC 60947-2 18 kA @ 380/440/415 V AC, 50/60 Hz IEC 60947-2 14 kA @ 500/525 V AC, 50/60 Hz IEC 60947-2 20 kA @ 250 V DC IEC 60947-2 20 kA @ 500 V DC IEC 60947-2 Rated Impulse Withstand Voltage: 8 kV IEC 60947-2 Trip Unit Technology: Thermal-magnetic Magnetic Tripping Current: 850 A Magnetic Hold Current: 400A Continuous Current Rating: 80% Rated Insulation Voltage: 750 V IEC 60947-2 Suitability For Isolation: Yes IEC 60947-2 Utilisation Category: Category A AWG Gauge: AWG 14...AWG 3/0 aluminium/copper terminal Local Signalling: Switched off (OFF) 1 trip indicator green Mounting Mode: Unit mount lug Electrical Connection: Lugs, line; Lugs, load Terminal Identifier: AL150HD Tightening Torque: 44.25 lbf.in (5 N.m) 0.00...0.01 in² (2.5...6 mm²) (AWG 14...AWG 10) 123.91 lbf.in (14 N.m) 0.02...0.15 in² (10...95 mm²) (AWG 8...AWG 3/0) Number Of Slots: 2 auxiliary switch OF plug-in 1 alarm switch SD plug-in 1 overcurrent trip switch SDE plug-in 1 voltage release MN or MX plug-in Power Wire Stripping Length: 0.63 in (16 mm) Color: Black Mounting Support: Lug Circuit Breaker Application: HACR rated LiveWire Electrical Supply has been serving electrical distributors across the United States since 2005. With thousands of items in stock and ready to ship. LiveWire is the trusted need-it-now power distribution partner for leading electrical distributors for new-in-box circuit breakers, fittings, fuses, motor control and switchgear. We stock a $10+ million inventory of new-in-box, products across Square-D, Eaton, GE, Siemens, Allen-Bradley, Crouse-Hinds, Appleton, Bussman, Hammond Power, and ACME. Through our core values of Customer First, Integrity, and Commitment to Premium Vendor Relationships, LWES is committed to your success.
