NewScope-6 LCD Display kit for HP Agilent 8560A 8561A 8562A Spectrum Analyzer
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Model | 8560A 8561A 8562A |
| Analyzer Type | Spectrum Analyzers |
| MPN | 8560A 8561A 8562A |
| Brand | HP Agilent |

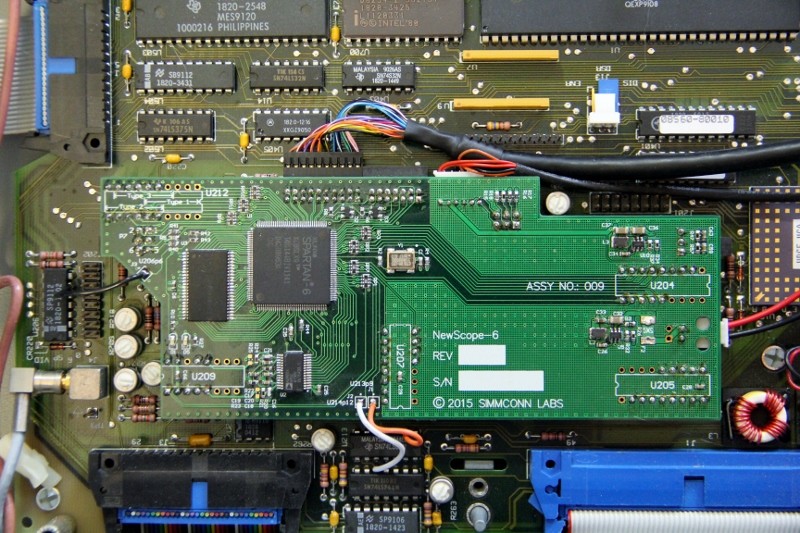

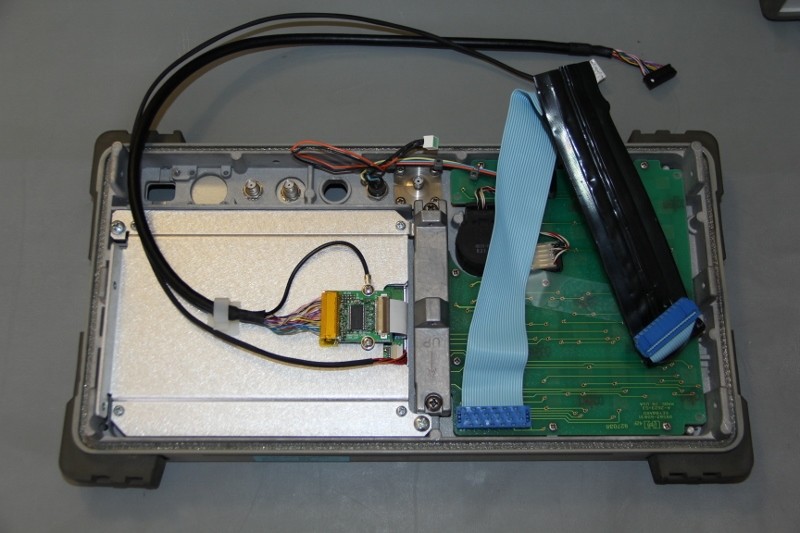

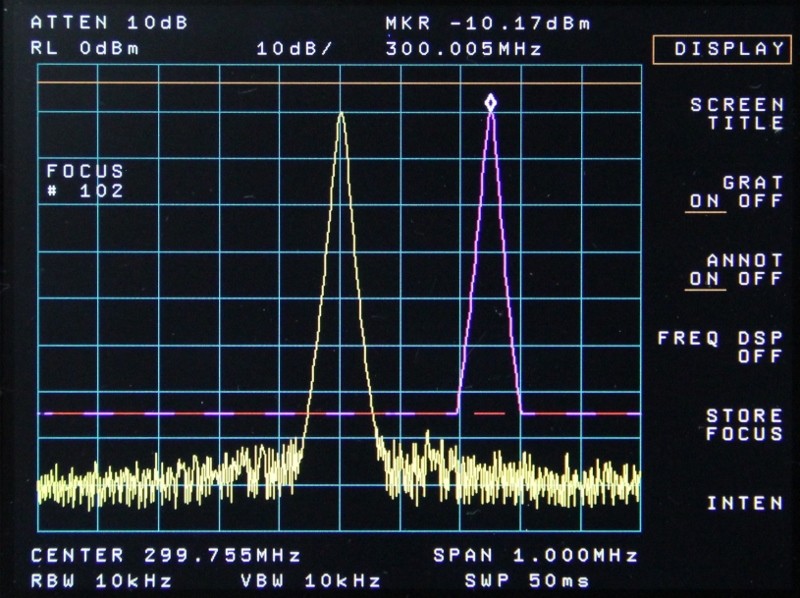

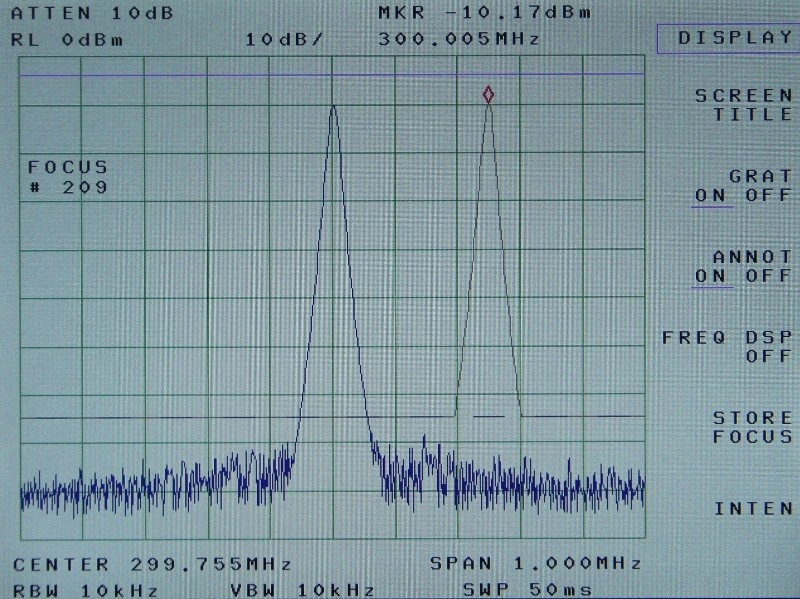

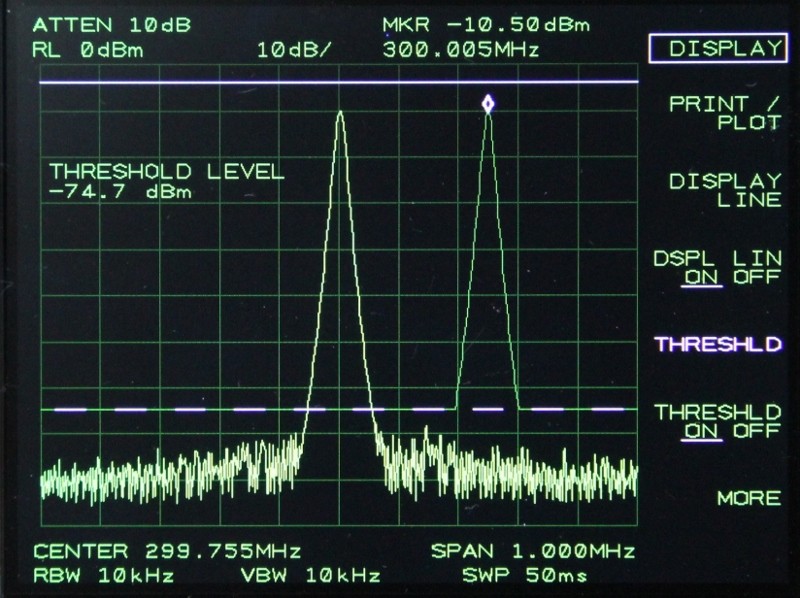

NewScope-6 is an LCD retrofit kit designed to replace the CRT subsystem in the HP 8560A/E series Spectrum Analyzers: 8560A, 8561A, 8562A 8563A, 8561B, 8562B 8560E, 8561E, 8562E 8563E, 8564E, 8565E The Key Features Include: Supports 5.7 inch VGA LCD panel with 640x480 resolutionBitmap font with better clarity over the original vector font on an LCD screenDisplay items are differentiated by colors, similar to later models of the same test equipment familyFour display schemes selectable by the focus adjustmentEnlarged markers in distinct shape and colorsResolution enhancement takes advantage of the 600 point original resolution of the 8560A/E display and gives a smooth curve with reduced jaggednessZero Span sweeps faster than 30ms are digitized. The X axis is timed with a crystal oscillator that requires no adjustmentThe LCD display is powered from the supply that was used for the CRT high voltage moduleThe 8560E Spectrum Analyzer in the pictures is for demo purposes and is not include in the sale. NewScope-6 is not compatible with units that were originally equipped with LCD display from the factory (i.e. the 8560EC series), or those that have been retrofitted with LCD conversion kit from other manufacturers. Please download the operating manual including installation instructions using the following link: simmconnlabscom.ipage.com/tech/NewScope-6_OM.pdf
