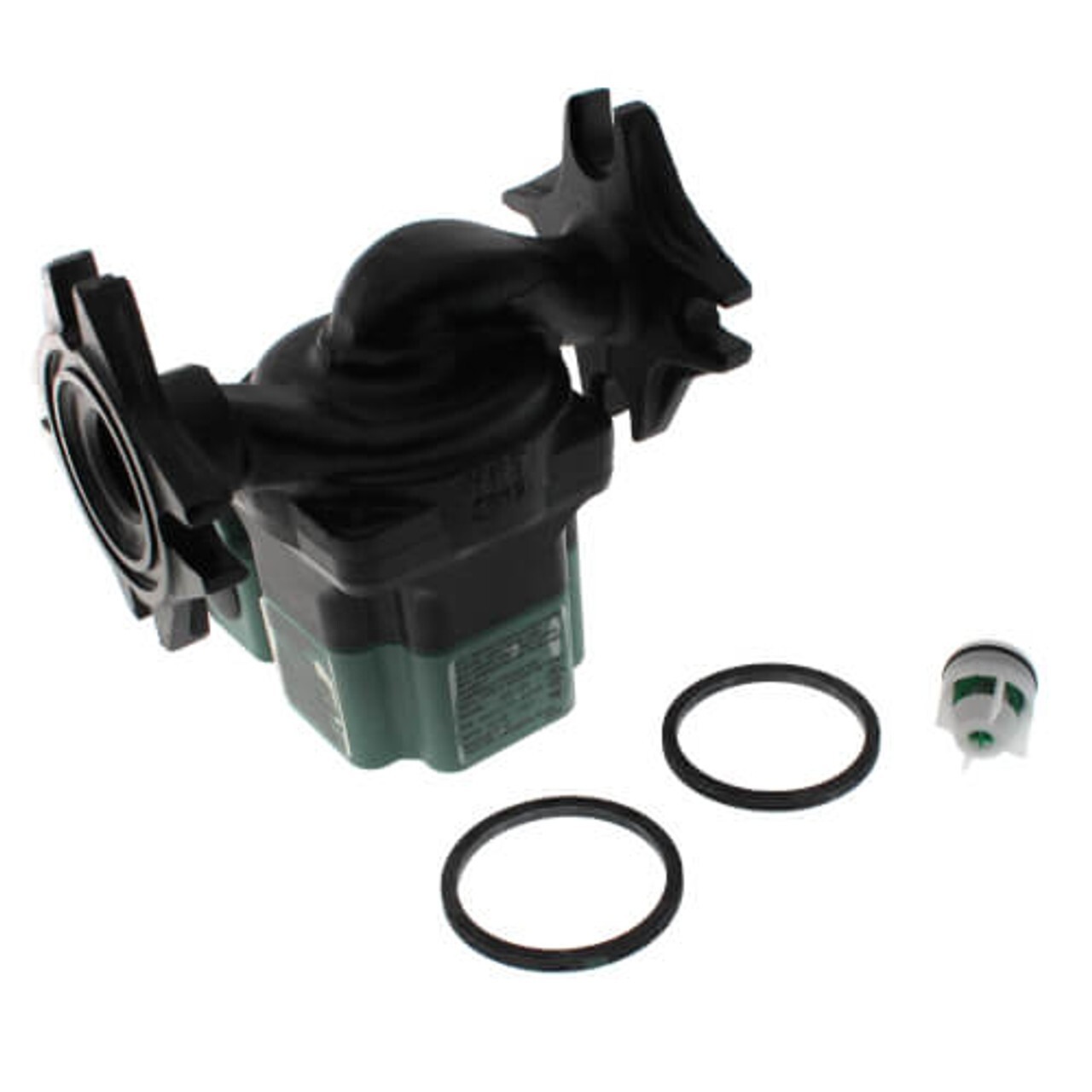

NEW Taco 007E-2F4 / 007E-F4 / 007E-F2 / 007E-2F2 Circulator Pump, IFC & Gaskets
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 14 Days |
| Refund Will Be Given As | Money Back |
| Brand | Taco |
| Maximum RPM | 3450 |
| Housing Material | Cast Iron |
| Inlet/Outlet Diameter | 1 1/2 in |
| Supply Voltage | 120 V |
| Rated Power | 1/25 hp |
| MPN | 007E-2F4 |

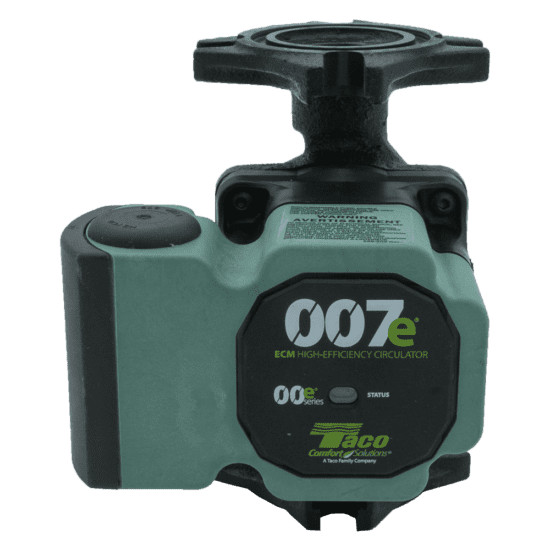

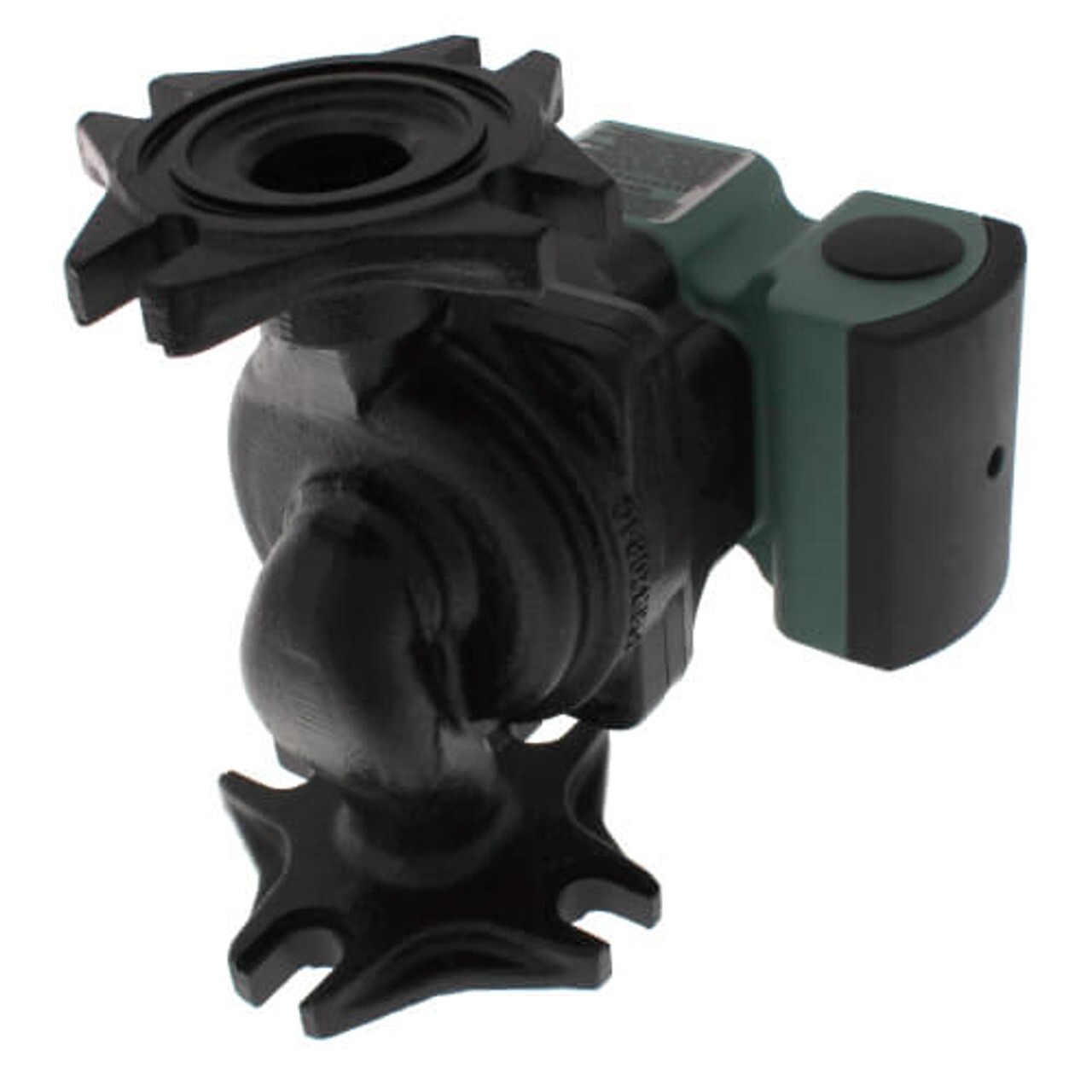

Wood Boiler Supply is an OEM Taco Dealer A replacement pump for Central Boiler, Crown Royal Stoves, Heat Master, Wood Master and all other major outdoor wood boilers. High Efficiency Taco 007e-2F4 Circulator pumpIf a 007 is what you need, why not step up to high efficiency? The Taco 007e® ECM High-Efficiency Circulator is engineered with ECM variable speed technology. Its performance is equivalent to the legendary 007 yet it uses up to 85% less electricity. It is ideal for hydronic systems zoned with circulators or zone valves or used on potable water systems for domestic water recirculation. Efficiency aside, the 007e delivers the reliability that’s made Taco famous. Install it, forget it.® What’s more, the 007e ECM High-Efficiency Circulator has some great features you won’t find anywhere else. The Taco 007e-2F4 is a cast iron high-efficiency with standard connection wet rotor circulator with an ECM permanent magnet motor. Its ECM performance is equivalent to the legendary 007 circulator. It is ideal for hydronic systems zoned with circulators or zone valves or used on potable water systems for domestic water recirculation. The 007e is not suitable for chilled water systems. Features BIO BARRIER protects the circulator from system contaminants (Cast Iron only) SureStart, a Taco exclusive feature, is your no-callback safety net. It automatically purges air and unblocks the pump to keep it trouble-free. Convenience. The 007e makes your job easier. Dual electrical knock-outs 6″ stranded wire leads for easy wiring Double Insulated. No ground necessary. Integral Flow Check (IFC) included Cast Iron Casing Applications Closed loop hydronic systems Open loop potable water Domestic water recirculation Indoor use only Water or maximum of 50% water/glycol solution The 007e-2F4 is the most universal pump in the 007e high efficiency circulator pump and will give more options for mounting in comparison to 007e-F2, 007e-F4, and 007e-2F2. Includes:- 007e-2F4 Taco Pum- IFC (Integrated Flow Check)- Gasket set of two. Features:BIO BARRIER® protects the circulator from system contaminants (Cast Iron only)SureStart®, a Taco exclusive feature, is your no-callback safety net. It automatically purges air and unblocks the pump to keep it trouble-free.Convenience. The 007e makes your job easier.Dual electrical knock-outs6″ stranded wire leads for easy wiringDouble Insulated. No ground necessary.Integral Flow Check (IFC®) includedSet of two gaskets includedCast Iron CasingSpecs:Flow Range: 0-16 GPMHead Range (ft): 0-10′Max. Operating Pressure: – Cast Iron: 125 psi (8.6 bar)Max. Water Temp.: 230°F (110°C)Min. Water Temp.: 36°F (2°C)Voltage: 120V, 60 Hz Single phaseMax. Operating Power: 44WMax. AMP Rating: 0.54Connection Sizes (in): ¾” – 1½” Unlike other sellers, we are a OEM Taco dealer and full warranty is in affect if you purchase with us with 100% covered replacement 3 year from date of manufacture.
