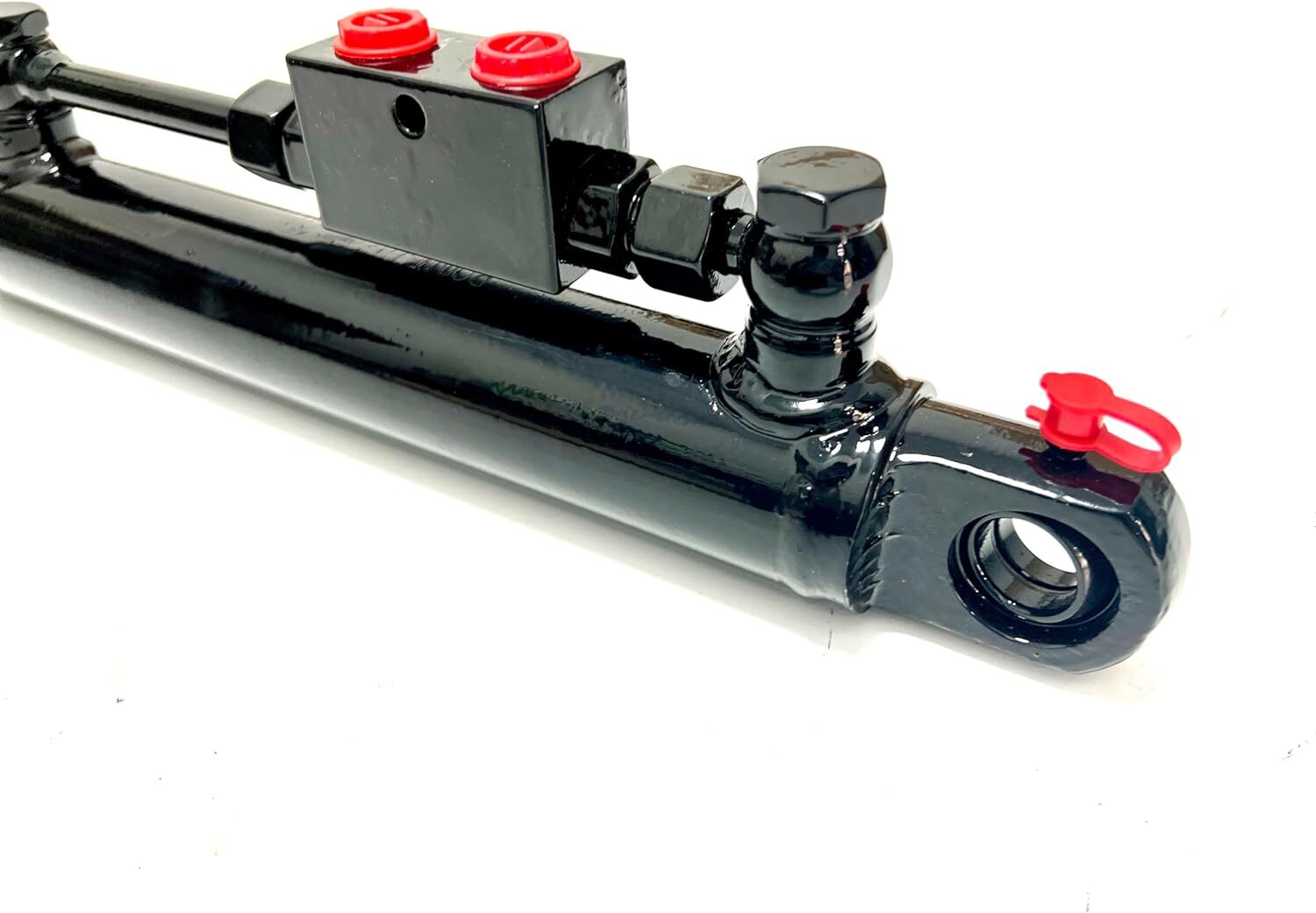

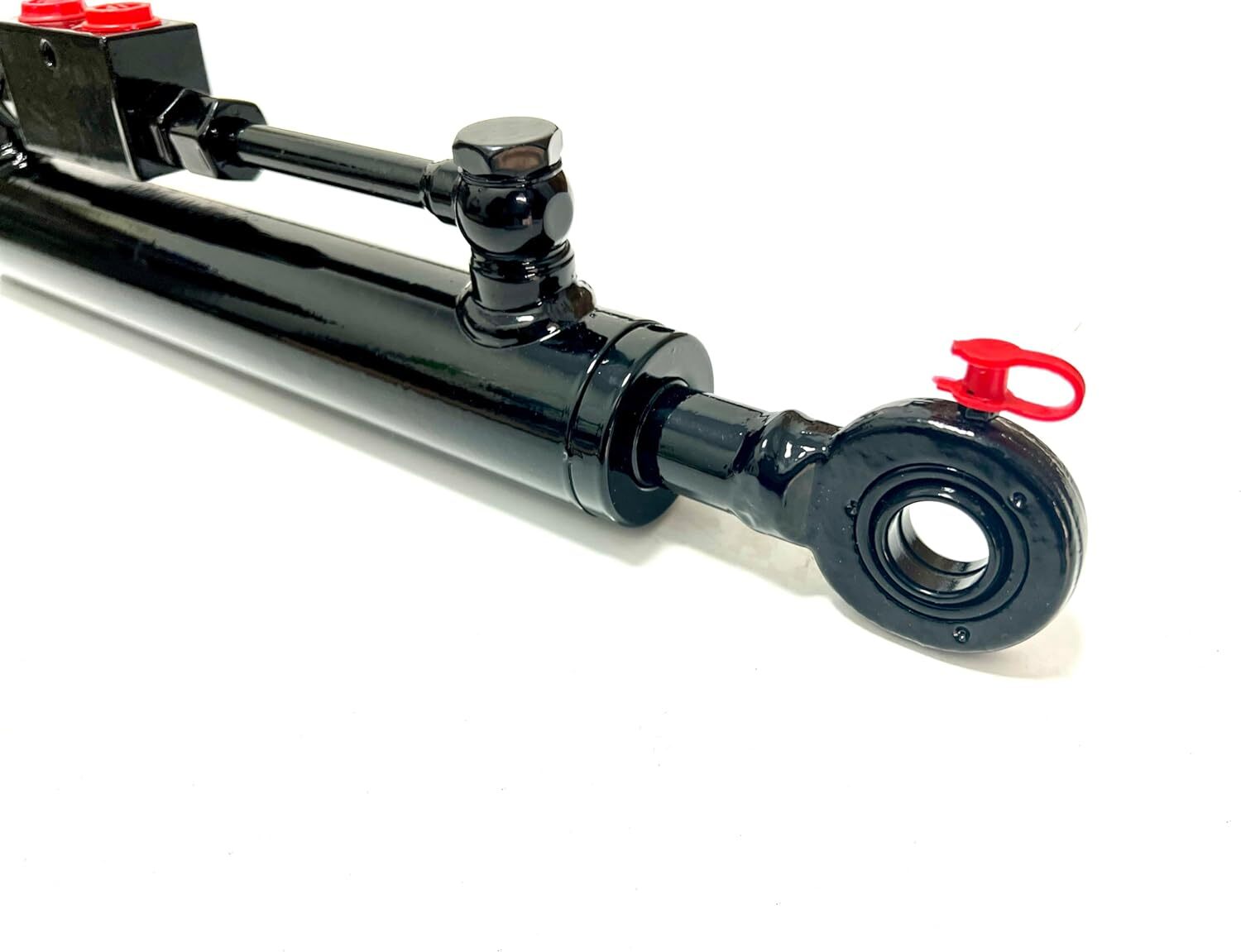

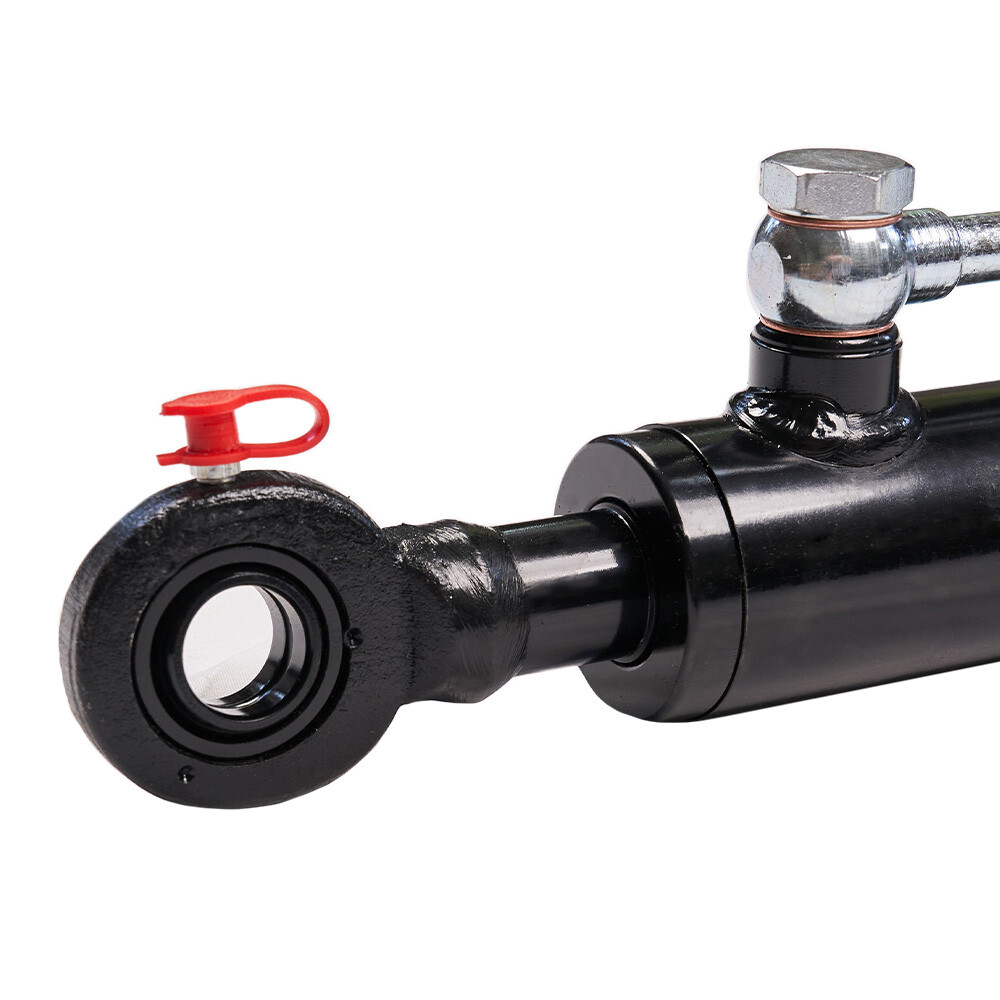

New Hydraulic Top Link Cat. 1-1 with Locking Block Inc.2 Hoses(Length Selectable
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Brand | Sparepartholland |
| Compatible Equipment Type | Tractor |
| Unit Type | Unit |
| Model | toplink |
| Compatible Equipment Make | Universal |
| MPN | all |
| Country/Region Of Manufacture | Turkey |
| Part Type | Hydraulics |

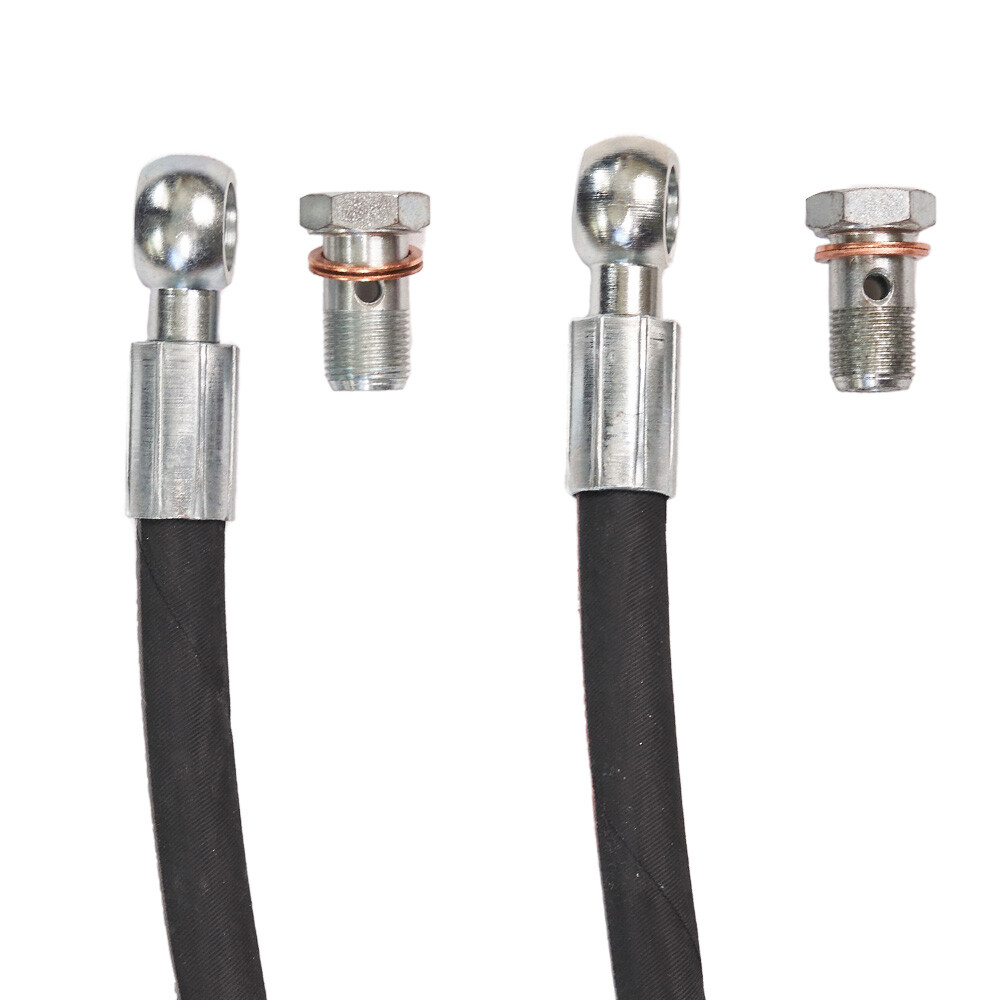

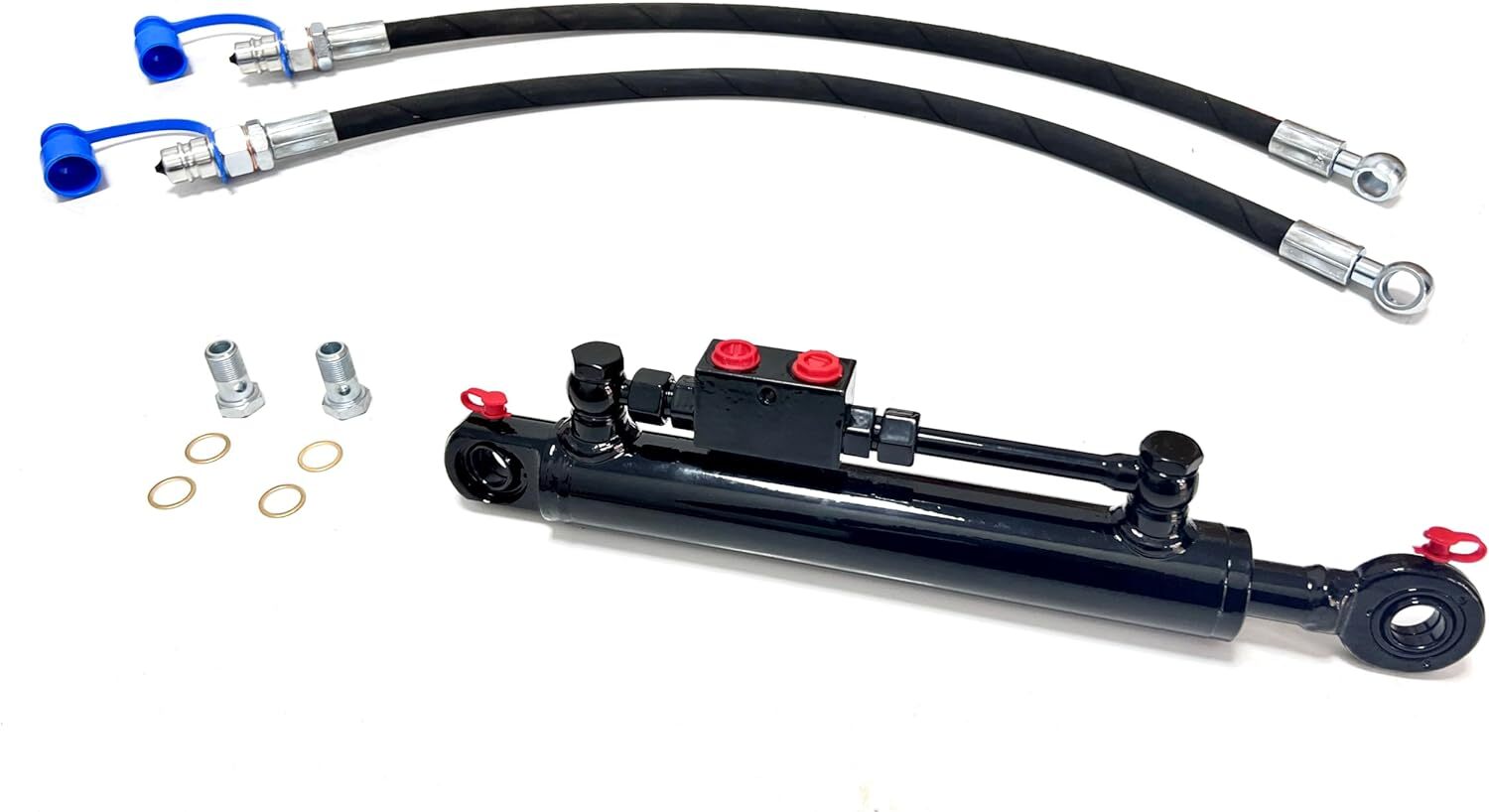

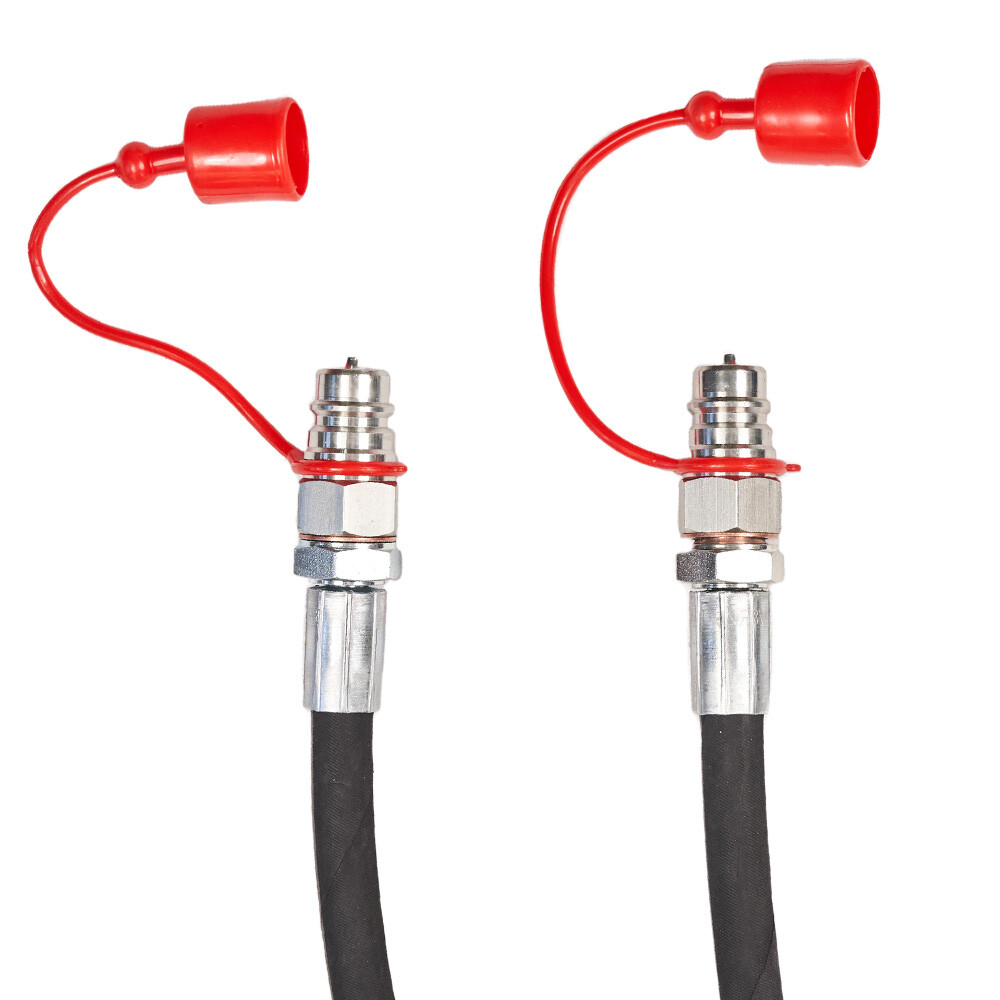

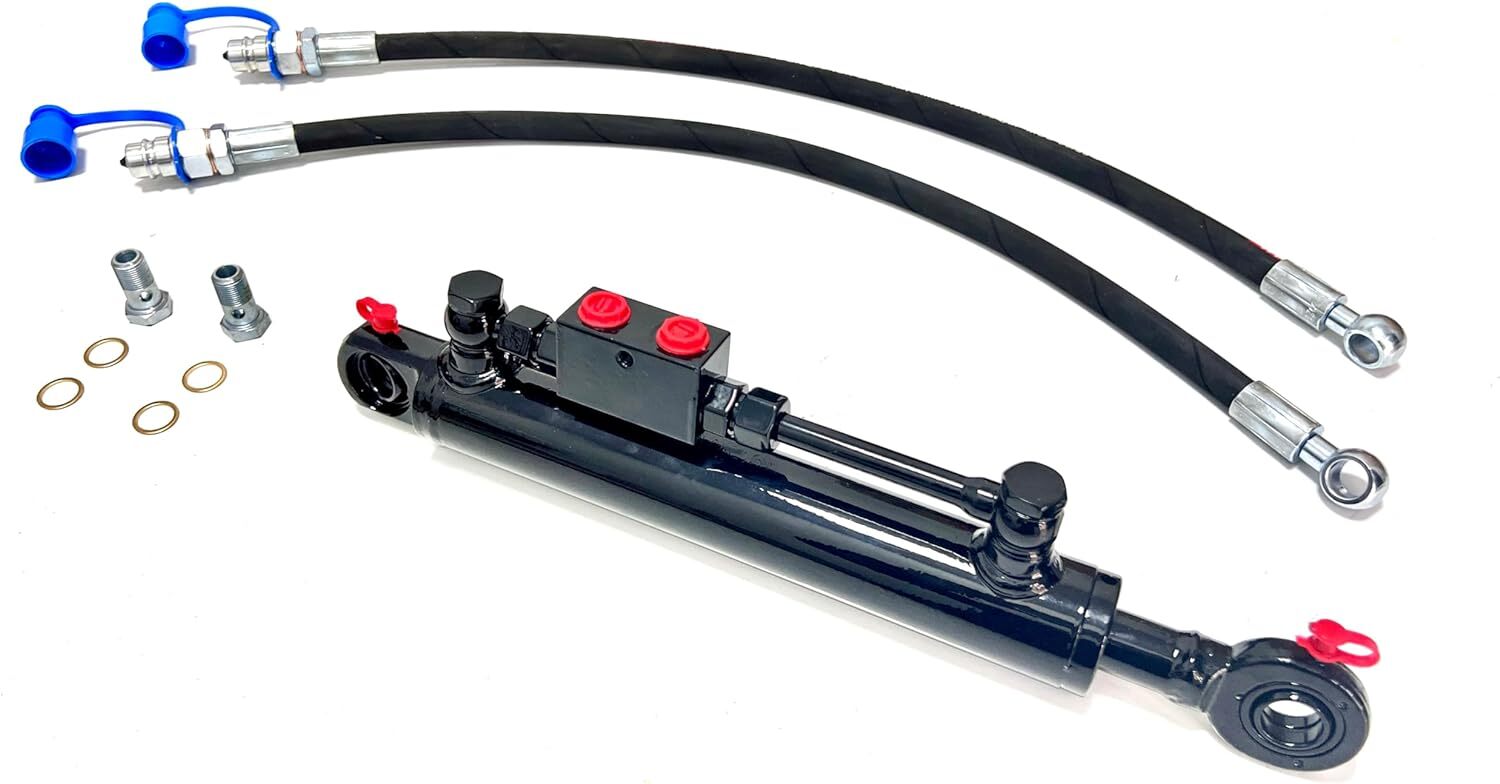

Including 1 x Hydraulic Toplink (Painted Black Color), 2 x Hoses, 2 x Male Couplers with dust cover, 2 x Banjo Bolts, 4 x Washers,Hose Length : 29,5" . The male quick couplers are 1/2" BSP Poppet Style .The piston rod can be rotated as needed. Holder to hold the unit when it is un-used.This top link is equipped with a locking block. With this valve, the oil is enclosed in the cylinder by a check valveHydraulic Toplink operates at up to 3500 PSI. Push Force : 5100 Lbs , Pull force : 3100 Lbs at 2600 PSI.Recommended Tractor Power : 10-40 HP Description: The hydraulic top link we offer replaces the existing top link on the tractor and makes your daily work easier. A double-acting control valve on the tractor is necessary for this - an unbeatable combination in combination with the integrated locking block .When adjusting the hydraulic toplink, it is very important that the adjusted position is maintained even after a long period of time. This is hardly possible with top links without a locking block, as the tractor's control units do not lock so tightly. This top link is therefore equipped with a locking block. With this valve, the oil is enclosed in the cylinder by a check valve. Only when there is oil pressure from the tractor again does the valve open and the cylinder can be adjusted. The hydraulic top link is made of high-quality steel and features a high-strength steel piston, threaded gland with wear ring, polished chrome plated rod, and welded steel base ends. It is designed to withstand heavy applications and extreme weather conditions. The piston and rod seals ensure excellent sealing performance, preventing oil evaporation, air leakage, and piston blockage.
