Nema23 Nema34 Closed-loop Stepper Motor 1.2Nm~12Nm Hybrid Servo Driver Kit CNC
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Brand | TEHIGHAUTO |
| MPN | TU-57HB/86HB |
| Nominal Rated Input Voltage | 24 V |
| Full Step Angle | 1.8° (200 Steps) |
| Wiring Configuration | 4-Wire Bipolar |
| Shaft Type | Solid Shaft |
| IP Rating | Not Rated |
| Insulation Class | B (Max 266°F) |

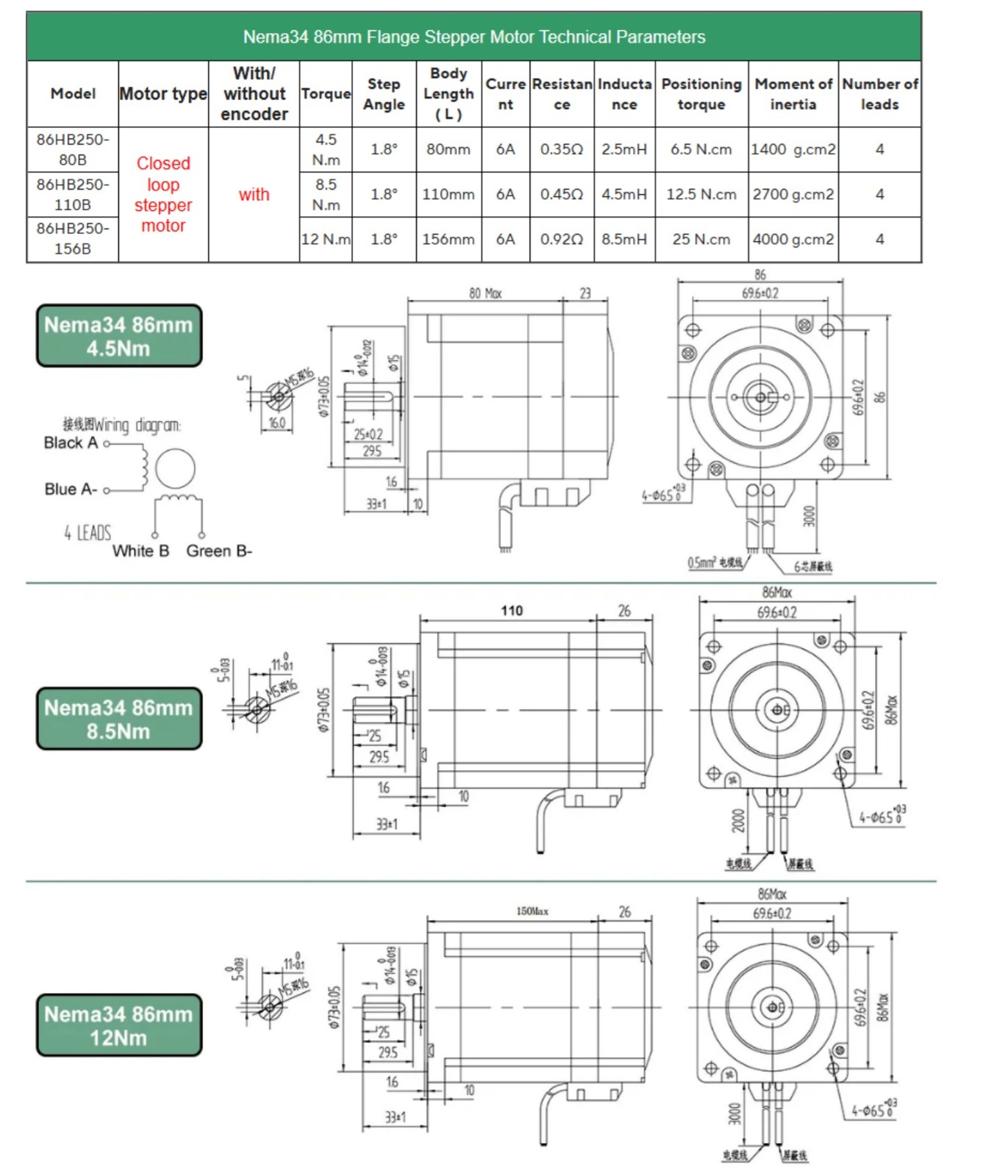

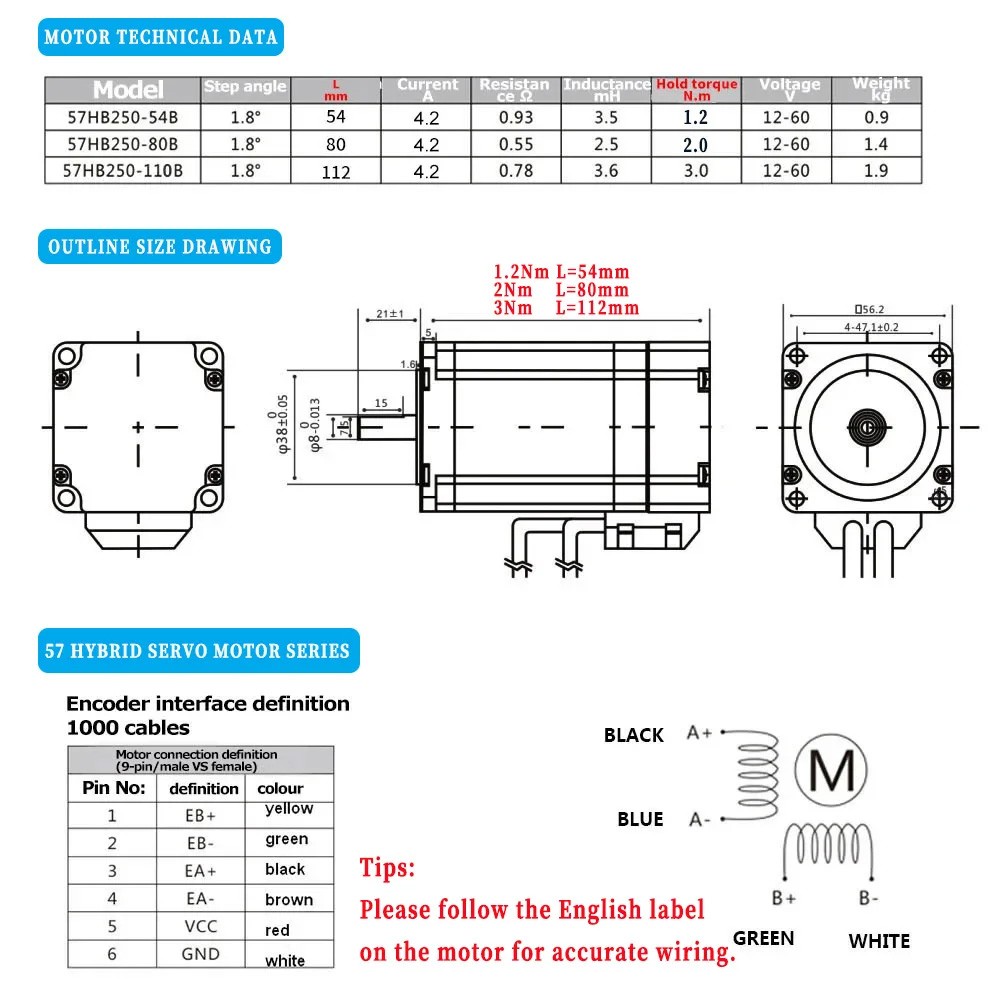

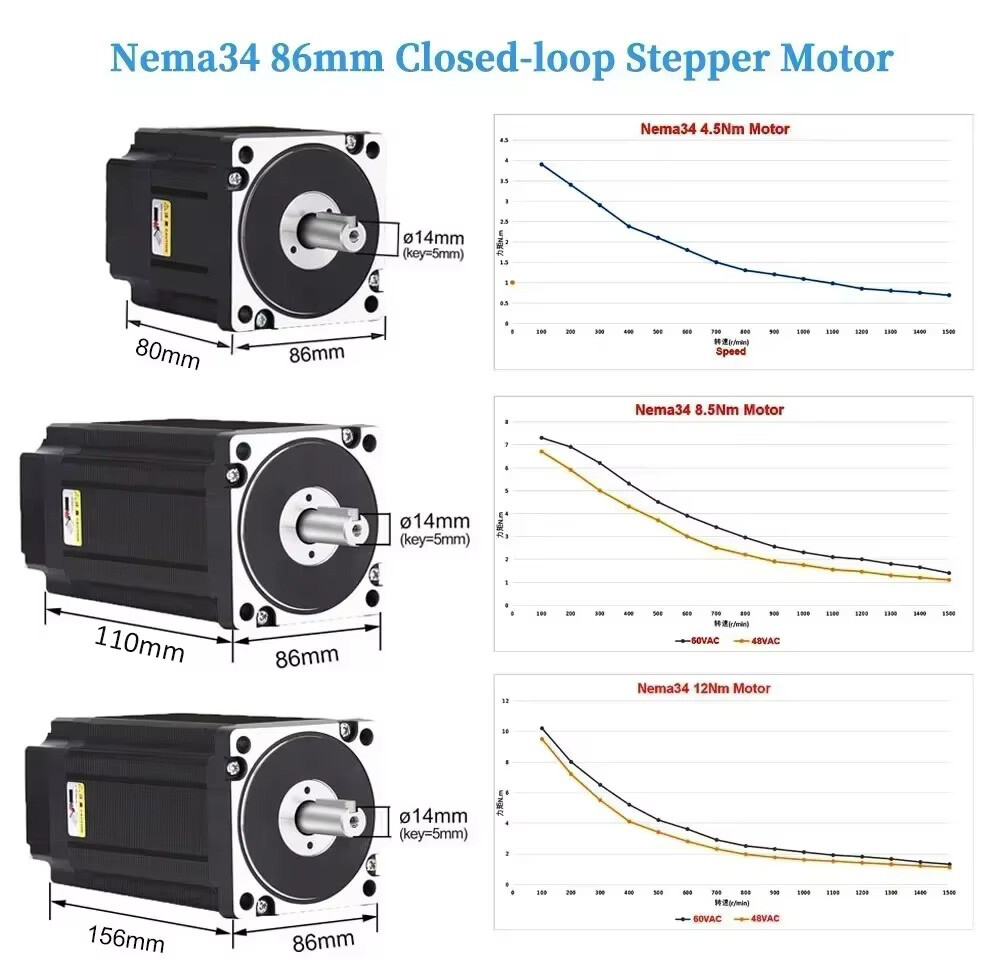

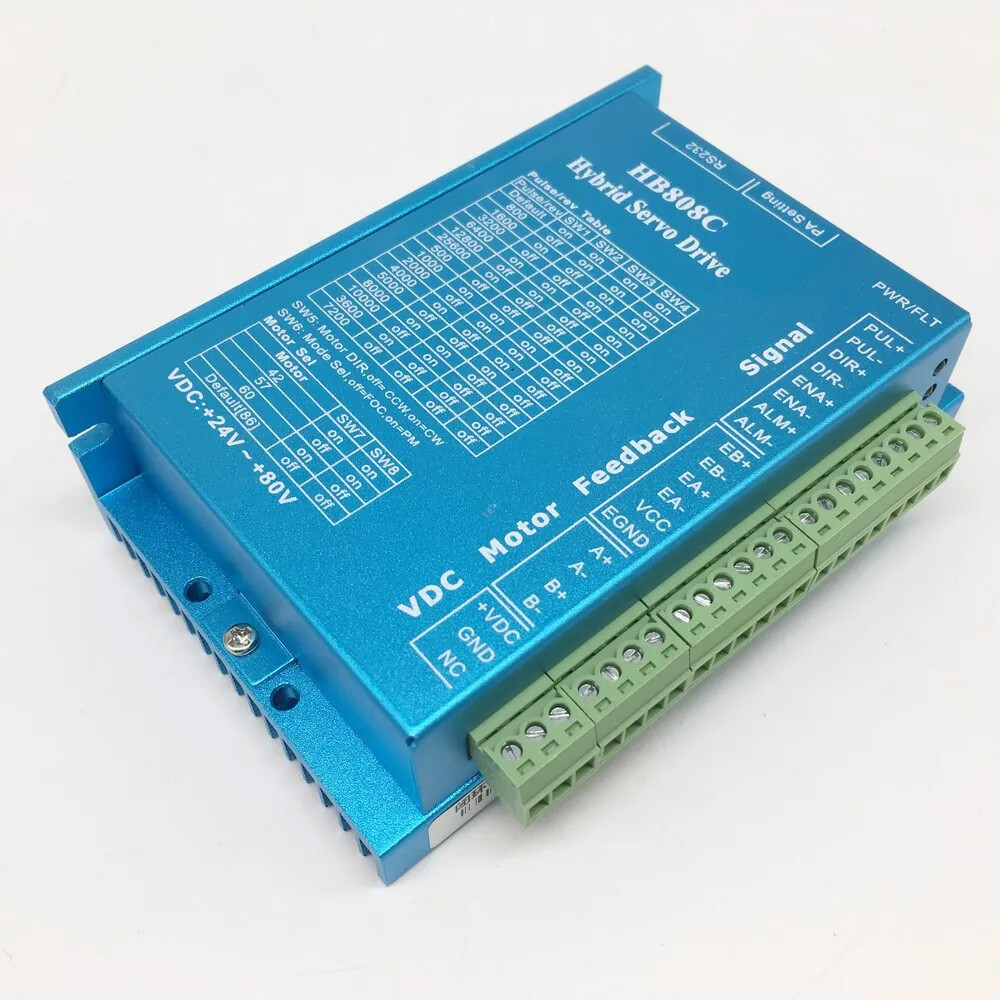

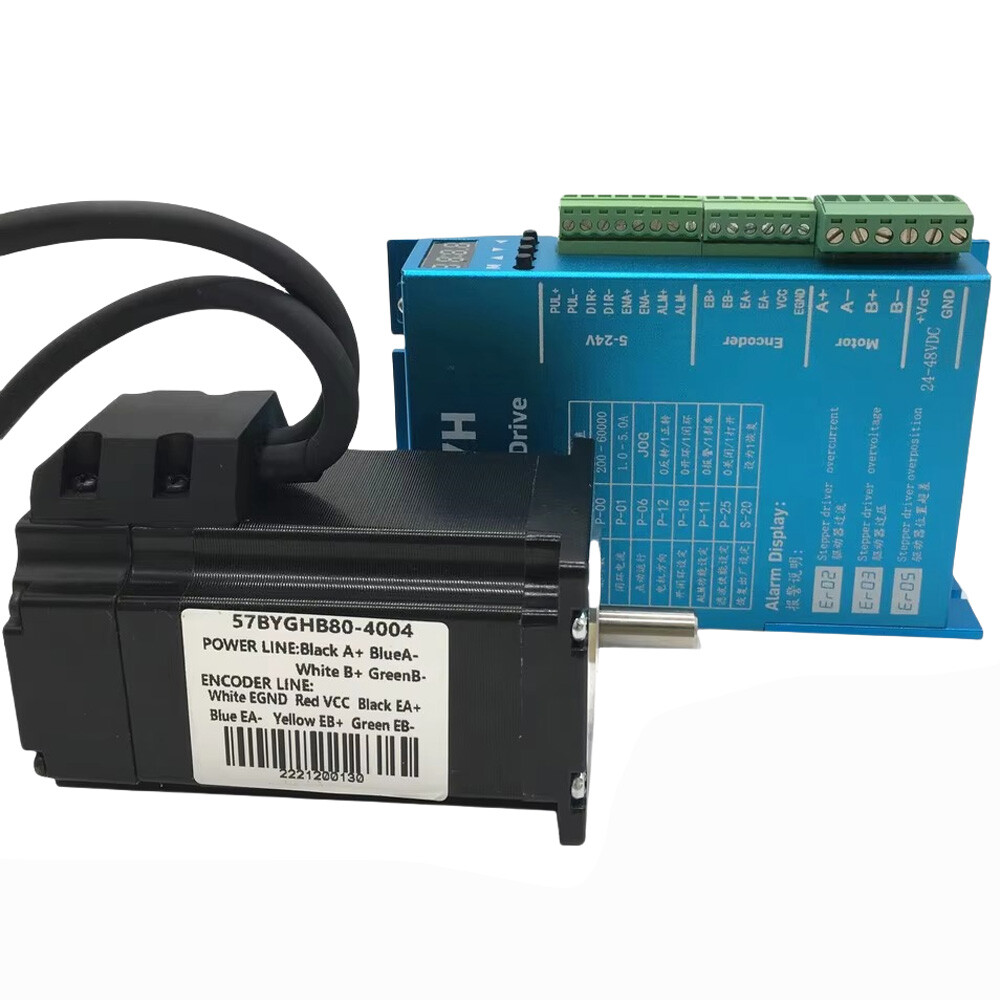

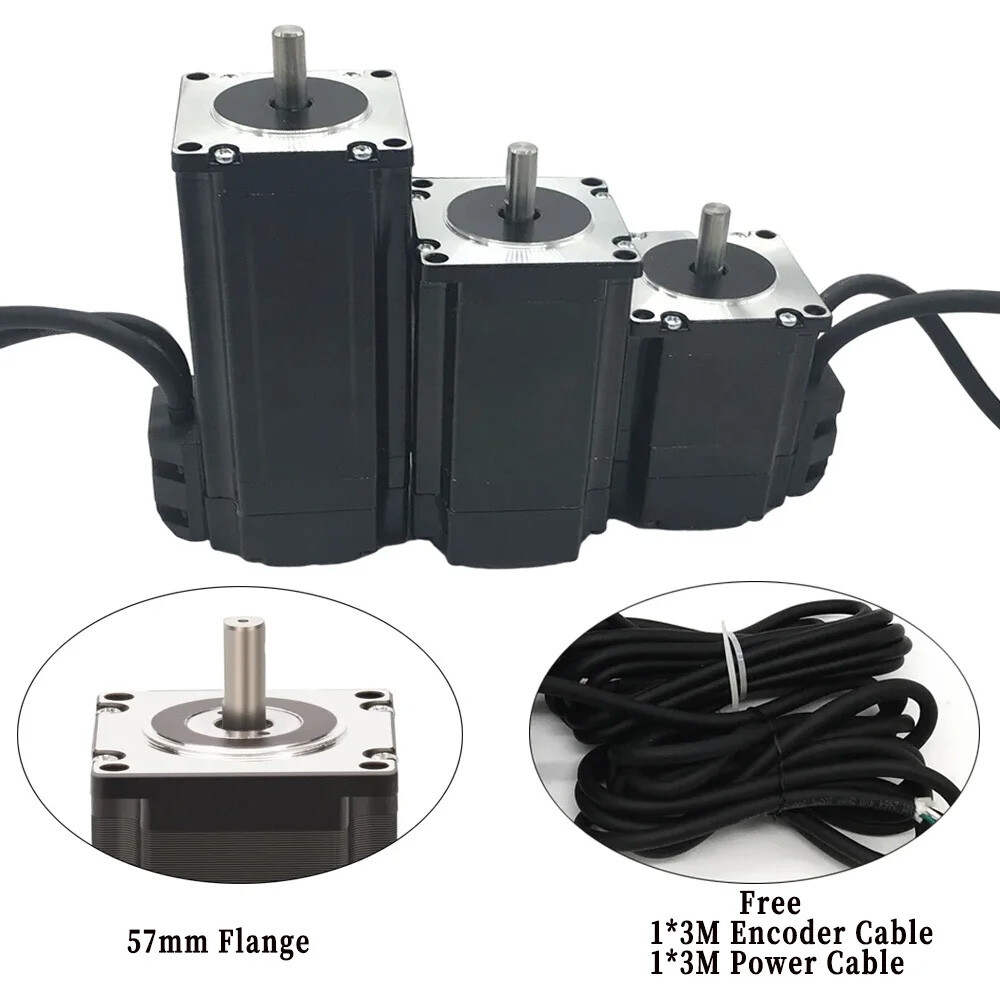

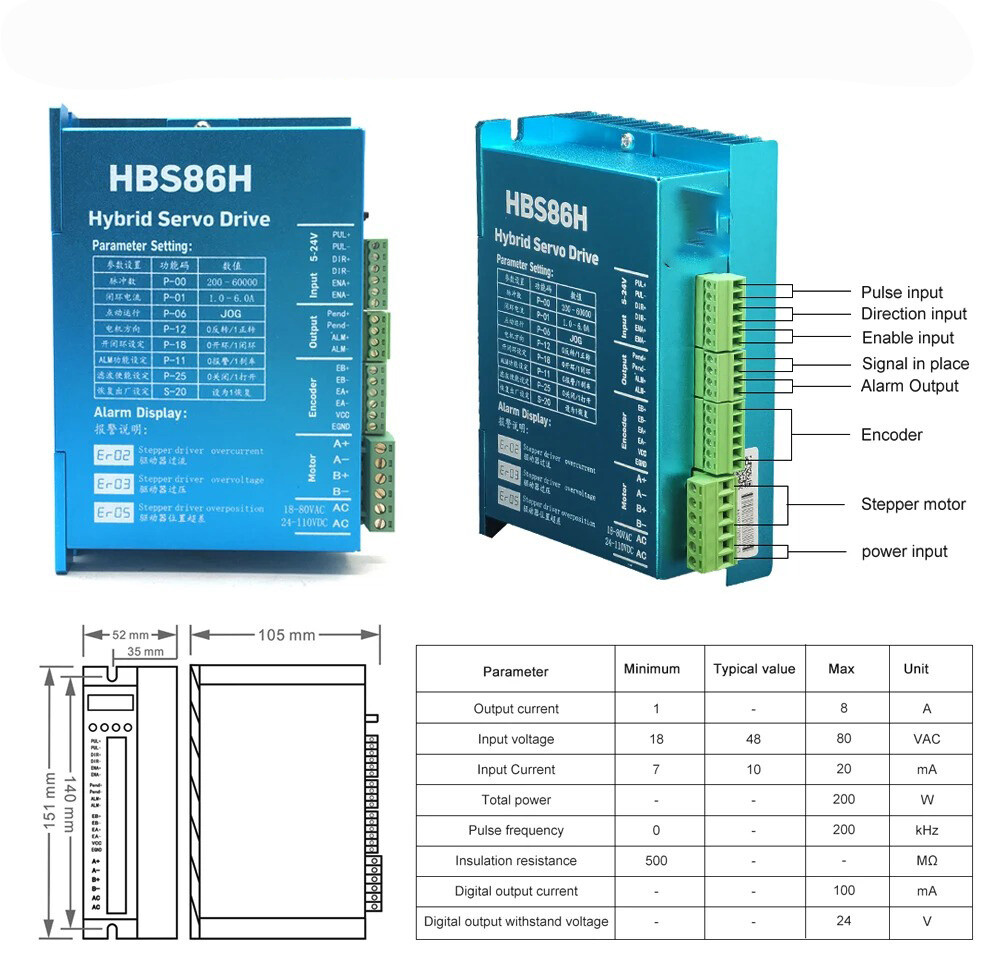

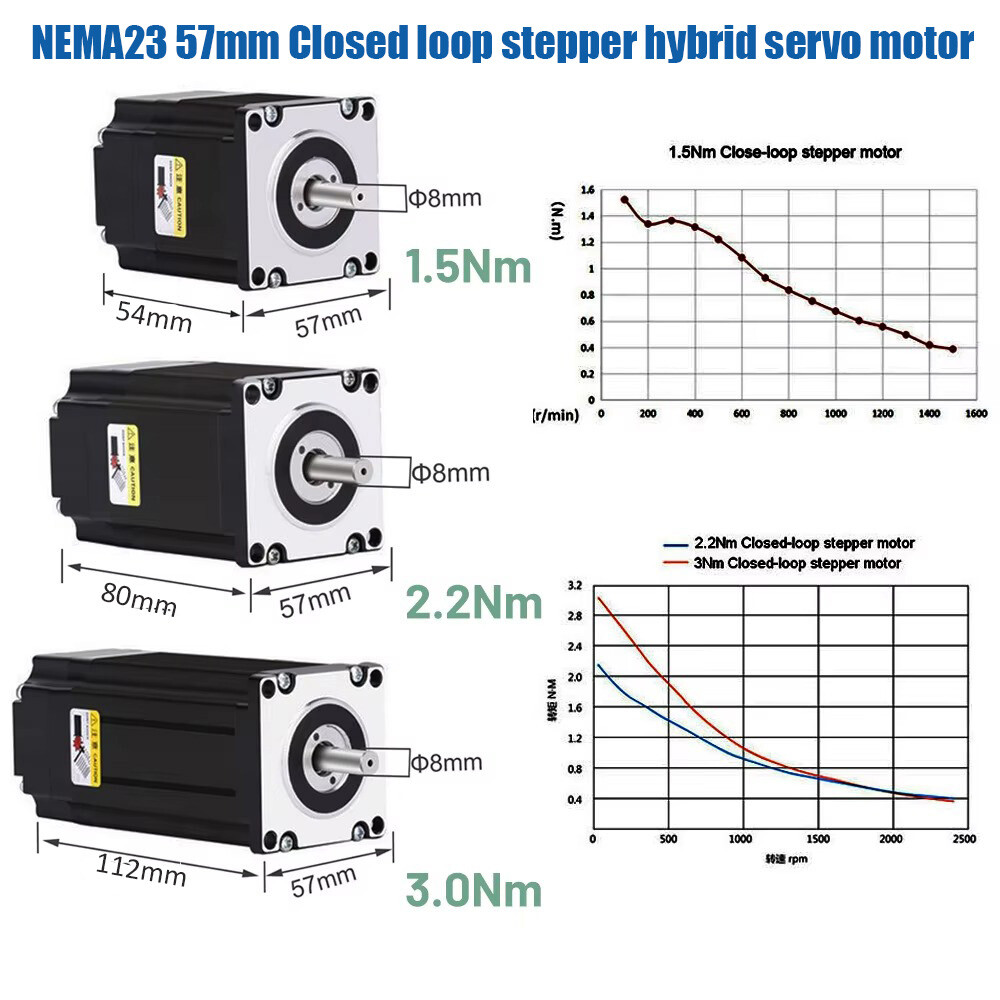

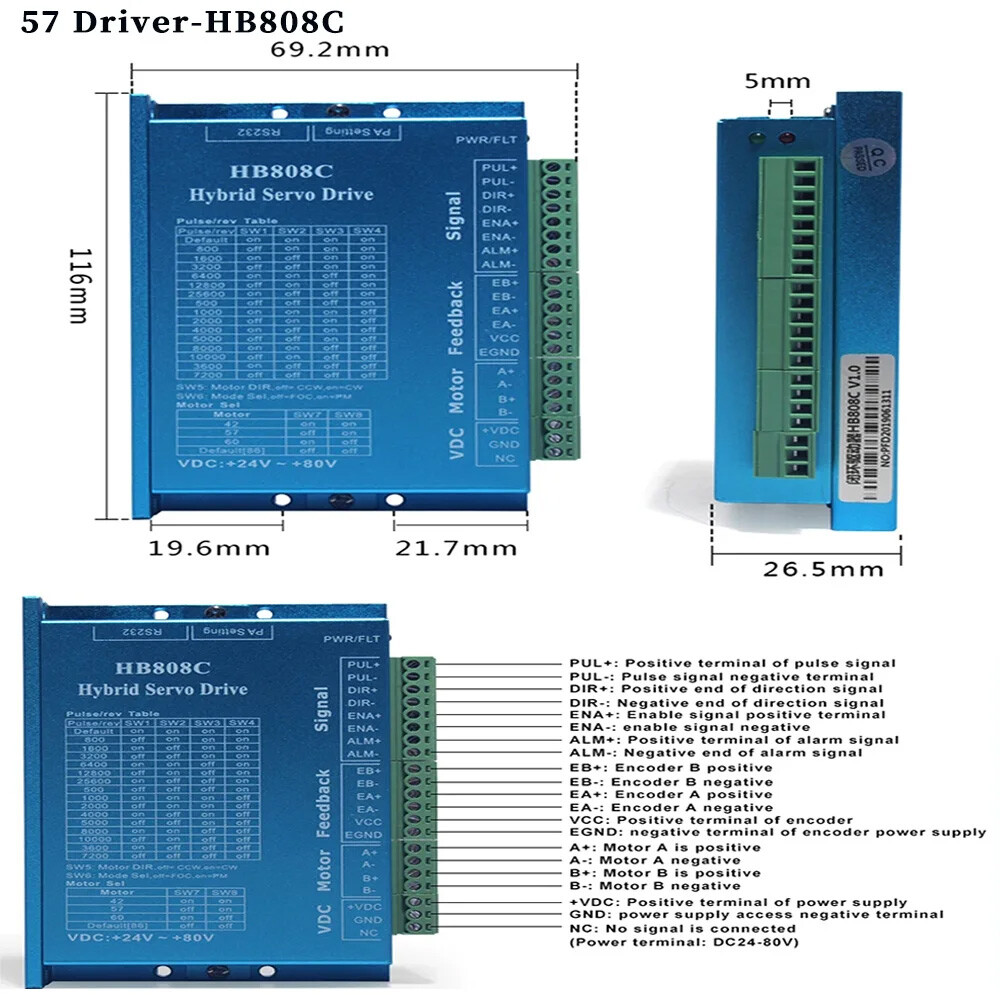

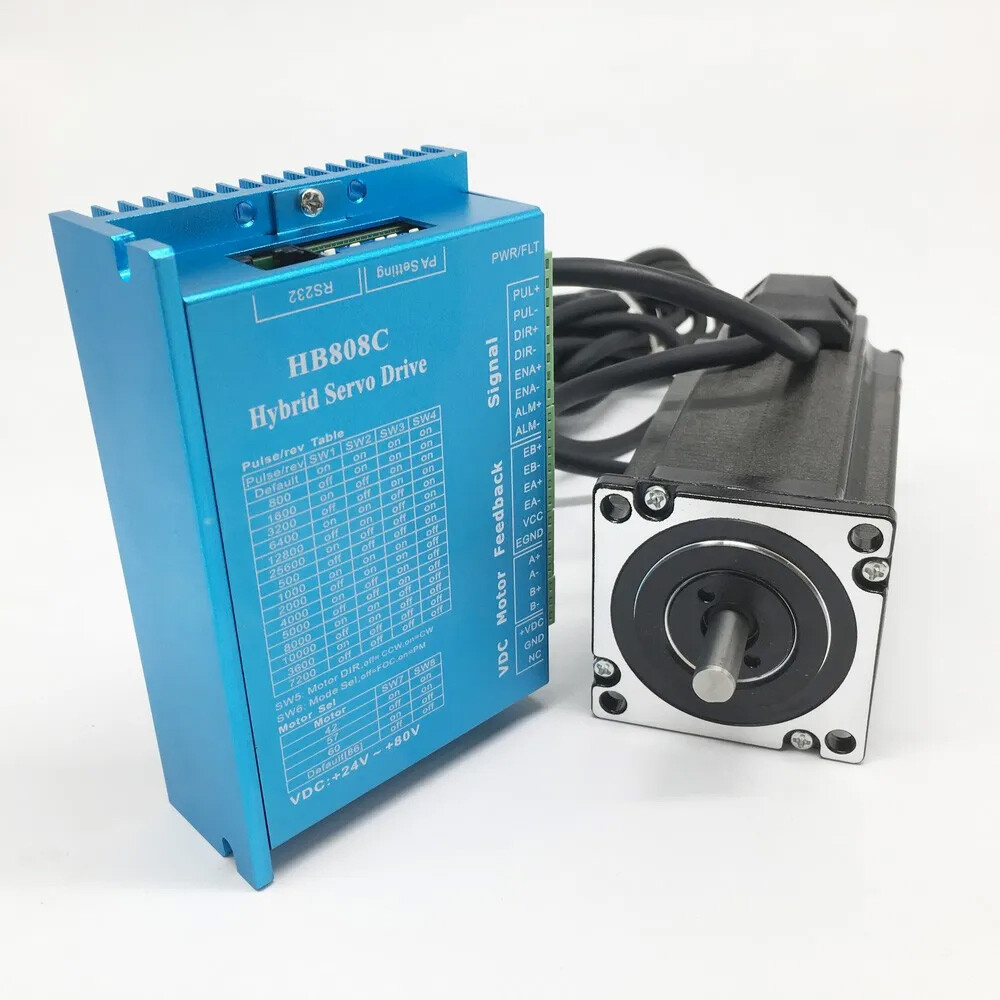

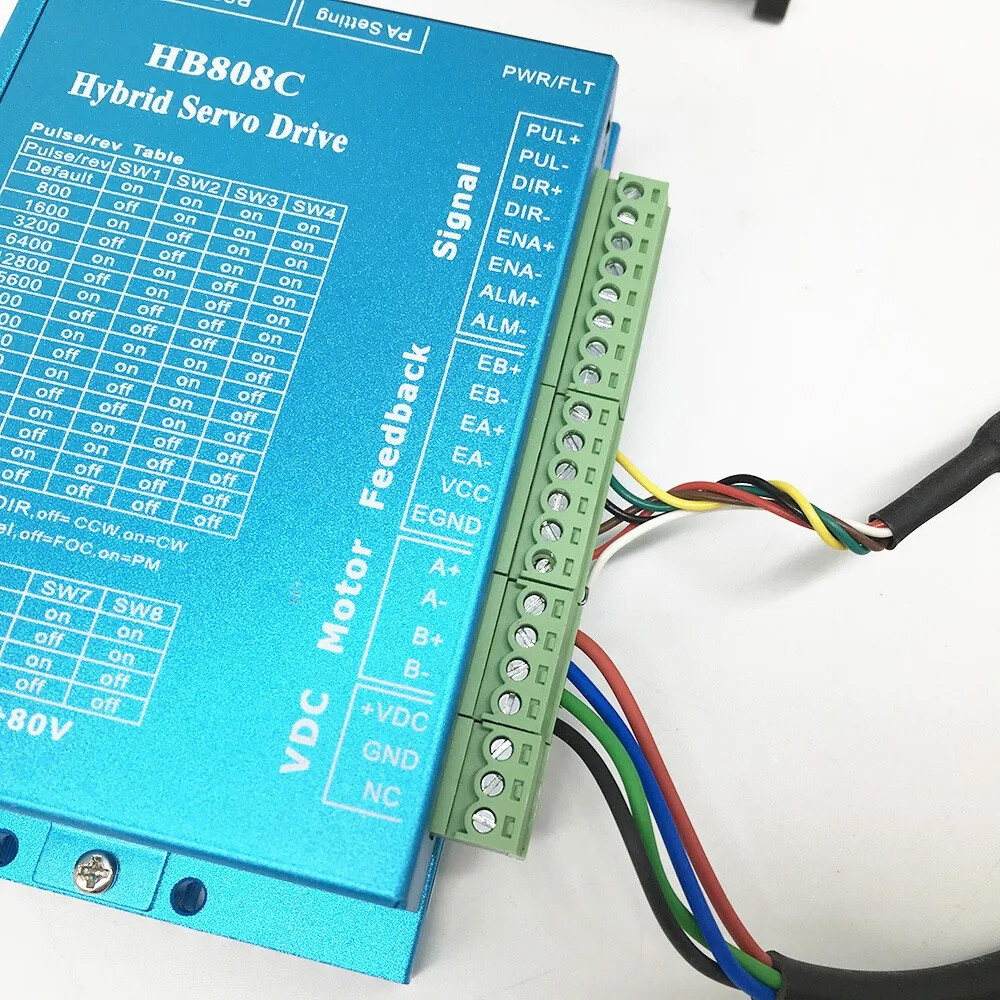

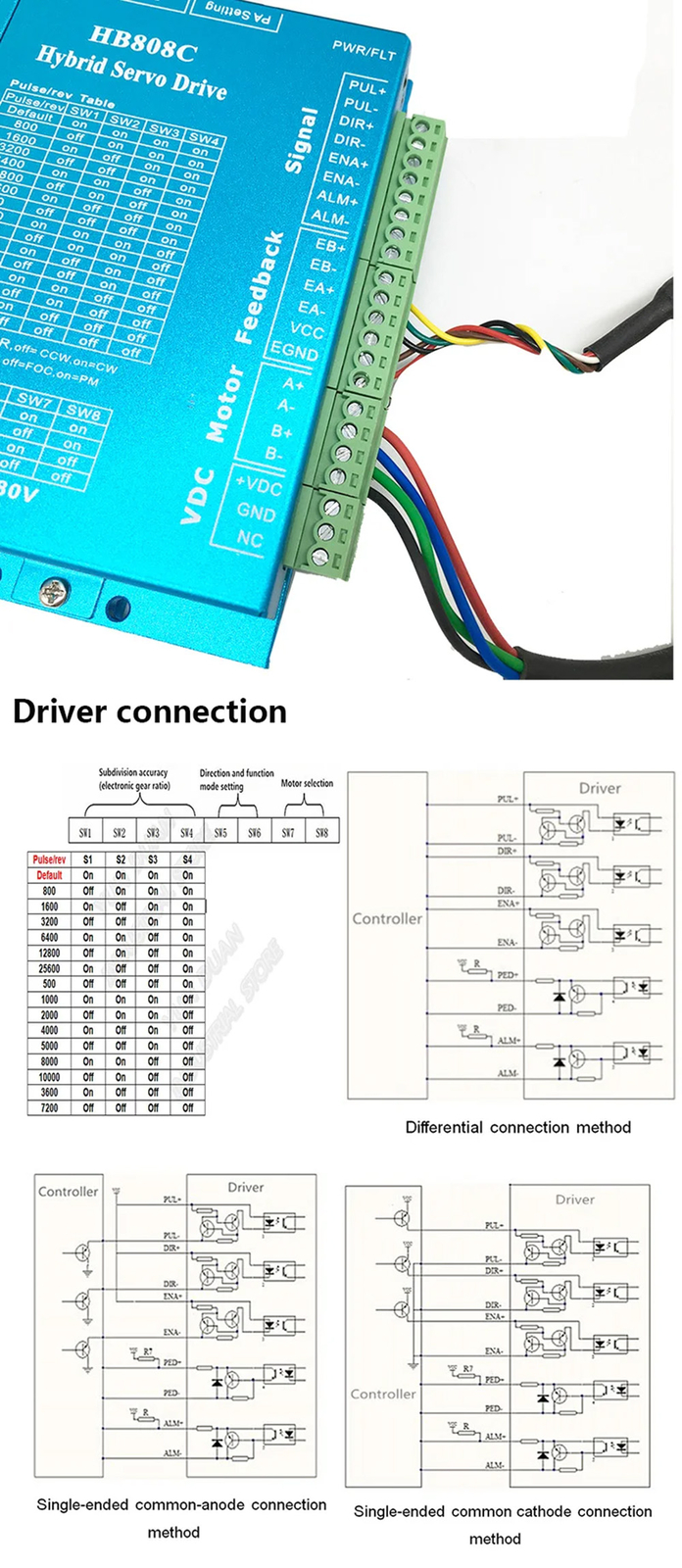

Package List(Please choose you need) 1*Nema23 or NEMA34 Closed Loop Stepper Motor 1*HB808C (for nema23) or HBS86H(for nema34) Driver 1*3M Encoder Cable 1*3M Power CableNema23 Nema34 Closed-loop Stepper Motor 1.2Nm~12Nm Hybrid Servo Driver Kit CNCPackage List(Please choose you need) 1*Nema23 or NEMA34 Closed Loop Stepper Motor 1*HB808C (for nema23) or HBS86H(for nema34)Driver 1*3M Encoder Cable 1*3M Power Cable NEMA23 57mm closed-loop motor Parameters1.Flange: NEMA23 57MM 2.Step angle: 1.8 degree 3.Phase: 2PH 4.Hold torque: 1.2/2.0/3.0Nm 5.Motor Length: 56/80/112MM 6.Rated Speed: 1000RPM 7.Encoder: 1000line 8.Resistance: 0.4/0.7/0.8(ohm) 9.Inductance: 1.2/2/3.5mH 10.Class of insulation: B ModelTorqueStep AngleBody Length ( L )CurrentResistanceInductancePositioning torqueMoment of inertiaNumber of leads57HB250-54B1.5 N.m1.8°56mm4.2 A0.4 Ω1.2 mH3.5 N.cm280 g.cm2457HB250-80B2.2 N.m1.8°80mm4.2 A0.7 Ω2.0 mH7.0 N.cm500 g.cm2457HB250-110B3.0 N.m1.8°112mm4.2 A0.8 Ω3.5 mH12 N.cm800 g.cm24Working environment-25°C~+55°CInsulation resistance100Ωminm, 500VDCAxial clearance0.08MaxRadial runout0.02MaxTemperature rise85°CClass of insulationB HB808C Driver functional characteristicsModel: HB808CType: DSP Closed loop stepper driveMaximum peak current: 8AImpulse response frequency: 200KHzMicro-stepping driver: 200~51200pprInput Voltage: 20~80VAC/30-110VDCProtective function: Over voltage, over current, tracking error, over proofSignal input: Support PUL/DIR and CW/CCW modes (difference)Compatible : 5~24V signal (Don't need a resistor)Type of cooling: Air-coolingLogic Signal Current: 7-16 Ma NEMA34 86mm closed-loop motor ParametersModelTorqueStep AngleBody Length ( L )CurrentResistanceInductancePositioning torqueMoment of inertiaNumber of leads86HB250-80B4.5 N.m1.8°80mm6A0.35Ω2.5mH6.5 N.cm1400 g.cm2486HB250-110B8.5 N.m1.8°118mm6A0.45Ω4.5mH12.5 N.cm2700 g.cm2486HB250-156B12 N.m1.8°156mm6A0.92Ω8.5mH25 N.cm4000 g.cm24Working environment-25°C~+55°CInsulation resistance100Ωminm, 500VDCAxial clearance0.08MaxRadial runout0.02MaxTemperature rise85°CClass of insulationB HBS86H Driver functional characteristicsModel:HBS86HType: DSP Closed loop stepper driveMaximum peak current: 8AImpulse response frequency: 200KHzMicro-stepping driver: 200~51200pprInput Voltage: 20~80VAC/30-110VDCProtective function: Over voltage, over current, tracking error, over proofSignal input: Support PUL/DIR and CW/CCW modes (difference)Compatible : 5~24V signal (Don't need a resistor)Type of cooling: Air-coolingLogic Signal Current: 7-16 Ma Detail Shows PaymentDelivery detailsTerms of salesAbout usContact usPayment1. All payments must be prepaid.2. We accept multiple payment.Delivery details1. We'll pay for export custom tax,Buyer should pay for import custom tax if needed.2. packages will be sent out within the same day or 1 working days after the payment is received.3. Order placed on the weekends will be shipped out on next Monday or Tuesday (holiday excluded).4. Local pickup is not available.5. We regret that we can not be responsible for any wrong or undeliverable addresses.Terms of sales1.We automatically submit positive feedback to our buyer once the payment is cleared.2. if you are satisfied with our product, please do the same for us, leave Positive Feedback with Four 5-star DSR (Detailed Selling Rating)for us, which means a lot to us, thanks in advance.3. PleaseDo not leave Negative orNeutral Feedback before Contacting us, leave negative feedback and argue can not solve any problem and we will work with you to resolve those problem.4. For any problem you have met about the product, please feel free to contact us viaEbay Message or E-mail.We always reply messageswithin One business day, butexcept holidays.About usReturn & Warranty:1. We guarantee against any defective products.2. We provide 30 days money back on non-defective, undamaged, unused and resalable products. Restocking fee and other fee may apply upon the condition of returned products. Shipping and handling fees are non-refundable.3. For any returned product, please contact us through ebay message first, We will work on resolving your particular case ASAP.Contact usAny question please feel free to contact us, we will respond within 1 bussiness day or less, except holidays.
