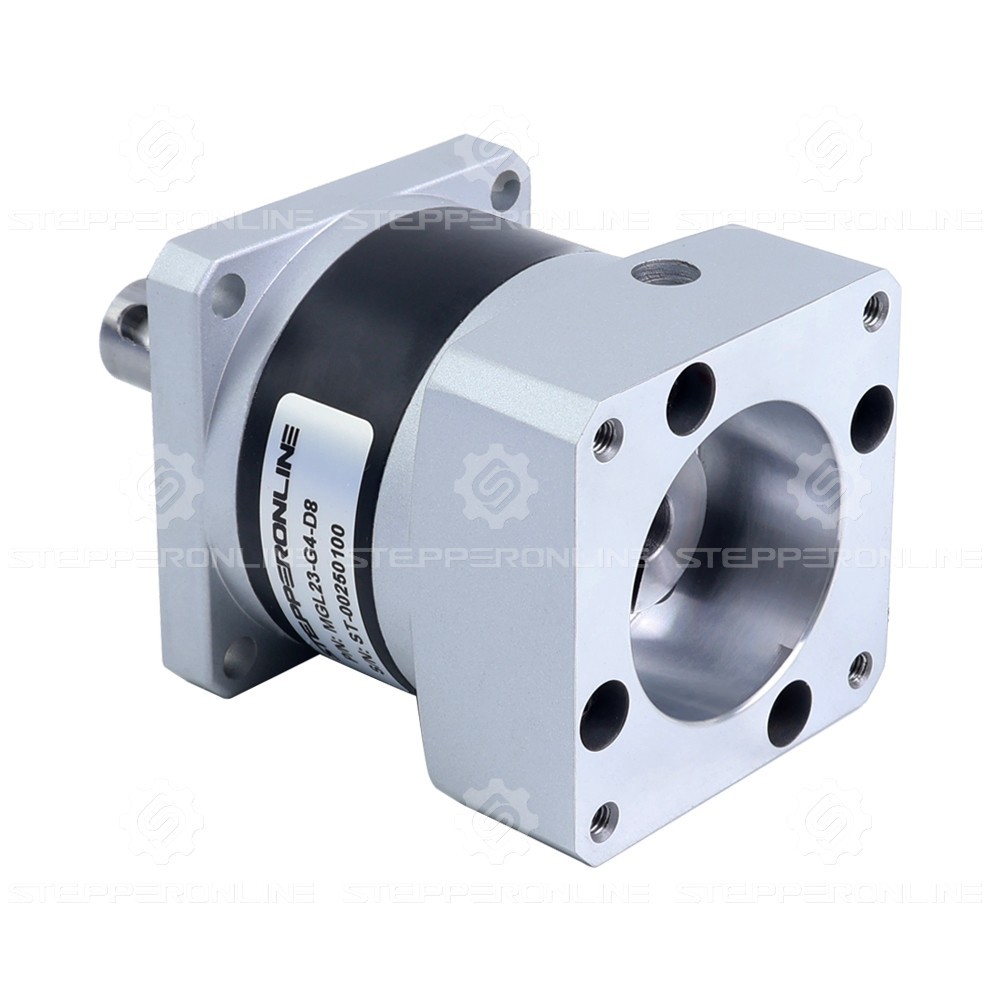

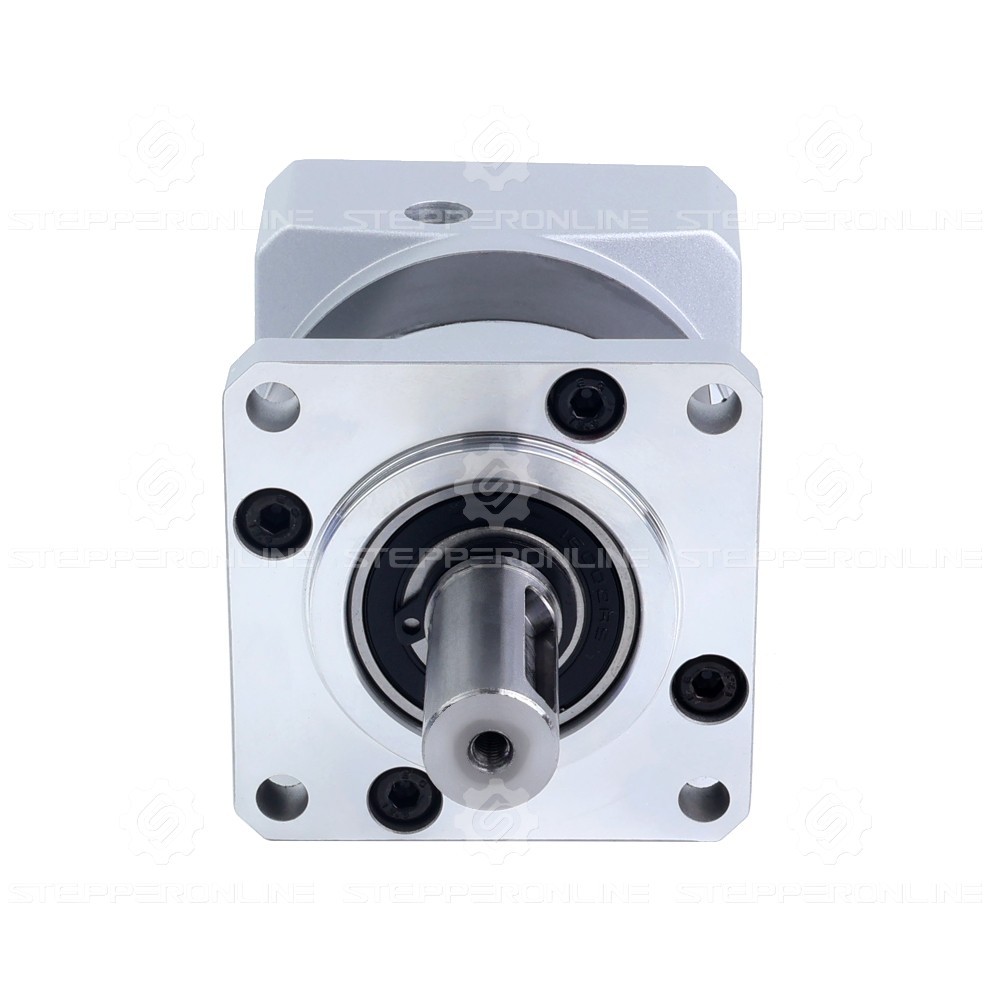

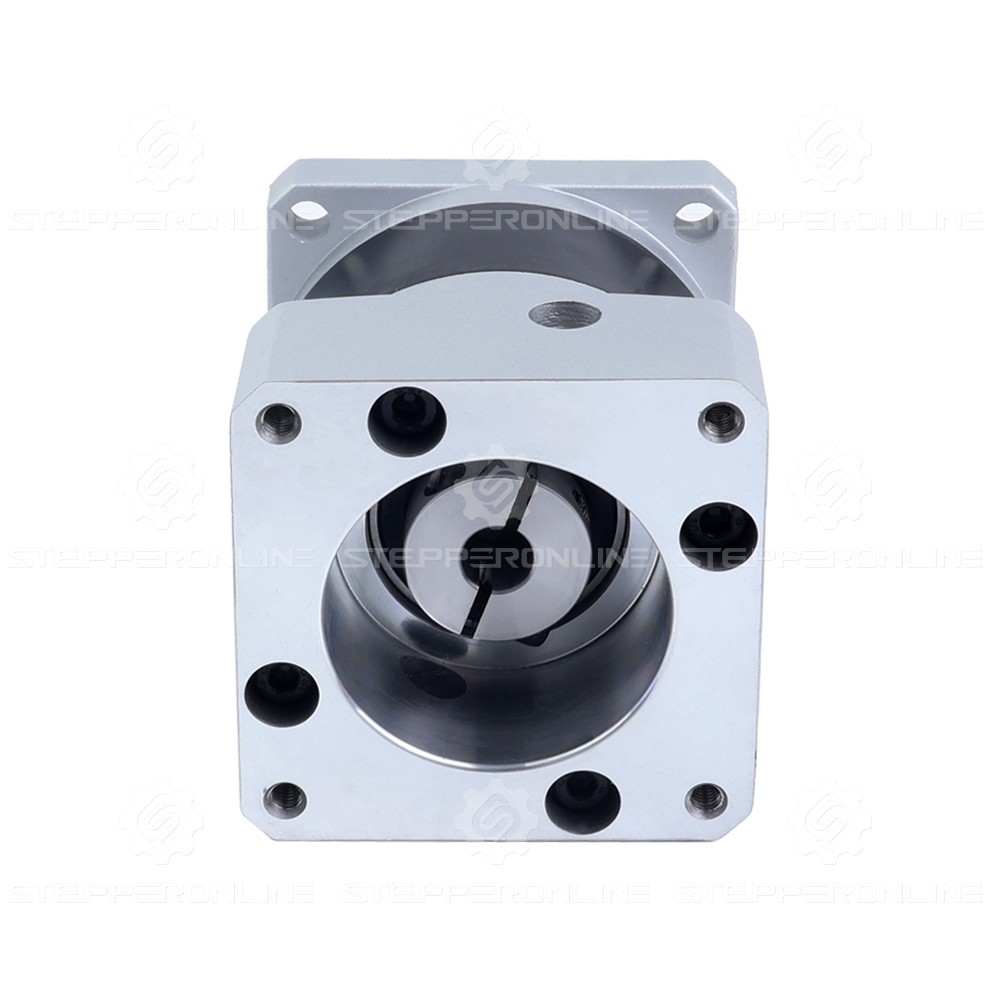

Nema 23 57mm Planetary Gearbox 4~50:1 30~45arc-min Speed Reducer 8mm Input Shaft
Nema 23 57mm Planetary Gearbox 4~50:1 30~45arc-min Speed Reducer 8mm Input Shaft Nema 23 57mm Planetary Gearbox 4~50:1 30~45arc-min Speed Reducer 8mm Input Shaft Nema 23 57mm Planetary Gearbox 4~50:1 30~45arc-min Speed Reducer 8mm Input Shaft Nema 23 57mm Planetary Gearbox 4~50:1 30~45arc-min Speed Reducer 8mm Input Shaft

Nema 23 57mm Planetary Gearbox 4~50:1 30~45arc-min Speed Reducer 8mm Input Shaft

USD 38.20 USD
SKU: I0tUYfHM
Brand: STEPPERONLINE
MPN: MGL23-D8
Condition: New
Tags: 1-30 min. 1000rpm 100N 20-25mm 300N 34mm China IP54 KeyWay MGL23-D8 Powder Metallurgy Ratio 4:1 Spur Planetary STEPPERONLINE Φ14mm Φ8mm
Categories: Woodworking Equipment

Specifications

RatioRatio 4:1
BrandSTEPPERONLINE
MPNMGL23-D8
Country/Region Of ManufactureChina
Input Shaft DiameterΦ8mm
Output Shaft DiameterΦ14mm
Output Shaft TypeKeyWay
Gearbox TypeSpur Planetary
Input Shaft Length20-25mm
Output Shaft Length34mm
Waterproof RatingIP54
Shaft Maximum Axial Load100N
Shaft Maximum Radial Load300N
Rated Input Speed1000rpm
Gear Material:Powder Metallurgy

The MGL series high-precision planetary gearbox features a gear ratio of 4/5/10/20/50:1 and a maximum backlash of 30~45arc-min. Different with MG series gearboxes, the MGL series is designed to accommodate standard Nema 23 motors with standard shafts.
