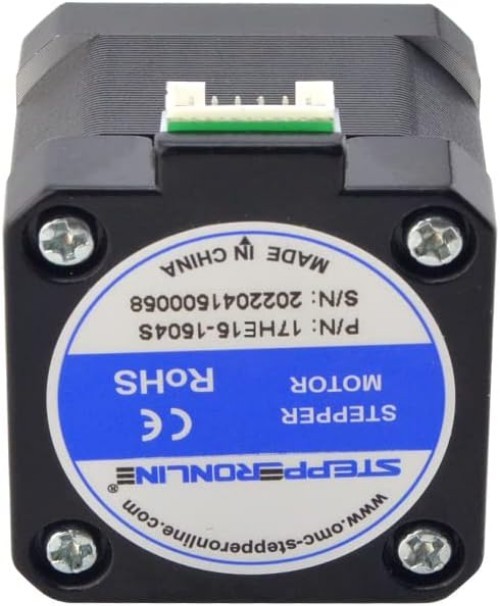

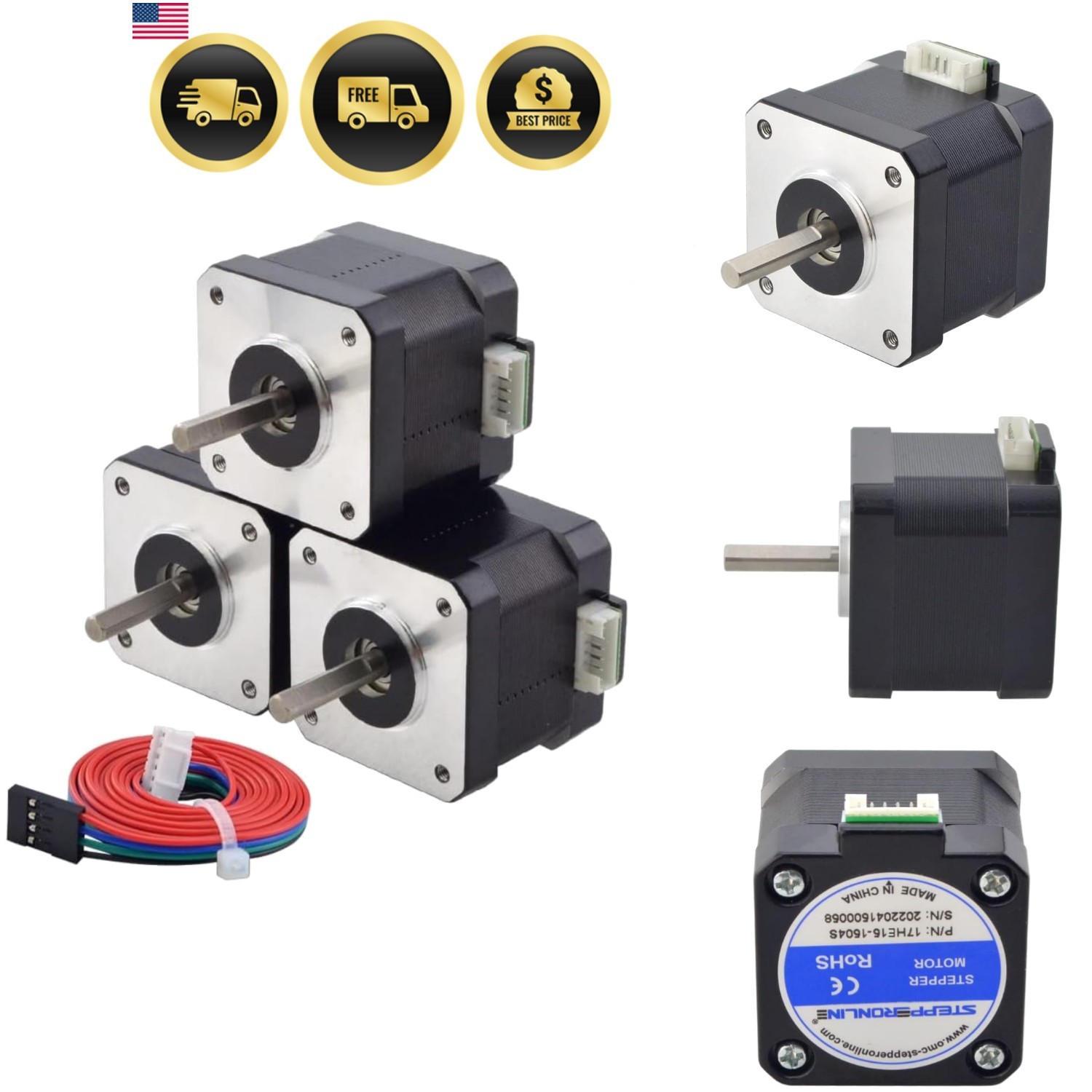

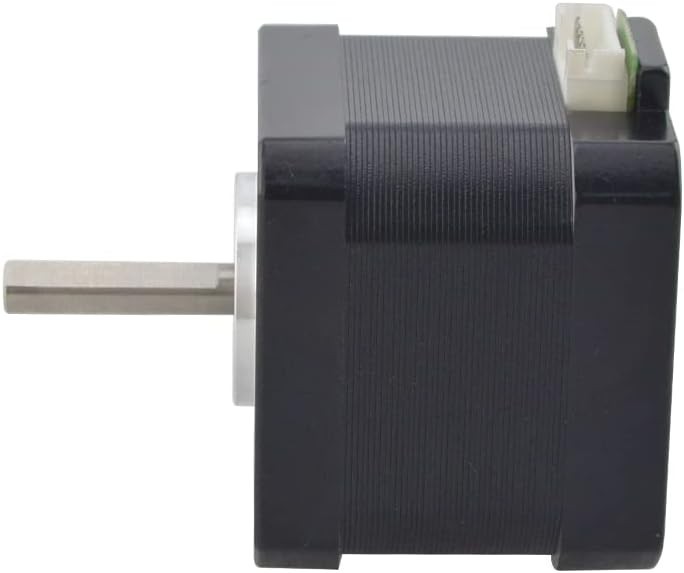

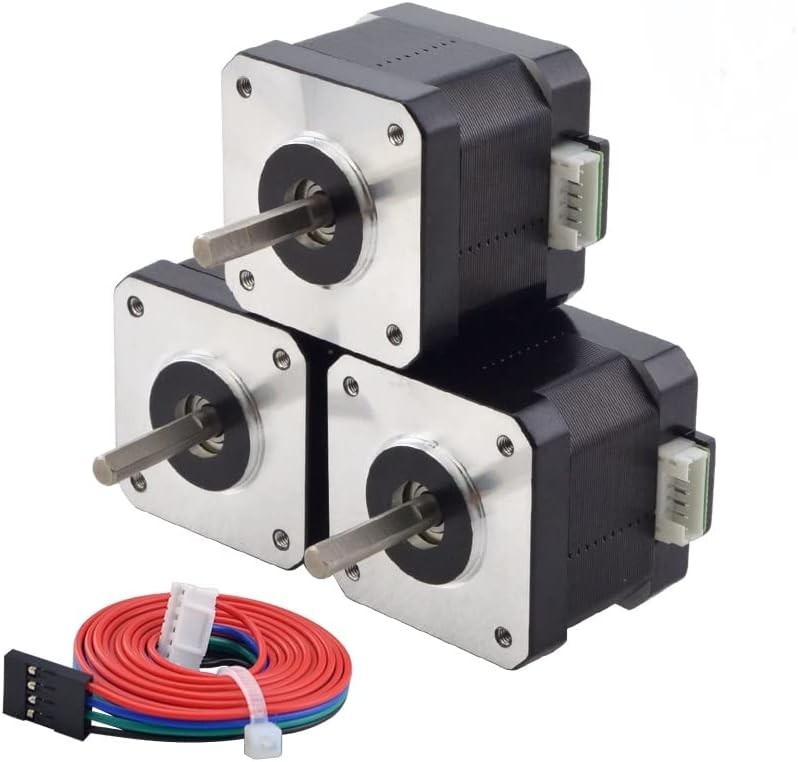

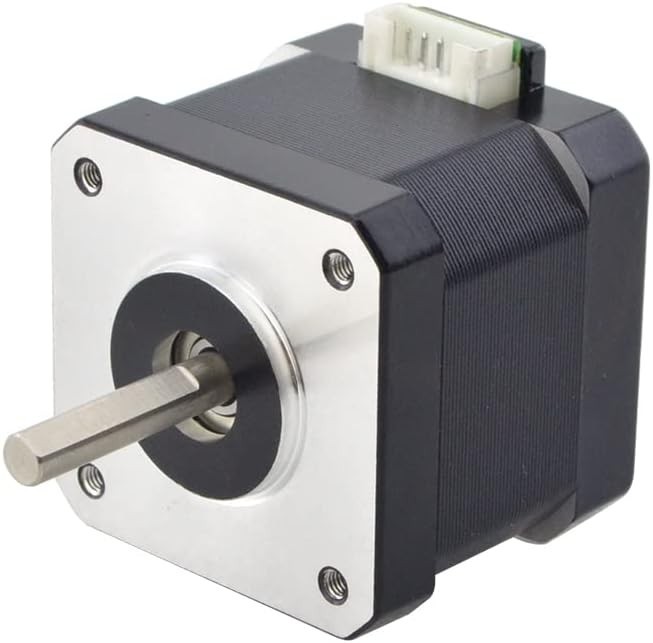

Nema 17 Stepper Motor Bipolar 1.5A 42Ncm 42x42x38mm 1.8deg 4 Wires with 1m Ca…
USD 54.22 USD
Specifications
| *frame Size | 42 X 42mm |
| Speed | 42 Rpm |
| *phase Resistance | 2.3ohms |
| Size | Black-1.8° |
| Shaft Diameter | 5 Millimeters |
| *motor Type | Bipolar Stepper |
| Product Dimensions | 1.6"w X 1.49"h |
| *rated Current/phase | 1.50a |
| *shaft Diameter | Φ5mm |
| *holding Torque | 42ncm(59.49oz.in) |
| *d-cut Length | 20mm |
| Brand | Unbranded |
| *step Angle | 1.8 Deg |
| Item Dimensions W X H | 1.6"w X 1.49"h |
| *weight | 280g |
| Horsepower | 1.5 Watts |
| Voltage | 1.5 Volts |
| *body Length | 38mm |
| *lead Length | 1000mm |
| *shaft Length | 23.5mm |
| *inductance | 4.00mh ± 20%(1khz) |
| Item Weight | 280 Grams |
This bipolar Nema 17 stepper motor with step angle and size 42x42x38mm. It has 4 wires, each phase draws current, with holding torque 42Ncm. Manufacturer Part Number: Motor Type: Bipolar Stepper Step Angle: deg Holding Torque: 42Ncm( Rated Current/phase: Phase Resistance: Inductance: ± 20%(1KHz). ).
