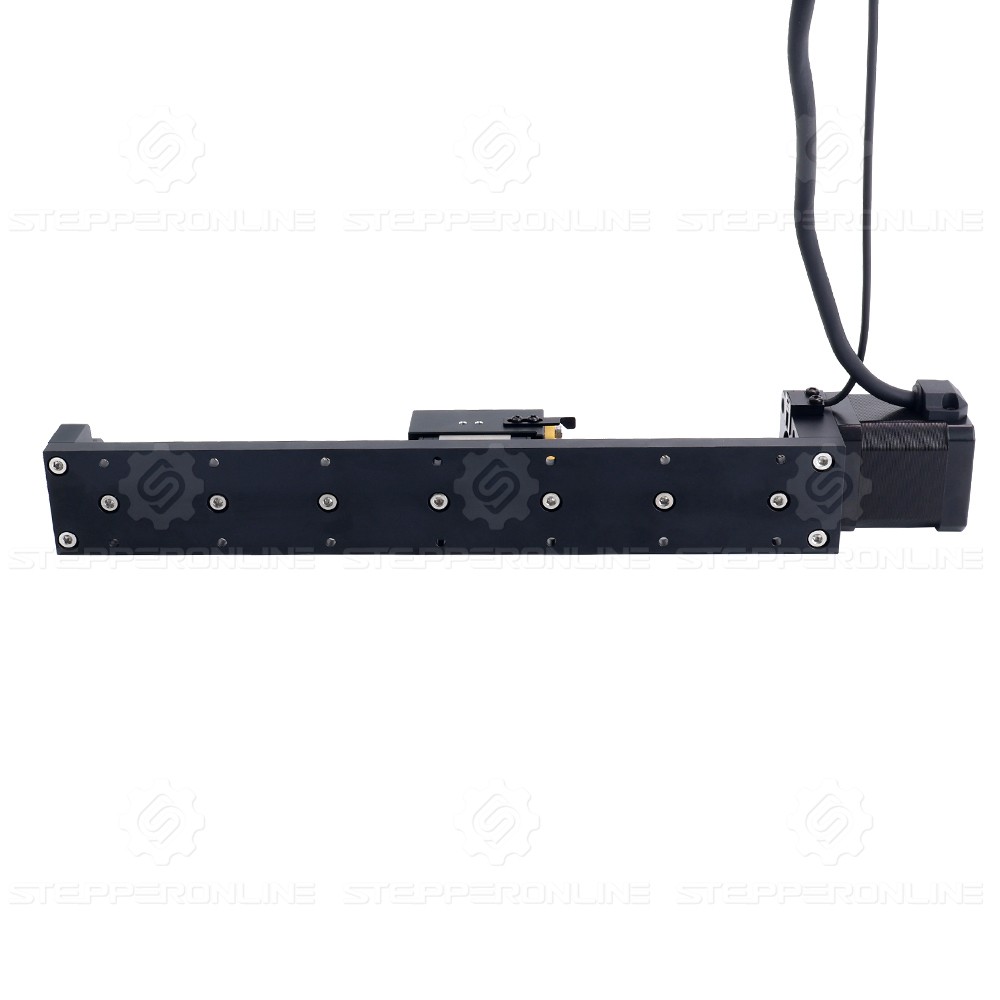

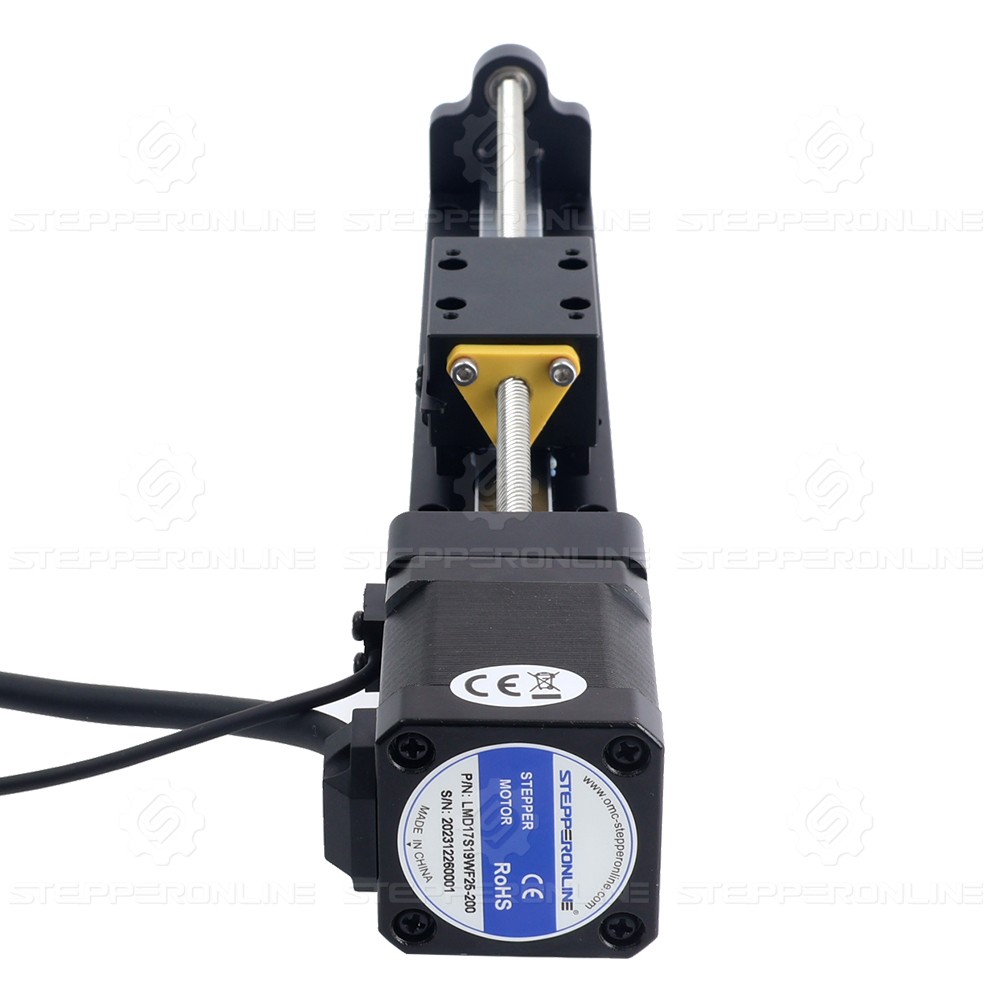

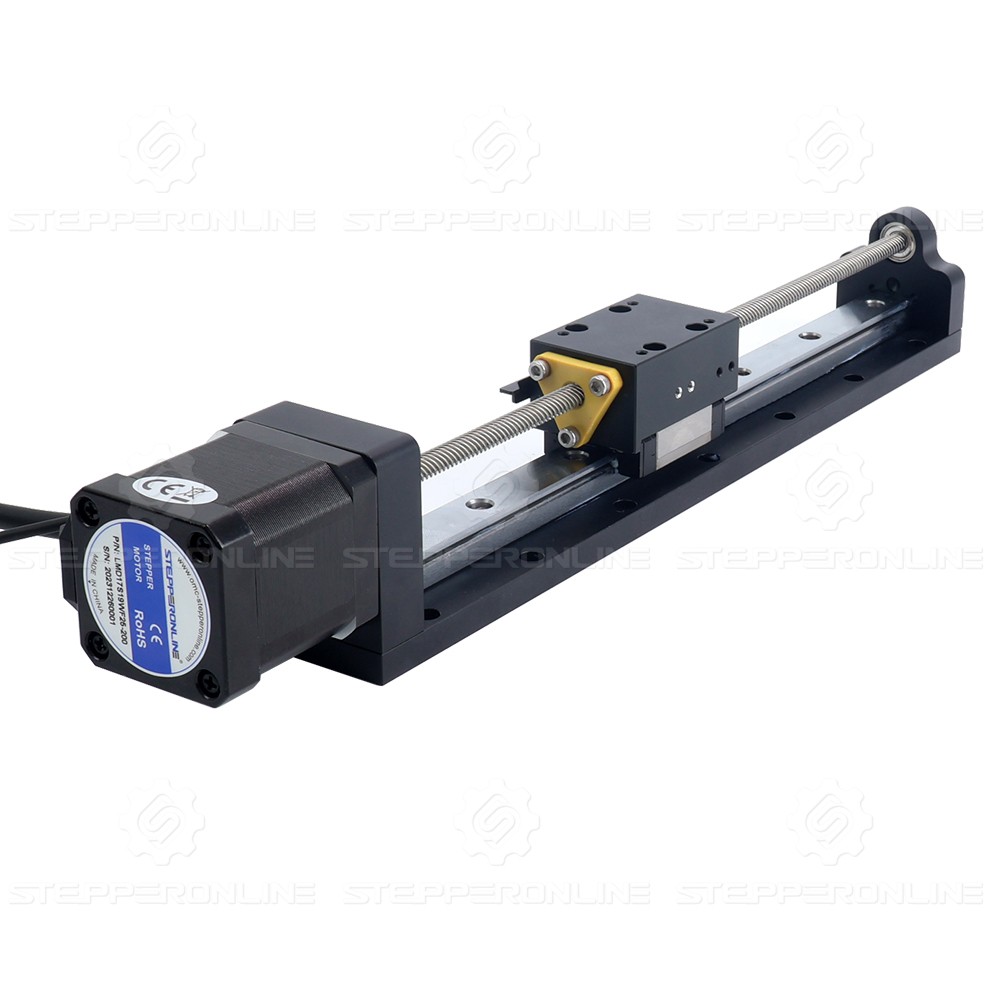

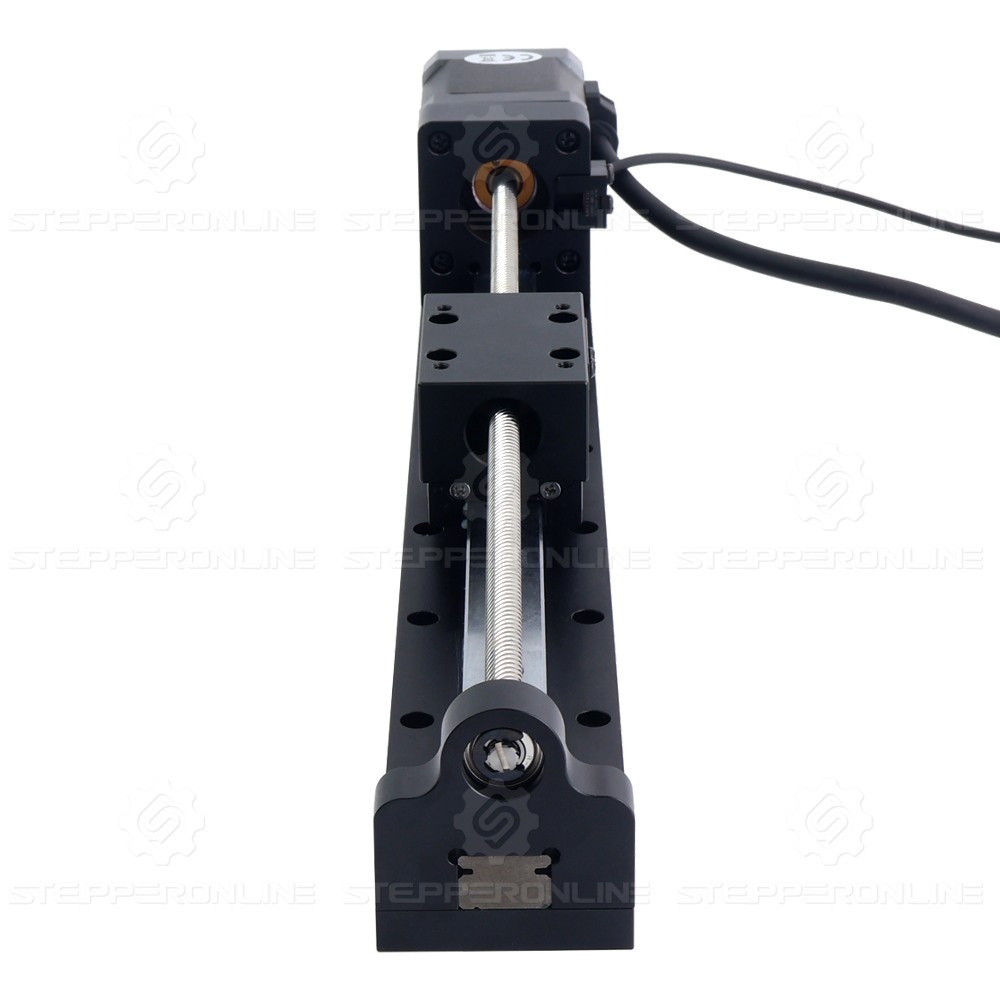

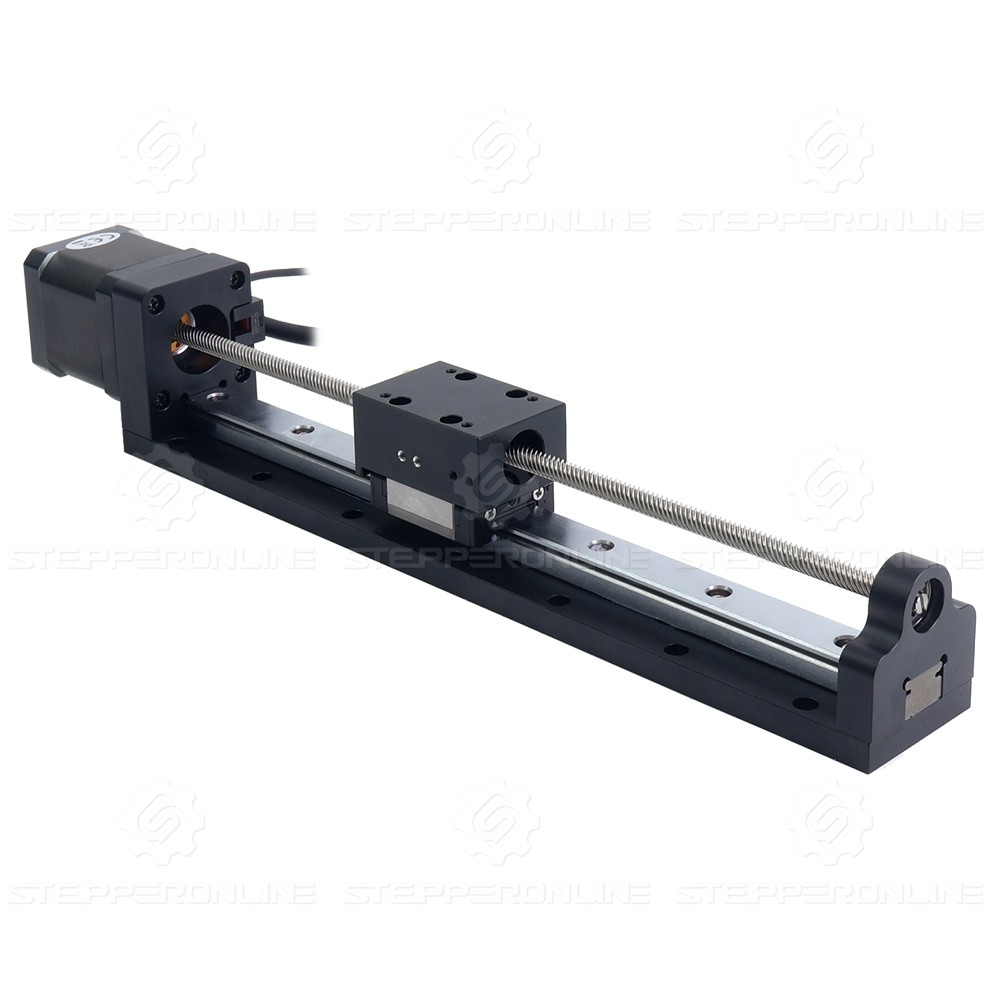

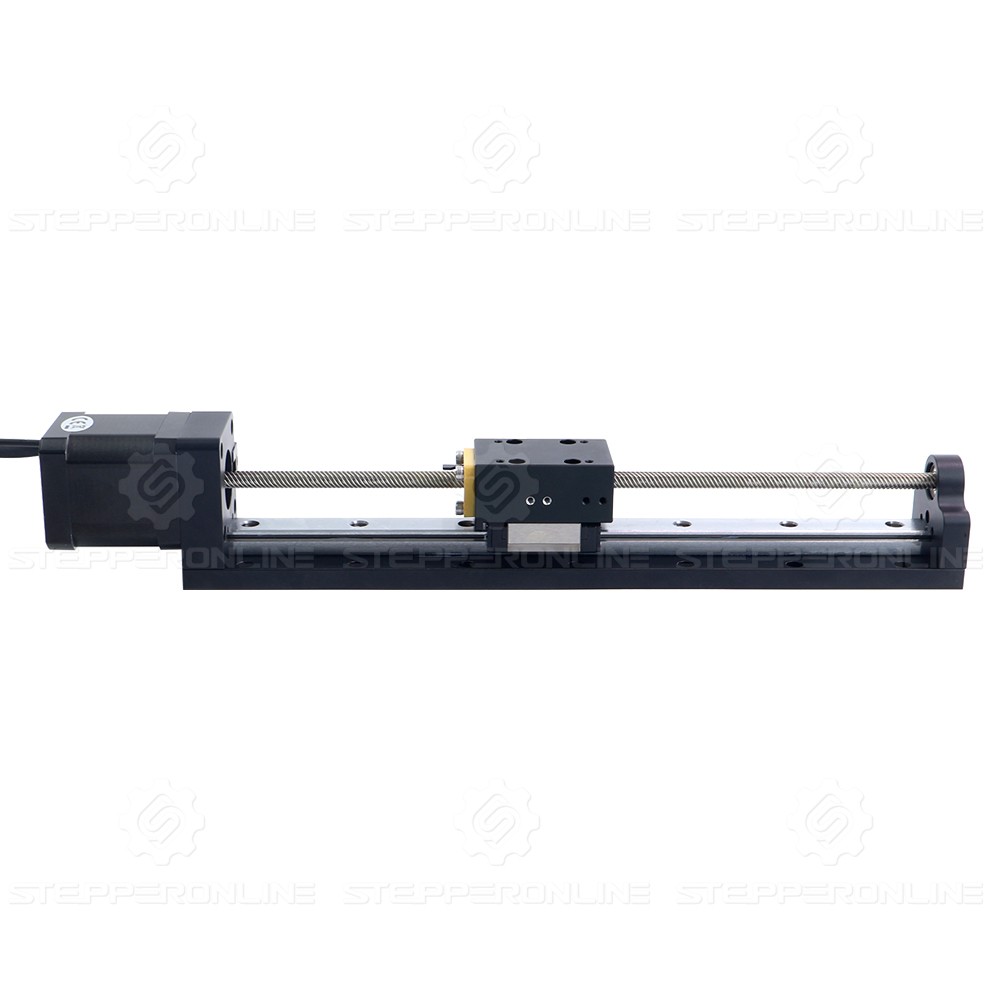

Nema 17 Stepper Lead Screw Linear Actuator 200mm 0.5Nm Lead 12.7mm with Sensor
Nema 17 Stepper Lead Screw Linear Actuator 200mm 0.5Nm Lead 12.7mm with Sensor Nema 17 Stepper Lead Screw Linear Actuator 200mm 0.5Nm Lead 12.7mm with Sensor Nema 17 Stepper Lead Screw Linear Actuator 200mm 0.5Nm Lead 12.7mm with Sensor Nema 17 Stepper Lead Screw Linear Actuator 200mm 0.5Nm Lead 12.7mm with Sensor Nema 17 Stepper Lead Screw Linear Actuator 200mm 0.5Nm Lead 12.7mm with Sensor Nema 17 Stepper Lead Screw Linear Actuator 200mm 0.5Nm Lead 12.7mm with Sensor Nema 17 Stepper Lead Screw Linear Actuator 200mm 0.5Nm Lead 12.7mm with Sensor

Nema 17 Stepper Lead Screw Linear Actuator 200mm 0.5Nm Lead 12.7mm with Sensor

USD 221.79 USD
SKU: 4ZE2EZI2
Brand: STEPPERONLINE
MPN: LMD17S19WF25-200
GTIN: 742803053806
Condition: New
Tags: ± 0.02mm 0.0635mm(0.0025") 0.5Nm(70.81oz.in) 0.78ohms ± 10% 0742803053806 1.5mH ± 20%(1KHz) 12.7mm(0.5") 125N 190.5mm/s 2.5A 200mm(7.874") 259mm 300N 6.35mm 742803053806 China Lead Screw LMD17S19WF25-200 STEPPERONLINE
Categories: Envelopes & Mailers

Specifications

BrandSTEPPERONLINE
MPNLMD17S19WF25-200
Country/Region Of ManufactureChina
UPC742803053806
EAN0742803053806
Holding Torque0.5Nm(70.81oz.in)
Phase Resistance0.78ohms ± 10%
Rated Current/phase:2.5A
Inductance1.5mH ± 20%(1KHz)
Lead/Revolution12.7mm(0.5")
Lead Screw Diameter6.35mm
Maximum Thrust125N
Rated Load Capacity300N
Max. Stroke Length200mm(7.874")
Max. Speed190.5mm/s
Position Accuracy± 0.02mm
Lead/Step0.0635mm(0.0025")
Linear Motor TypeLead Screw
Lead Screw Length259mm

This is an LMD series Nema 17 stepper motor linear actuator. This type of actuator is composed of a highly integrated linear stepper motor and a guide rail slide. Since there is no coupling, its accuracy is higher than that of linear actuators with conventional coupling structures.
