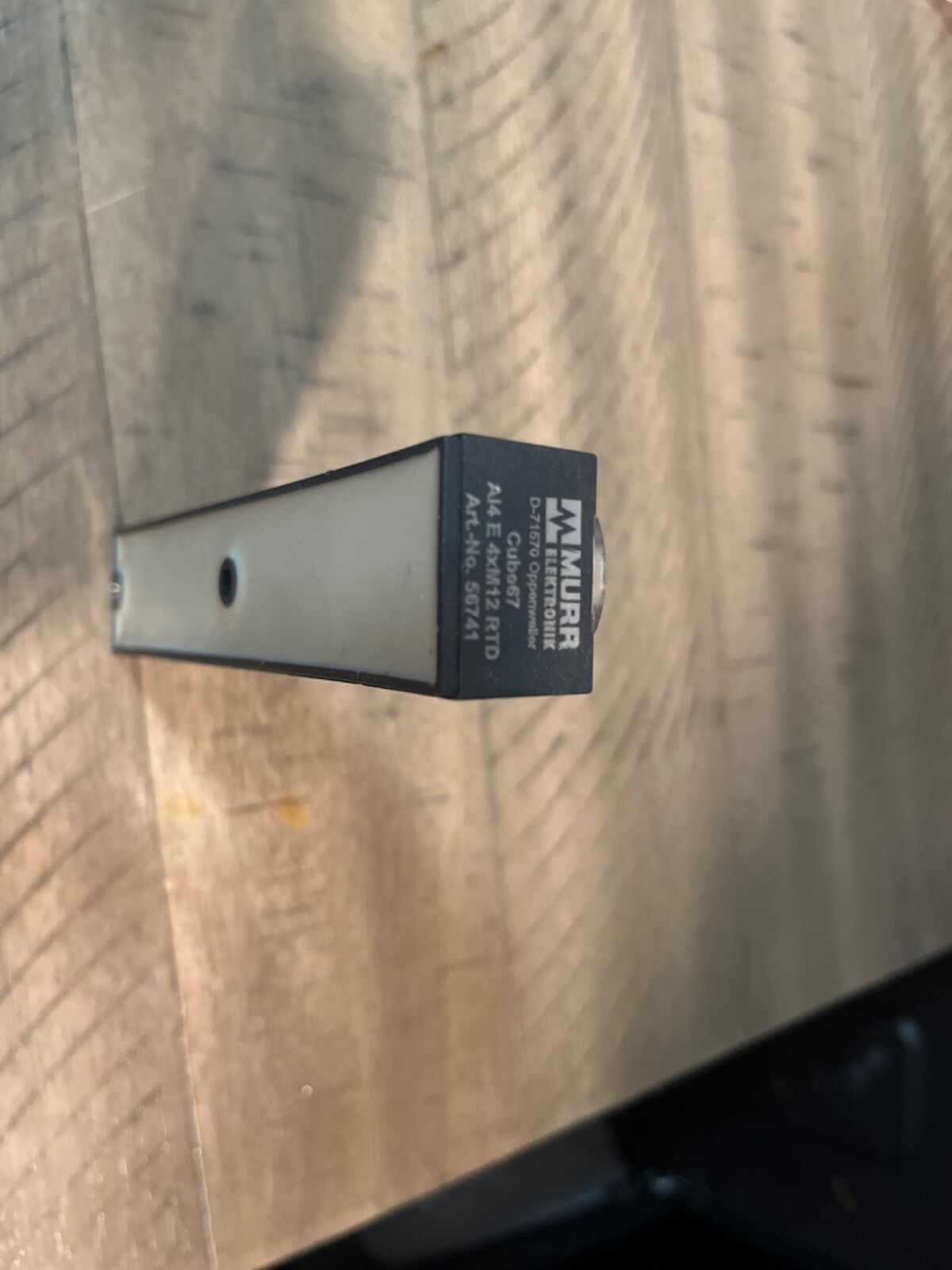

Murt Elektronik D-71570 Cube67 Art.-No. 56741
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Model | 56741 |
| Brand | Murr Elektronik |
| Type | PLC Input/output Module |
| Unit Type | Unit |
| Communication Standard | Batibus |
| Analog/Digital | Digital |
| MPN | 51116 1.01 2.00 |
| Controller Platform | ControlLogix |
| Country/Region Of Manufacture | Germany |
| Unit Quantity | 100 |
Expansion moduleAI4 - (E) 4× M12 (RTD)for resistors and temperatureConnection cables are in the online shop under "Connection Technology".Housing fully potted.General dataProtectionIP67Mounting method2-hole screw mountingTemperature range0...+55 °C (storage temperature -20...+75 °C)Dimensions H×W×D150×30×34.5 mmInputSensor typePt100, Pt100 climate, 200, 500, 1000; Ni100, 120, 200, 500, 1000; R 0...3000 ΩConversion time (analog)approx. 58 ms per channelResolution (analog)15 Bit + signAccuracymax. ±0.5% (of range limit)Accuracy (Ni)max. ±1% (of range limit)Connection2-, 3-, 4-wire technologyInternal communicationCurrent consumptionmax. 50 mALED displayUS: sensor supply and internal supply voltage (green: OK); UA: actuator supply (green: OK)ConnectionsFieldbusvia internal system connectionSensor-system/actuator supplyvia internal system connection (max. 2× 4 A)I/O portsM12 (female) 5-pole, A-codedDiagnosticCommunication statusvia LEDDiagnostic via LEDper module and channelDiagnostic via BUSper module and channelMonitoring - under voltageyesMonitoring - no voltageyesShort-circuit and overloadyesActuator warningper channel via LED and BUSWire break upper/lower limit overloadper channel via LED and BUS
