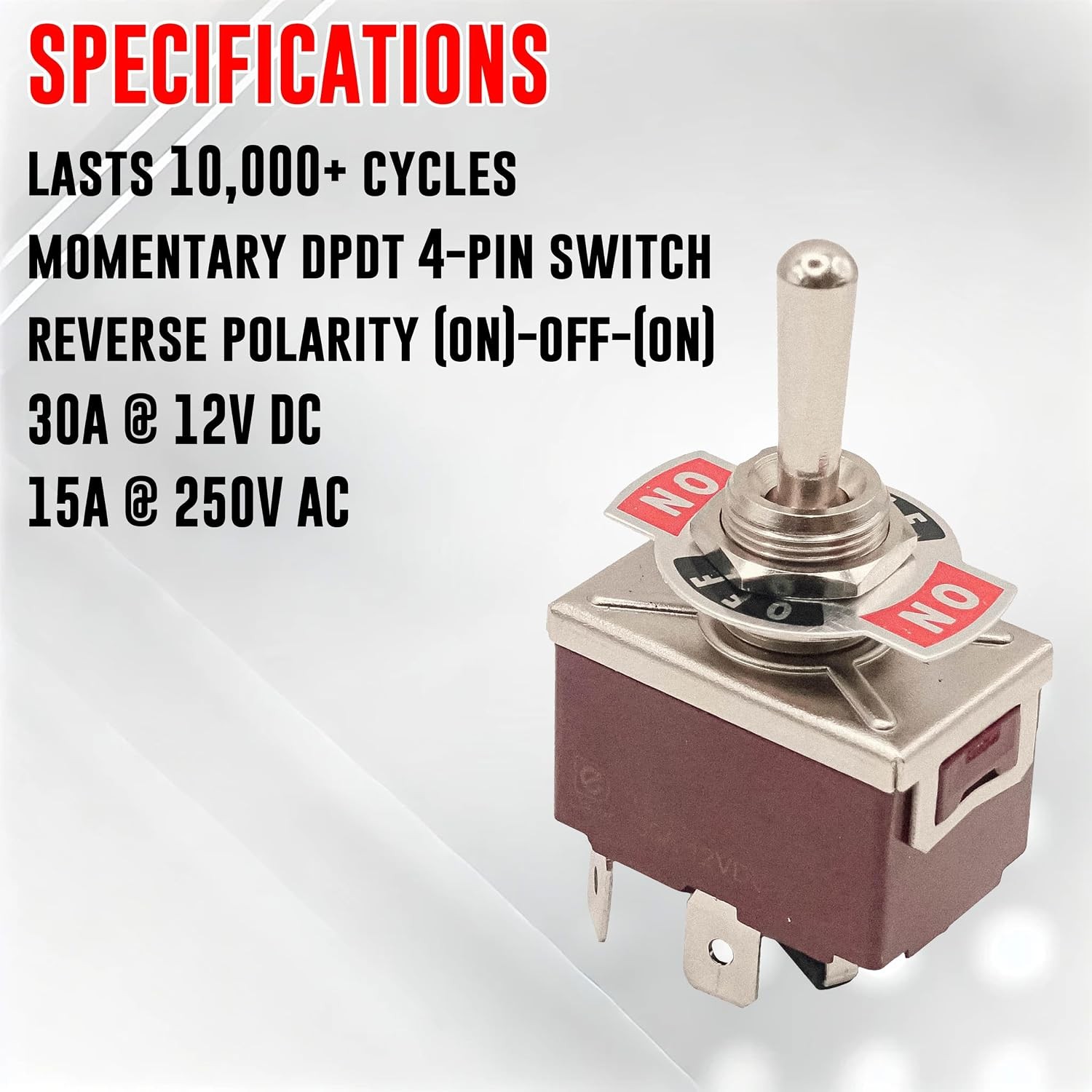

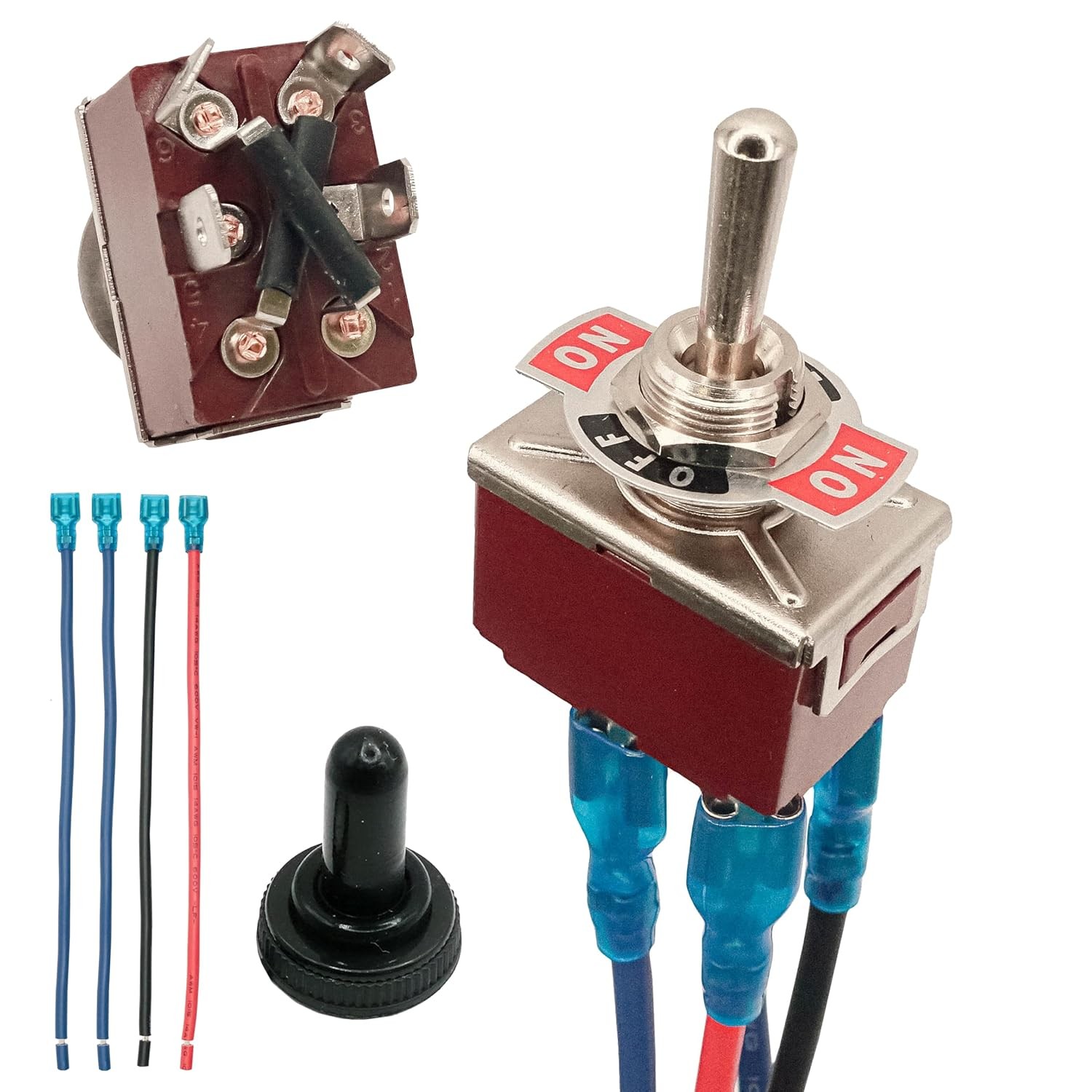

Momentary Reverse Polarity Switch 12V 30A DPDT 4 Pin On Off On Toggle Swit…
USD 13.95 USD
Specifications
| Unit Count | 1.0 Count |
| Part Number | KN3C-223 |
| Current Rating | 30 Amps |
| Material Type | Stainless Steel |
| Material | Stainless Steel |
| Mounting Type | Panel Mount |
| Terminal | Spade |
| Operation Mode | ON-OFF-ON |

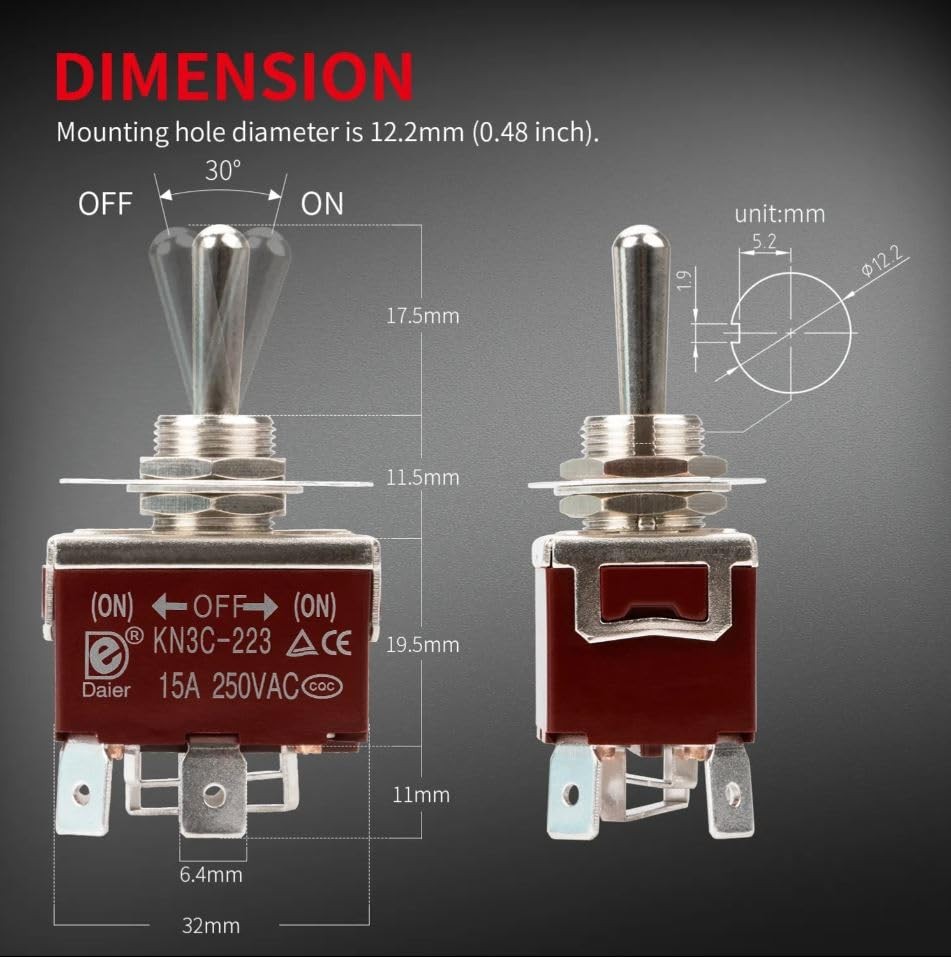

| Mounting Hole Diameter | 12.5 Millimeters |
| Operating Voltage | 250 Volts |
| Maximum Current | 30 Amps |
| Connector Type | Quick Connect |
| Contact Material | Silver |
| Coil Voltage | 250 Volts |
| Circuit Type | DPDT |
| Specification Met | CE, CQC |
| UPC | 705353590535 |

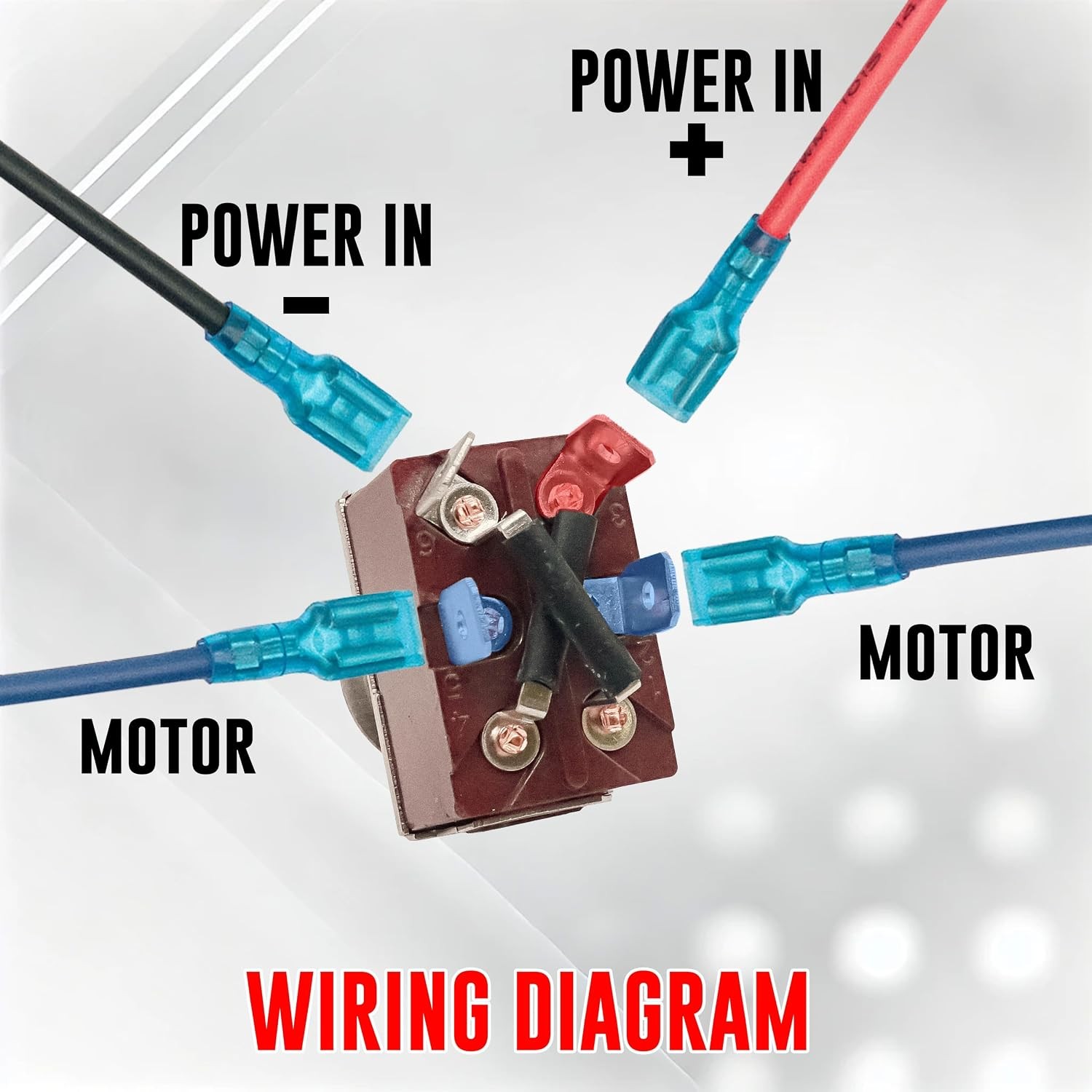

This 12V 30A DPDT 4-Pin Toggle Switch is designed for heavy-duty applications, making it the ideal choice for RV jacks, trailer power tongue jacks, and DC motor reversing. With a temperature range of -25°C to +85°C, it performs reliably in any climate.
