Millitech W-band Low Noise Amplifier, WR-10 flanges, +22dB gain
USD 2950.00 USD
Specifications
| Frequency Range | 75-110 GHz |
| Noise Coefficient | NF=3 dB |
| Maximum Output Power | +22 dBm |
| MPN | A18790 |
| Materials Sourced From | United States |
| Gain | 22 dB |
| Country Of Origin | United States |

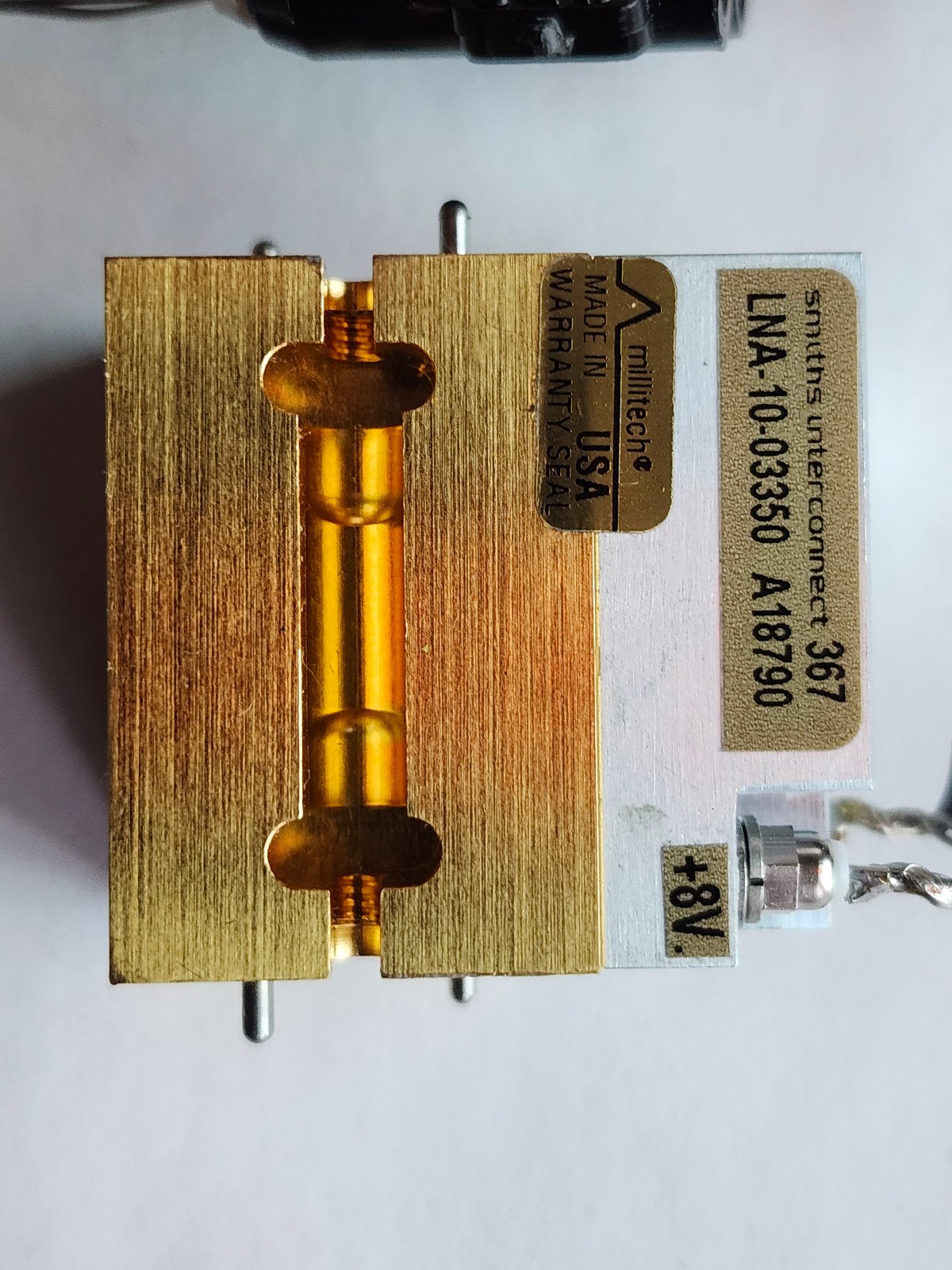

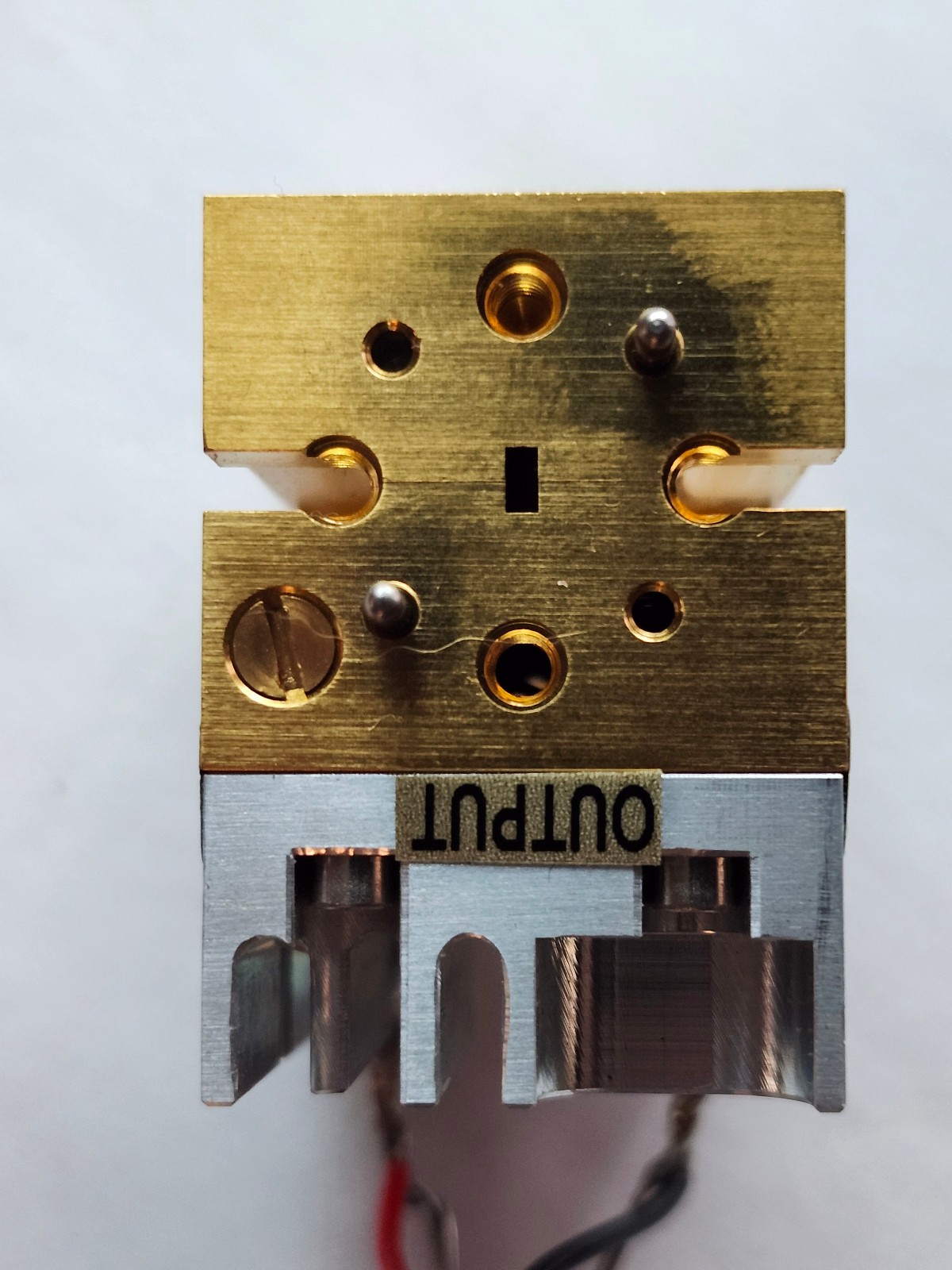

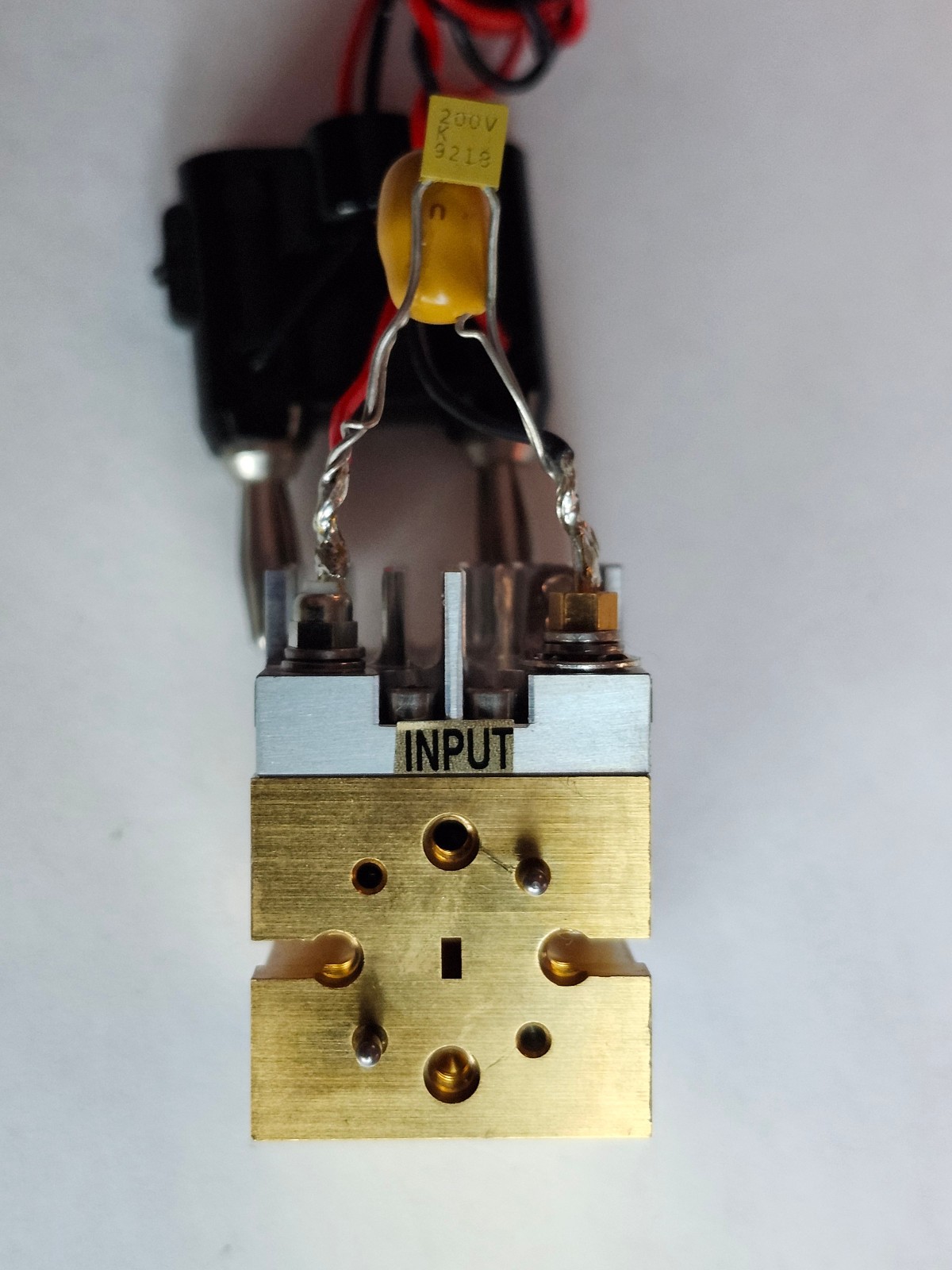

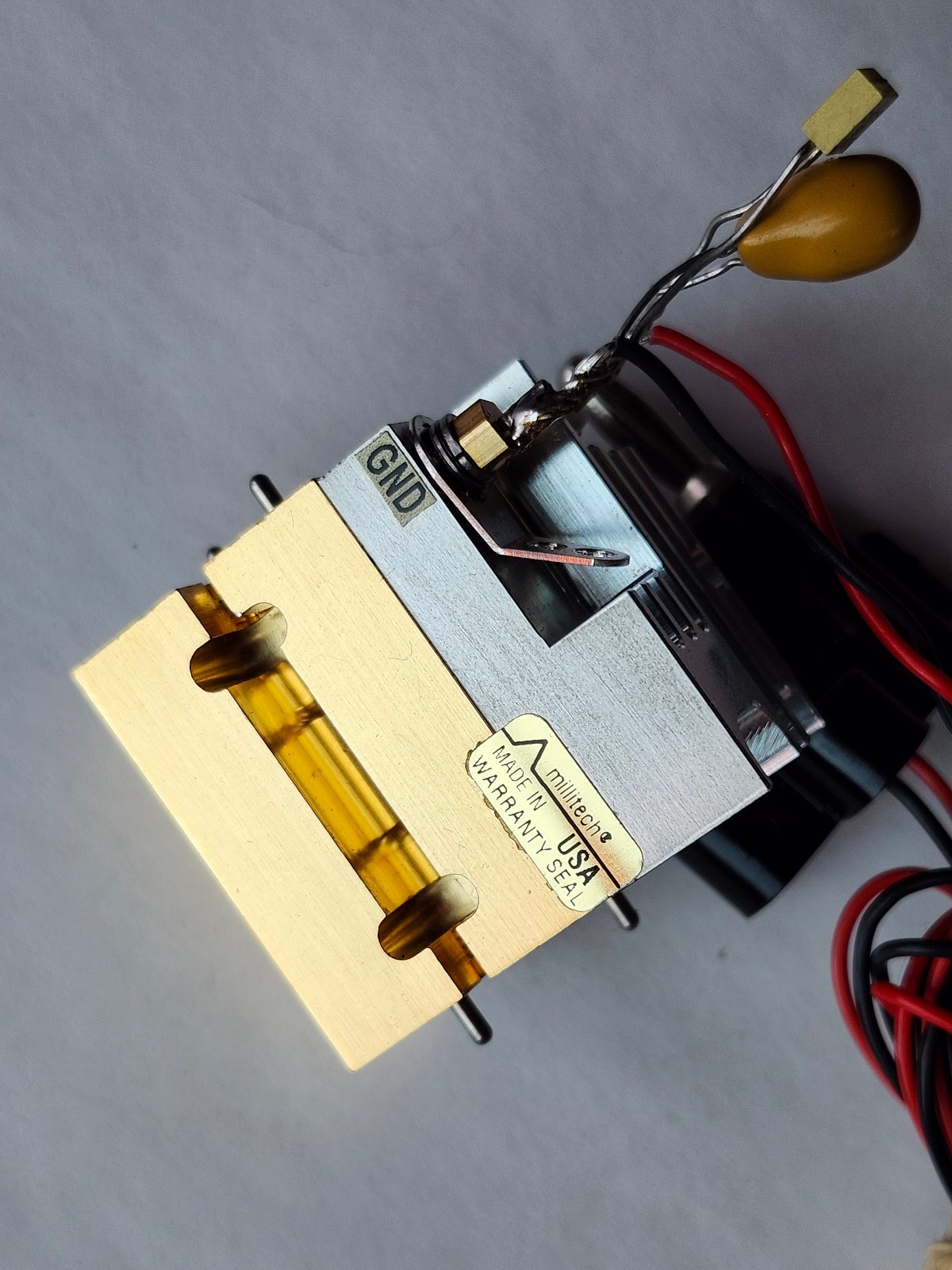

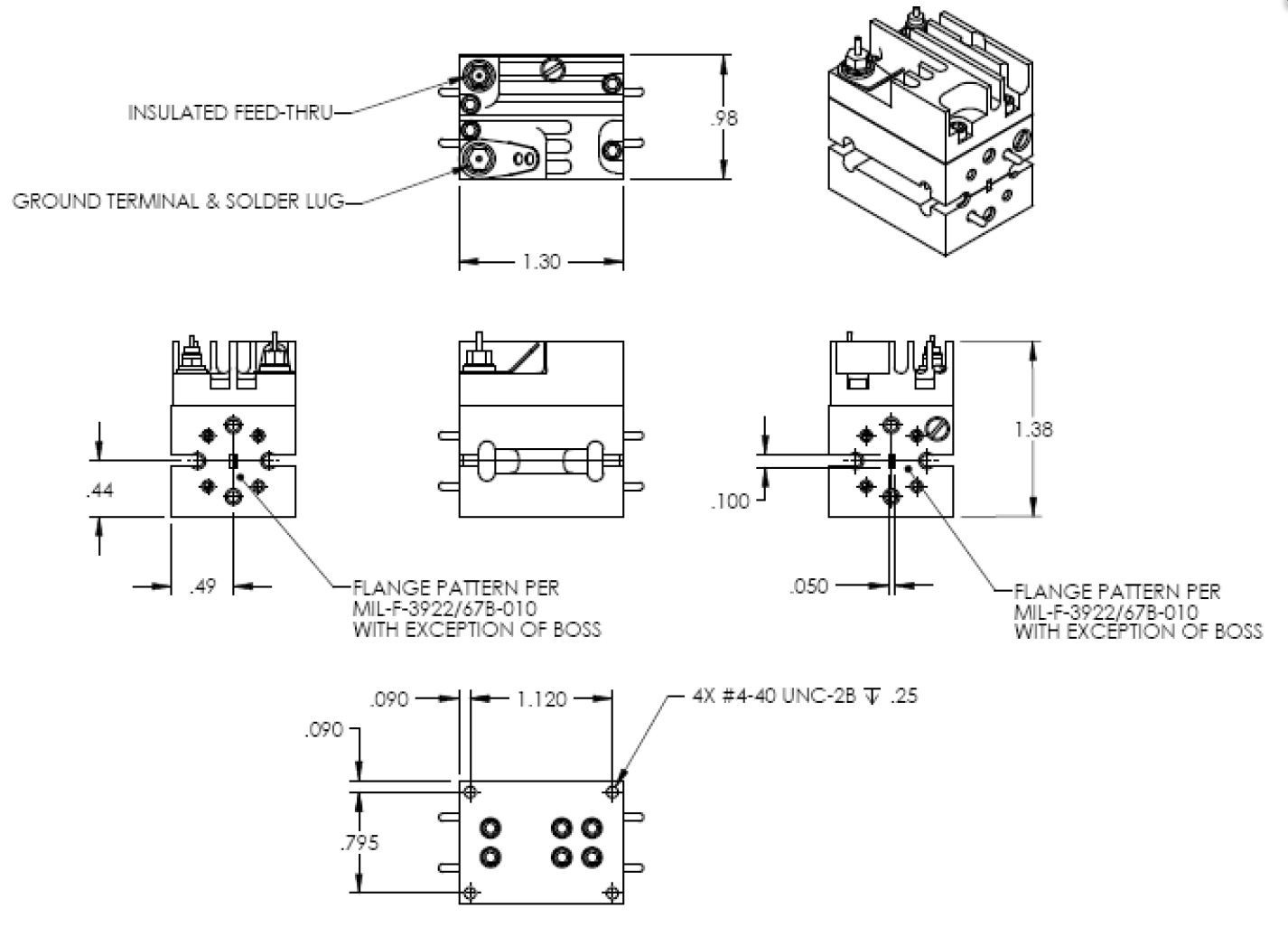

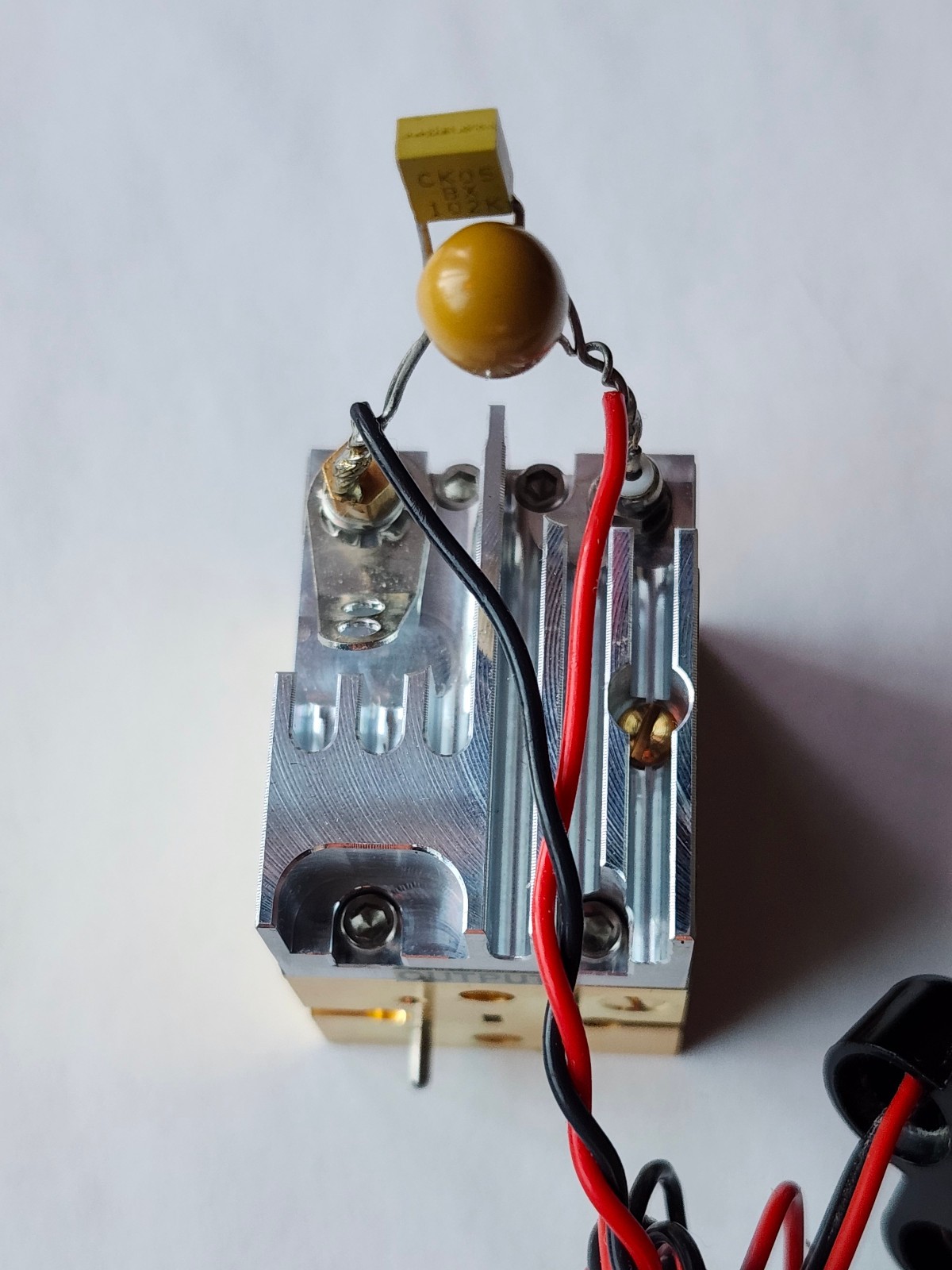

LNA-10-03350 A18790 is a Millitech W-band Low Noise Amplifier with WR-10 waveguide flanges. 75-110 GHz frequency range, +22dB gain, 3 dB noise figure. +8V DC voltage (nominal), 0.08A nominal current. 7.5-15 V acceptable DC voltage range. 0 dBm maximum input power. Used but fully functional. Modern Millitech equivalent: LNA-10-02590.
