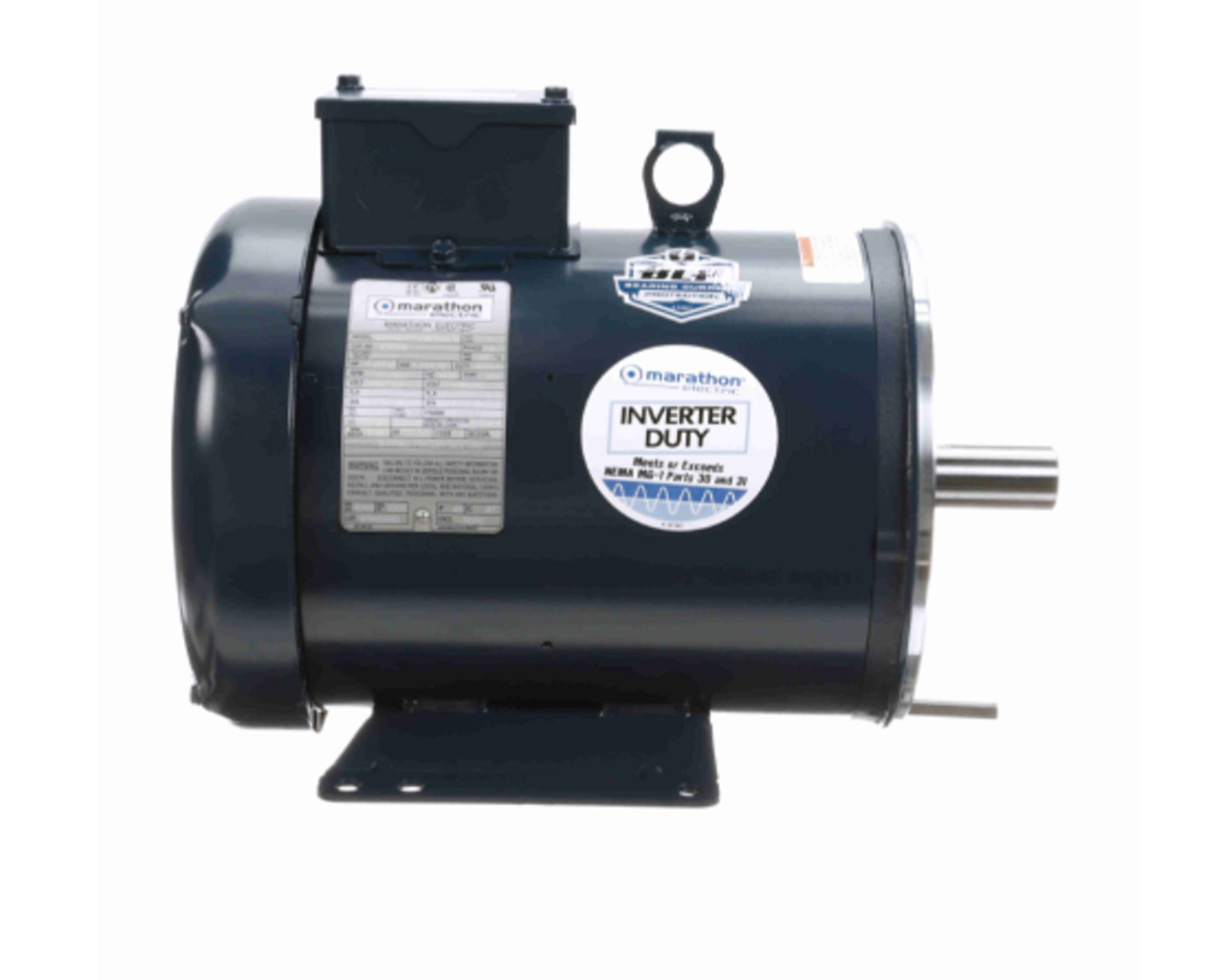

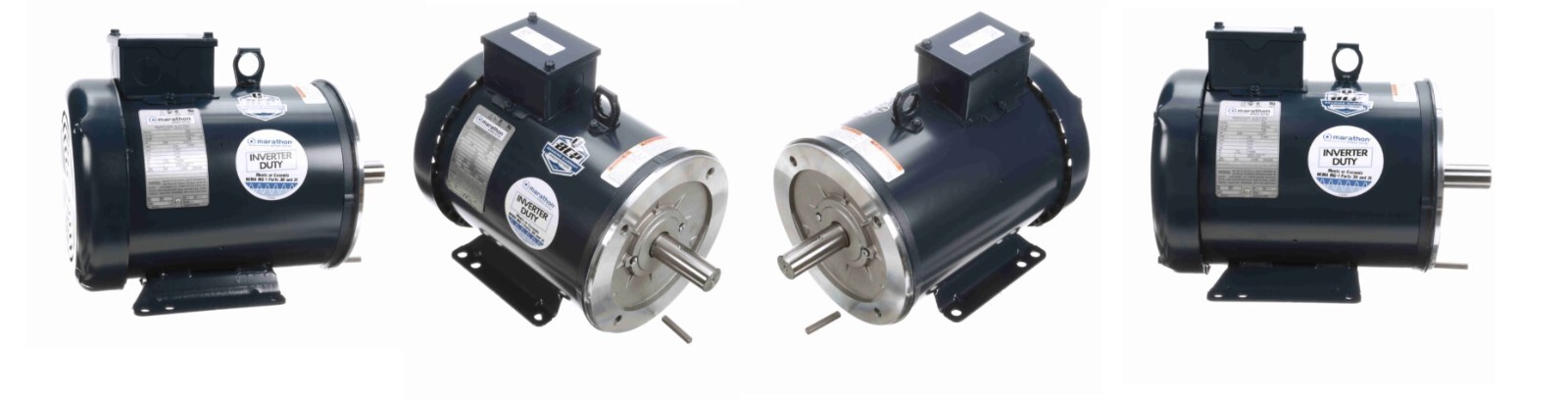

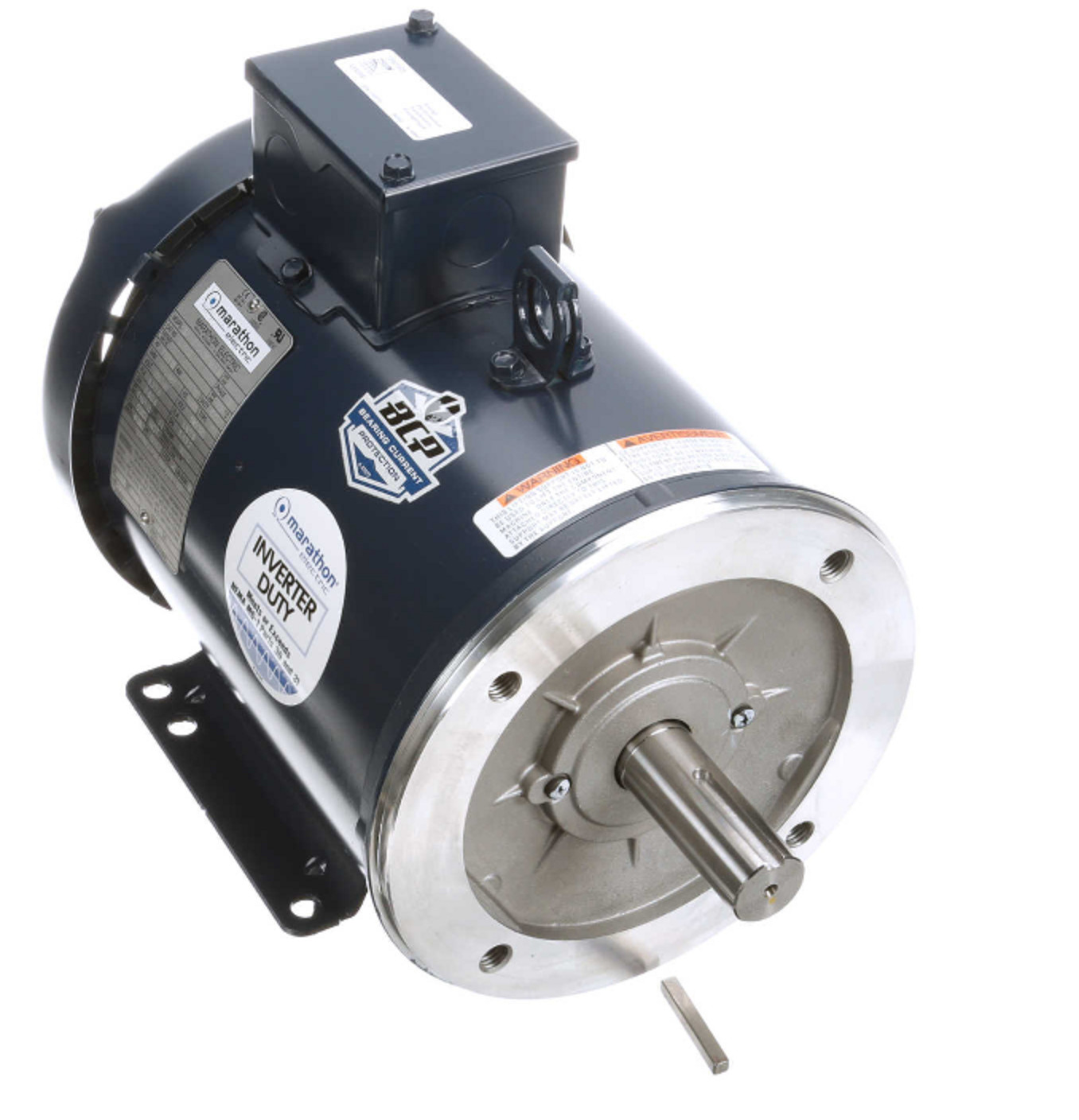

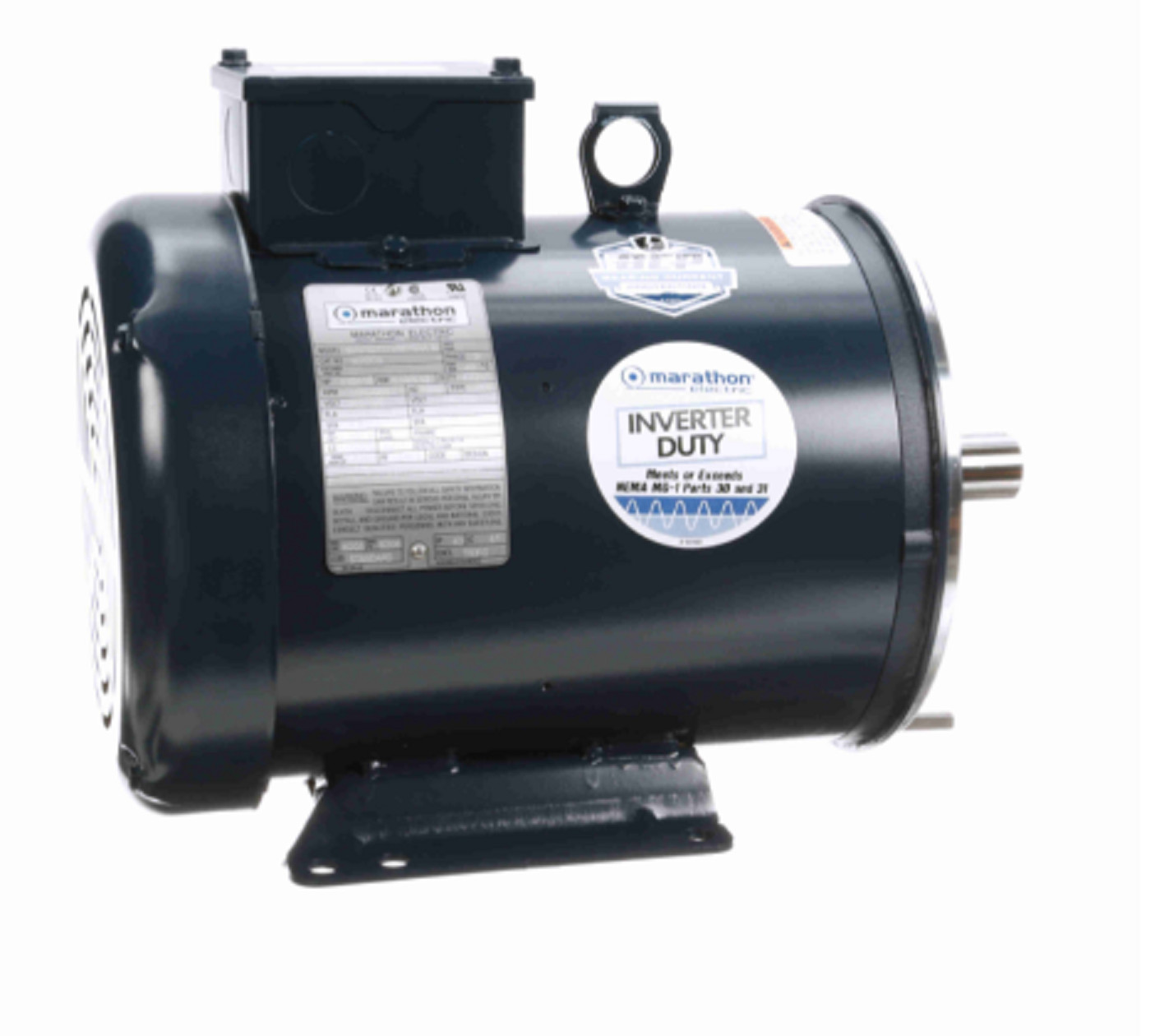

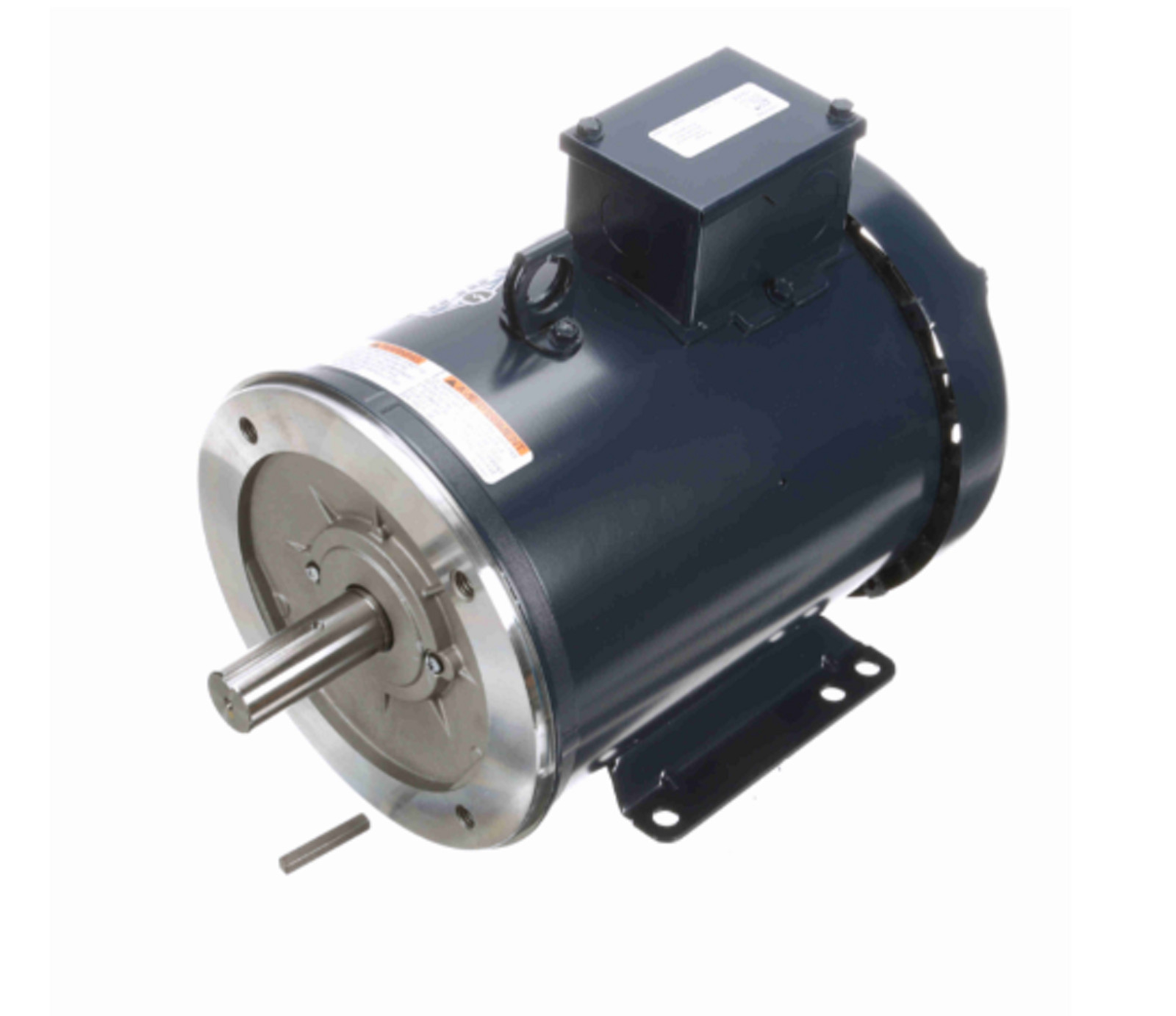

Marathon XRI 1.5HP 208-230/460V 1200 RPM 182TC AC MOTOR 182TTFW6076 (E2005) NEW
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| IEC Frame Size | 180 |
| Rated Load (HP) | 1.5 |
| AC Frequency Rating | 50/60 Hz |
| AC Motor Type | Induction/Asynchronous |
| Shaft Diameter | 1 1/8 in |
| MPN | 182TTFW6076 |
| Mounting Type | Foot-Mounted |
| Reversible/Non-Reversible | Reversible |
| Brand | Marathon Electric |
| Service Factor | 1.15 |
| Nominal Rated Input Voltage | 230 V |
| Model | 182TTFW6076 |
| AC Phase | Three Phase |

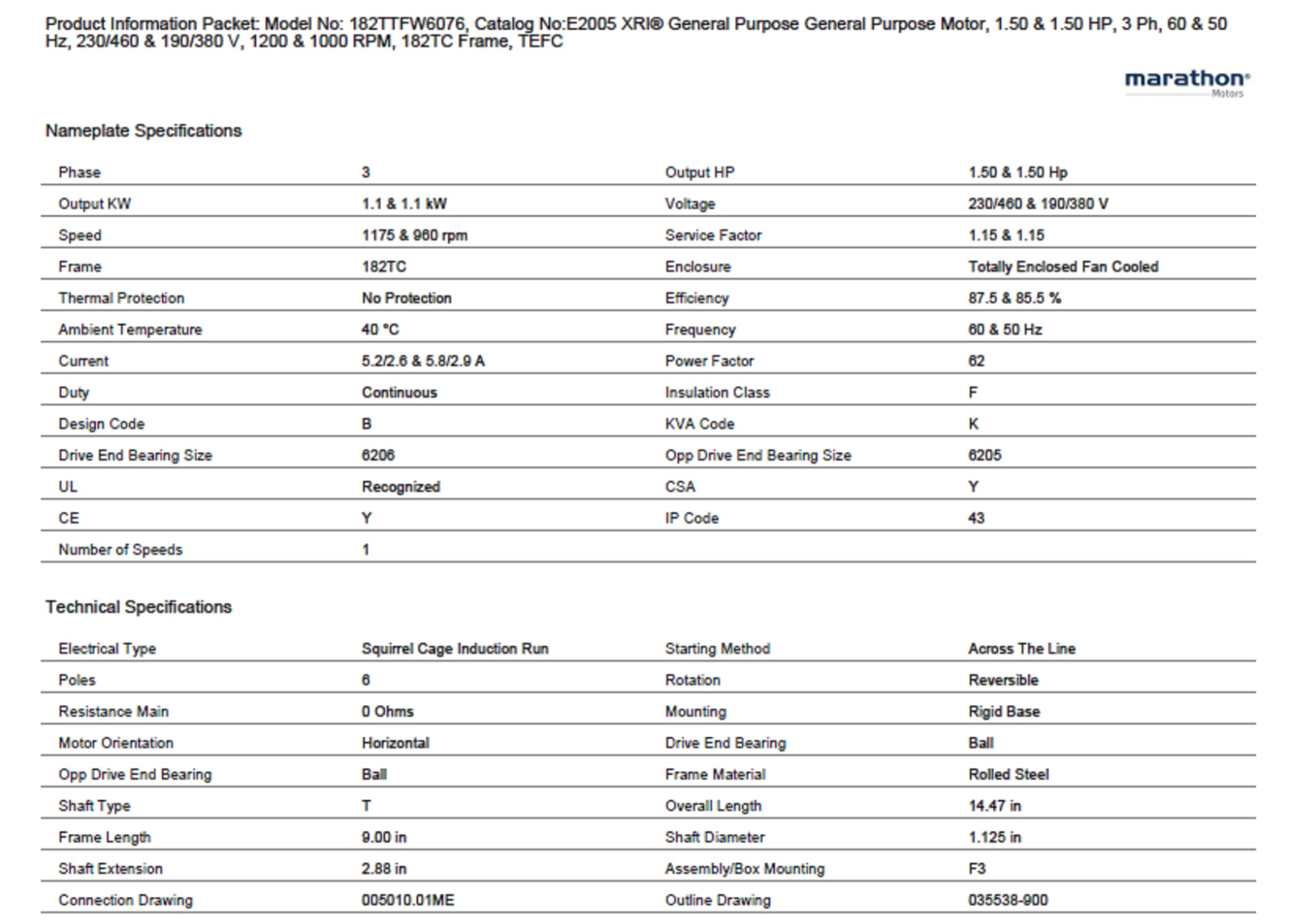

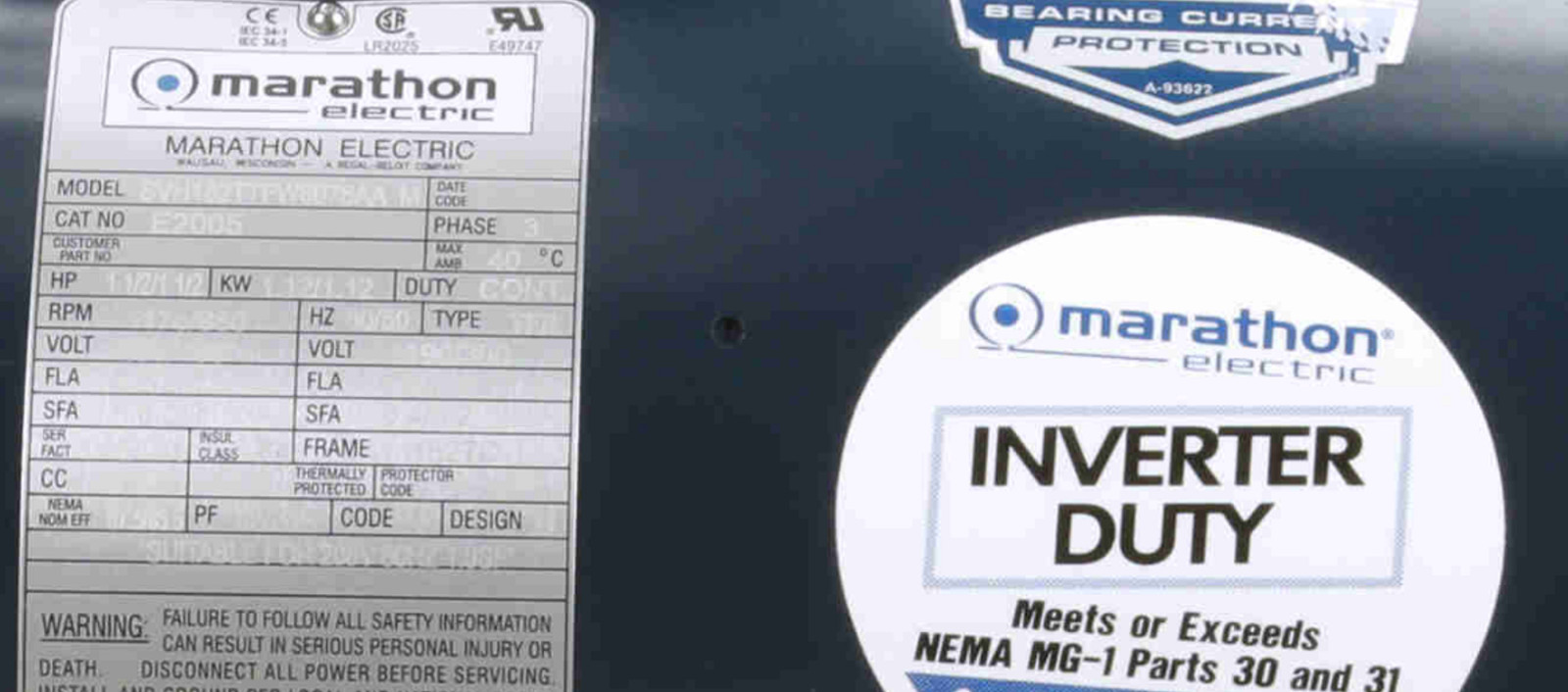

MARATHON XRI GENERAL PURPOSE GENERAL PURPOSE MOTOR, 1.50 & 1.50 HP, 3 PH, 60 & 50 HZ, 230/460 & 190/380 V, 1200 & 1000 RPM, 182TC FRAME, TEFCPart #:182TTFW6076 Catalog #:E2005 KEY FEATURESMeets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007Rated 60/50 hertz, 190/380 or 380 volt at next lower horsepower1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT powerF1 conduit box on Rigid Base, F3 on C-Face Footed (Rigid Base) motorsShaft slinger, Class F insulationPRODUCT SPECIFICATIONS Nameplate SpecificationsPhase:3Output HP:1.50 & 1.50 HpOutput KW:1.1 & 1.1 kWVoltage:230/460 & 190/380 VSpeed:1175 & 960 rpmService Factor:1.15 & 1.15Frame:182TCEnclosure:Totally Enclosed Fan CooledThermal Protection:No ProtectionEfficiency:87.5 & 85.5 %Ambient Temperature:40 °CFrequency:60 & 50 HzCurrent:5.2/2.6 & 5.8/2.9 APower Factor:62Duty:ContinuousInsulation Class:FDesign Code:BKVA Code:KDrive End Bearing Size:6206Opp Drive End Bearing Size:6205UL:RecognizedCSA:YCE:YIP Code:43Number of Speeds:1Technical SpecificationsElectrical Type:Squirrel Cage Induction RunStarting Method:Across The LinePoles:6Rotation:ReversibleResistance Main:0 OhmsMounting:Rigid BaseMotor Orientation:HorizontalDrive End Bearing:BallOpp Drive End Bearing:BallFrame Material:Rolled SteelShaft Type:TOverall Length:14.47 inFrame Length:9.00 inShaft Diameter:1.125 inShaft Extension:2.88 inAssembly/Box Mounting:F3General SpecificationsUPC:722856018274Weight:76.60 LBPackaged Length:18.31 INPackaged Width:13.50 INPackaged Height:13.44 INHTC:8501.52.4000Country of Origin:MexicoSpeed CharacteristicsCurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)Break-Down7.40281.022.50335.01,0435.5081.01.50Locked-Rotor15.20585.010.97163.004.8038.01.50Pull-Up14.900.010.800.004.6037.01.50Load Characteristics% of Rated Load0 %25 %50 %75 %100 %115 %125 %150 %Current (Amps)1.701.802.002.242.602.803.003.40Rated Output (KW)0.110.380.670.981.281.481.601.95Efficiency (%)13.573.083.086.087.587.987.086.0Power Factor (%)8.027.043.055.062.067.268.071.5Speed (RPM)1,2001,1951,1901,1851,1751,1751,1701,160Temp. Rise @ FL0.00.00.00.035.045.00.00.0Torque (ft-lbs)0.001.653.325.026.717.788.4810.23 Similar products are: WEG 00152ET3E182TC-S, Baldor CEM3607T, ABB/Siemens 1LE22211CC114GA3, Louis Allis LAM1.5-12-182TC & Worldwide Electric SSPE1.5-12-182TC, Nidec / US Motors HD32V3BC, NAE PE182TC-1.5-6, WEG 00152ET3E182TC-S, Nidec / US Motors U32P3DC, Marathon GT1205A.
