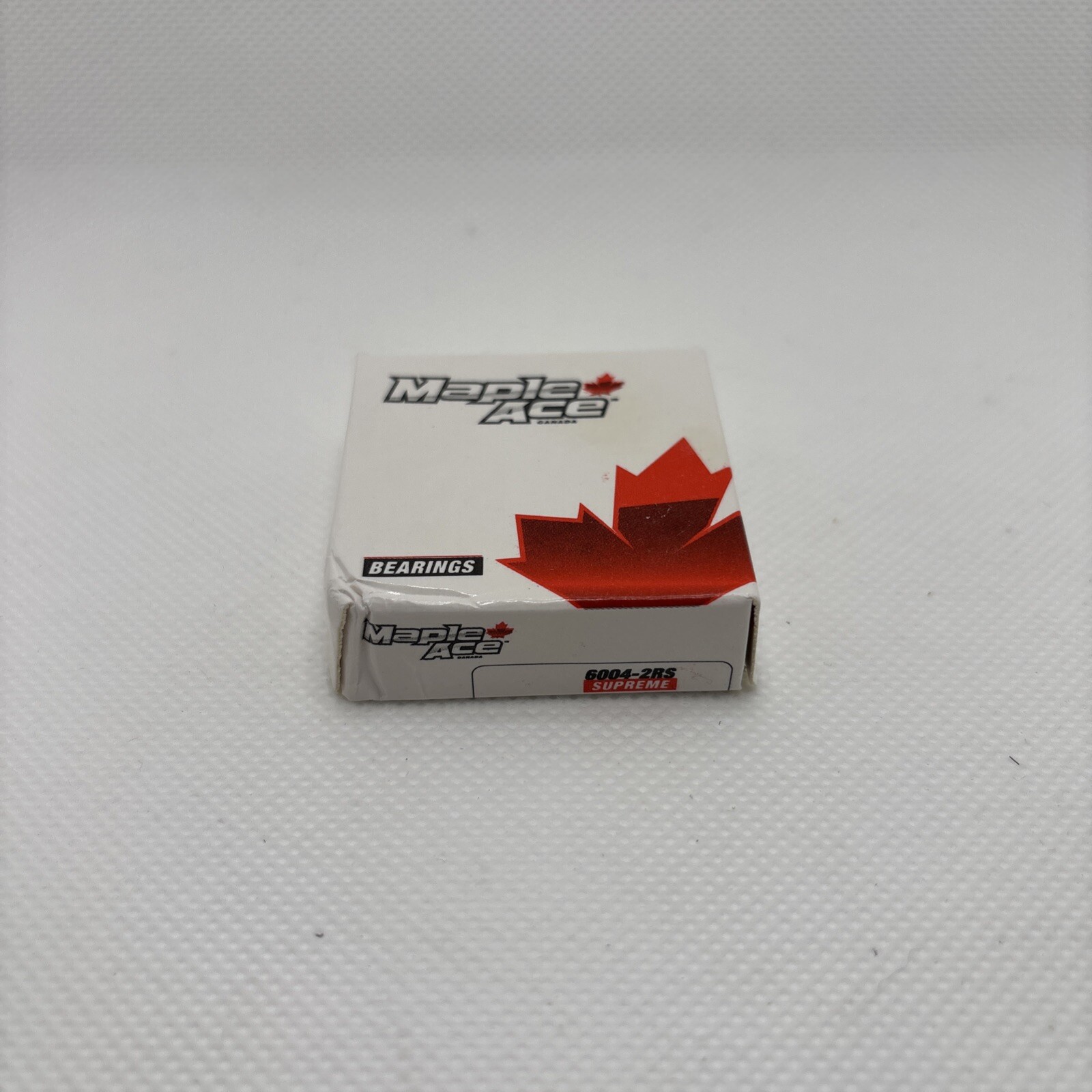

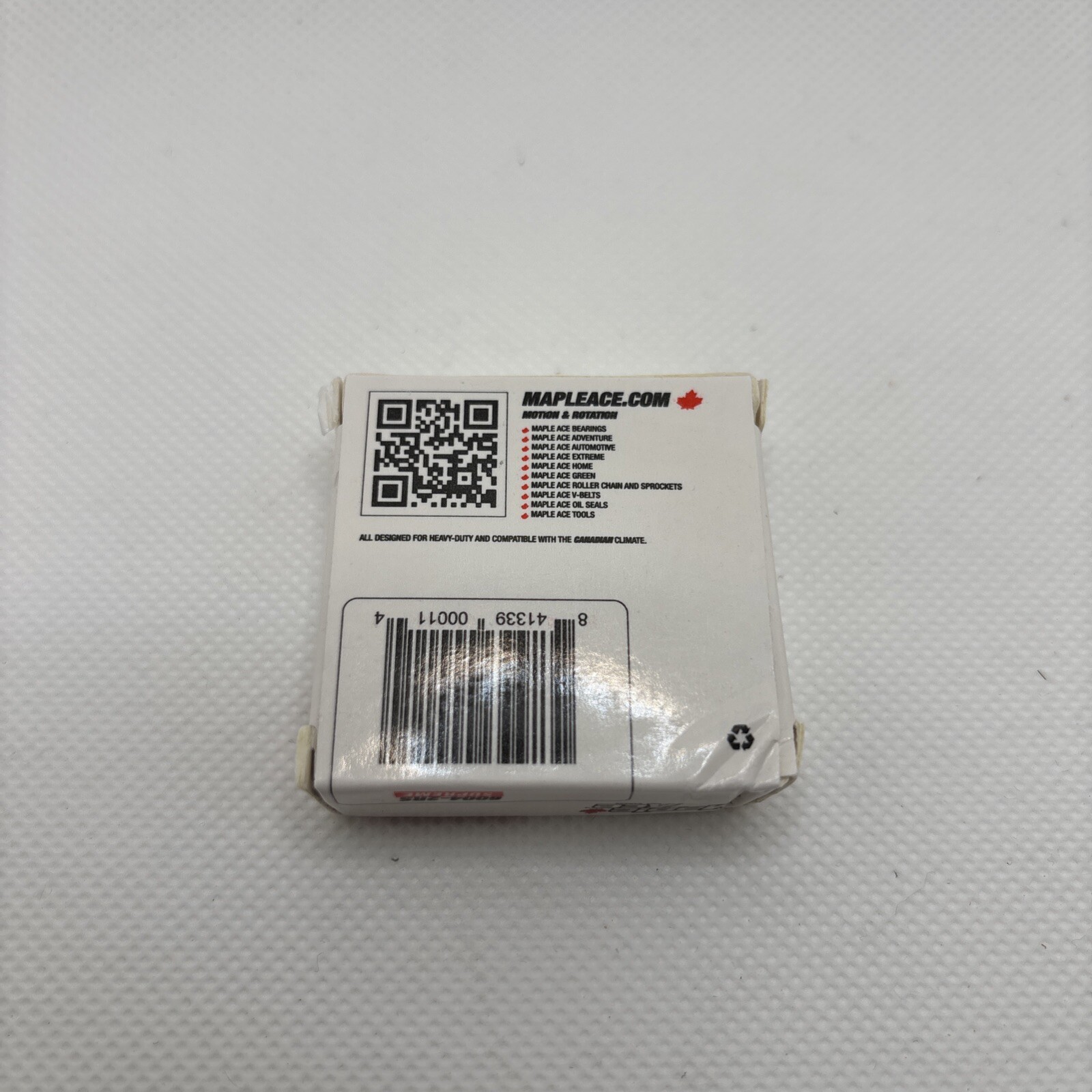

Maple Ace 6004-2RS Ball Bearing 20x42x12mm – 6004 2RS Rubber Sealed (PCs 4)
USD 9.49 USD
Specifications
| Tolerance Outer Ring | 0 to -9 μm |
| Tolerance Inner Ring | 0 to -8 μm |
| Rolling Element Indicator | Ball |
| Material | Rubber |
| MPN | 6004-2RS |
| Bore Diameter | 20.00 mm |
| Limiting Speed | 11000 |
| Brand | MAPLE ACE |
| Tolerance Classes | ABEC3, P6, Class 3 |
| Noise And Vibration | Z3V3 |
| Static Load Rating Cor | 5000 |
| Model | 6004-2RS |
| Dynamic Load Rating Cr | 9950 |
| Lubrication | Grease |
| Outside Diameter | 42.00 MM |
| Width | 12.00 MM |
| Closures | Seal on both sides |
| UPC | 0841339000114 |
This Maple Ace 6004-2RS ball bearing has a bore diameter of 20.00mm, an outside diameter of 42.00mm, and a width of 12.00mm. It is a deep groove ball bearing with a rubber seal on both sides and a package quantity of 4. The bearing has a tolerance of 0 to -9 μm for the outer ring and 0 to -8 μm for the inner ring, with a CN clearance. Its dynamic load rating Cr is 9950 and the static load rating Cor is 5000. The bearing is lubricated with grease and has a limiting speed of 11000. It is a modified item with a tolerance class of ABEC3, P6, and Class 3, and a noise and vibration level of Z3V3. The bearing is made in CN and has a rolling element indicator of ball.
