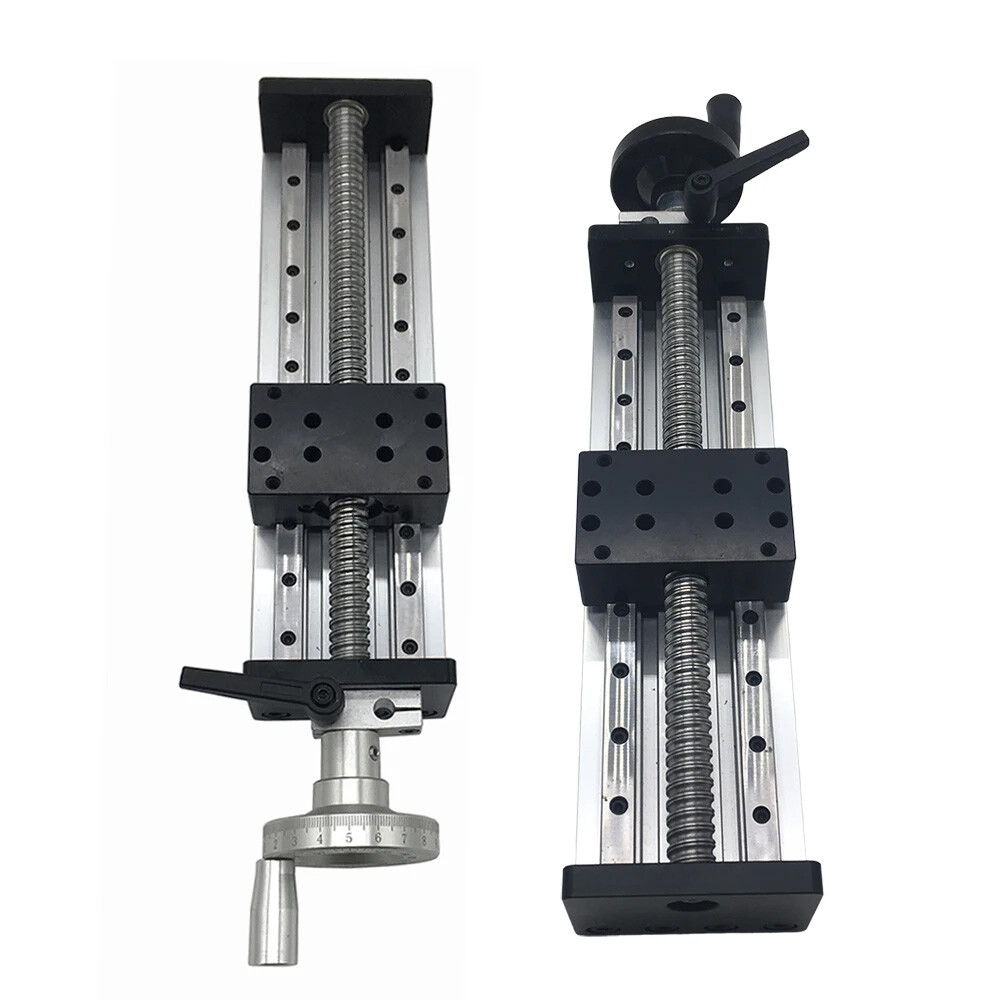

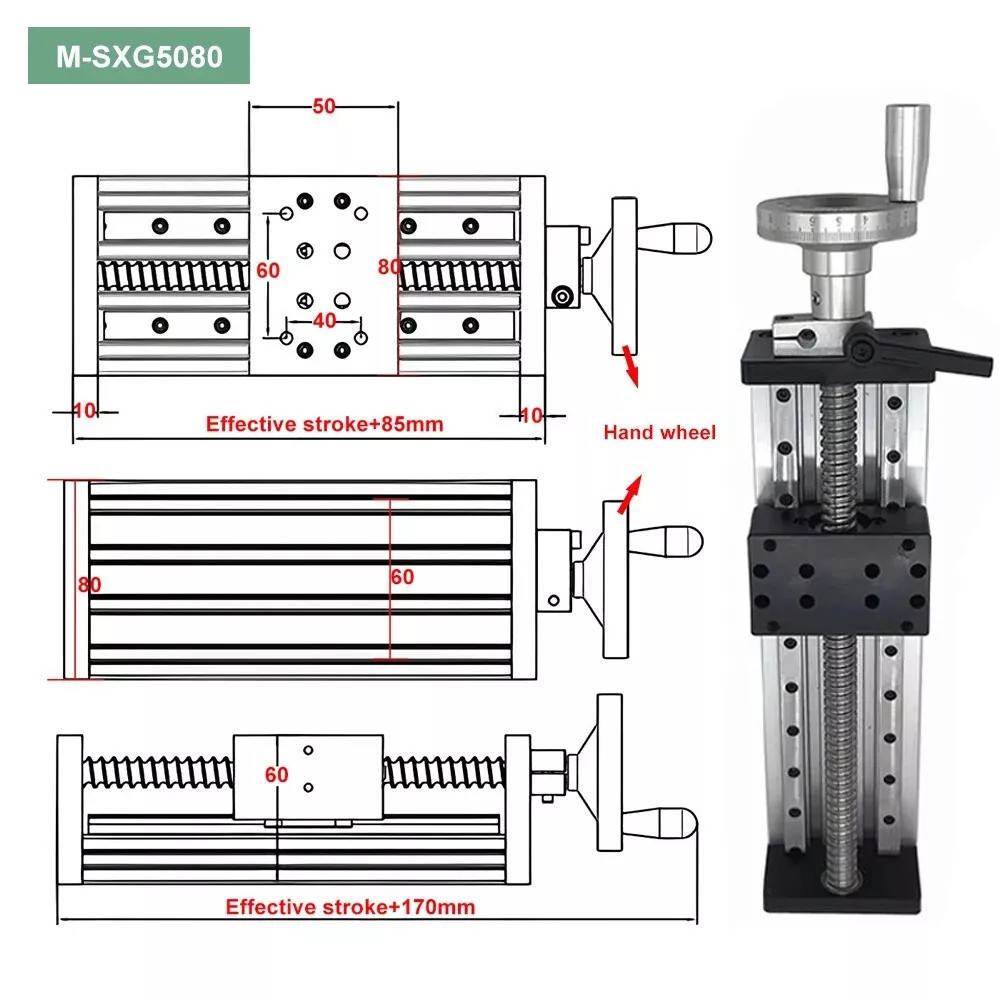

Manual 22-132lbs Ballscrew Linear Motion Stage Double Guides 12»CNC Slide Table
Manual 22-132lbs Ballscrew Linear Motion Stage Double Guides 12»CNC Slide Table Manual 22-132lbs Ballscrew Linear Motion Stage Double Guides 12»CNC Slide Table Manual 22-132lbs Ballscrew Linear Motion Stage Double Guides 12»CNC Slide Table Manual 22-132lbs Ballscrew Linear Motion Stage Double Guides 12»CNC Slide Table Manual 22-132lbs Ballscrew Linear Motion Stage Double Guides 12»CNC Slide Table Manual 22-132lbs Ballscrew Linear Motion Stage Double Guides 12»CNC Slide Table Manual 22-132lbs Ballscrew Linear Motion Stage Double Guides 12»CNC Slide Table Manual 22-132lbs Ballscrew Linear Motion Stage Double Guides 12»CNC Slide Table Manual 22-132lbs Ballscrew Linear Motion Stage Double Guides 12»CNC Slide Table Manual 22-132lbs Ballscrew Linear Motion Stage Double Guides 12»CNC Slide Table Manual 22-132lbs Ballscrew Linear Motion Stage Double Guides 12»CNC Slide Table Manual 22-132lbs Ballscrew Linear Motion Stage Double Guides 12»CNC Slide Table Manual 22-132lbs Ballscrew Linear Motion Stage Double Guides 12»CNC Slide Table

Manual 22-132lbs Ballscrew Linear Motion Stage Double Guides 12»CNC Slide Table

USD 96.27 USD
SKU: kvsIpyGd
Brand: Toseastars
GTIN: Does not apply
Condition: New
Tags: 0.02-0.03mm 0.03mm 100 lb 12mm 16mm 300mm (12 in) 40-100mm/s 410mm 50*80mm 500mm/s Aluminium Alloy C7 level M-SXG5080 Manual Max 30kg/ 66.14lb Max 60kg/ 132.28lb SFU1605 TOSEASTARS
Categories: Envelopes & Mailers

Specifications

BrandToseastars
ModelM-SXG5080
Accuracy0.03mm
Ballscrew Diameter:16mm
Speed40-100mm/s
VoltageManual
Rated Load100 lb
Stroke Length300mm (12 in)
Ballscrew TypeSFU1605
Ballscrew AccuracyC7 level

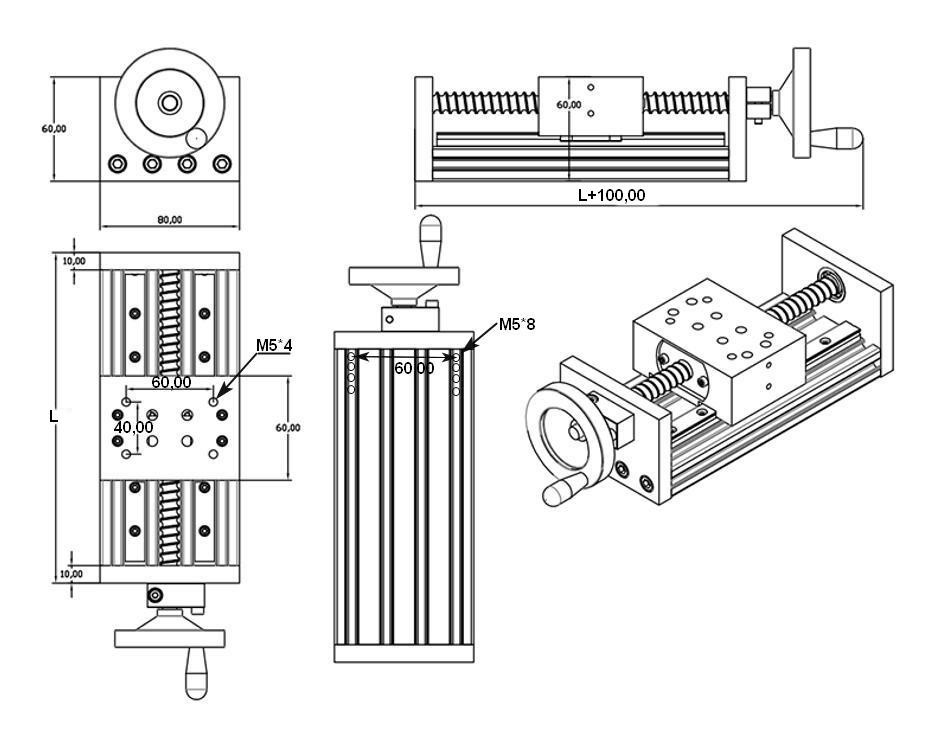

Sliding Table Total Length410mm

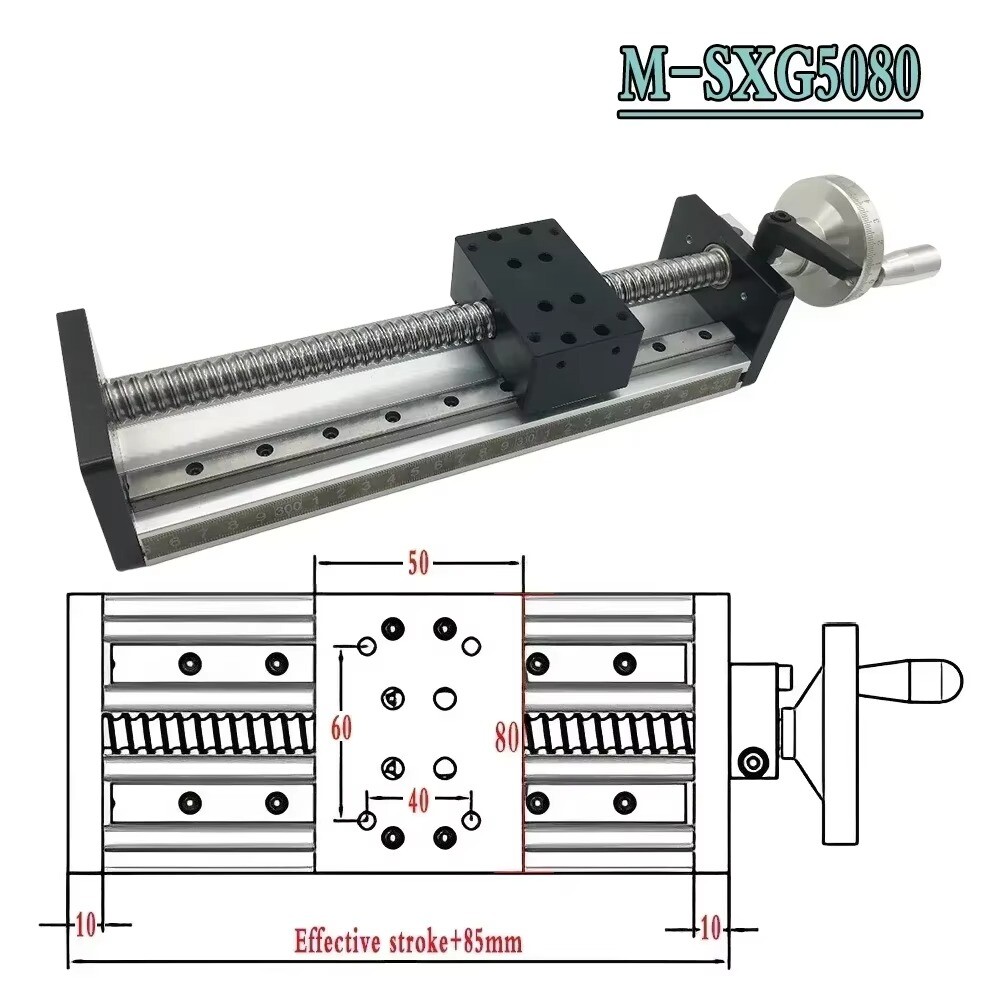

Mobile Panel Size50*80mm
Guide Diameter12mm
Horizontal LoadMax 60kg/ 132.28lb
Vertical LoadMax 30kg/ 66.14lb
Maximum Speed500mm/s
Ballscrew Repeat Positioning Accuracy0.02-0.03mm
Base Plate MaterialAluminium alloy

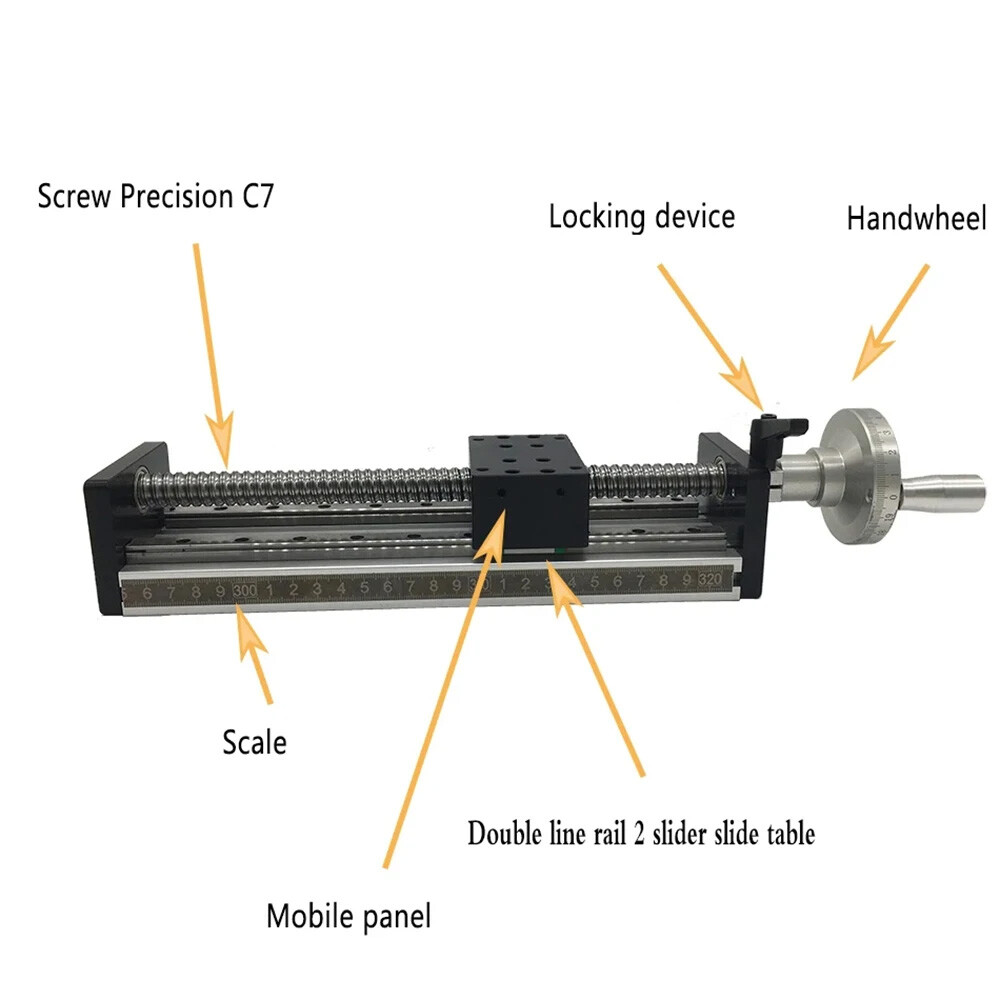

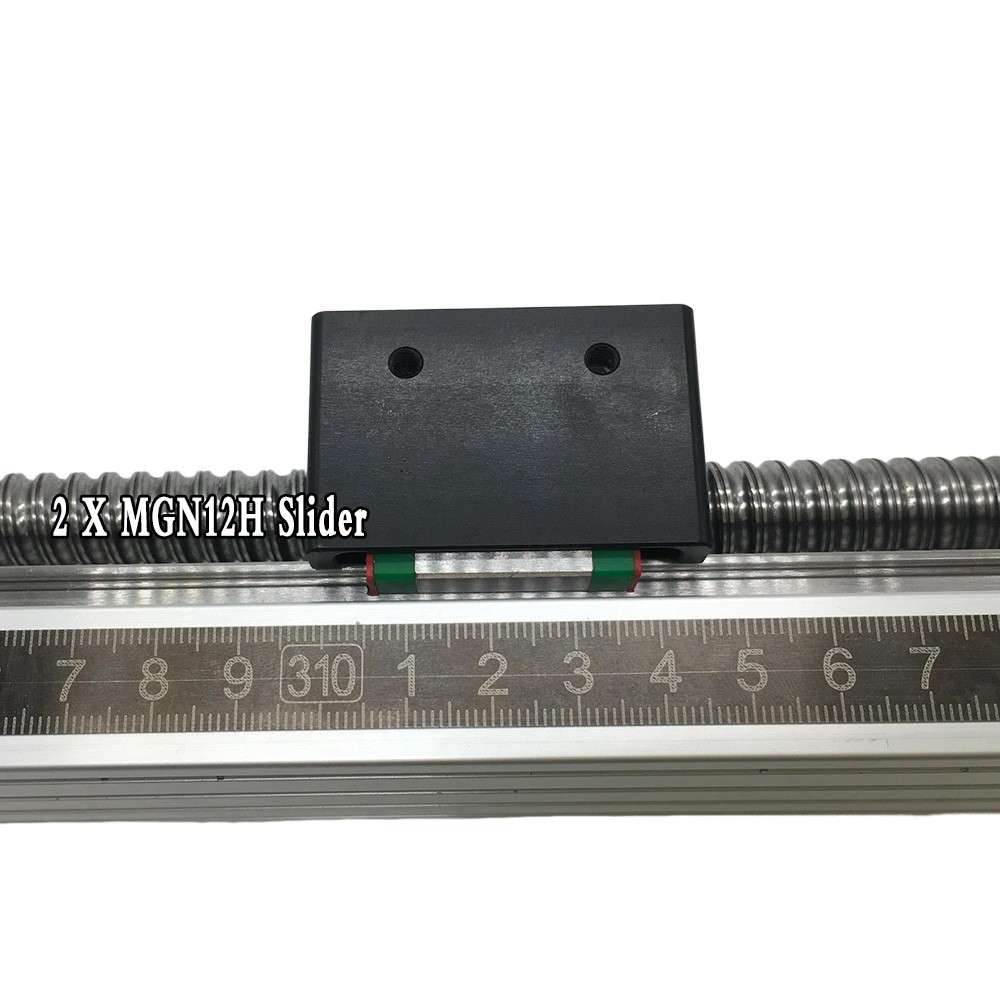

●Ballscrew type: SFU1605 (Screw Diameter 16mm, Pitch 5mm,the screw rod rotates once and the panel moves 5mm) ●Ballscrew accuracy: C7 level ●Effective stroke: 300mm ●Total length: 410mm ●Mobile panel size: 50*80mm ●Guide diameter: 12mm ●Guide Type: 2*MGN12R ●Slider Type:2*MGN12C ●Horizontal load: Max 60kg/ 132.28lb ●Vertical load: Max 30kg/ 66.14lb ●Maximum speed: 500mm/s ●Ballscrew Repeat positioning accuracy: 0.02-0.03mm ●Ballscrew and linear rail material: Carbon steel and bearing steel ●Base plate material: Aluminium alloy.
