Lot of 4 – Thermtrol/Klixon Thermal Switch – 7AM205A5-823 NC 90C (194F) New
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Brand | Thermtrol / Klixon |
| Current Type | AC/DC |
| Accuracy | ± 5°C |
| Termination Type | PC Pin |
| Sensor Type | Electromechanical |

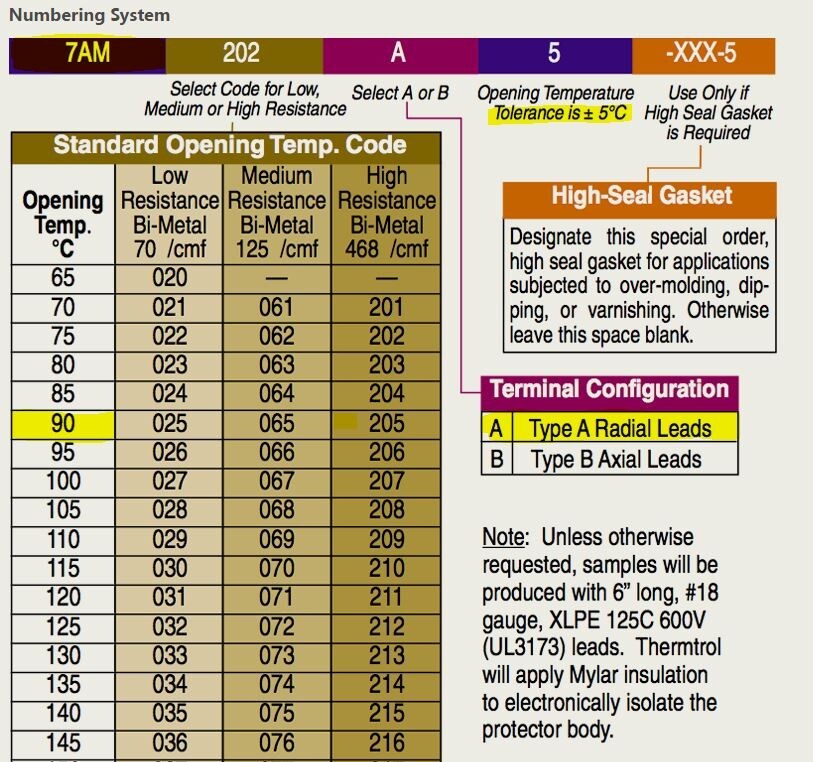

| MPN | 7AM205A5-823 |
| Compatible Mounting Type | Through Hole or chassis |
| Sensor Function | Temperature Switch |

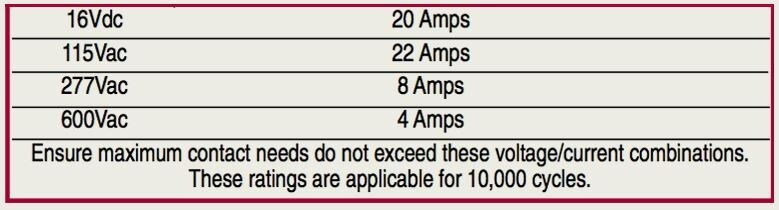

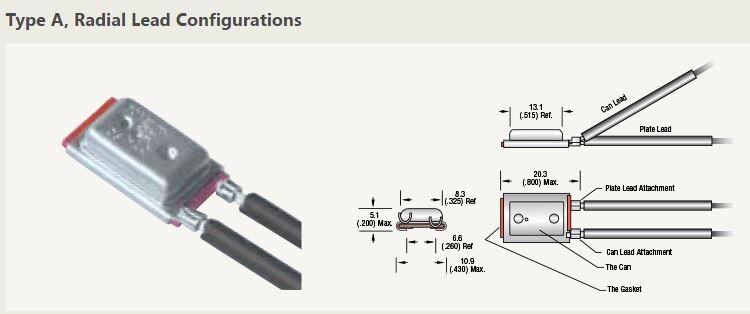

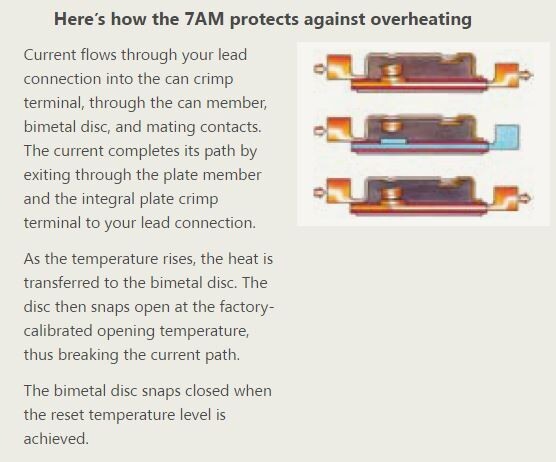

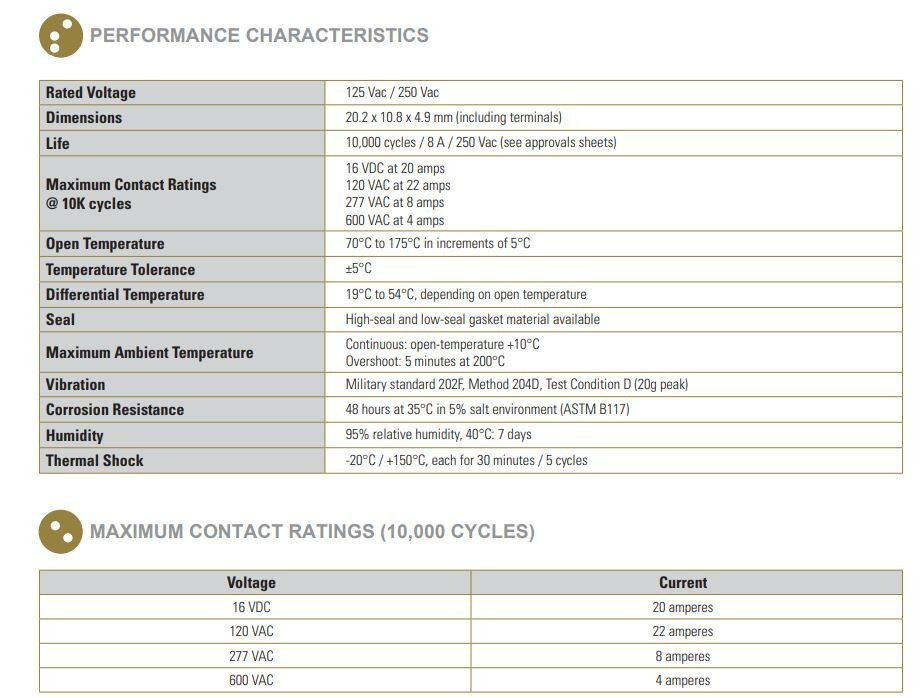

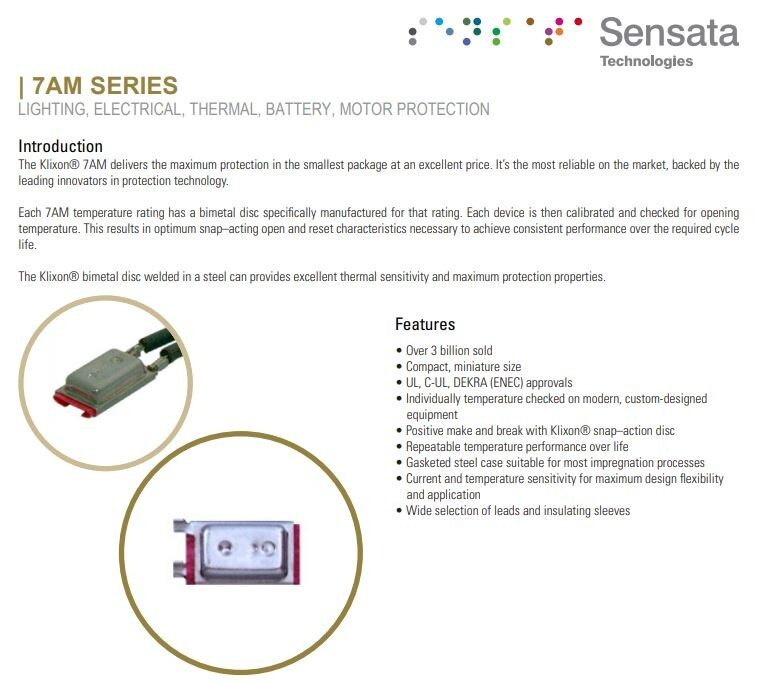

Lot of 4 - Thermtrol/Klixon - 7AM Series Thermal Switch - 7AM205A5-823 - 90C Switch, Thermal. NC Cut-Out. Klixon 7AM thermal protectors prevent overheating in a variety of consumer, industrial and commercial products. It is a miniature, snap-acting, thermally operated device that is a proven performer in protection technology. Thermitrol or Klixon (Devision of Sensata) 7AM Series Snap Action Thermal Switch. 7AM205A5-823 Normally Closed contact opens at 90 Deg C. (194F) Mount: PCB, 2 pin, Radial Leads w/1/4" nickel leads. For overcurrent and overcharge protection. Opens at 90 C (194 F) Dimensions: 43" wide x 0.80" Long (0.952 high including leads) x 0.2" deep. Current Ratings 16 VDC @20 Amps, 115VAC @ 22Amps, 277VAC @ 8 Amps, 600VAC @4 Amps. Good for several amps and 120 Volts. In order to achieve optimum heat transfer from the protected medium or ambient to the thermostat, the 7AM has been designed with the case connected to the bimetallic disc. This feature makes it necessary to electrically insulate the 7AM from the mounting surface. Applications: Battery Packs, Battery chargers, Permanent Split capcitor motors, Shaded Pole Motors, HID ballasts, Florescent lighting ballasts/transformers, Vacuum cleaners, Recessed lighting fixtures, Automotive accessory motors/solenoids ect.. - PC boards. UL/CUL Approved Note: Discounts provided for lots of 2, 3, or 4 with "Make Offer" option intended for bulk purchases.
