Lot of 4 Microlite Relay’s Model MLR-020G (All Tested Working)
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | Microlite |
| Maximum Amperage | 20 A |
| Model | MLR-020 |
| Contact Material | Brass |
| Features | Heavy Duty |
| Application | Commercial |
| Suitable For | Exterior |

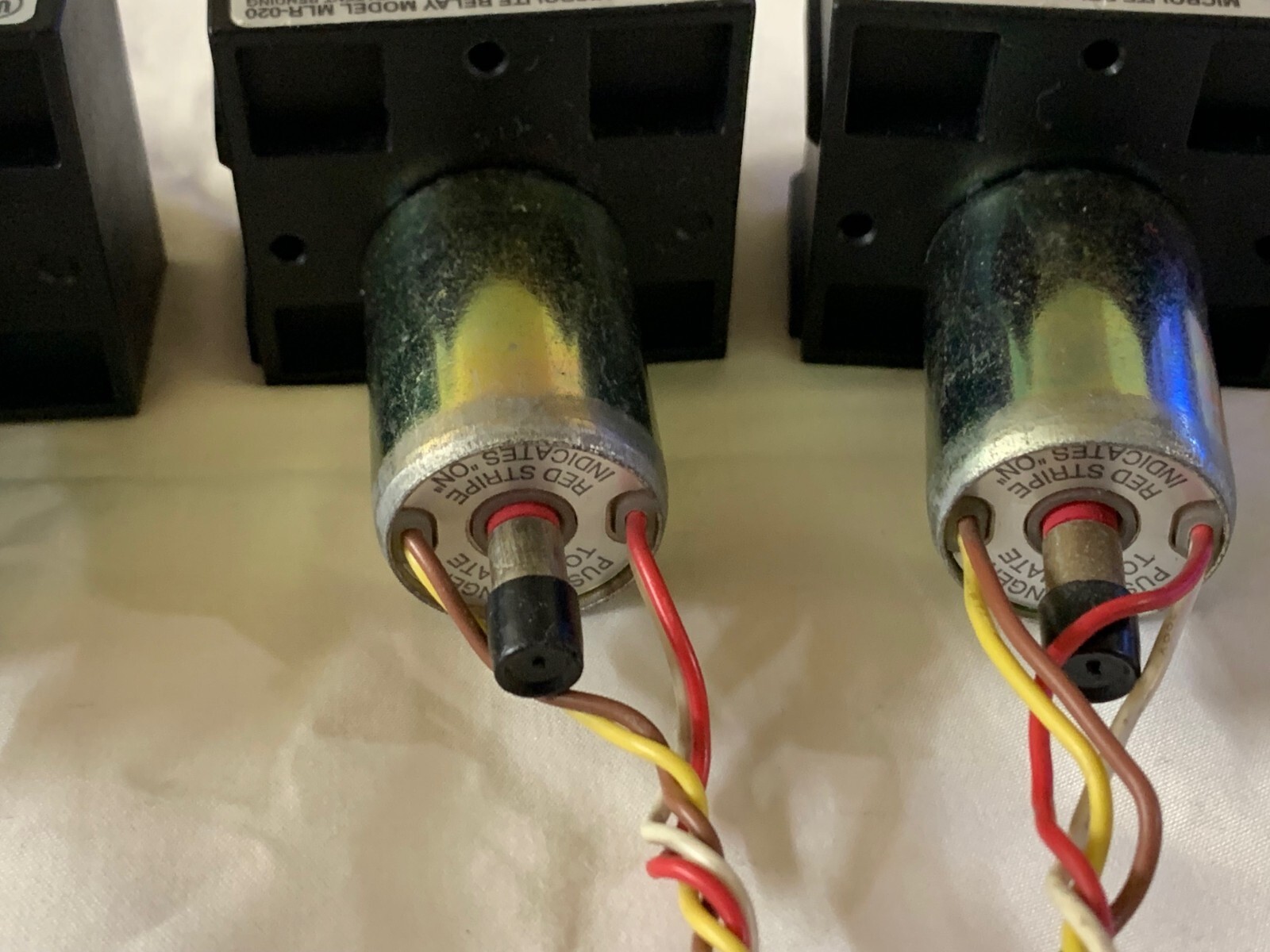

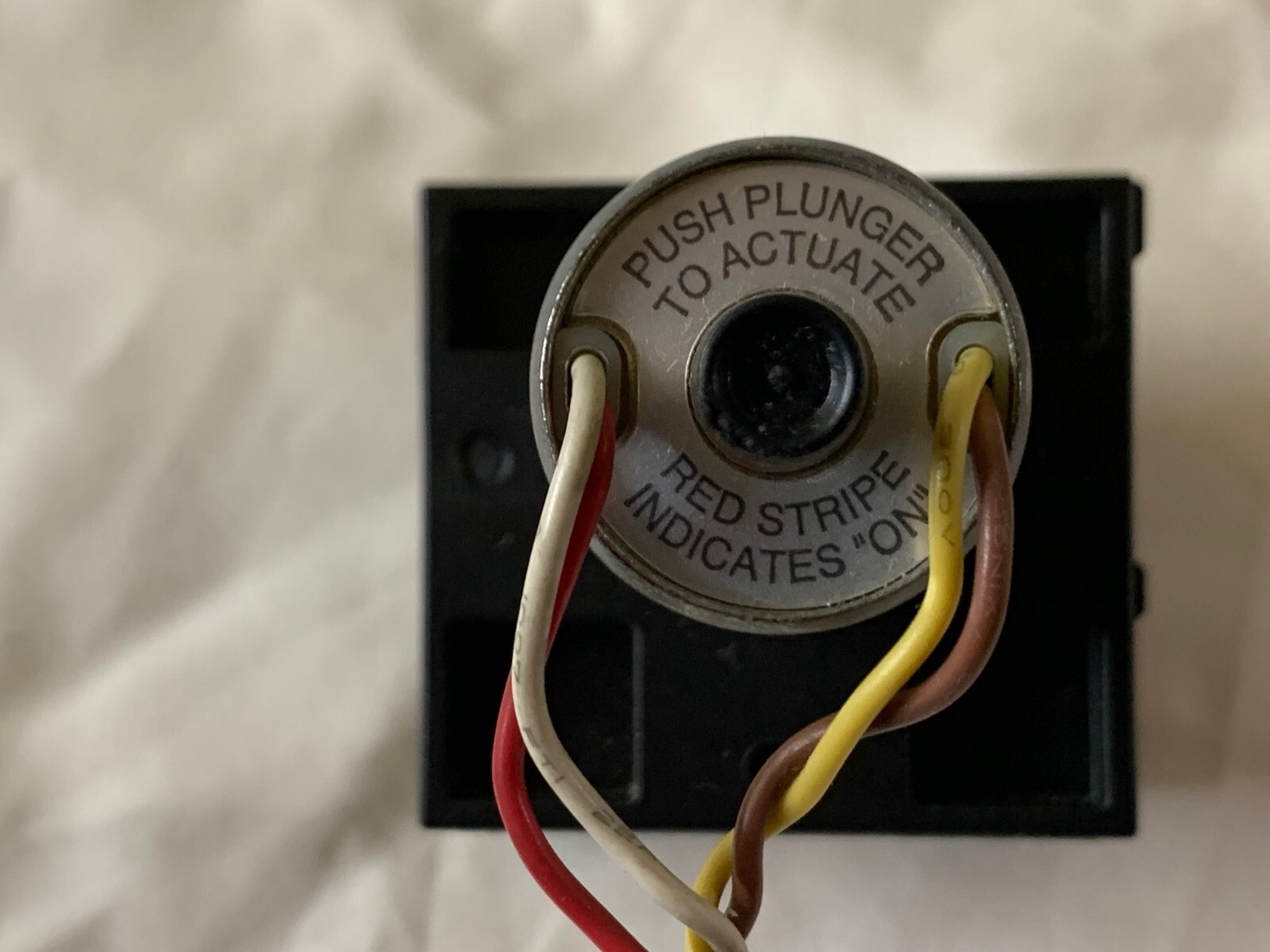

These Microlite Relay's Model MLR-020G are all use but are all in very good working order. Each relay has been manually continuity tested with a multi-meter. I have cleaned each one while testing. I will list a more in depth description, features, and the specs below. You will be purchasing these relays in lots of 4 for the list price. The G on the end of the model number indicates that each relay comes with a rubber grommet. Therefore, you will receive 4 Microlite MLR-020G Relays and 4 fitted rubber grommet's in this lot. These items are covered under my FREE 30 day return/refund guarantee. If you have any questions about these units please do not hesitate to contact me. The MIcroLite MLR-020 is a single-pole, single-throw (SPST) mechanically latching relay. The single solenoid coil design toggles the contacts to the opposite position with each operation. A unique feature of the MLR-020 is the actuator button that extends out of the top of the solenoid casing. This allows for manual operation of the contacts as well as providing a visual indication of the current state of the relay. A red band on the actuator button becomes visible when the main contacts of the MLR-020 are closed.Features:• Manual override/operation• Visual indicator of contact state• Provides true status feedback• Heavy-duty latching contacts• Suitable for electronic ballast control when driven by a MicroLite ZeroCross microcontroller• Designed and manufactured by MicroLiteSpecifications:CoilAC Drive 28 VAC RMS gated single half sine wave 8.33 ms duration, 1% duty cycleDC Drive 28 VDC pulsed operationMain Contact ConfigurationContact ratings 20 A, 125 VAC Tungsten20 A, 277 VAC Ballast1.0 HP, 125 VAC1.5 HP, 250 VACAuxiliary Contact ConfigurationSPST, 28 VAC, 0.2 A Tungsten, 0.1 A LEDTerminals 2 terminals each with two poke-home holes for feedthrough wiring. Screw activated clamps for use with #10-14 AWG solid or stranded 60°C to 75°C copper conductorsTemperature Rating0°C to 60°CAgency ListingUL Standard 508
