Lot 2 Aromat Relays 2-Pole 12VDC Coil DPST-NO PC Board Max 15A 250VAC JC2aJ-DC12
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Dropout Voltage | 1.2 VDC |
| Country/Region Of Manufacture | Japan |
| Control Voltage | 250V Max |
| Contact Current Rating | 15A UL, 10A CSA |
| Pole Configuration | DPST-NO |
| Number Of Pins | 6-Pin |
| Coil Voltage Rating | 12VDC |
| Coil Nominal Operating Power | 1 Watt |
| Expected Life | 1,000,000 Cycles |
| SELLER LOCATION | USA |
| Maximum Operating Speed | 20 CPM |
| Contact Material | AgSnO2 |
| Mounted Height | 1.200" / 30.48 MM |
| Coil Resistance | 144 Ohms |
| Pickup Voltage | 9.6 VDC |
| MPN | JC2aJ-DC12V H32 |
| Maximum Allowable Voltage (coil) | 13.2 VDC |
| Power Rating (VA) | 2,500 VA |

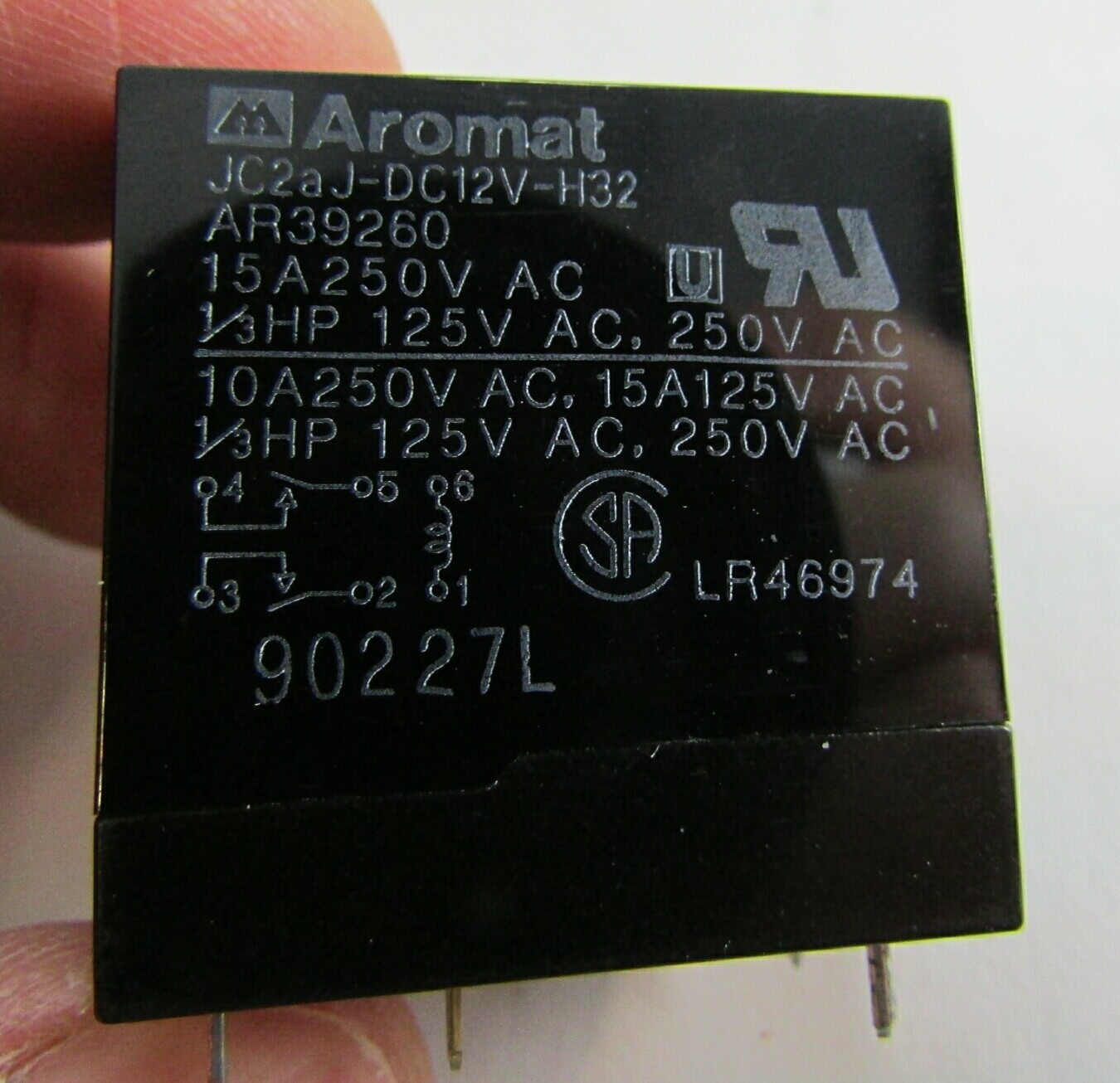

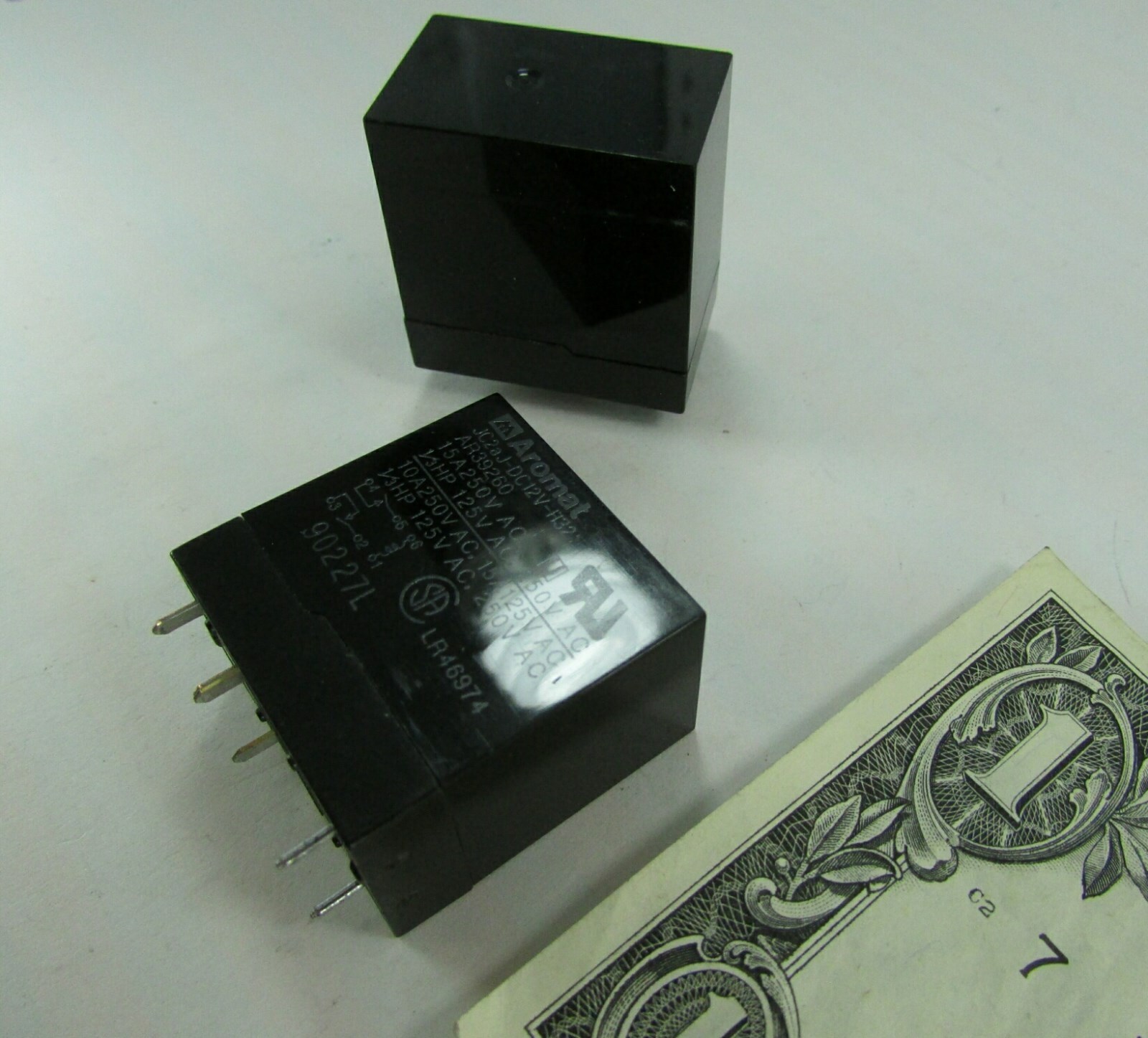

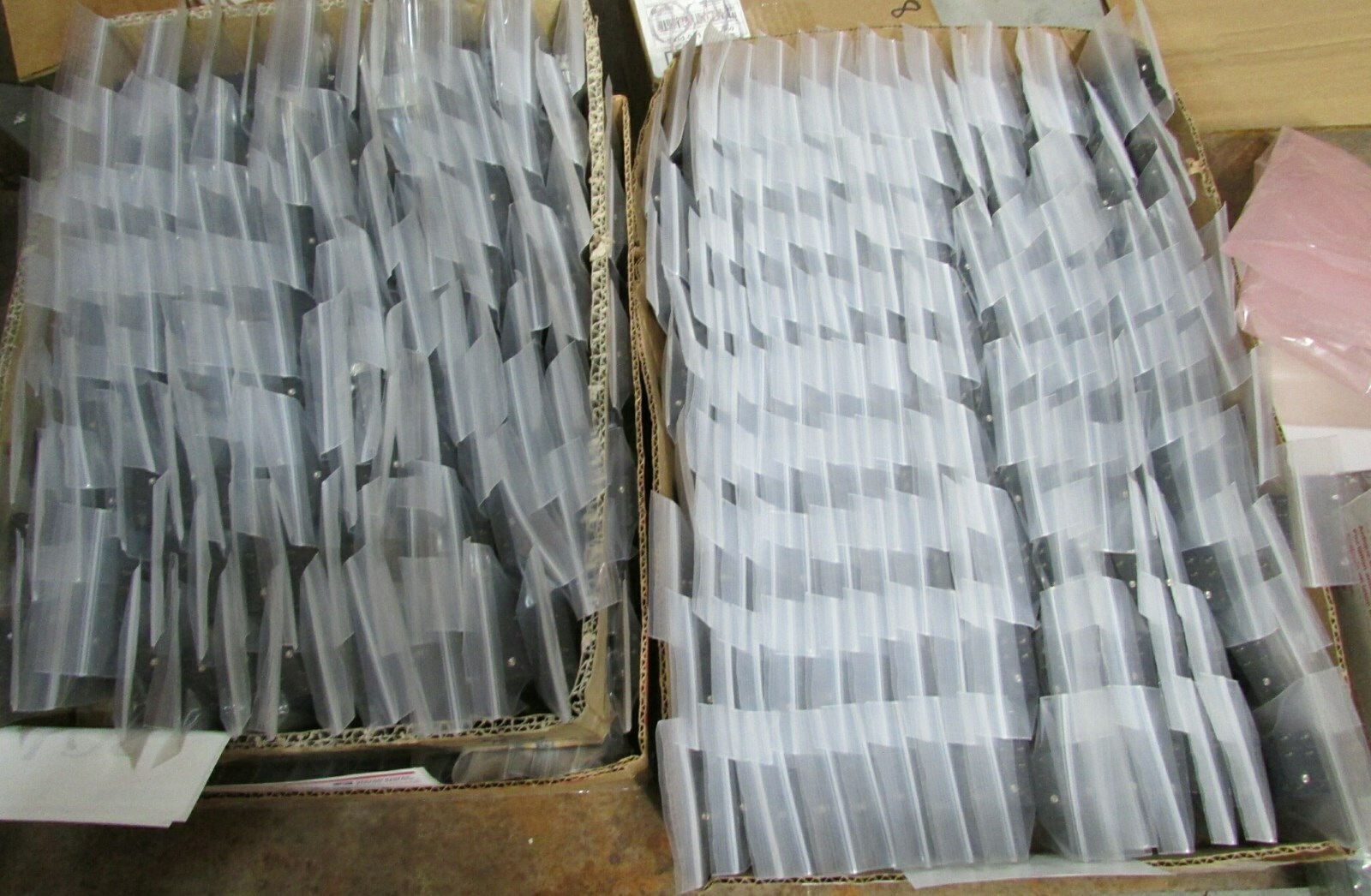

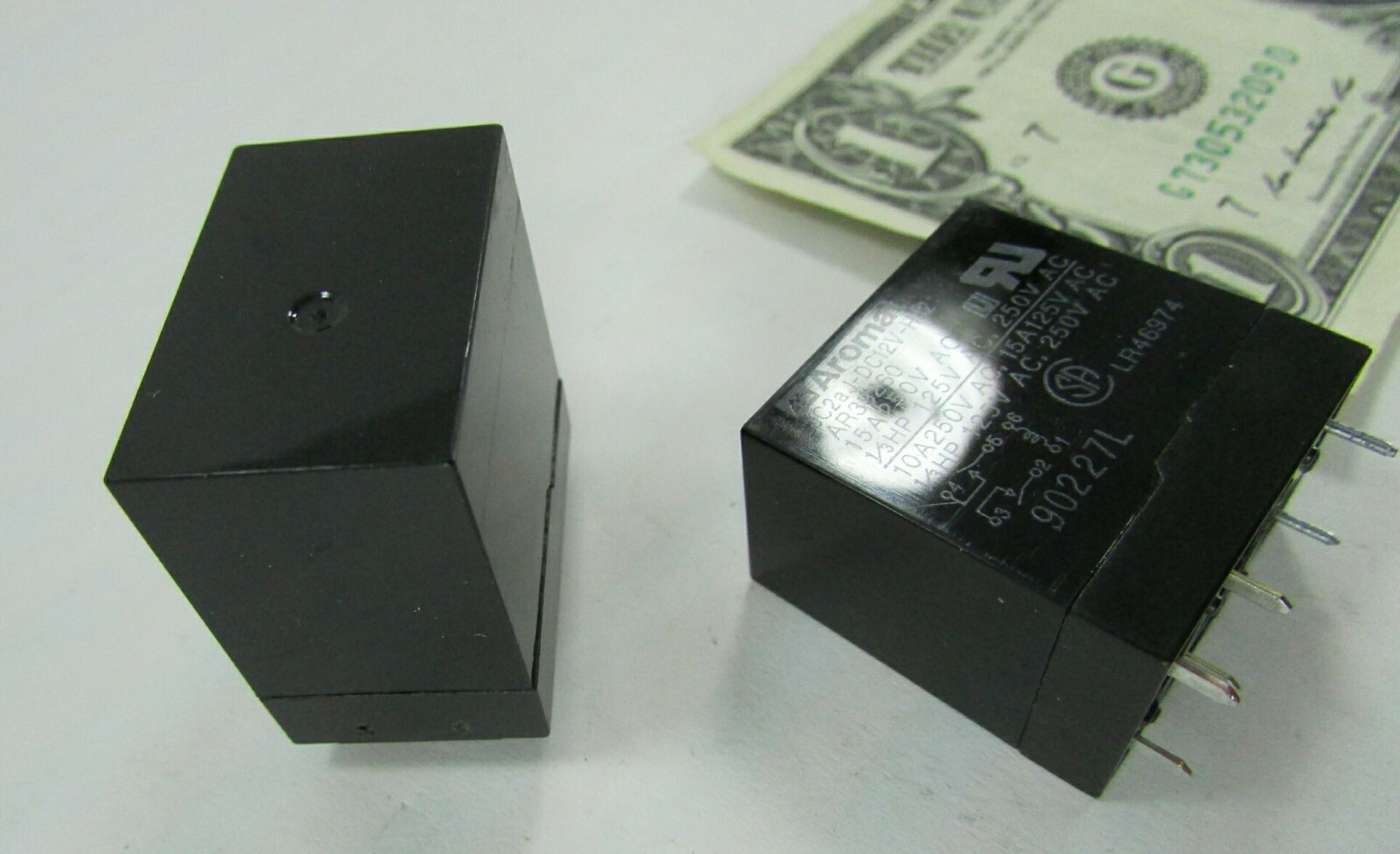

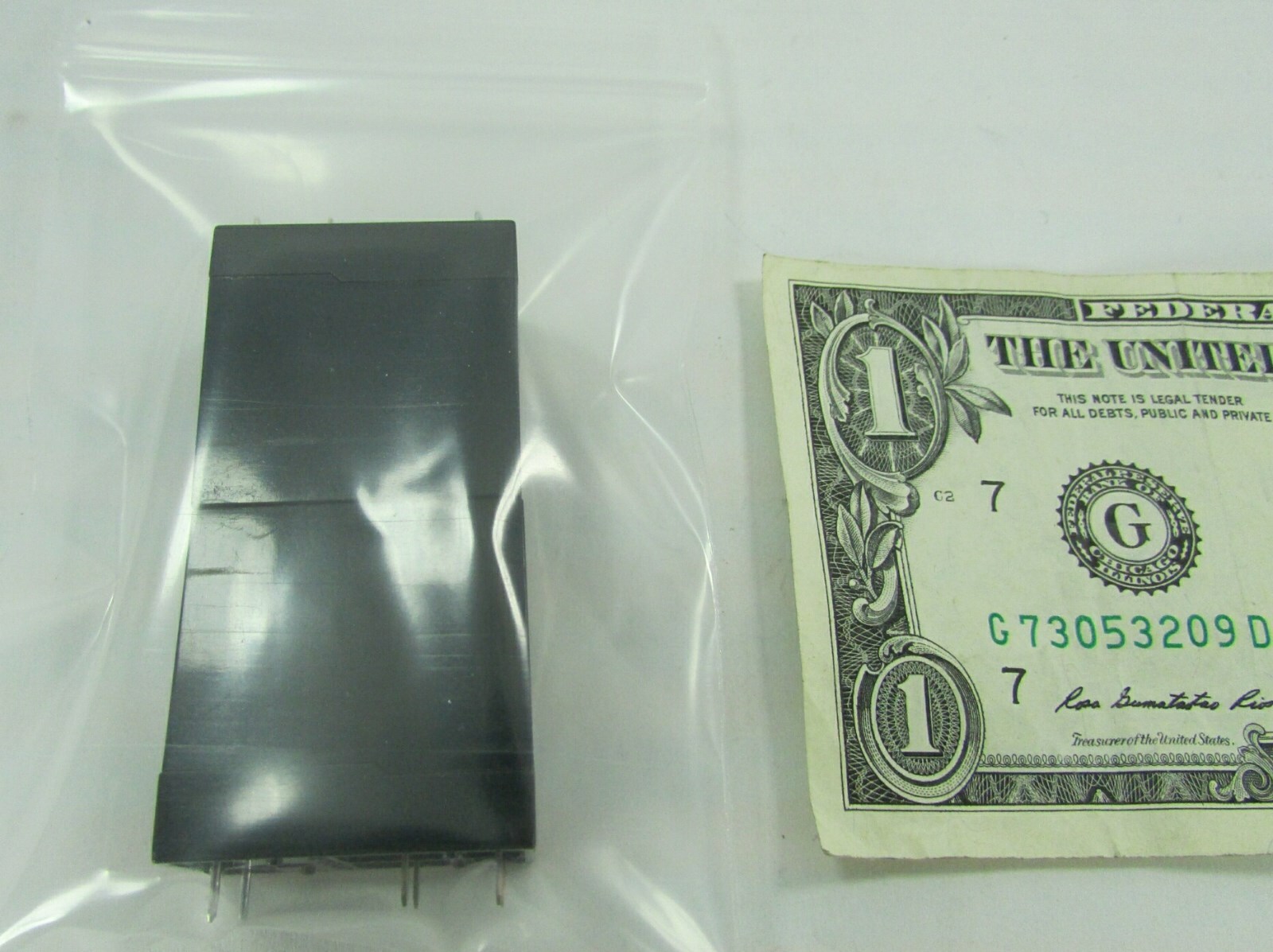

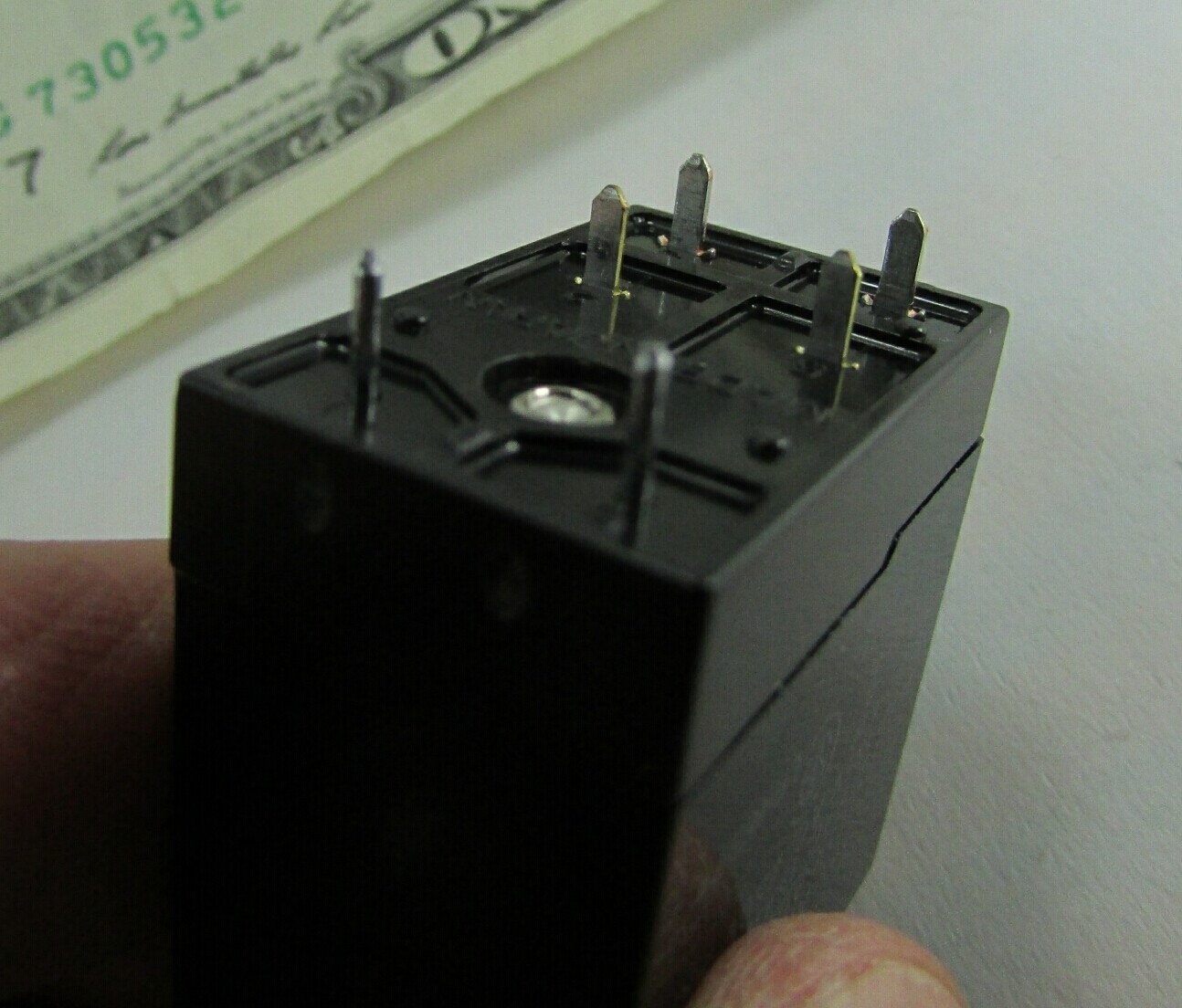

4015aSA6F.13 New Aromat / Matsushita (Now Panasonic) JC Series Compact Power Relays, 2-Pole 12VDC Coil, DPST-NO (Double Pole Single Throw, Normally Open) Contacts, PC Board Pin Termination, Maximum Load 15A 250VAC, Part Number JC2aJ-DC12V H32. Each bid quantity is for a Lot of Two (2) Relays. You may bid / buy any number of lots, up to the total quantity available above. These were purchased at an electronics supplier liquidation earlier this year, and they were brand new in the original factory boxes. We packaged them in heavy Ziplok bags for resale. Although we never found a datasheet for this exact part number, this is probably a special version with heavier contacts. The normal JC2a relay is rated at 10A @ 250VAC, whereas these are marked 15A @250 VAC and 1/3 HP. These also do not carry the VDE and TUV certifications that the standard version does. Best we could tell, Panasonic reworked the Aromat part numbering scheme after acquiring the company. Therefore the part number JC2aJ-DC12V H32 breaks down (partially) as follows: JC: Compact Power Relay Series 2a: Contact Arrangement - 2 Form A J: DC12V: Coil Voltage - DC 12V H32: According to the calipers: Mounting footprint: 1.185" x .749" (30.08 MM x 19.02 MM) Mounted height: 1.200" / 30.48 MM Pin Spacing (from common to N/O terminal): .299" / 7.60MM Pin Spacing (from common to coil terminal): .598" / 15.20 MM Row Spacing (pole to pole): .551" / 14.00 MM According to the manufacturer: Mounting Type: Through Hole Solder Coil Voltage: 12 VDC Contact Form: DPST-NO (2 Form A) Load Rating: 15A Maximum Voltage: 250VAC Coil Current: 83.3mA Coil Type: Non-Latching Termination Style: PC Board Pin Must Operate Voltage: 9.6 VDC Must Release Voltage: 1.2 VDC Operate Time: 15ms Release Time: 2ms Operating Temperature: -50°C ~ 60°C
