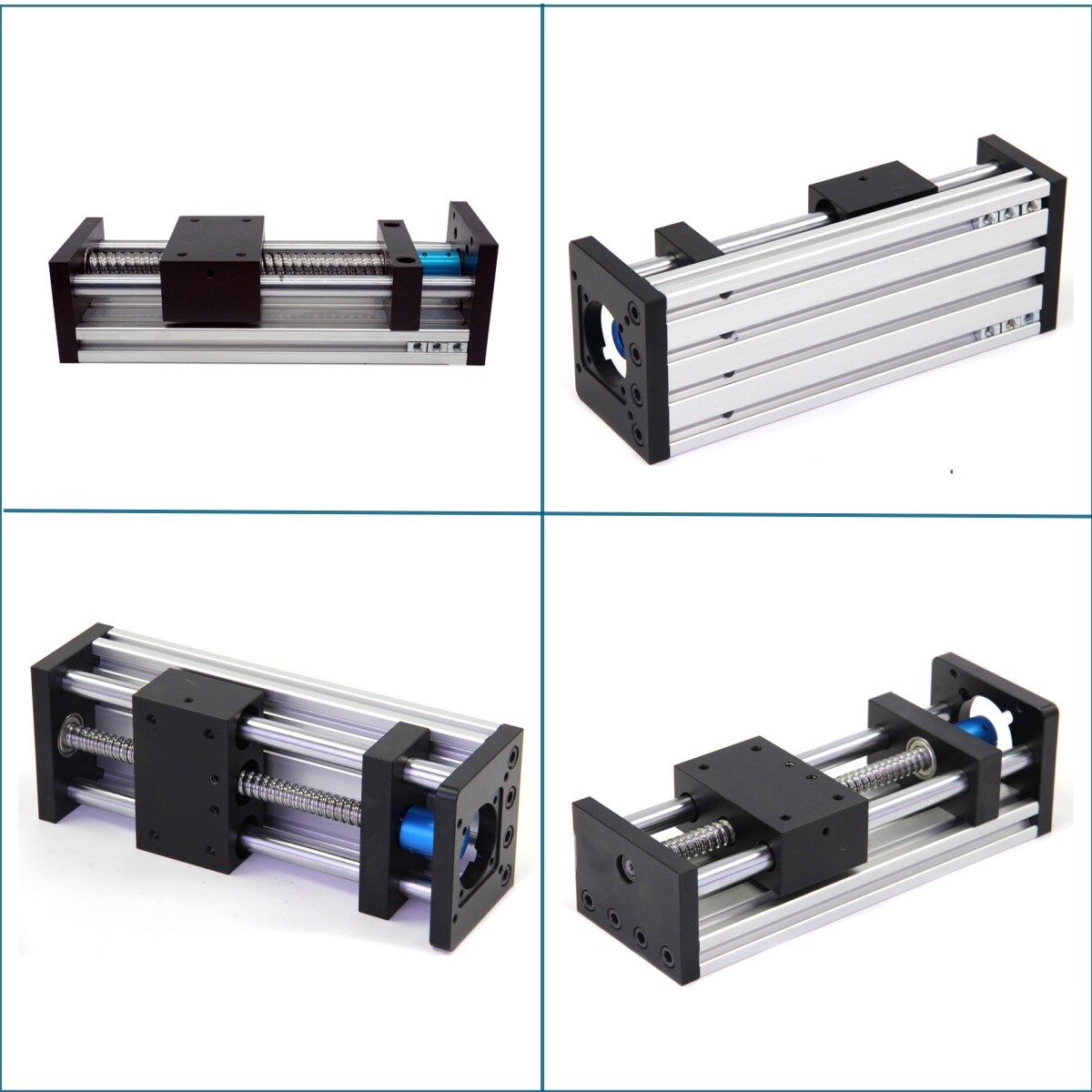

Linear Guide Rail CNC Slide Stage Actuator Ball Screw Motion Table Nema 23 Motor
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Brand | TEHIGHAUTO |
| MPN | Does Not Apply |
| Model | GGP |
| Accuracy | 0.03mm |
| Ballscrew Diameter: | 12mm |
| Speed | 40-100mm/s |
| Horizontal Load | 40KG,88.18lb(Max) |
| Vertical Load | 20KG,44.09lb(Max) |
| Voltage | 24V |

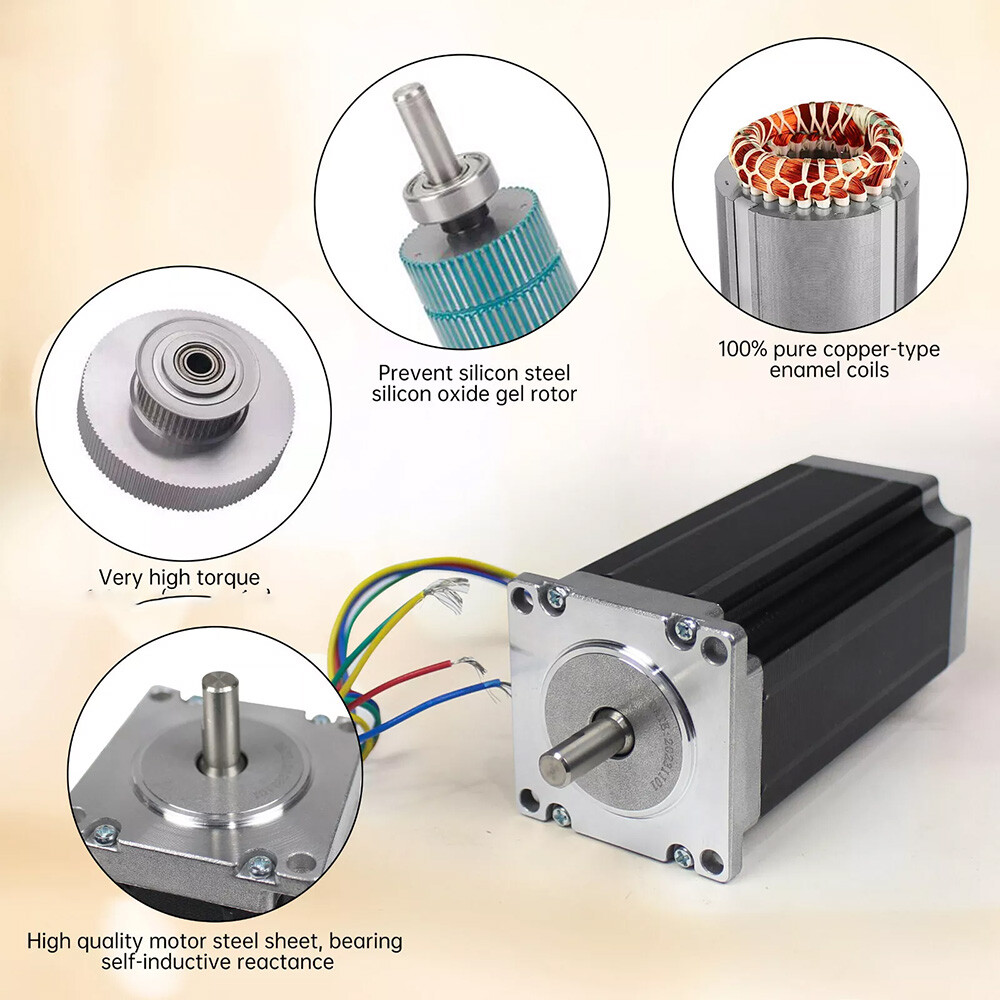

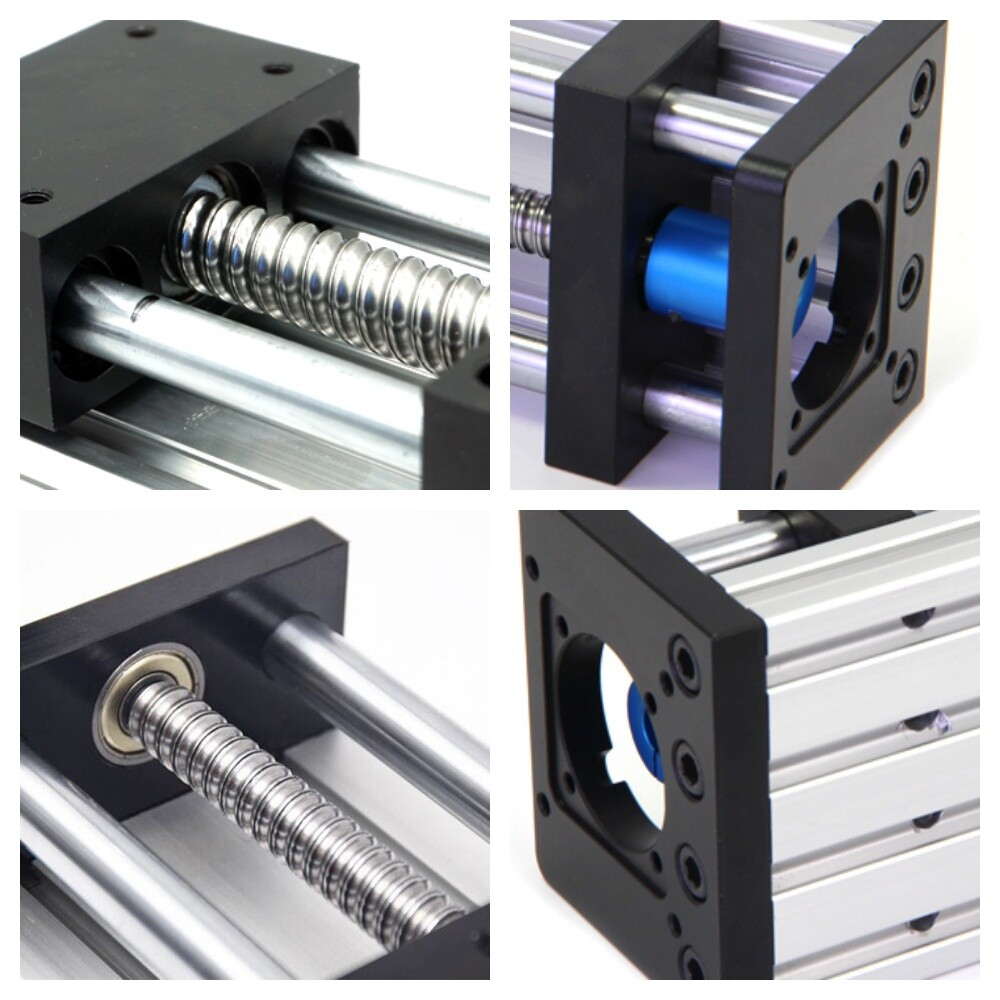

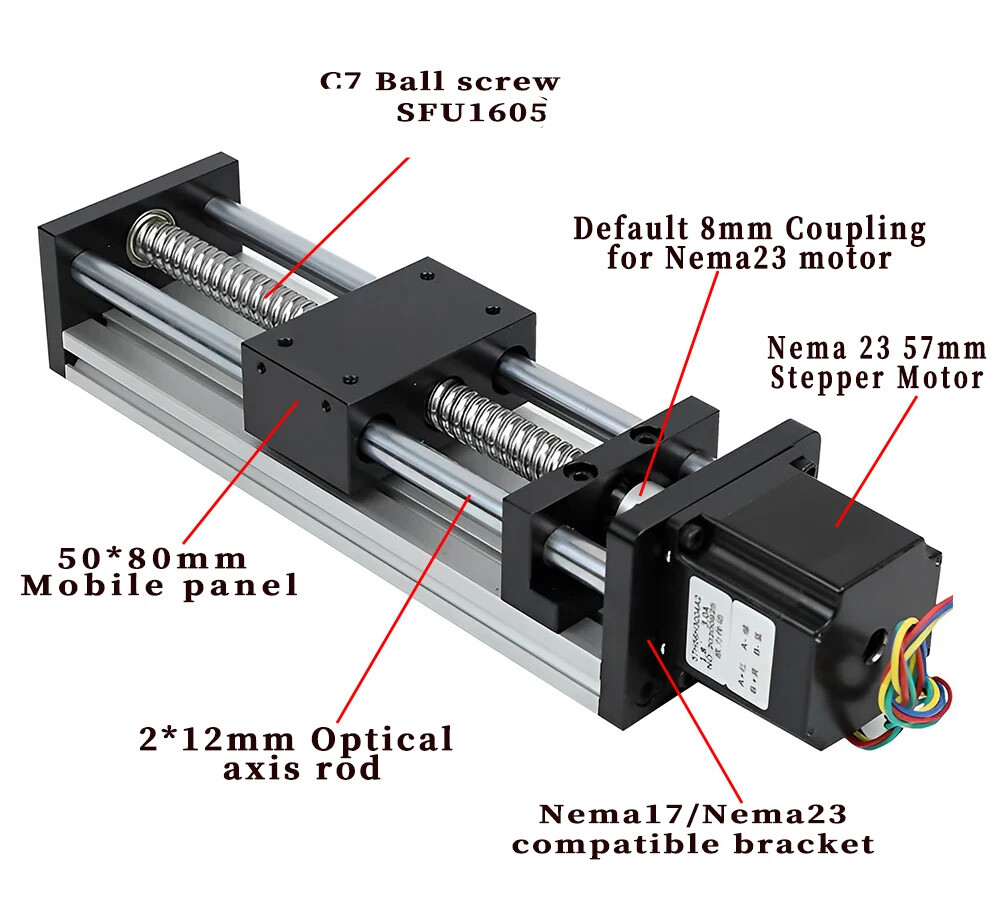

About this item Model: GGP5080 (50*80mm Mobile Panel); ●Ballscrew type: SFU1605 (Screw Diameter 16mm, Pitch 5mm,the screw rod rotates once and the panel moves 5mm) ●Ballscrew accuracy: C7 level ●Effective stroke: 50mm-300mm Optional ●Total length: Motorized slide table GGP5080: Effective Stroke+120mm ●Guide diameter: 12mm ●Guide Type: 2PCS optical axis rod ●Maximum speed: 100mm/s ●Horizontal load: 40KG (Max) ●Vertical load: 20KG(Max) ●Ballscrew Repeat positioning accuracy: 0.02-0.05mm ●Material: Industrial Aluminum Profile ●Motor bracket Matching type: Compatible with Nema 17/Nema 23 Stepper motorLinear Guide Rail CNC Slide Stage Actuator Ball Screw Motion Table Nema 23 MotorAbout this itemPackage List 1Pcs *GGP5080 slide table1 X Free 8mm to 8mm Coupling1Pcs *NEMA23 57mm Stepper Motor(1.2Nm/2Nm/3Nm )Product parameterModel: GGP5080 (50*80mm Mobile Panel);●Ballscrew type: SFU1605 (Screw Diameter 16mm, Pitch 5mm,the screw rod rotates once and the panel moves 5mm) ●Ballscrew accuracy: C7 level ●Effective stroke: 50mm-300mm Optional ●Total length: Motorized slide table GGP5080: Effective Stroke+120mm ●Guide diameter: 12mm ●Guide Type: 2PCS optical axis rod ●Maximum speed: 100mm/s ●Horizontal load: 40KG (Max) ●Vertical load: 20KG(Max) ●Ballscrew Repeat positioning accuracy: 0.02-0.05mm ●Material: Industrial Aluminum Profile ●Motor bracket Matching type: Compatible with Nema 17/Nema 23 Stepper motor DrawingsDetail Shows Application Field PaymentDelivery detailsTerms of salesAbout usContact usPayment1. All payments must be prepaid.2. We accept multiple payment.Delivery details1. We'll pay for export custom tax,Buyer should pay for import custom tax if needed.2. packages will be sent out within the same day or 1 working days after the payment is received.3. Order placed on the weekends will be shipped out on next Monday or Tuesday (holiday excluded).4. Local pickup is not available.5. We regret that we can not be responsible for any wrong or undeliverable addresses.Terms of sales1.We automatically submit positive feedback to our buyer once the payment is cleared.2. if you are satisfied with our product, please do the same for us, leave Positive Feedback with Four 5-star DSR (Detailed Selling Rating)for us, which means a lot to us, thanks in advance.3. PleaseDo not leave Negative orNeutral Feedback before Contacting us, leave negative feedback and argue can not solve any problem and we will work with you to resolve those problem.4. For any problem you have met about the product, please feel free to contact us viaEbay Message or E-mail.We always reply messageswithin One business day, butexcept holidays.About usReturn & Warranty:1. We guarantee against any defective products.2. We provide 30 days money back on non-defective, undamaged, unused and resalable products. Restocking fee and other fee may apply upon the condition of returned products. Shipping and handling fees are non-refundable.3. For any returned product, please contact us through ebay message first, We will work on resolving your particular case ASAP.Contact usAny question please feel free to contact us, we will respond within 1 bussiness day or less, except holidays.On Sep 17, 2024 at 22:29:01 PDT, seller added the following information:
