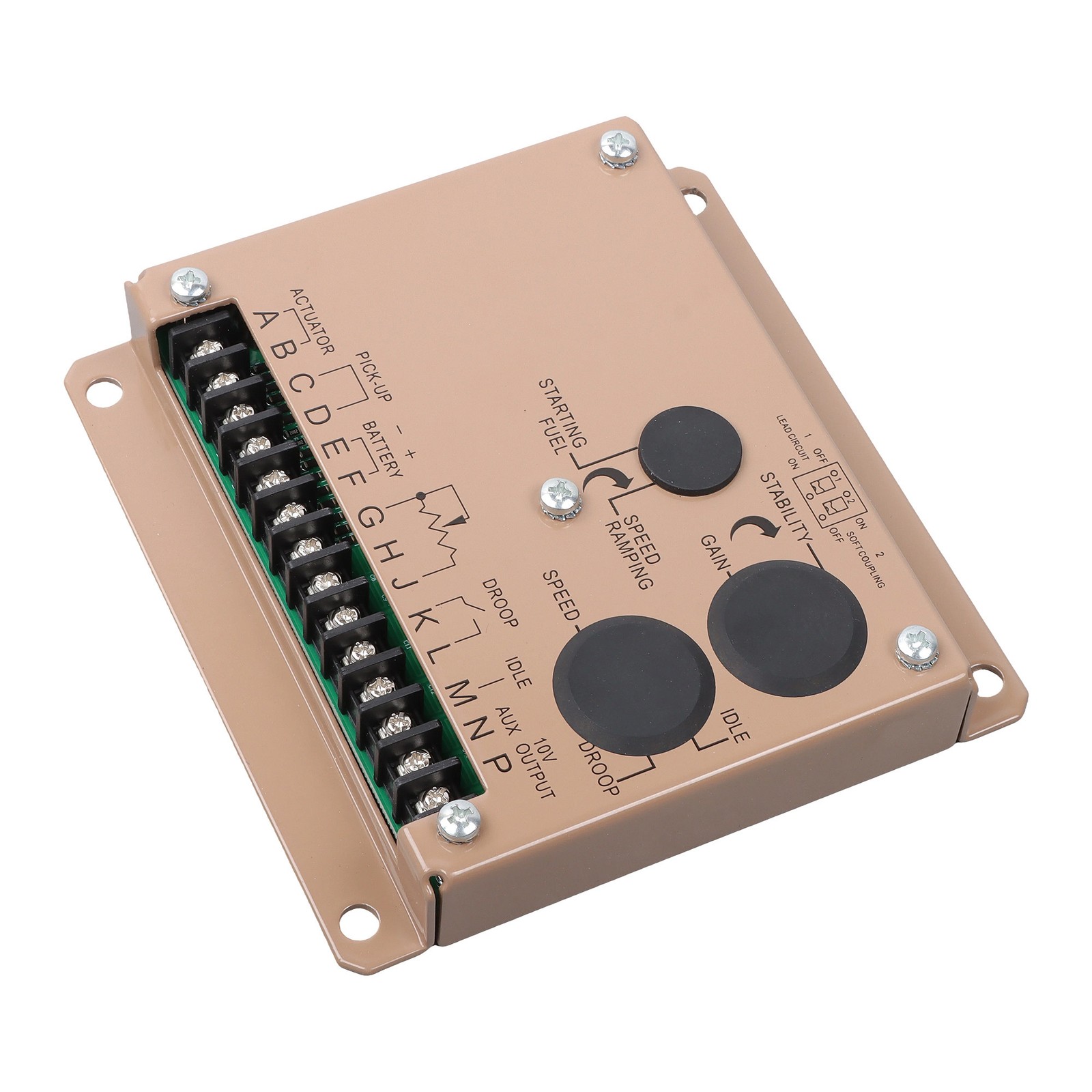

LABLT Speed control unit Governor ESD5500E Pickup 3034572, ADC225-24V Actuator
USD 129.87 USD
Specifications
| Country Of Origin | United States |
| Brand | LABLT |
| MPN | QS817888QR |

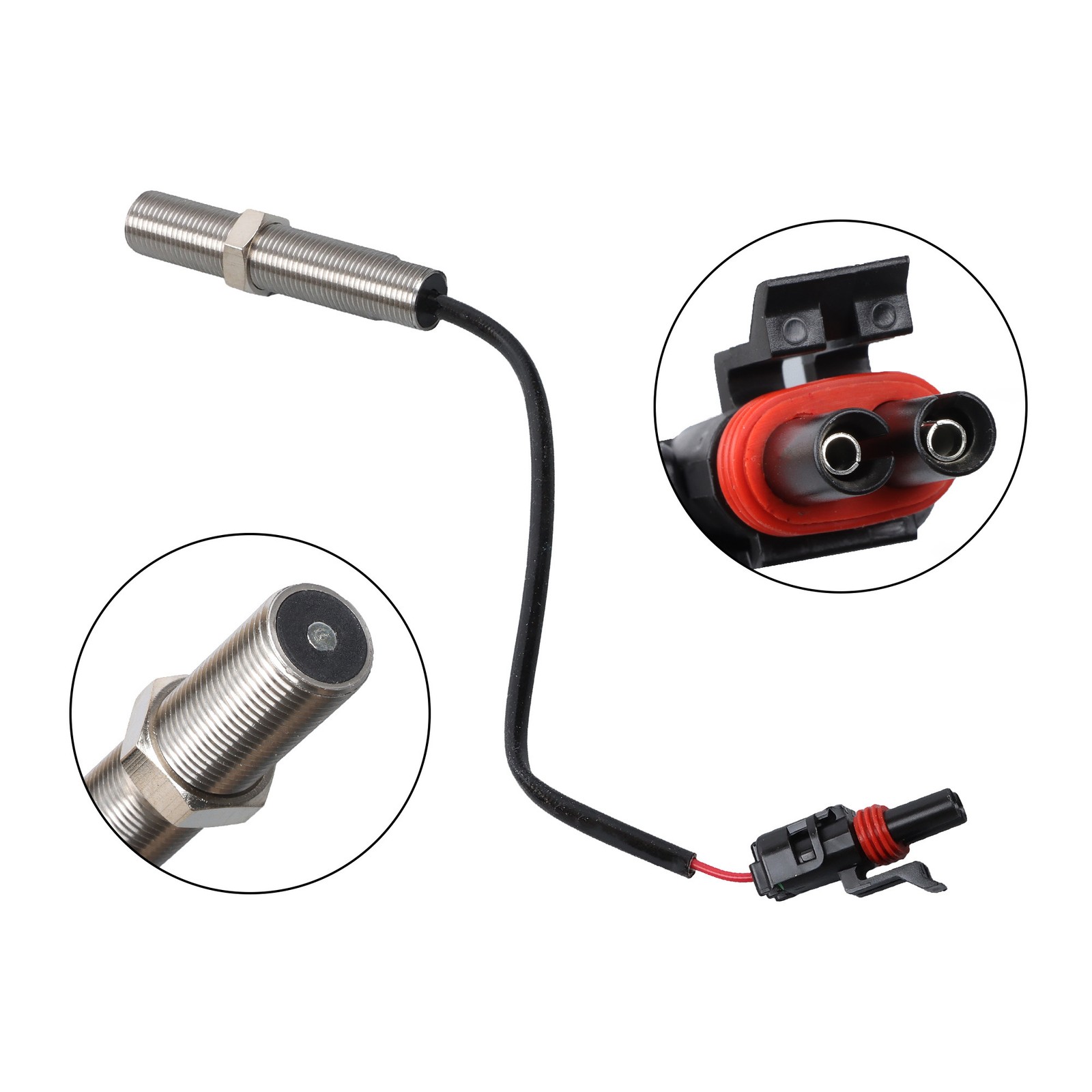

| Thread Size | 5/8-18 unf-2A |
| Warranty | 1 Year |
| Tap Drill Size | 37/64 inch |
| Temperature Range | -55℃to 105℃ |
| Output At Cranking Speed | 1.5 volts AC minimum |
| Maximum Output | 30 volts AC |
| Coil Resistance | 300 ohms maximum |

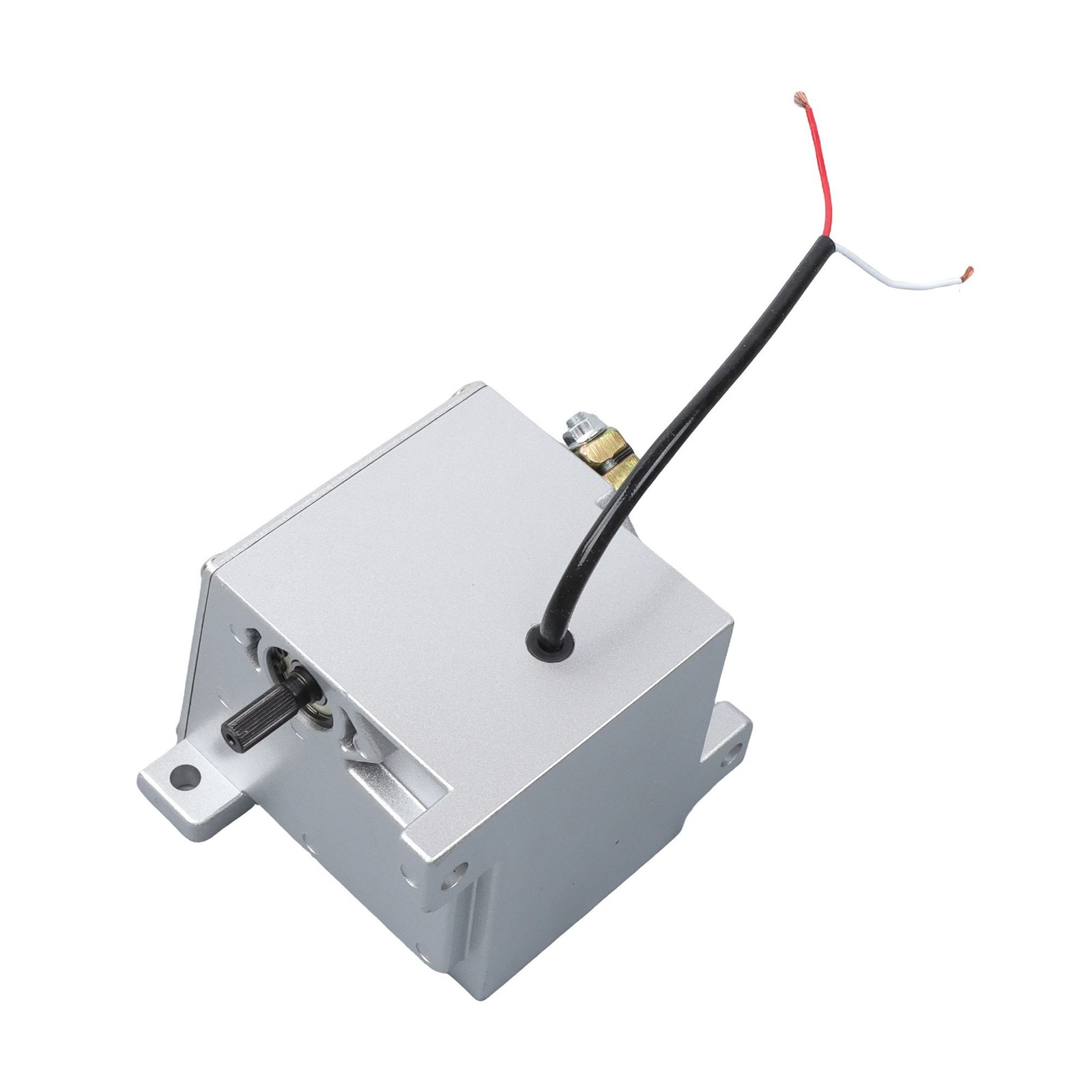

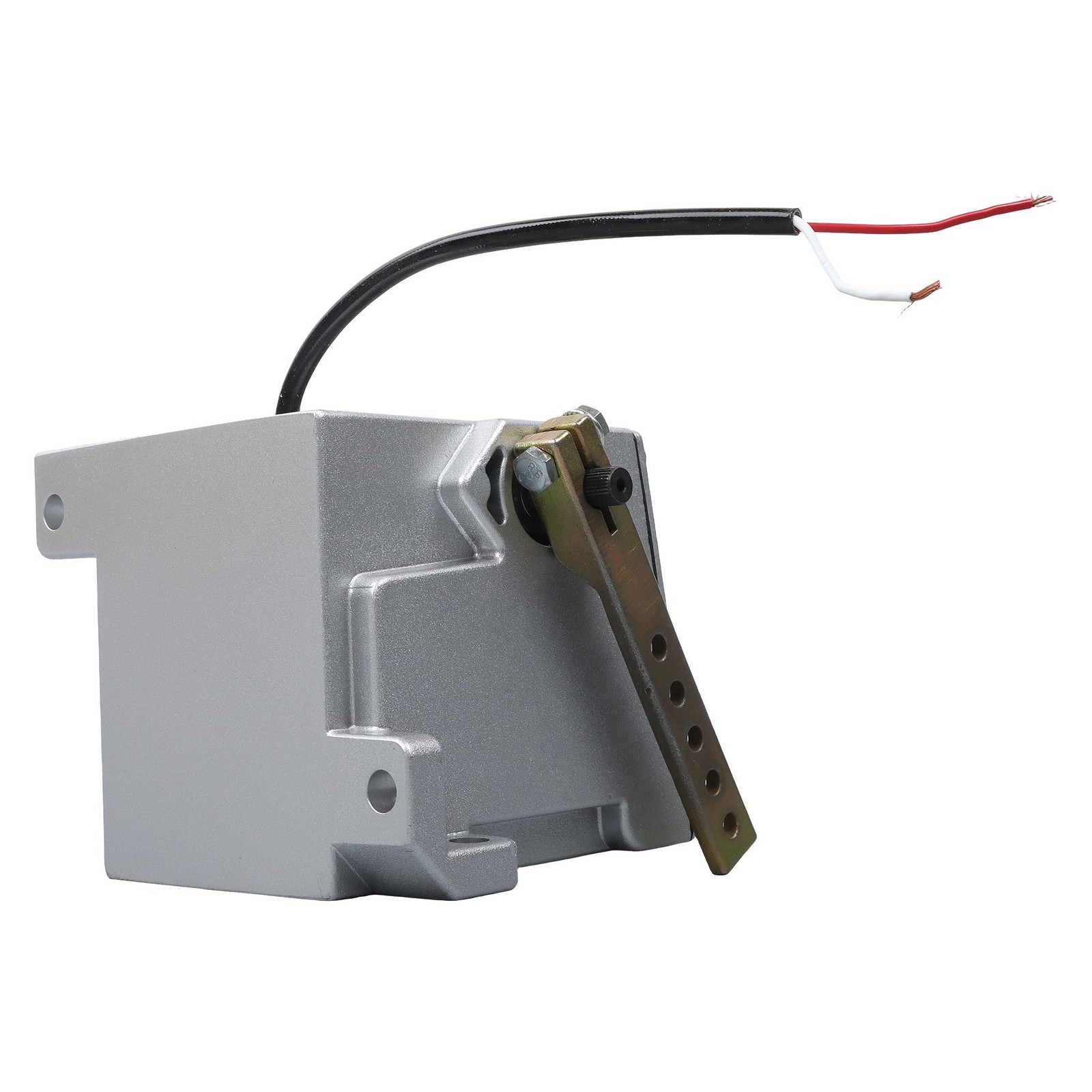

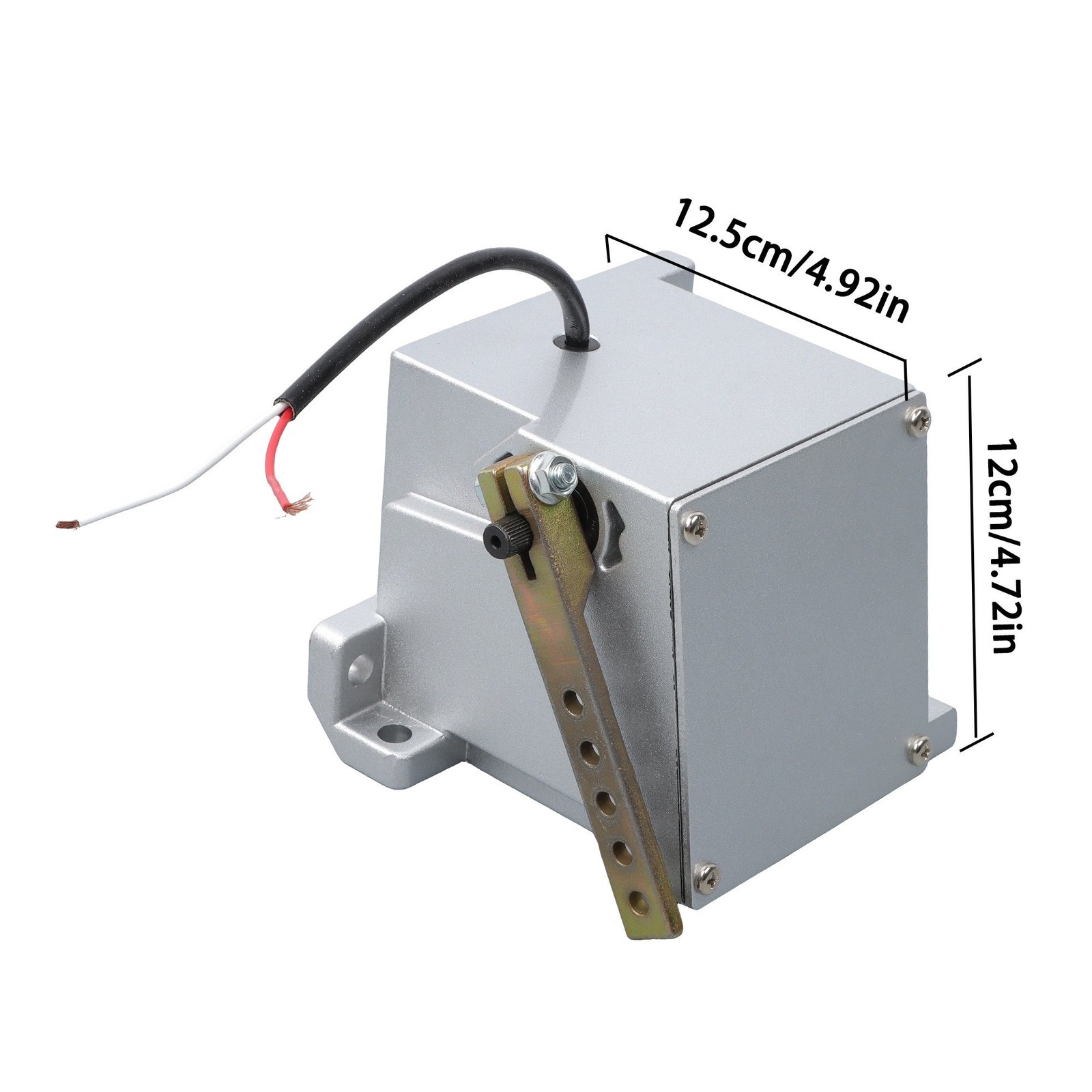

Specifics and features: Generator Actuator ADC225: · 2.2 lb-ft of torque, 25° rotation, < 45 msec. response · Low cost, versatile model · Suitable for multi-plunger fuel pumps and medium size carburetors · Various models offer a variety of connectors and wiring harnesses, including feedback sensor · Outstanding reliability and performance .
