KSD301 Thermostat 180℃/356°F 16A N.C Temperature Switch 2 Pcs

Specifications

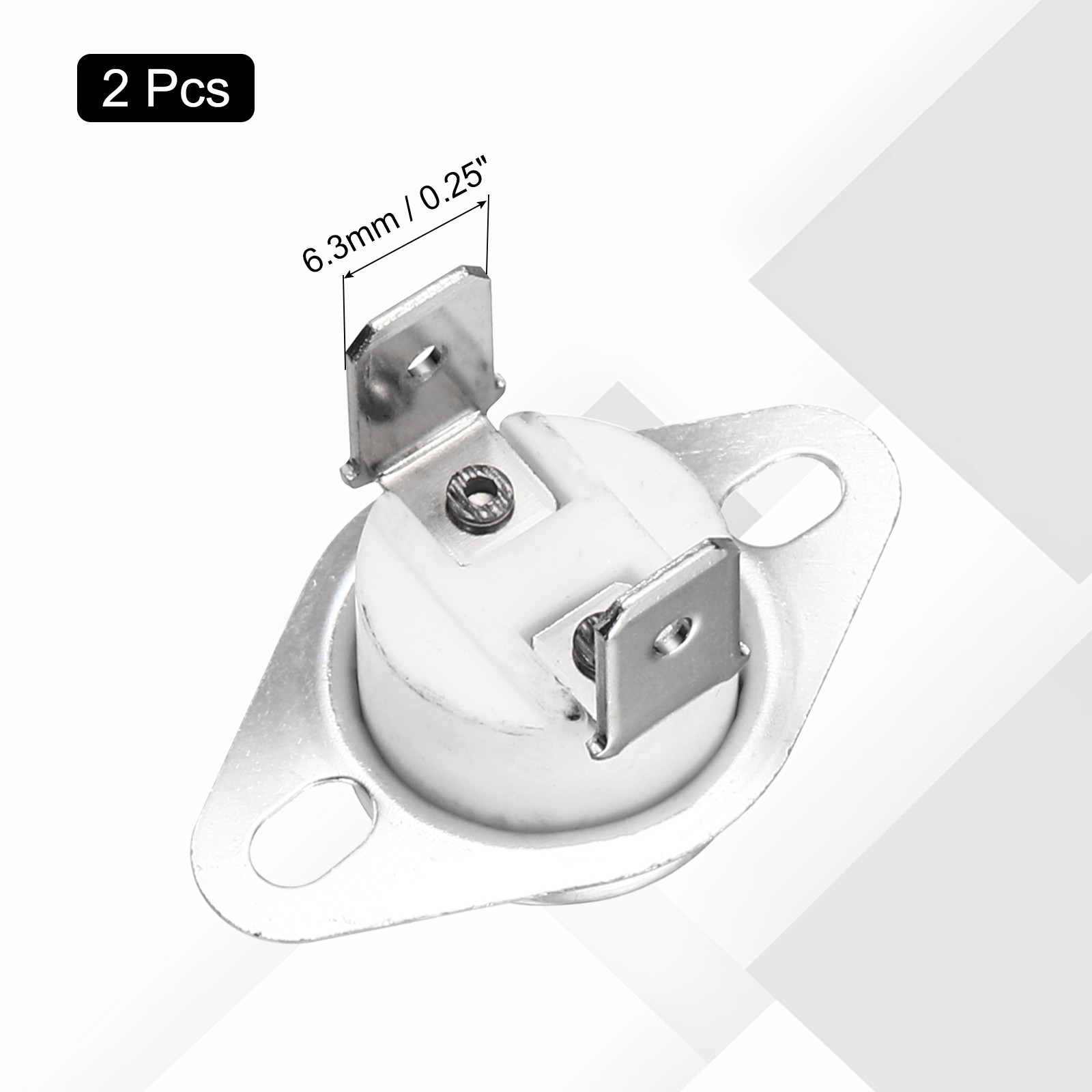

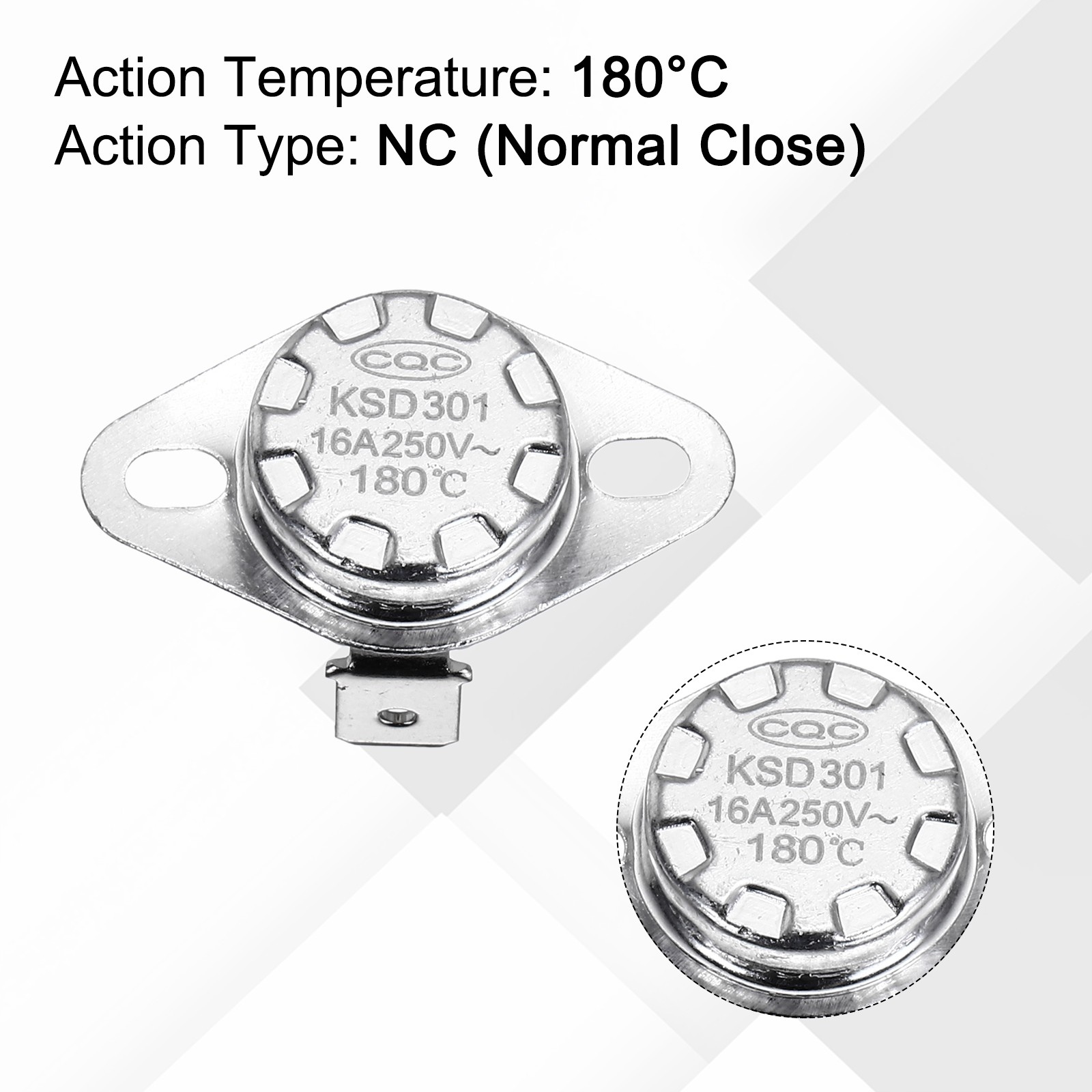

Specification:Product Name : Temperature Control SwitchModel: KSD301Action Temperature: 180℃ Action Type: NC (Normal Close)Rated Voltage/Current : 250V/16APin Type : Right AnglePin Width : 6.3mm/0.25inchContact Life: More than 50,000 times (action times)Electrical Strength: AC50Hz, 2000V/min no breakdown and arc phenomenon Package Content :2 x Temperature Control Switch Description :1.Normally Closed: The original state of temperature control switch contact is closed, and open when the temperature sensing exceeds the rated temperature.2.Feature: Double metal chip, contact sensor, speed dynamic type, sensitive, reliable, safe, stable action temperature, long service life, no arc phenomenon.3.Advantage: General purpose, automatic reset, low cost, large capacity, minute current thermostats.4.
