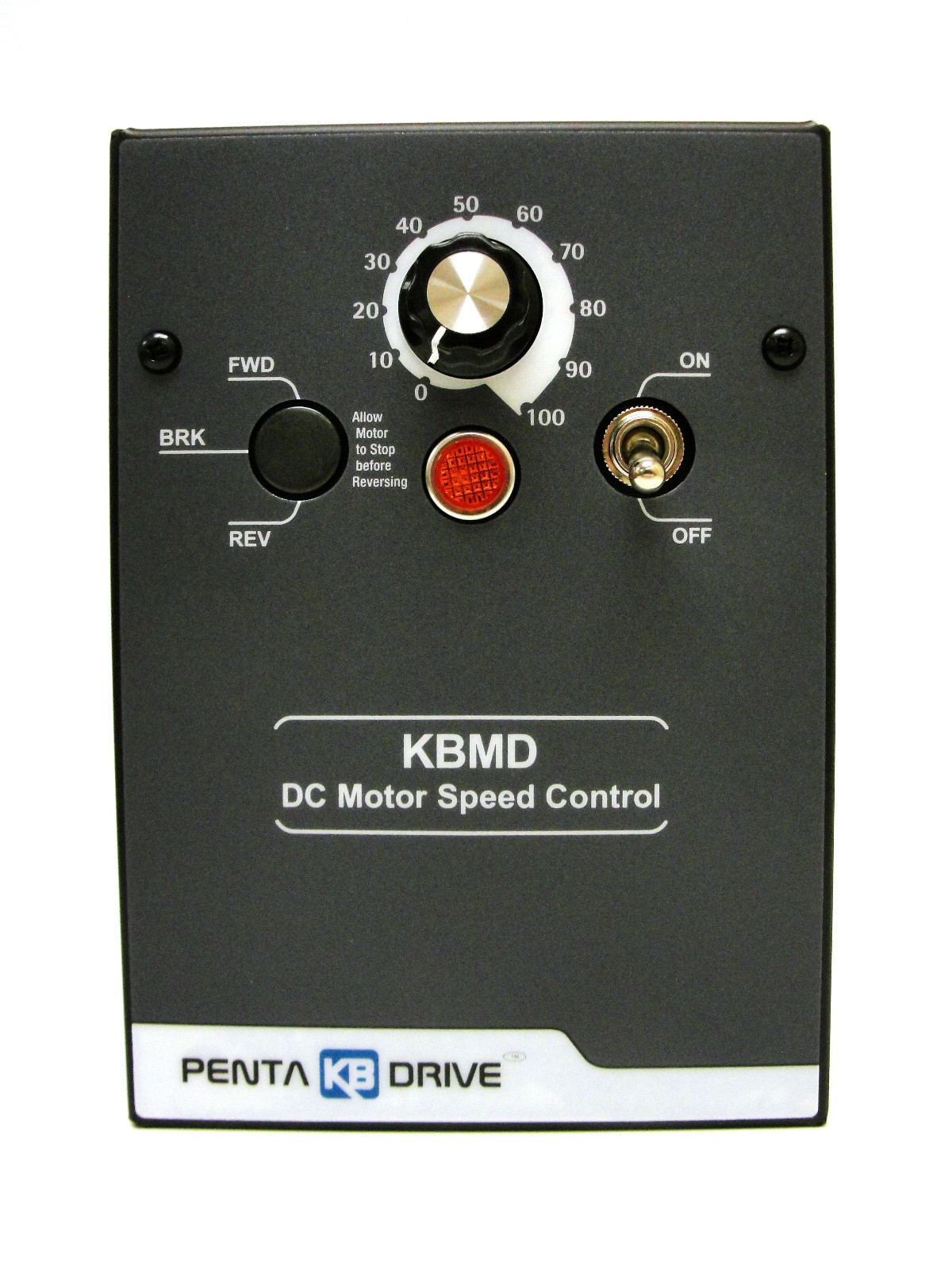

KB Electronics KBMD-240D DC motor control 9370
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| HP W/o Heat Sink @ 90 Vdc Out | 3/4 hp |
| HP W/ Heat Sink @ 90 Vdc Out | 1 hp |
| HP W/o Heat Sink @ 180 Vdc Out | 1.5 hp |
| HP W/ Heat Sink @ 180 Vdc Out | 2 hp |
| Max Load Current W/o Heat Sink | 8 amps |
| Country/Region Of Manufacture | United States |
| Max Load Current W/ Heat Sink | 11 amps |
| Heat Sink Accessory | 9861 |
| Fwd-Brk-Rev. Accessory | 9860 |
| Upc | 024822093705 |
| AC Voltage Input | 115 / 208 / 230 vac |
| DC Voltage Output | 0-90 / 180 vdc |
| MPN | 9370 |
| Model | KBMD-240D |

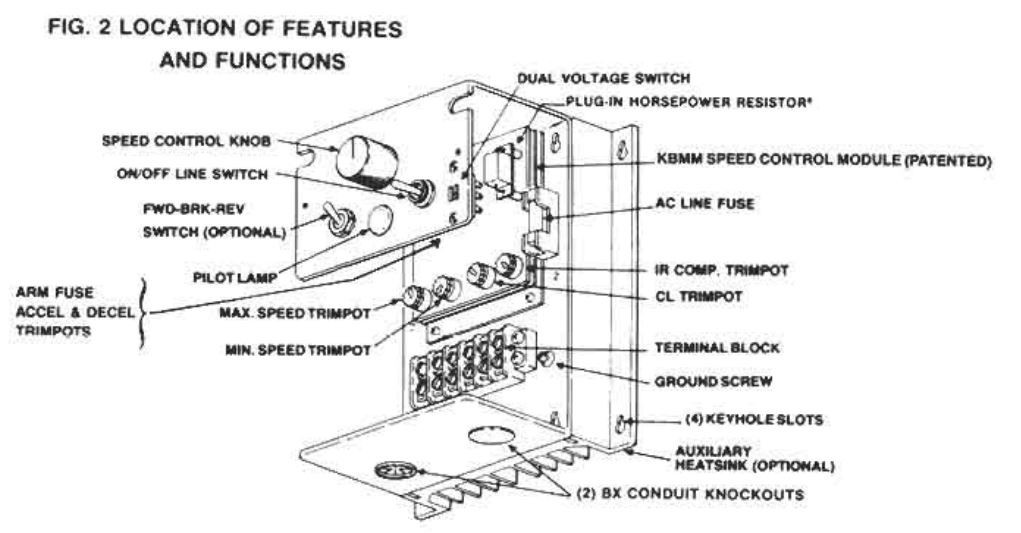

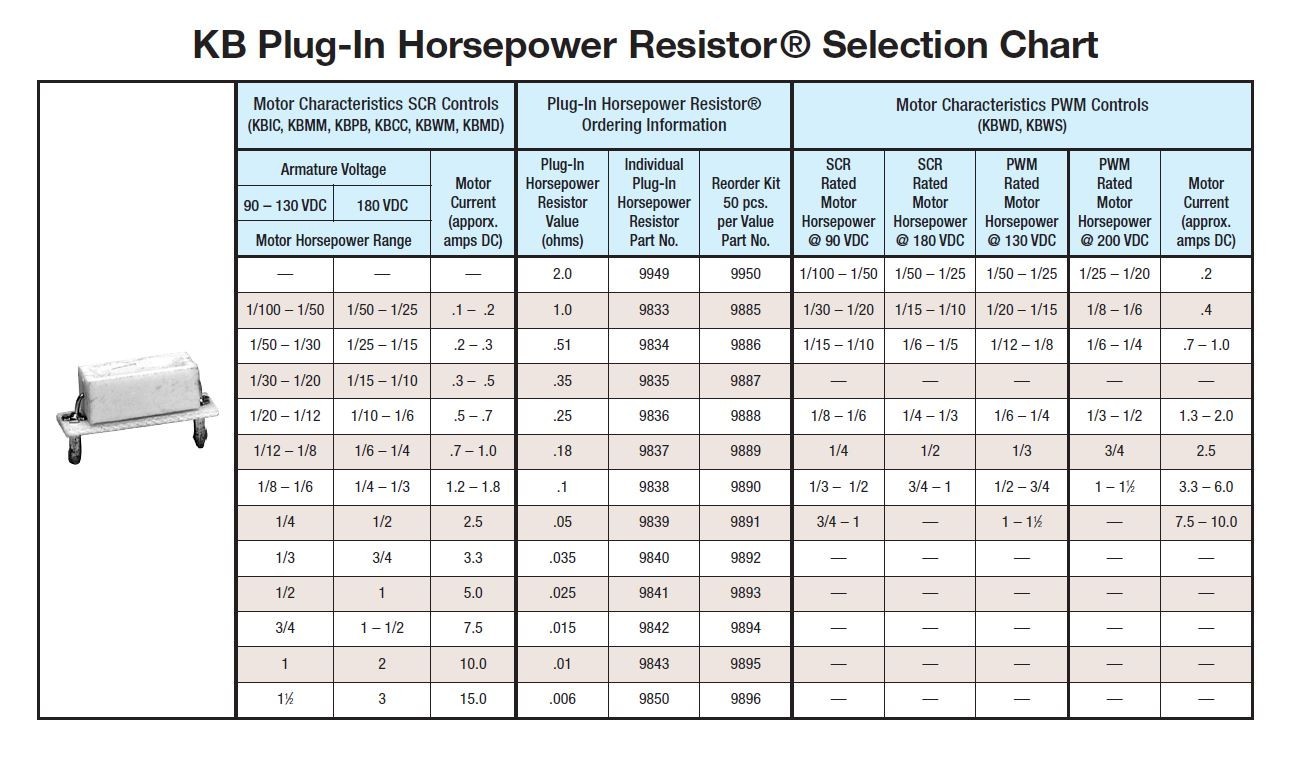

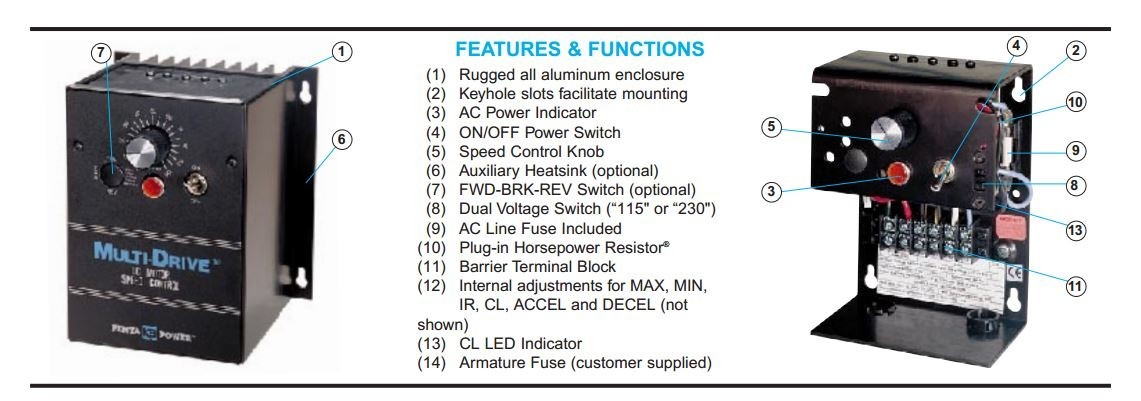

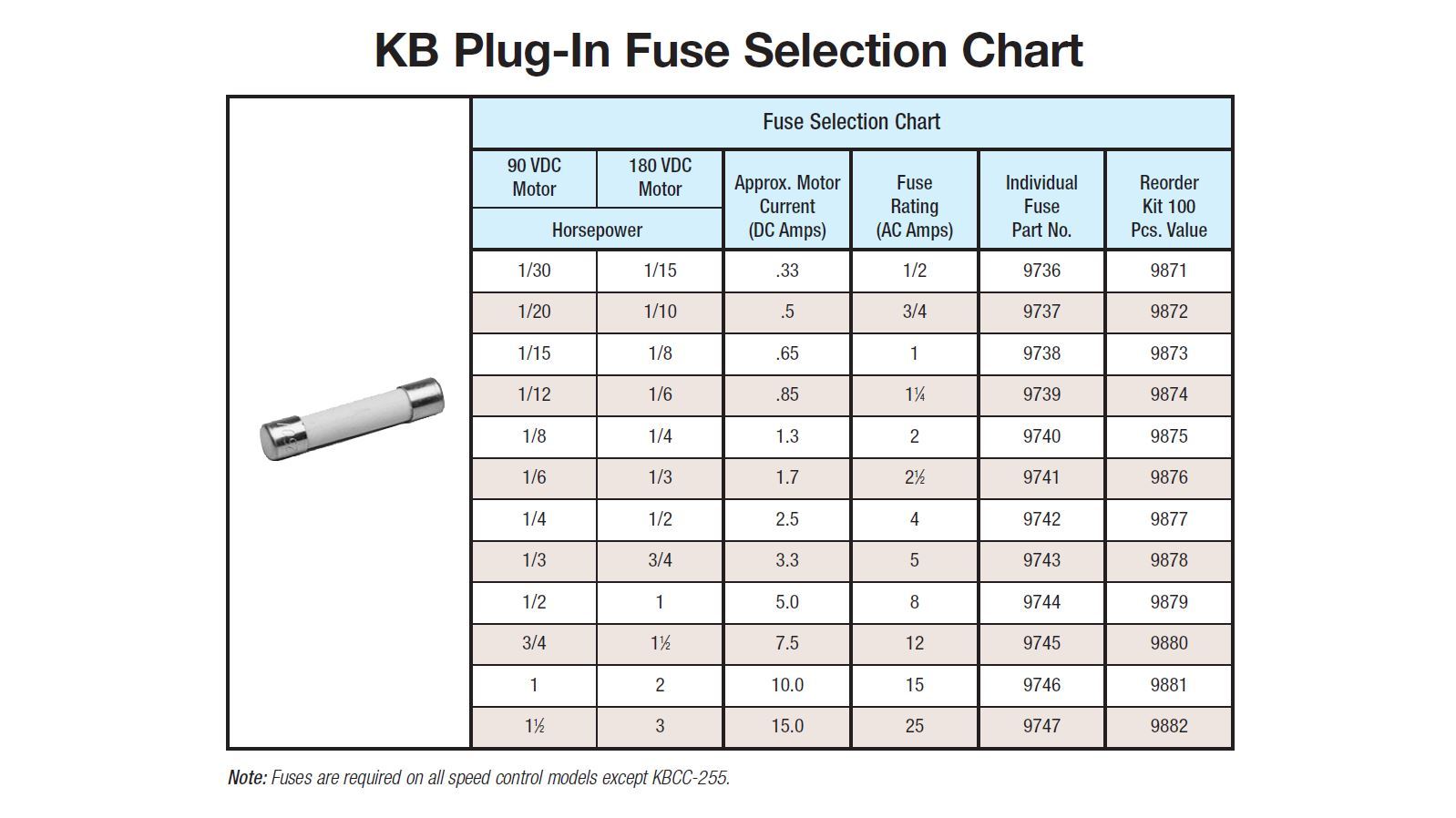

KB Electronics KBMD-240D DC motor control 9370 upc 024822093705. This Drive will not operate without a HORSEPOWER RESISTOR, AC LINE FUSE, AND ARMATURE FUSE as stated in the drive manual found in the link below. Horsepower resistors, fuses, heatsinks, and forward-brake-reverse switches are available for purchase from our e-Bay store: IndustrialSensorsControls. The Model KBMD-240D, also called Multi-Drive™, is a packaged SCR drive in a NEMA-1 enclosure. It utilizes the KBMM™ speed control for its electronics. The Multi-Drive™ is rugged and compact in size. It handles both 115 and 230VAC line inputs by setting the built-in Dual Voltage Switch. In addition, the single model can be used on a wide range of motor horsepower by inserting the appropriate Plug-in Horsepower Resistor®. The Auxiliary Heatsink (optional) increases the rating of the basic unit. An optional Forward-Brake-Reverse Switch Kit is also available. Dimensions: 5.10" x 7.20" x 4.10" Contact: Industrial Sensors and Controls - Monday-Friday 8:00am-5:00pm CST. Turnaround: same day if ordered before 3pm CST. Returns: 30 money-back guarantee. Accepted payment types: PayPal and Credit Card. Shipping: Domestic to all 50 states via UPS and USPS. International via Global Shipping Program. Restocking Fee: 10% on orders returned via buyer's error. No fee if seller's error. Thank you for visiting Industrial Sensors and Controls!
