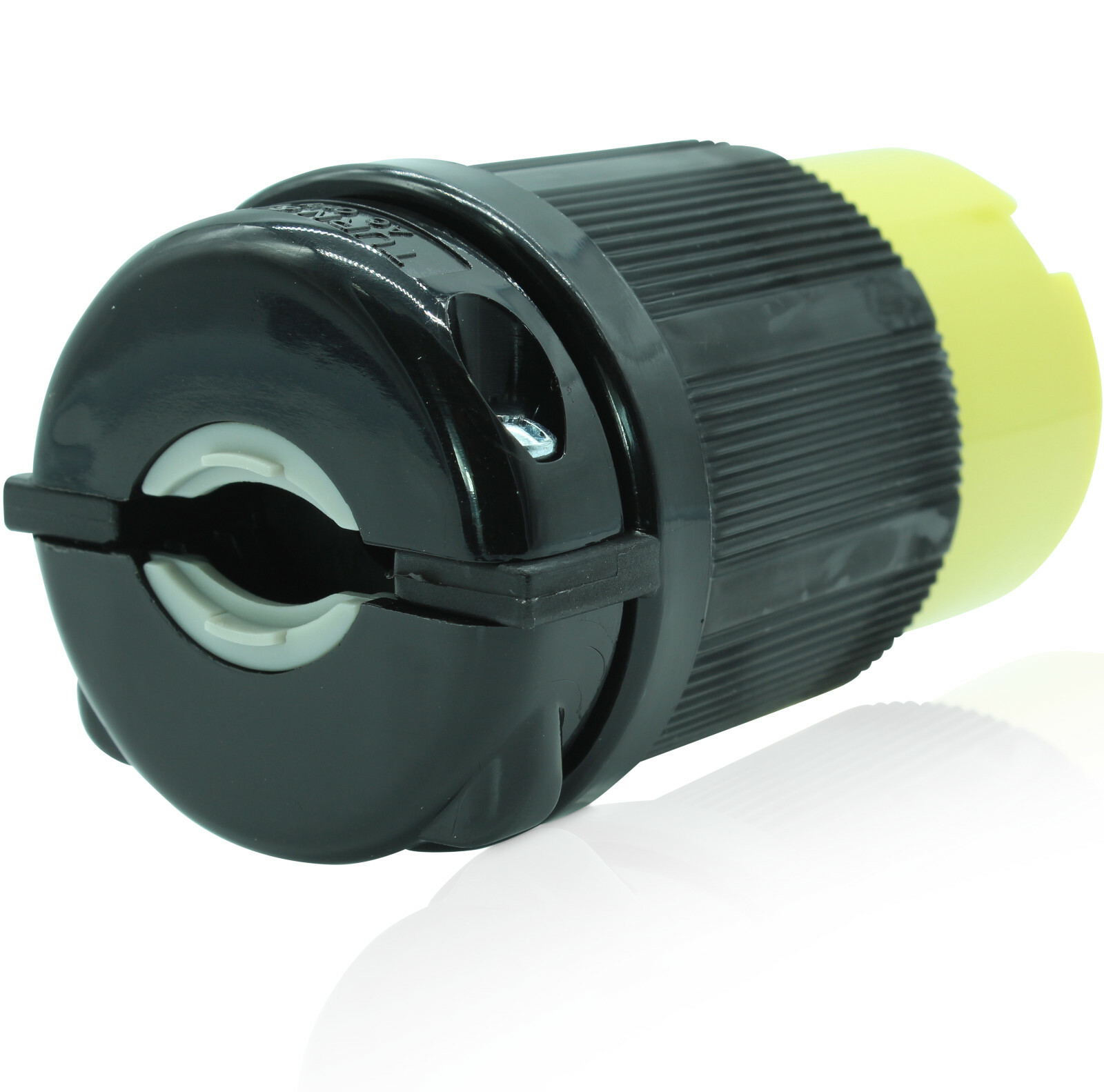

Journeyman Pro 2713 L14-30R 30A Twist Locking Female Connector Generator 4 Prong
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Maximum Compatible Appliance Wattage | Greater Than 3000 W |
| Country/Region Of Manufacture | Taiwan |
| Material | Nylon |
| Nominal Voltage Rating | 125V/250V |
| Recommended Environment | Indoor/Outdoor |
| Model | L14-30R |
| Actual Current Rating | 30A |
| Nominal Current Rating | 30 A |
| Current Rating | 30 A |
| Gender | Female |
| Actual Voltage Rating | 250 |
| Color | Black |
| Voltage Rating | 250V |
| Termination Type | Screw |
| Output Voltage | 250 V |
| MPN | HJP2713 |
| Input Voltage | 250 V |
| Brand | Journeyman-Pro |
| Plug Type | Generator 4 Prong |
| Maximum Input Current | 30 A |
| Features | Water-resistant |
| Type | Electrical Plug |

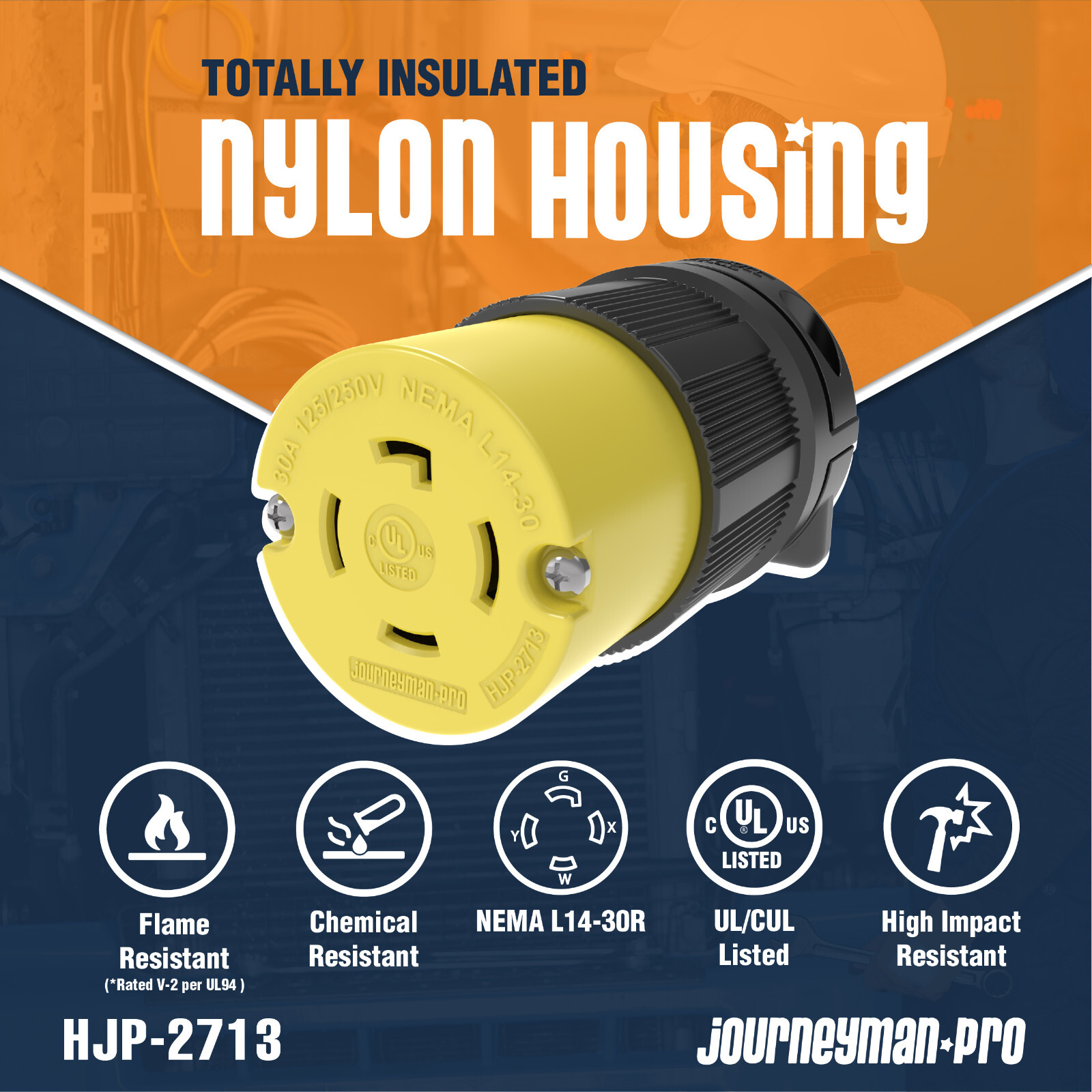

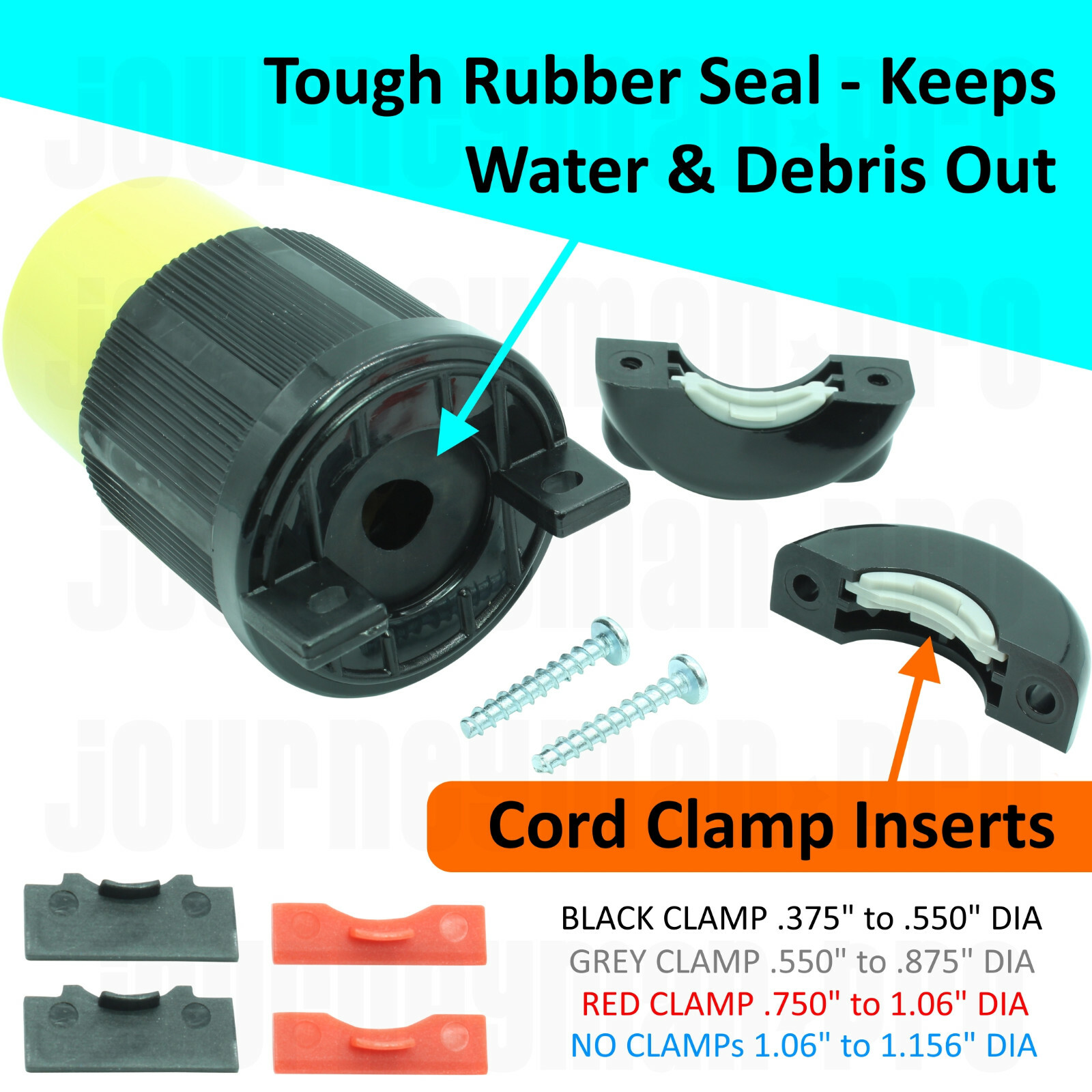

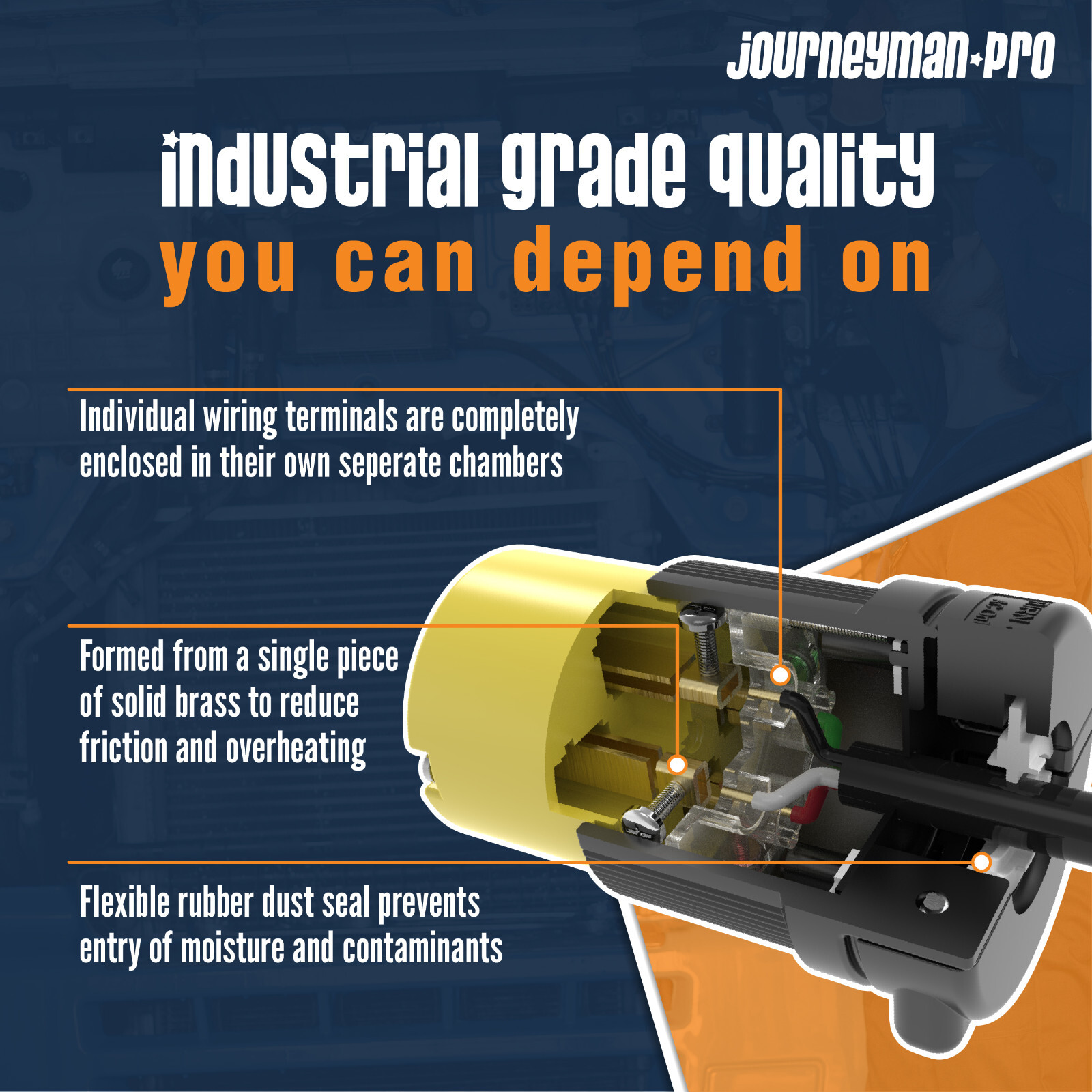

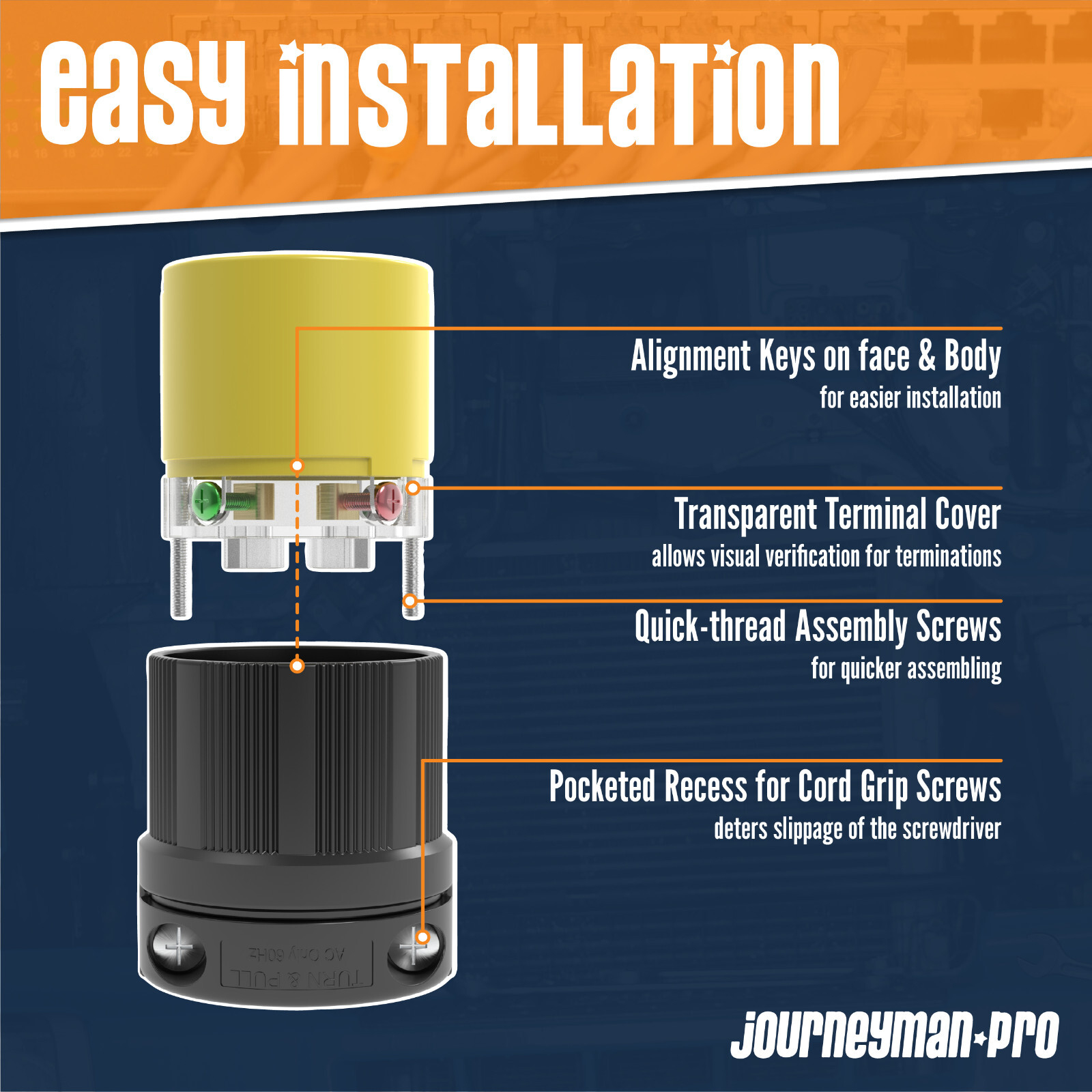

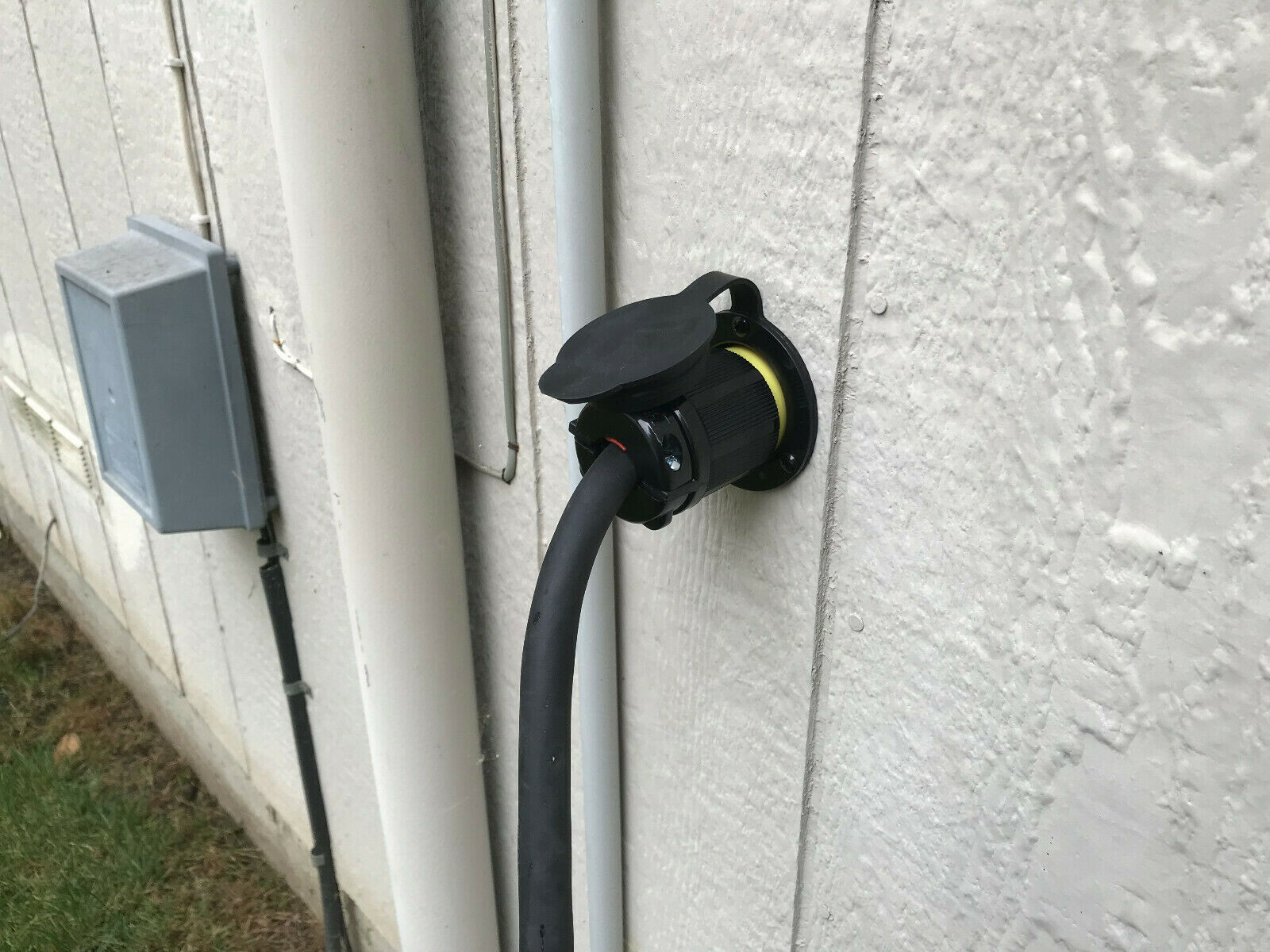

Journeyman-Pro Series Certified UL Plugs With Lifetime Warranty! NEMA L14-30R 30A Female Receptacle Connector. These UL Certified devices have the features required by electricians for the highest performance, safety and ease of use. HJP-2713 These Specification Grade Connectors feature: Super Tough UV Rated Black Nylon Body Resists Damage From UV Welding Light, Severe Impact, Abrasion and Chemicals.Clear See-Thru Wiring Block & Color Coded Positive Crimp Lock Wire Clamp Terminal Screws Heavy Duty Solid Brass Blades 30 Amp 125/250 Volts AC - 7500 Watts rating for use with 9000 Watt generatorsuse with 10/4 AWG cable to get the 30 amp rating. Use 8/4 for runs longer than 50 feet to prevent amperage drop.Terminal designations as well as strip gauge molded on rear of plug NEMA Designation, Amperage, Voltage and 3rd party Certification molded on face of devicecUL Listed Approved Plug/Connector 91GG, Accommodates 8-10 AWG Gauge Wiring Heavy Duty Use for Generators, Transfer Switches, Welding Equipment, Power Inlet, RV Motor Home, Shore & Marine or Trailer Power use. Compatible with Solar or Battery Charging stations!
