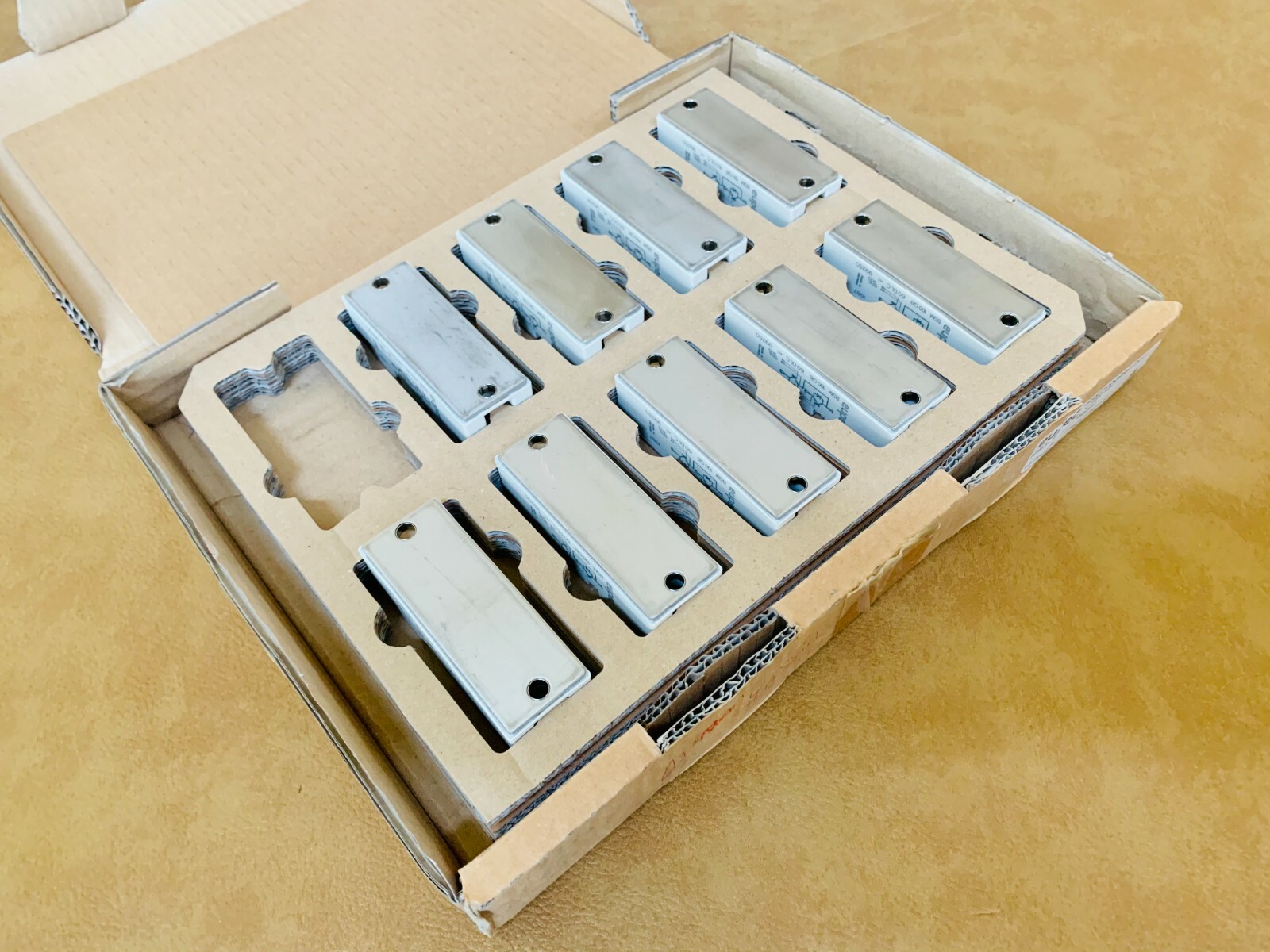

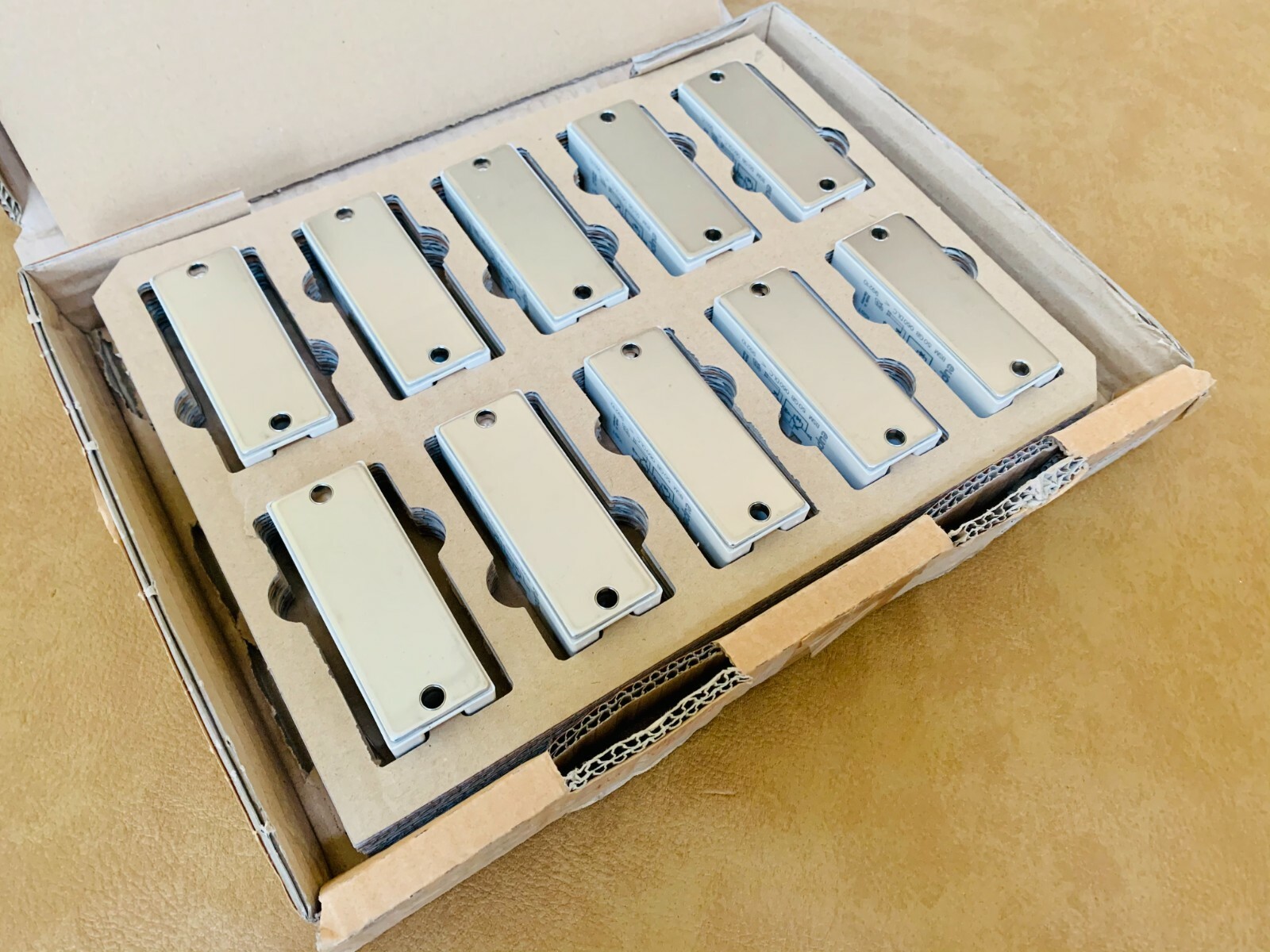

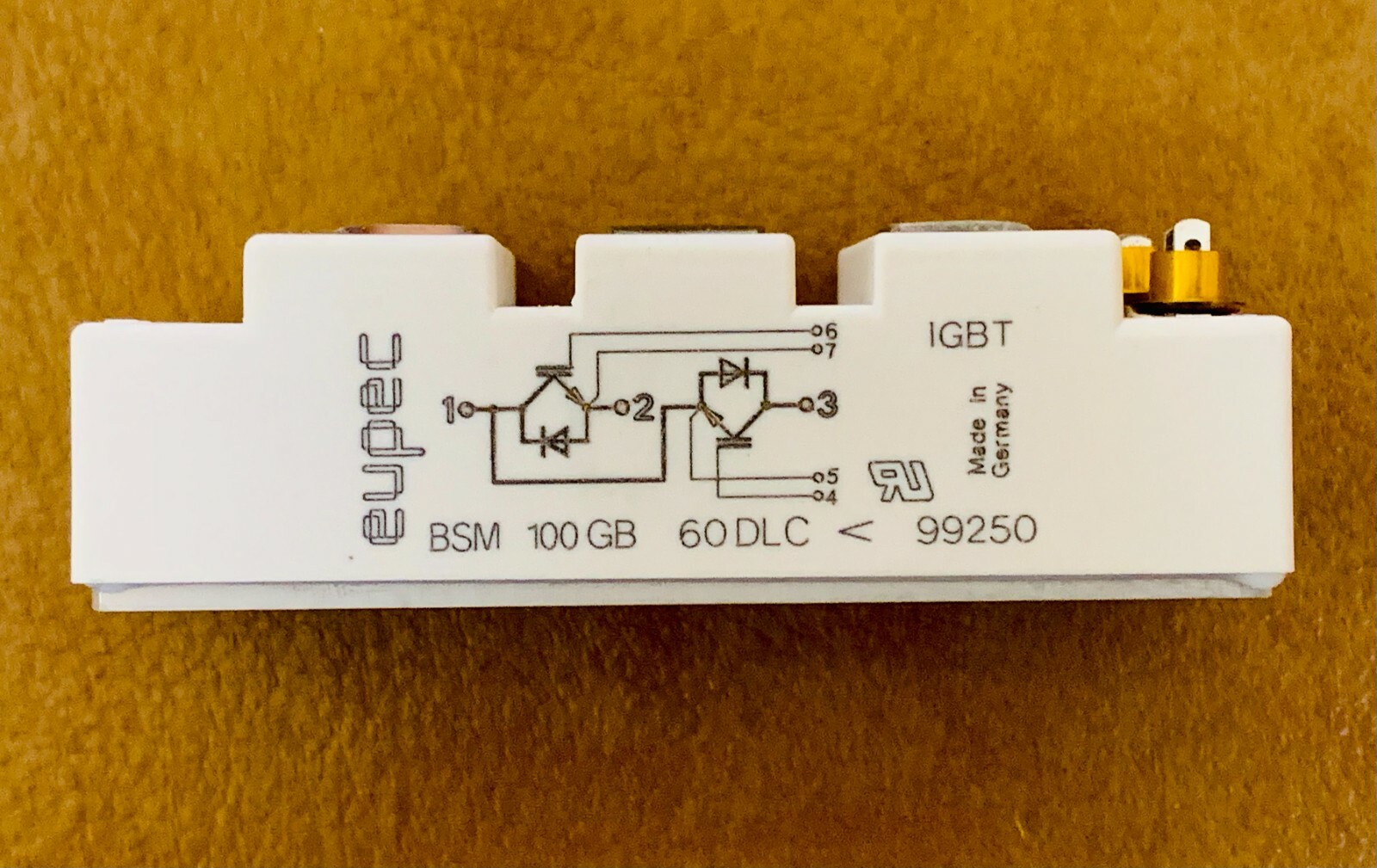

INFINEON / EUPEC BSM 100GB60DLC 600 V, 100 A dual IGBT module (Lot of 10 pcs)
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Collector-Emitter Voltage | 600 V |
| MPN | BSM 100 GB 60 DLC |
| Transistor Category | Power Transistor |
| Item Width | 3.4 cm (1.33 in) |
| Maximum Collector-Emitter Saturation Voltage | 1.95 V |
| Maximum Operating Frequency | 1 MHz |
| Series | BSM |
| Item Length | 9.4 cm (3.70 in) |
| Item Height | 3.05 cm (1.20 in) |
| Configuration | Complex |
| Minimum Operating Temperature | -40 °C (-40 °F) |
| Country/Region Of Manufacture | Germany |
| Maximum DC Collector Current | 100 A |
| Maximum Operating Temperature | 125 °C (257 °F) |
| Maximum Base-Emitter Voltage | +/- 20 V |
| Maximum Power Dissipation | 445 W |
| Packaging | Box |
| Maximum Collector-Base Voltage | 600 V |
| Brand | Infineon |
| Mounting Style | Chassis Mount |
| Type | IGBT |
INFINEON / EUPEC BSM 100GB60DLC 600 V, 100 A dual IGBT module (Lot of 10 pcs). Condition is "New". Datasheet, Application Notes, MCDS, Application Brochure and Product Selection Guide PDFs can be emailed upon request. Summary of FeaturesSuperior solution for frequency controlled inverter drivesUL/CSA Certification with UL1557 E83336Operating temperature up to 125 °COptimized switching characteristic like softness and reduced switching lossesExisting packages with higher current capabilityRoHS compliantBenefitsFlexibilityOptimal electrical performanceHighest reliabilityParametricsParametricsBSM50GB60DLCConfigurationDualDimensions (width)34.0 mmDimensions (length)94.0 mmDimensions (height)30.5 mmIC(nom) / IF(nom)100.0 AIC max130.0 AQualificationIndustrialTechnologyIGBT2 Low LossVCE(sat) (Tvj=25°C typ)1.95 VVCES / VRRM600.0 VVF (Tvj=25°C typ)1.25 VVoltage Class max600.0 V
