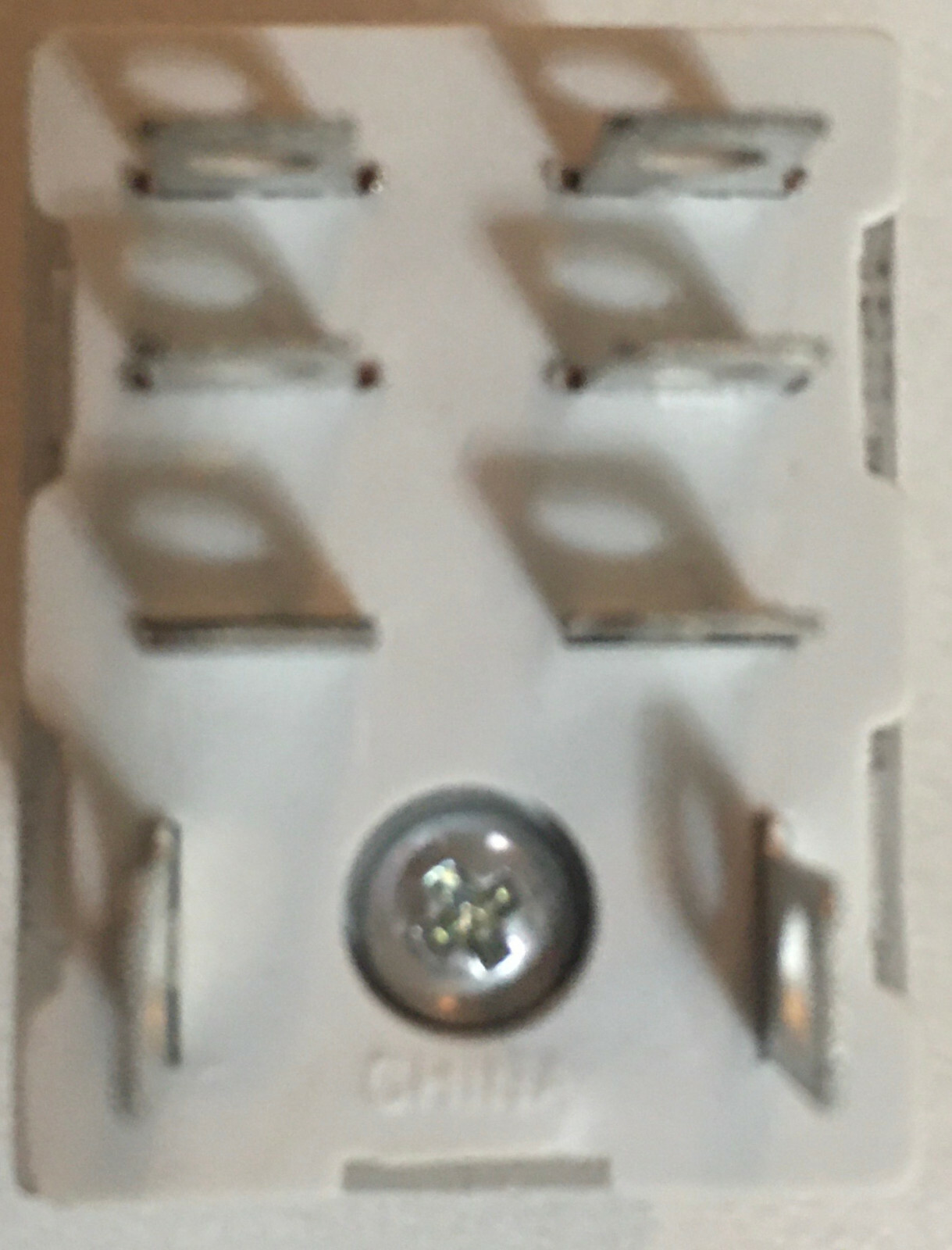

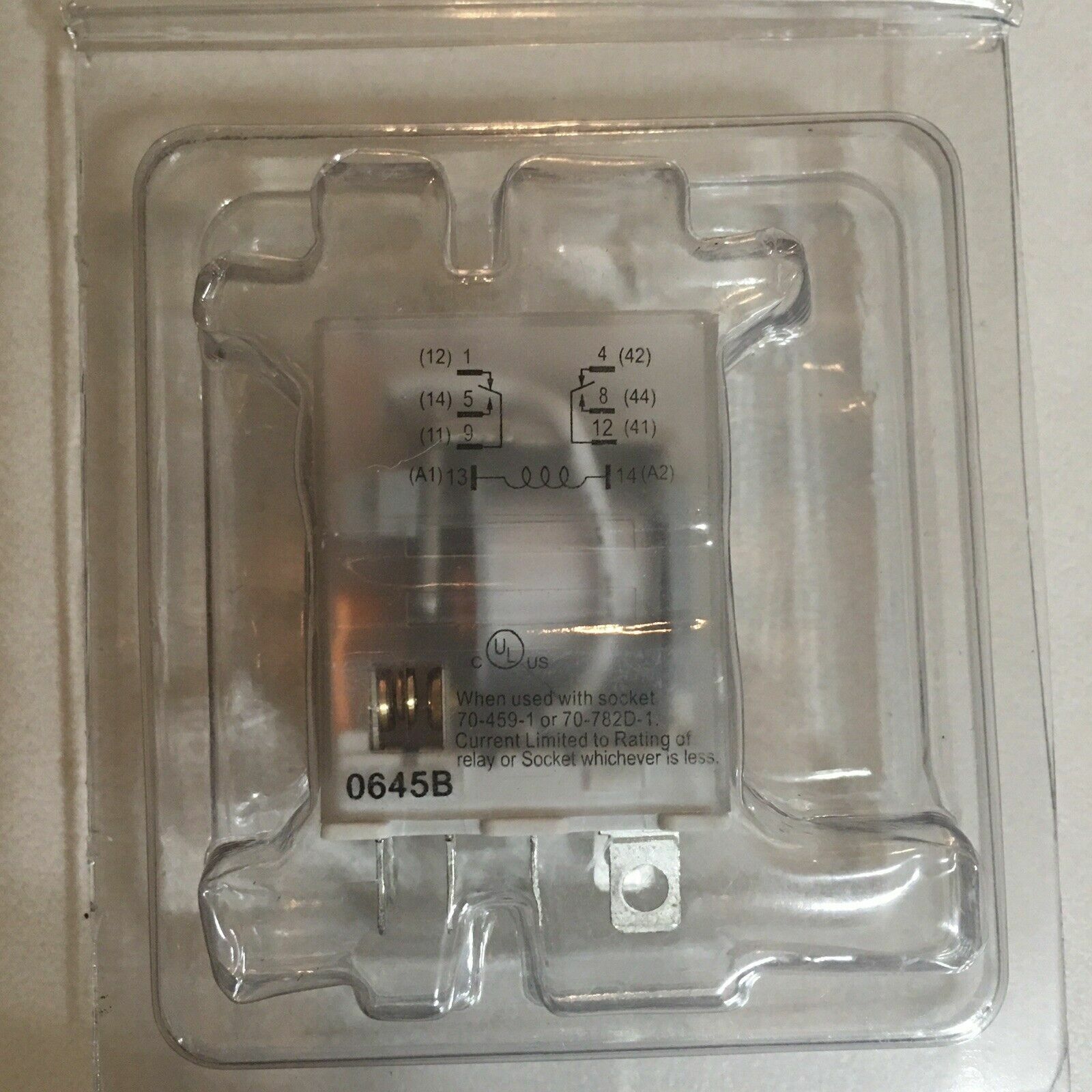

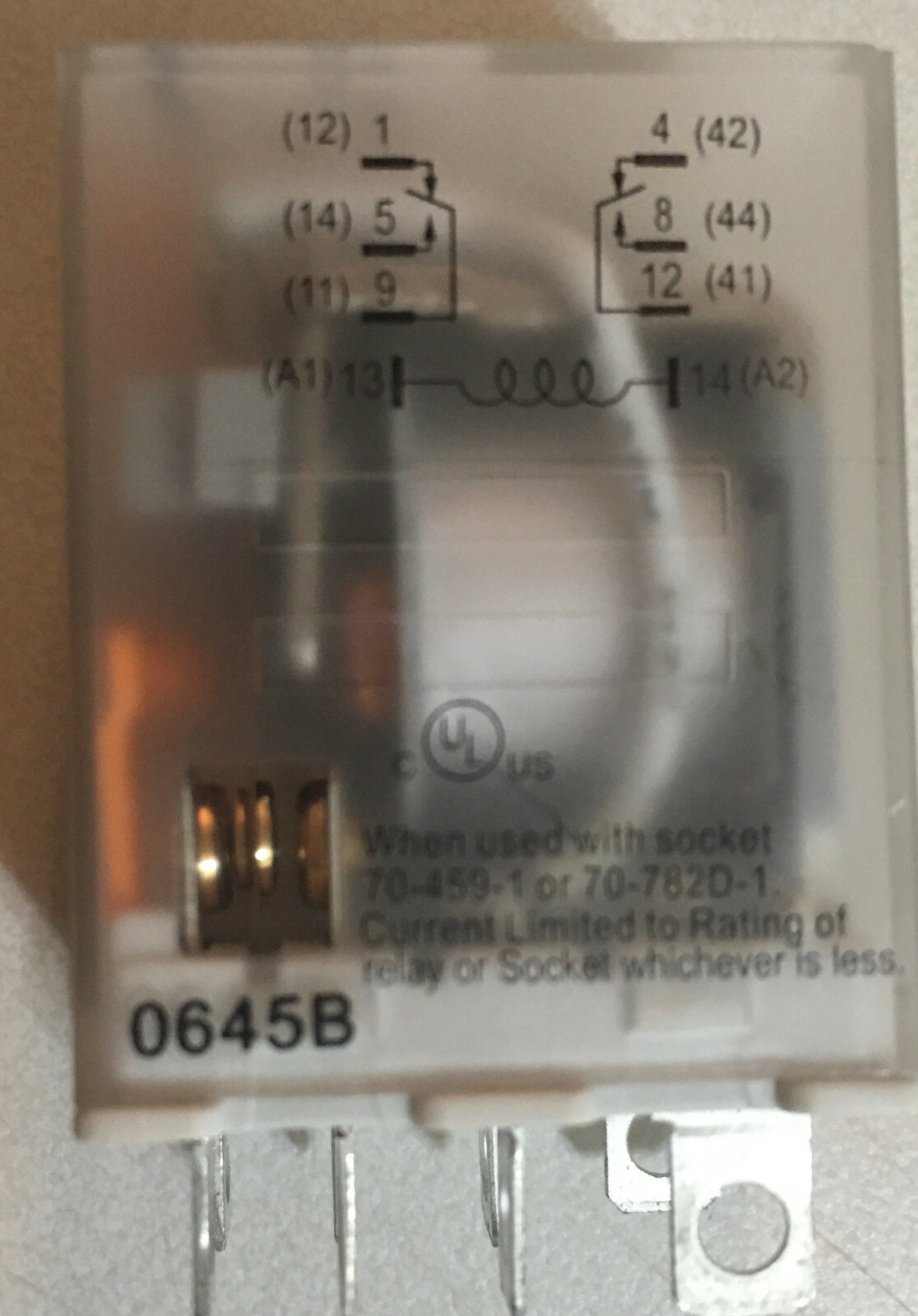

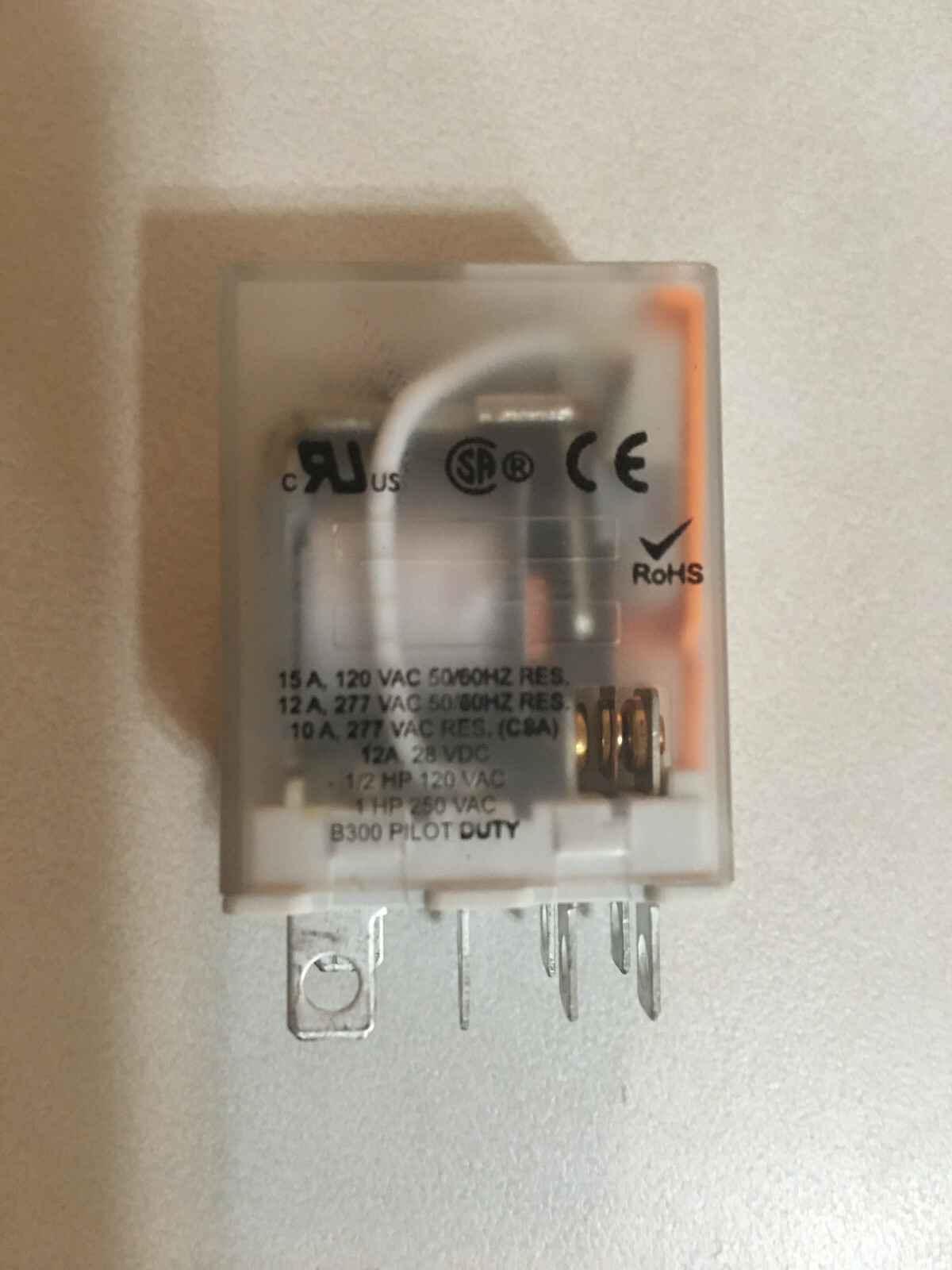

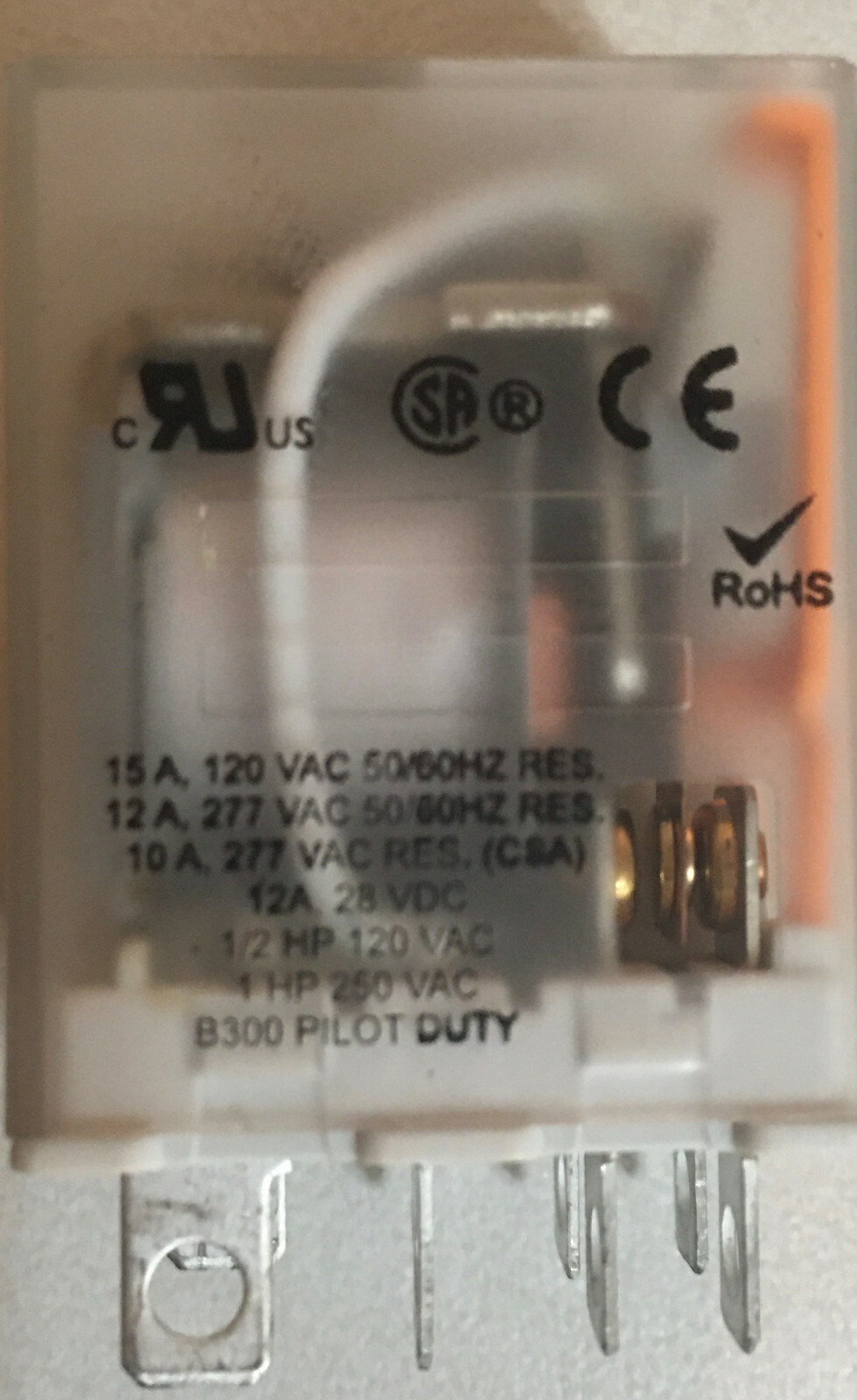

ICE CUBE RELAY-MAGNECRAFT 782XBXC-24A 2 Pole Relay, 24V AC
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| MPN | 782XBXC-24A |
| Smart Home Compatibility | None |
| Suitable For | 24V AC Supply |
| Number Of Pins | 8-Pin |
| Features | Blade Type |
| Mounting Style | Plug-In/On |
| Maximum Amperage | 15 A |
| Current Rating | 1-15 A |
| Brand | Magnecraft |
| Type | Power Relay |
| Model | 782 Series & 70 Series |
| Coil Voltage | 24 V |
| Country/Region Of Manufacture | China |
| Resistance Properties | Dustproof |
| Smart Home Protocol | None |
| Application | Charging/Power |
| Power | 1/2 HP @ 120 V |
ITEM # 782XBXC-24A, 782 ICE CUBE RELAYS / DPDT 15 AMP RATINGStyle Plug-in Contact Configuration DPDTThermal (Carrying) Current15 ACoil Resistance (Ohms)177 OhmLoad Type StandardContact Materials Silver AlloyMaximum Switching Voltages IEC: 250 VAC UL/CSA: 300 V ACSwitching Current at Voltage (AC,Resistive) CSA: 15 A at 150V AC 50/60 Hz UL: 15 A at 277V AC 50/60 Hz Switching Current at Voltage (HP)1 at 277 VAC hp 1/2 at 120 VAC HP Minimum Switching Requirement10 mA at 17 VDCCover Options Plain Cover Features Mechanical flag indicator Coil Voltage24 VAC 50/60 Hz Operating Range - % of Nominal (AC) 85 to 110 %Average Consumption (AC / VA)1.10 VADrop-out Voltage Threshold (AC)15 % Electrical Life (UL508),Operations at Rated Current (Resistive)100000Mechanical Life, Unpowered10000000 Operating Time (Response Time) 20 ms Dielectric Strength - Between Coil and Contact (AC)2000 V(rms) Dielectric Strength - Between Poles (AC)2000 V (rms)Ambient Air Temperature around the Device - Operation-40 to +55 CVibration Resistance - Operational ±1 mm (10-35 Hz) and 3 gn (35-150 Hz) Shock Resistance15 g-n Degree of Protection IP 40Item specifics Condition:New – Open box: An item in excellent, new condition with no functional defects. - I Am NOT an Authorized Distributor for any of the manufacturers' products I market and sell - an Independent Reseller
