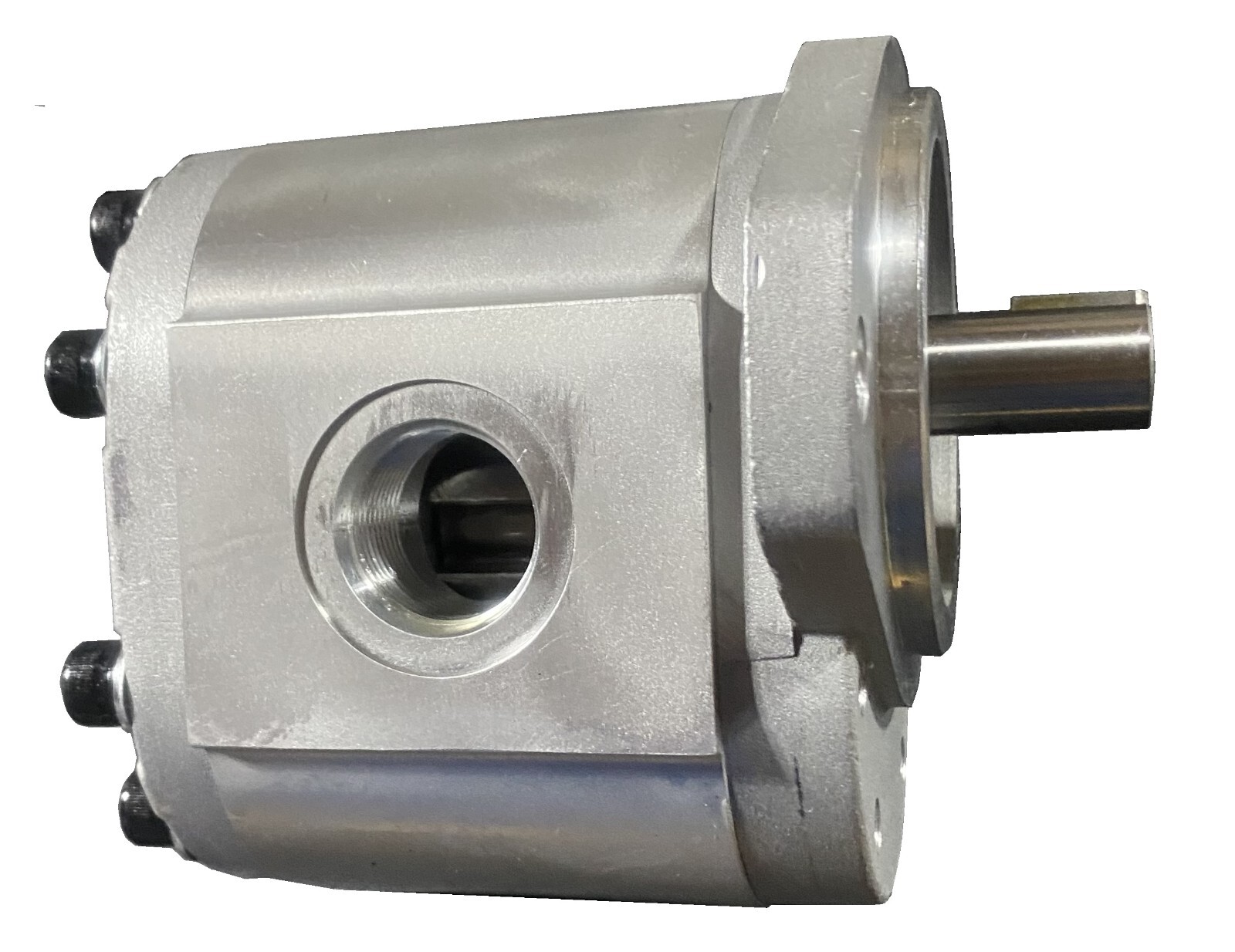

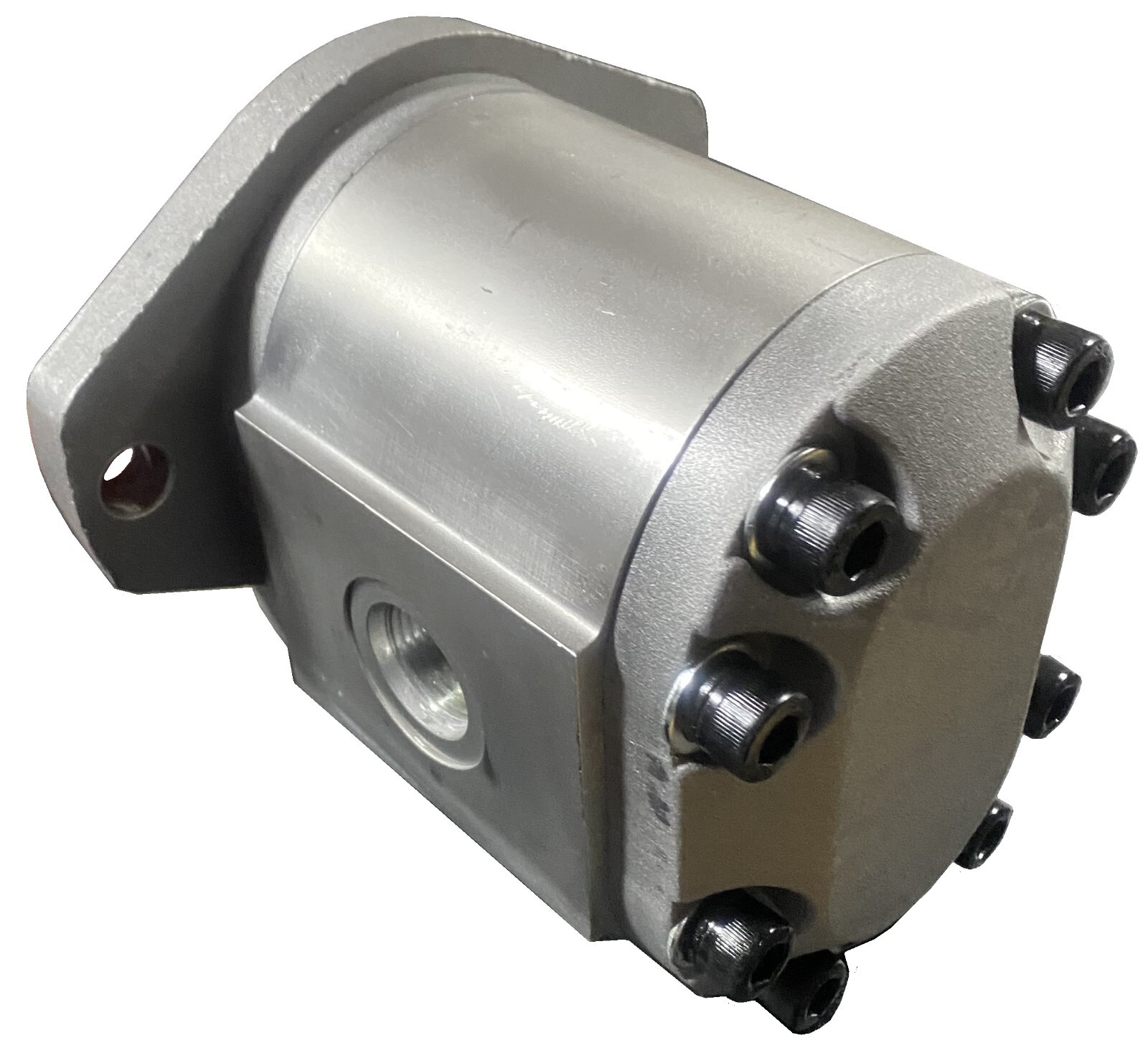

Hydraulic Gear Pump 45cc/rev (2.78 in3/rev) 30gpm 3000psi SAE B Flange CW or CCW
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Brand | Fluidhaus |
| Unit Type | Unit |
| MPN | PFEG45 2B |
| Country/Region Of Manufacture | India |

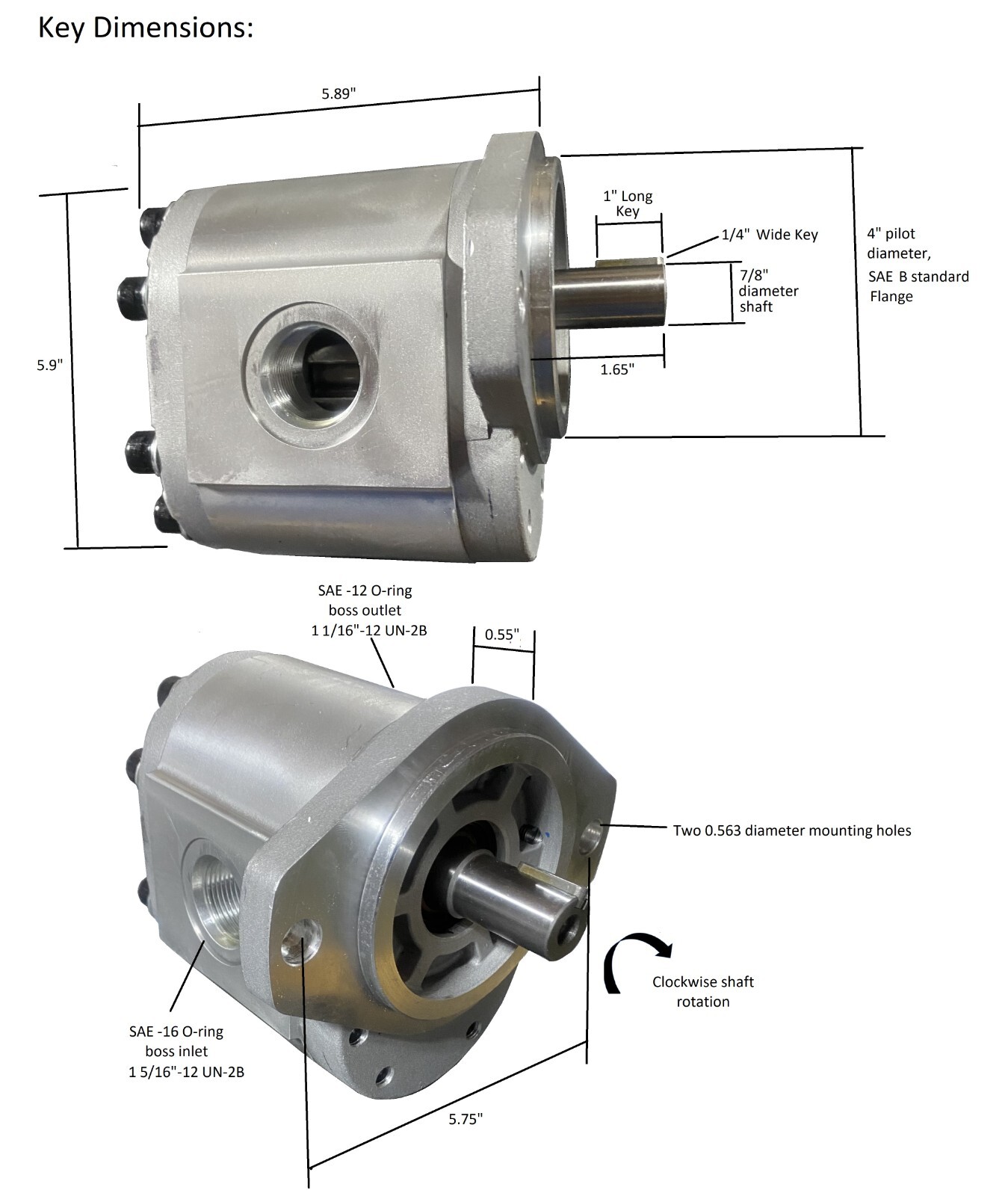

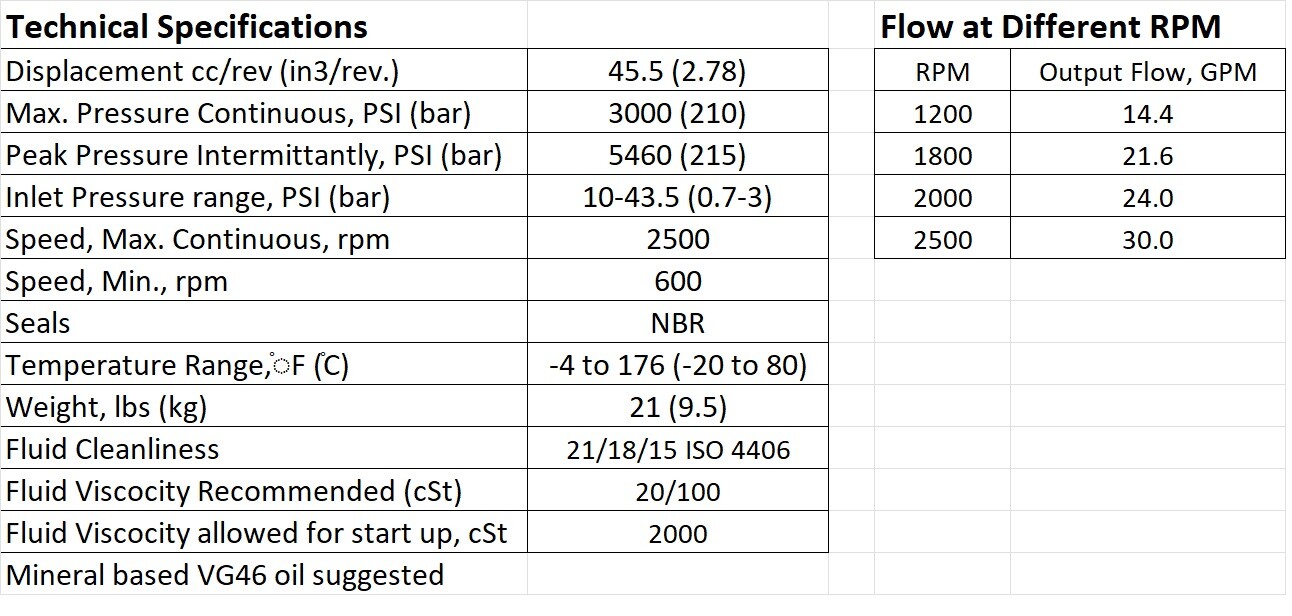

IMPORTANT: THE PUMP SHAFT MUST BE ROTATED IN THE DIRECTION ORDERED ONLY (CLOCKWISE). ROTATION IN THE WRONG DIRECTION CAN LEAD TO SHAFT LEAKAGE, LACK OF FLOW AND POTENTIAL SEAL FAILURE. Proven high quality robust design successfully operating in many high volume applications. Hydraulic Gear Pump General Data: * SAE B, 2 bolt mounting flange * Up to 3000 psi maximum continuous pressure * Minimum smooth rotational speed 600rpm * Maximum rotational speed up to 2500rpm*Inlet Port Threads: SAE -16, 1 5/16" -12 UN-2B*Outlet Port Threads: SAE -12, 1 1/16" -12 UN-2B *Aluminum Housing Options: * Clockwise Rotation when looking at pump shaft or Counterclockwise Helpful calculations: Pump flow in gpm = cc/rev. x rpm ÷ 3785 [example: 8cc/rev x 1800rpm ÷ 3785 = 3.8gpm] Power to drive pump in HP = gpm x psi ÷ 1714 ÷ .85 [example: 3.8gpm x 3000psi ÷ 1714 ÷ .85 = 7.8HP] Terms: cc/rev = displacement per revolution of pump (provided with the pump data) rpm = revolution per minute the shaft is being rotated (based on users driving source) gpm = output flow of pump in gallons per minute psi = pounds per square inch the hydraulic system is set for (based on users' system) 3785 = constant value to convert cc/rev. to gpm 1714 = constant value to convert flow and pressure to HP .85 = common efficiency value to account for mechanical and volumetric losses High volume OEM series production available per request. Highly reliable product with thousands in use in various applications.
