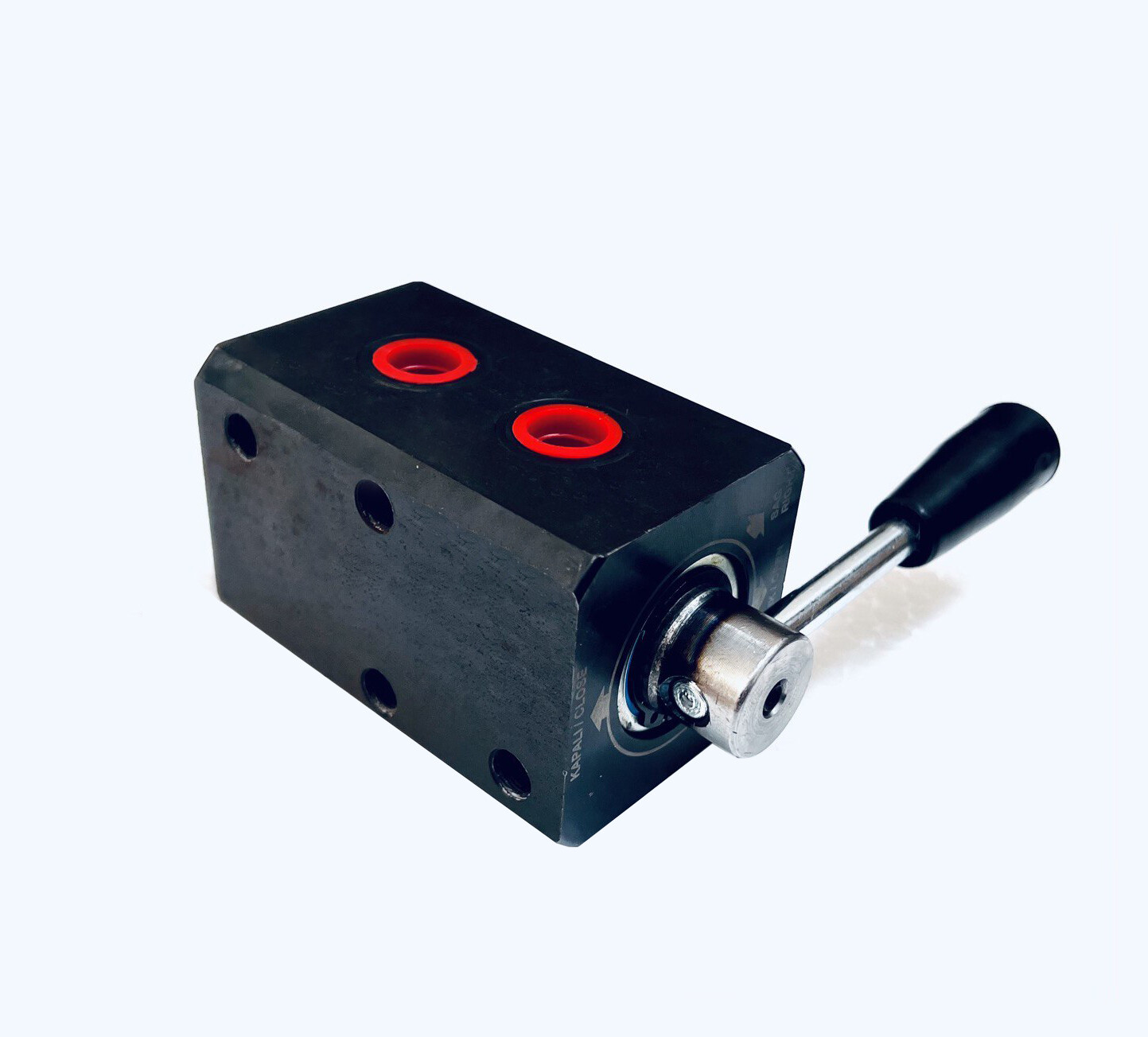

Hydraulic 6 Way Diverter Valve Steel Body, 3/8″ BSP
USD 139.00 USD
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| MPN | Does Not Apply |
| Valve Operation | Manual |
| Brand | Aftermarket |

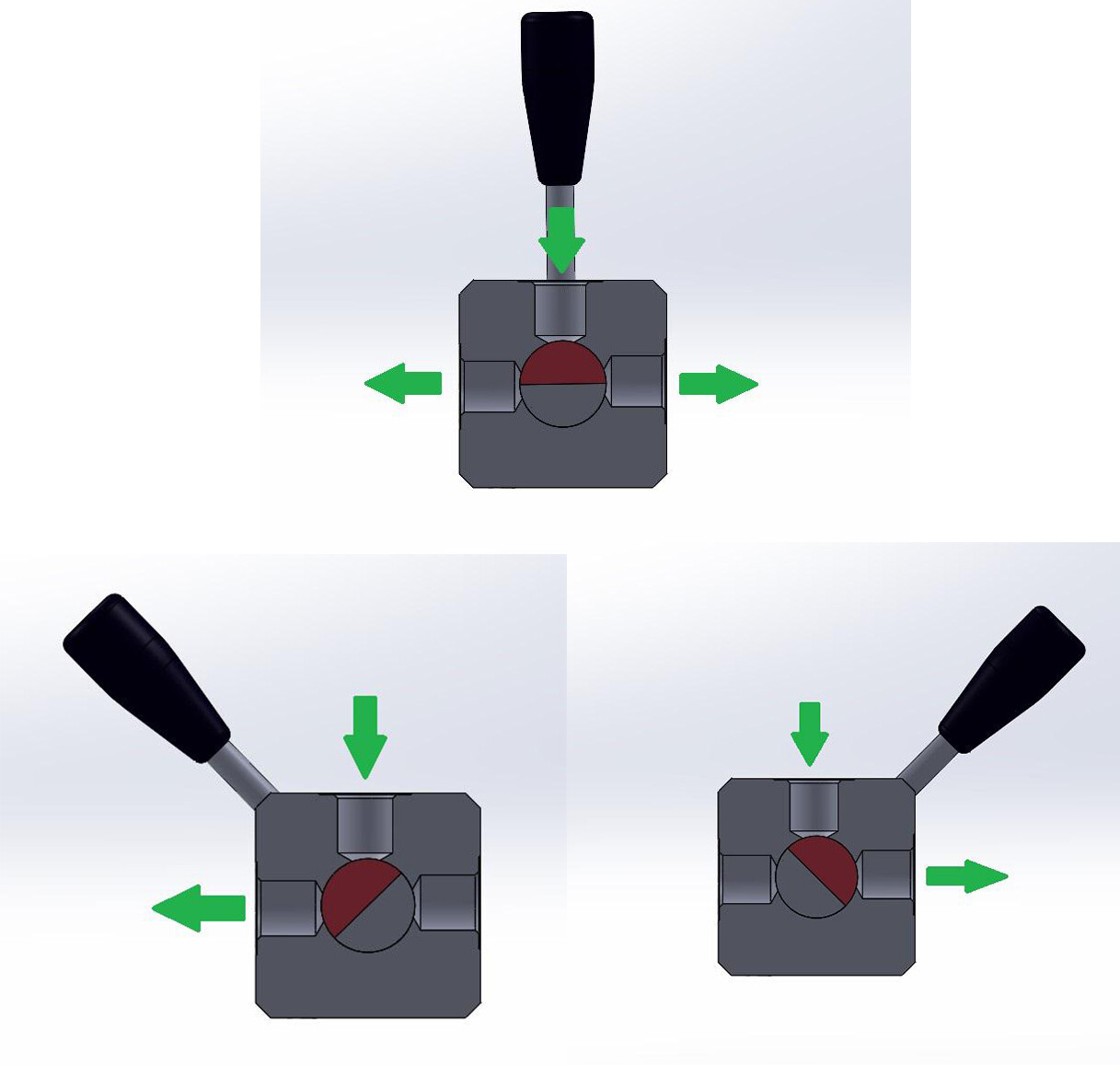

Hydraulic 6 Way Diverter Valve Steel Body, 3/8" BSP USE AND OPERATION: This valve is used to divert the flow from 2 ways in towards 4 ports (two at a time alternatively). Used to control 2 actuators.Materials and Features: Body: Cataphoresis Coated Steel Internal parts: Hardened and ground steel Seals: Buna N standard Leakage: Minor leakage. Connections: Connect P and P to the 2 pressure flows, ports A and A to the first actuator and ports B and B to the second actuator. With lever in position 1, P is connected to A and P to A; with lever in position 2, P is connected to B and B. Use with lever in central position is NOT recommended.
