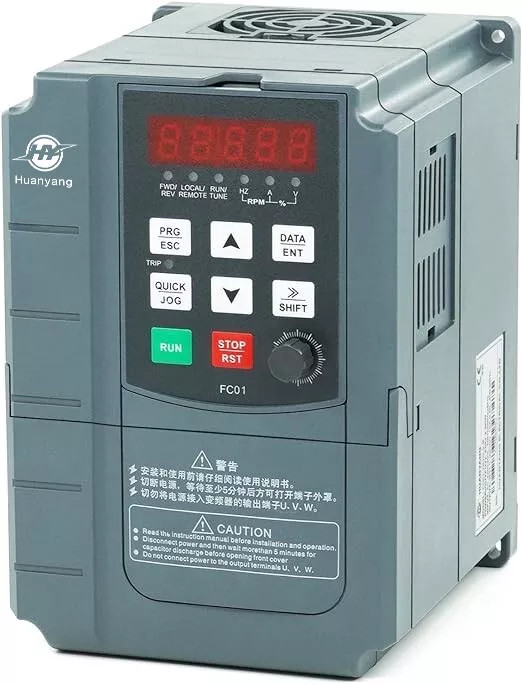

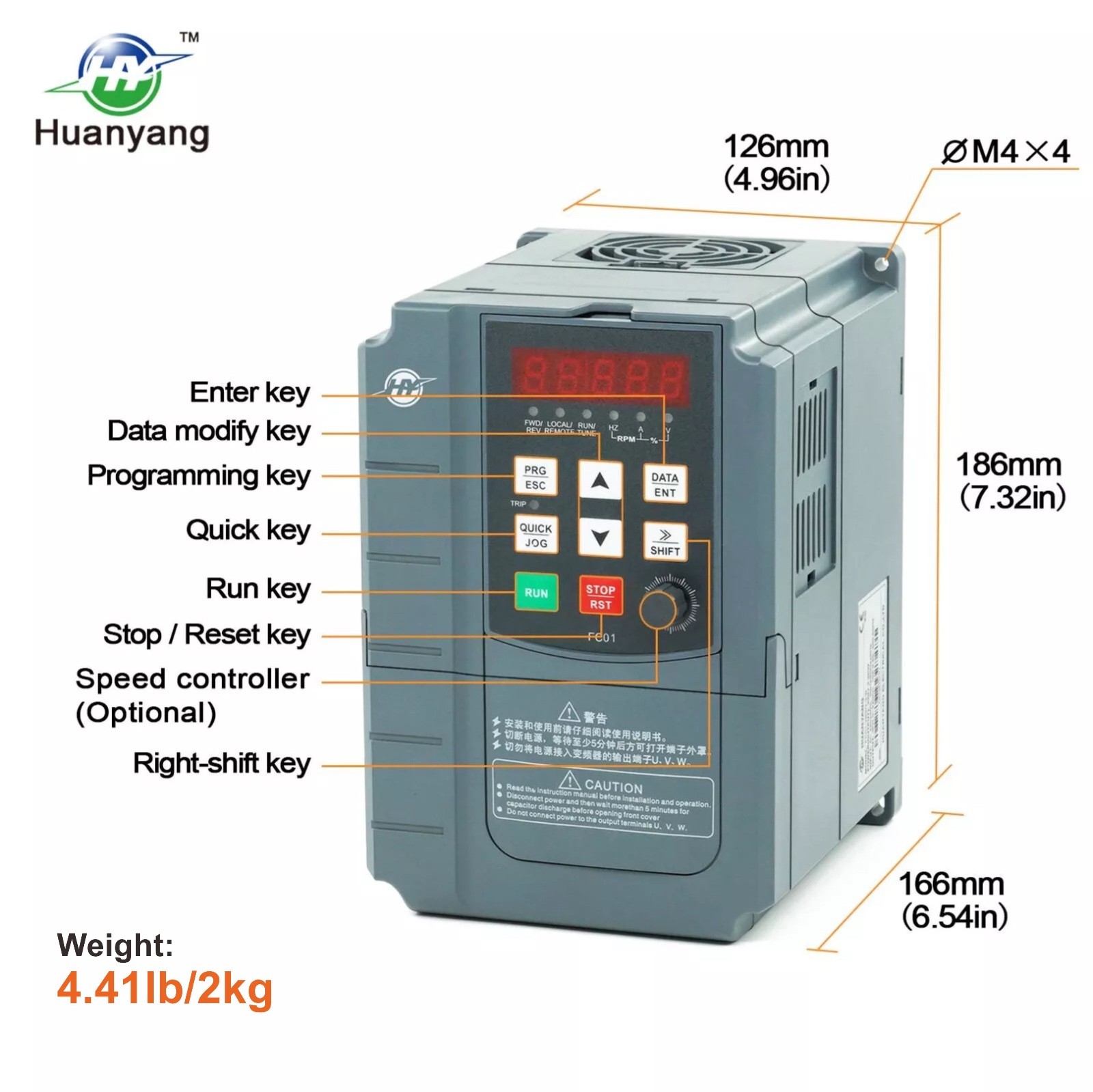

Huanyang VFD 220V 5HP 4KW Inverter CNC single phase to 3 phase for Motor
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Brand | huanyang |
| Power Rating | 4 KW |
| Model | FC01-4R0G-2-B |
| Input Voltage | 220 V |
| MPN | FC01-4R0G-2-B |
| Rated Load | 5 HP |
| Number Of Phases | 3-Phase |

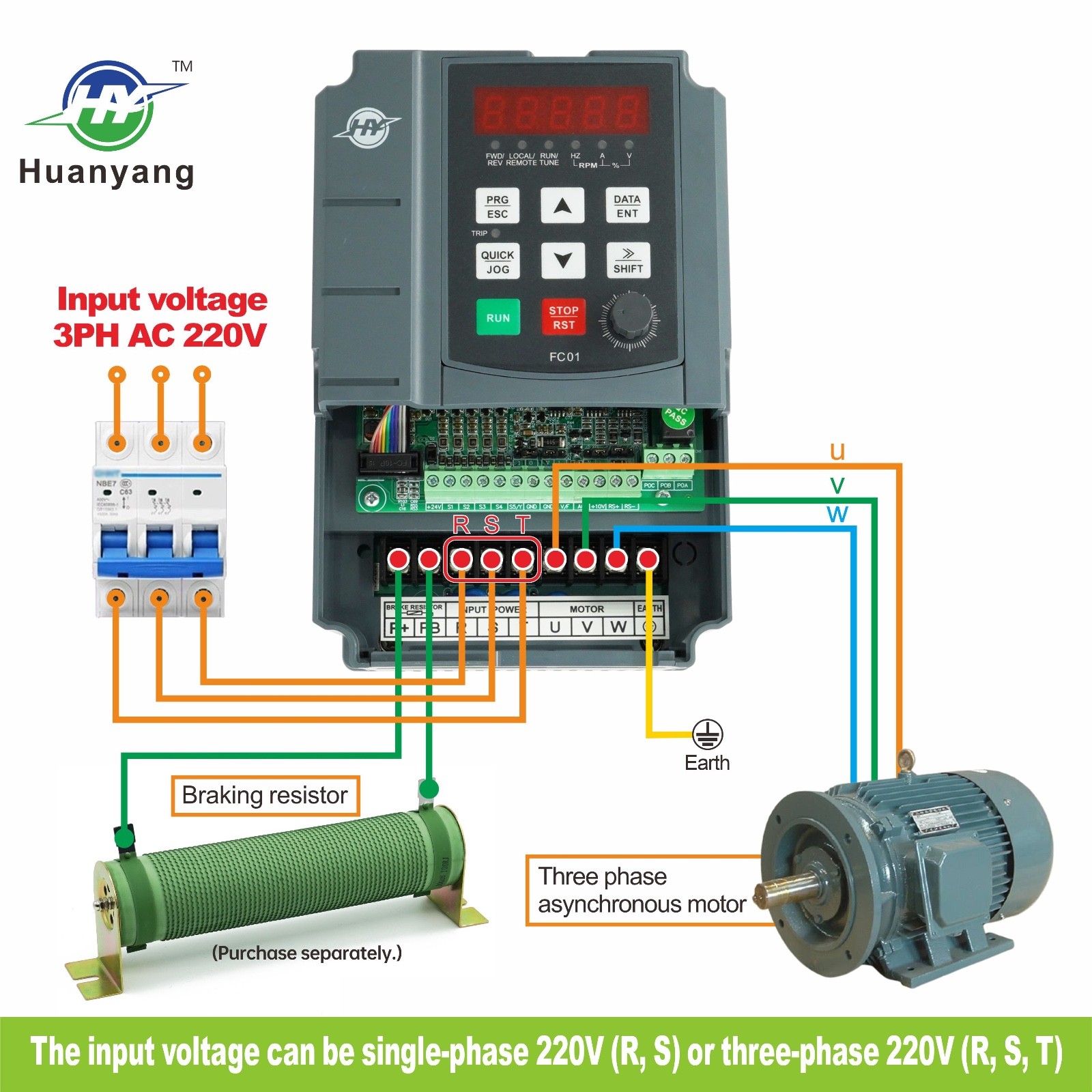

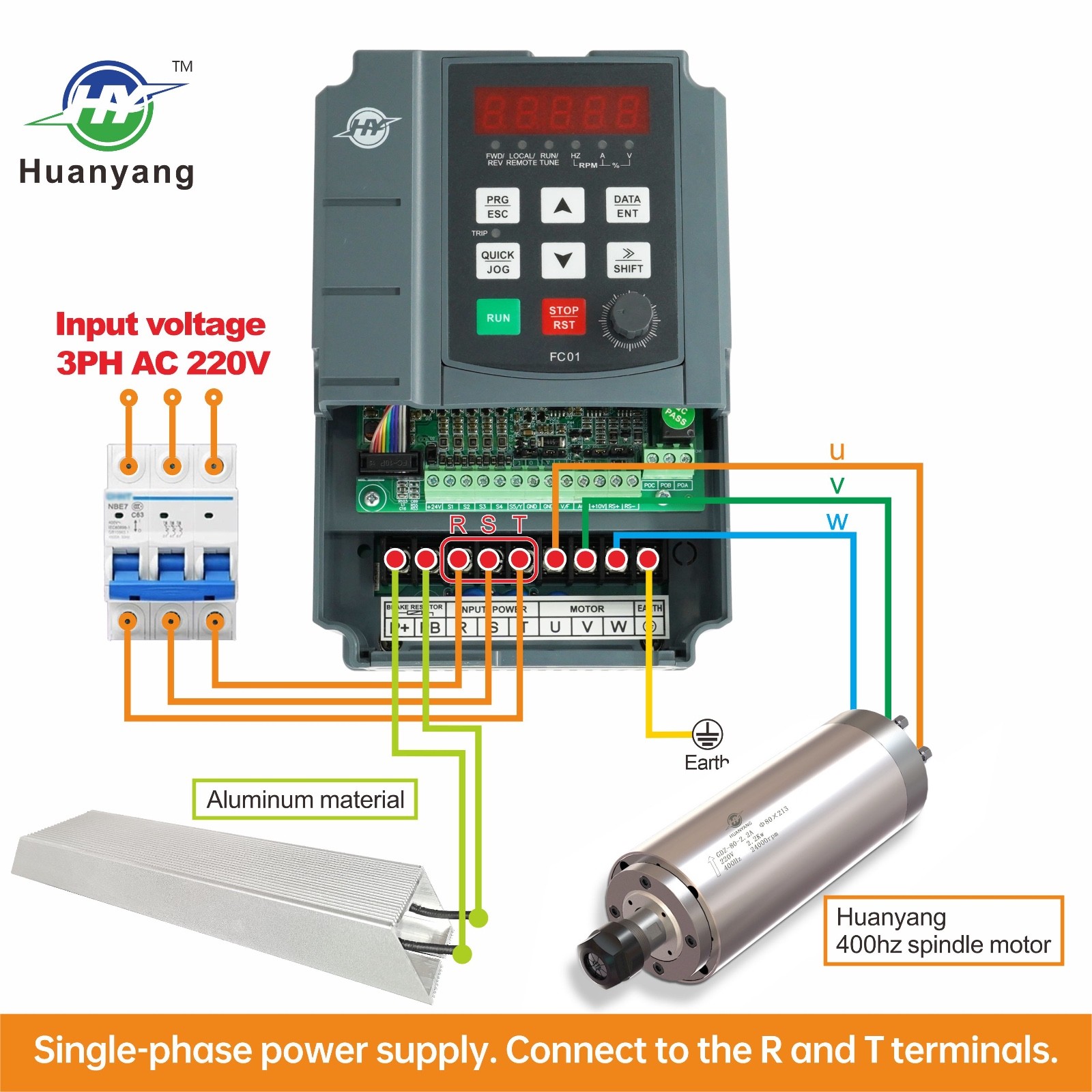

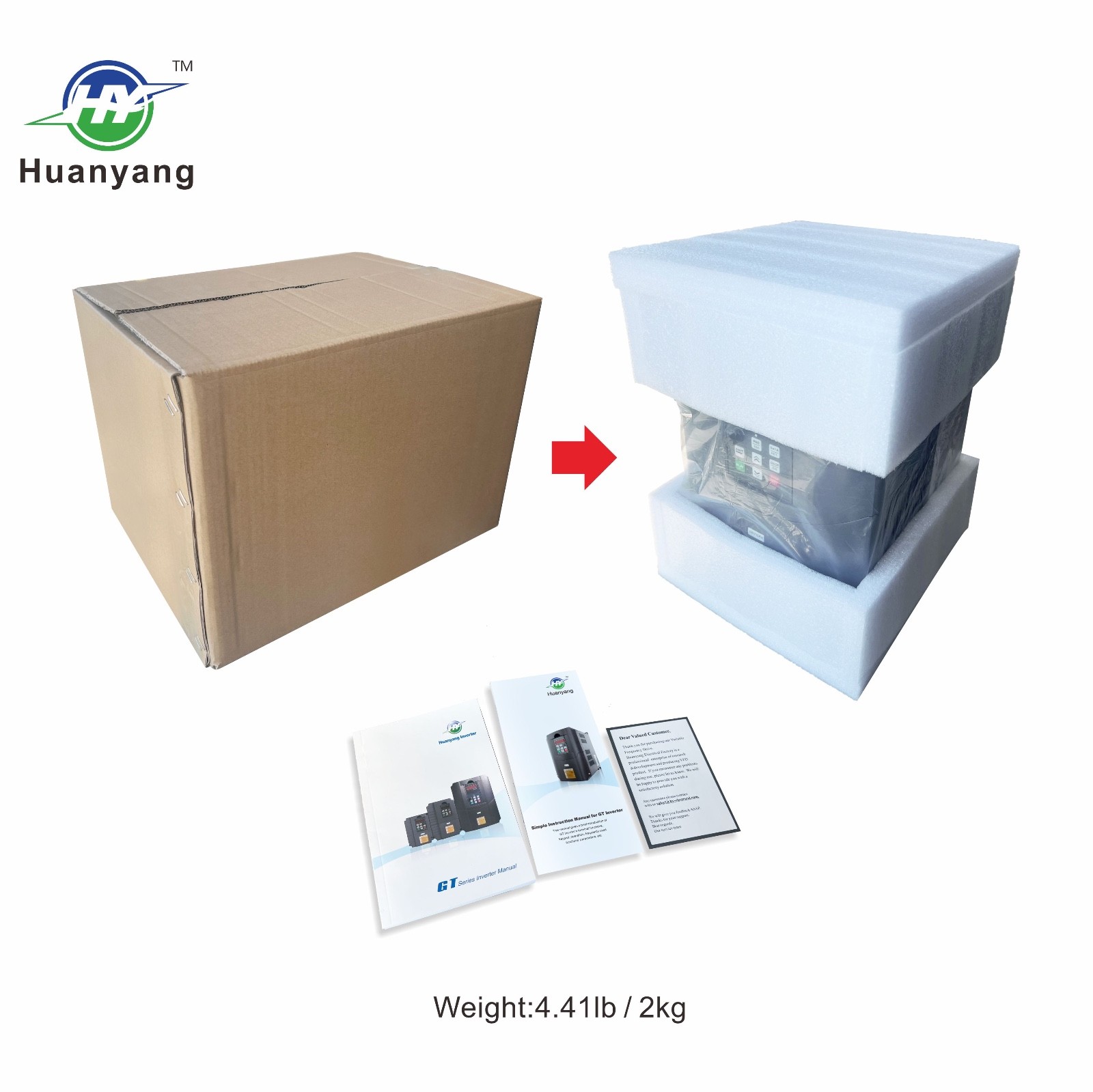

IMPORTANT NOTEThis product can connect to the braking resistor The variable frequency drive can only drive three-phase asynchronous motors and cannot be used as a power source. If your motor is heavy load, pls choose a higher horsepower vfd than your motor'sTo protect the VFD, be sure to press the red button "Stop" and turn off the power when you stop using it.220v 4.0kw (5HP) VFD SpecificationsApplicable motor horse-power≤ 4.0KW (5HP)Input valtage220VAC(+/-5%) 1 or 3 phase （”R“,”T“ terminals for 1 phase，”R“,”S“.”T“ terminals for 3 phase)output valtage3 phase 220vinput Frequency47-63Hzoutput frequency0-400Hz, 0-50Hz/60Hz （According to motor setup)rated current17 A (Represents the maximum current the VFD can withstand,this is a fixed value)Package Including1x manual, 1x VFD
