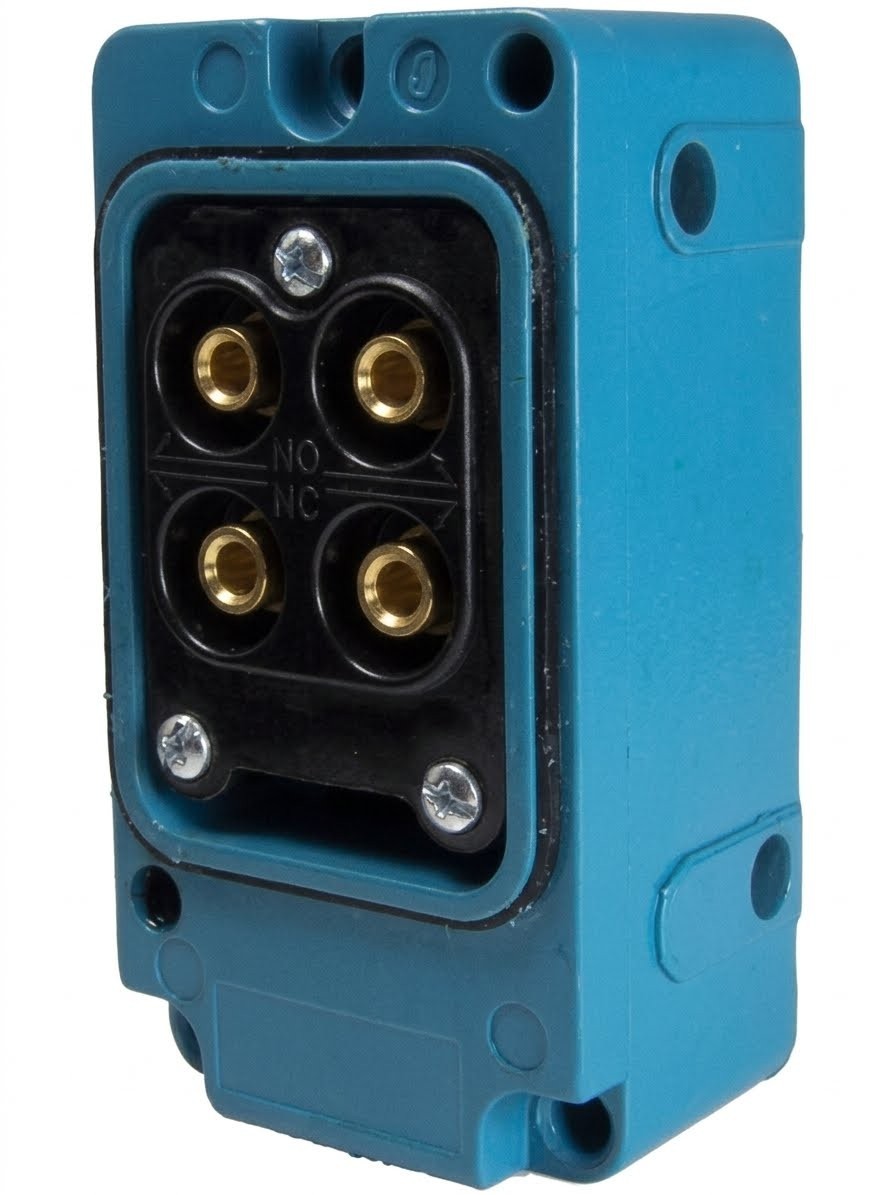

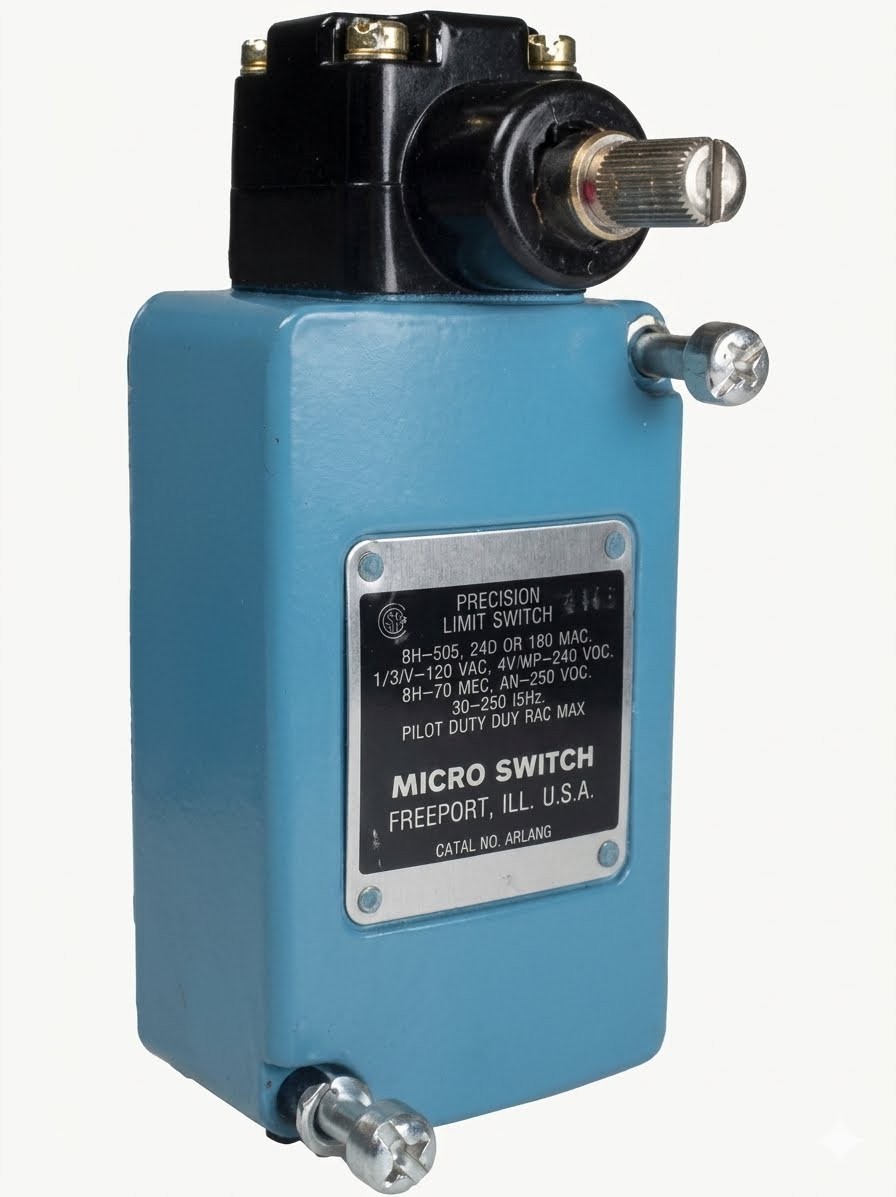

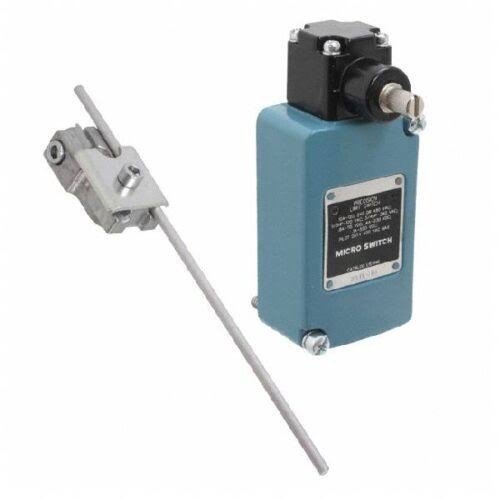

Honeywell 201LS2 Micro Switch
USD 199.00 USD
Specifications
| Mounting Style | Screw |
| Maximum Amperage | 10 A |
| Color | Blue, Black, Silver |
| Current Rating | 1-15 A |
| Fuse Type | Switch |
| MPN | LSM1A, 201LS2 |
| Material | Metal |
| Switch Style | Rotary |
| Brand | Honeywell |
| Operation Method | On/Off |
| Current Type | AC/DC |
| Type | Limit Switch |
| Termination Type | Screw |
| Coil Voltage | 120-240 V |
| Model | 201LS2 |
| Features | Precision |
| Application | Industrial |
| Finish | Painted |
| UPC | 661191113520 |
Circuitry: Single Pole Double Throw (SPDT), 1NO/1NC, snap-action.Electrical Rating: 10 A max alternating current (AC) at up to 480 Vac.Actuator Style: Side rotary head (lever-rod option, lever not included).Operating Characteristics: 20° maximum pretravel, 30° minimum overtravel, and 12° maximum differential travel.Sealing Protection: NEMA 1, 3, 4, 6, and 13 ratings, providing high resistance to oil, water, and industrial dust.Conduit Connection: 0.5" - 14 NPT screw termination.
