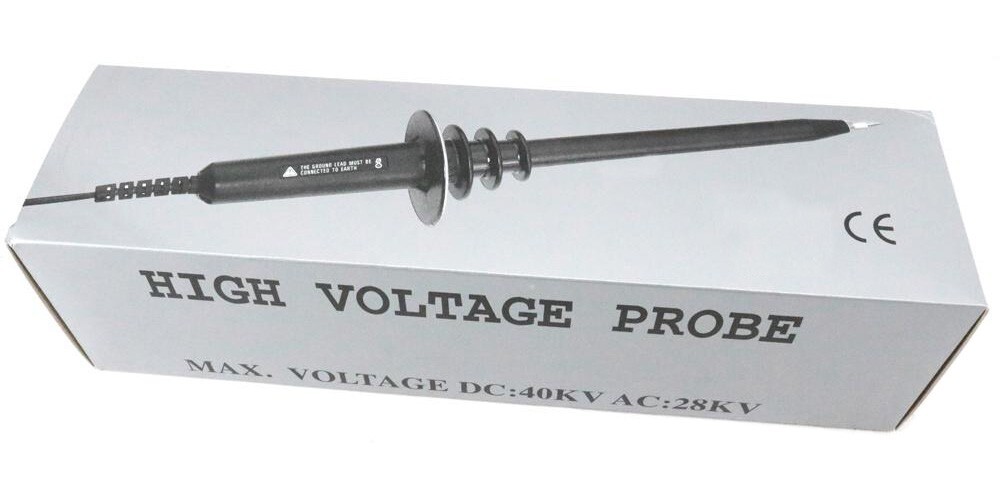

High Voltage Probe 40,000 Volts Max DC, 28,000 Volts Max AC (50/60 Hz)
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Country/Region Of Manufacture | Taiwan |
| Peak Voltage Rating | 40,000 V |
| MPN | 01HVP40 |
| Brand | Electronix Express |
| Input Impedance | 1,000 M |

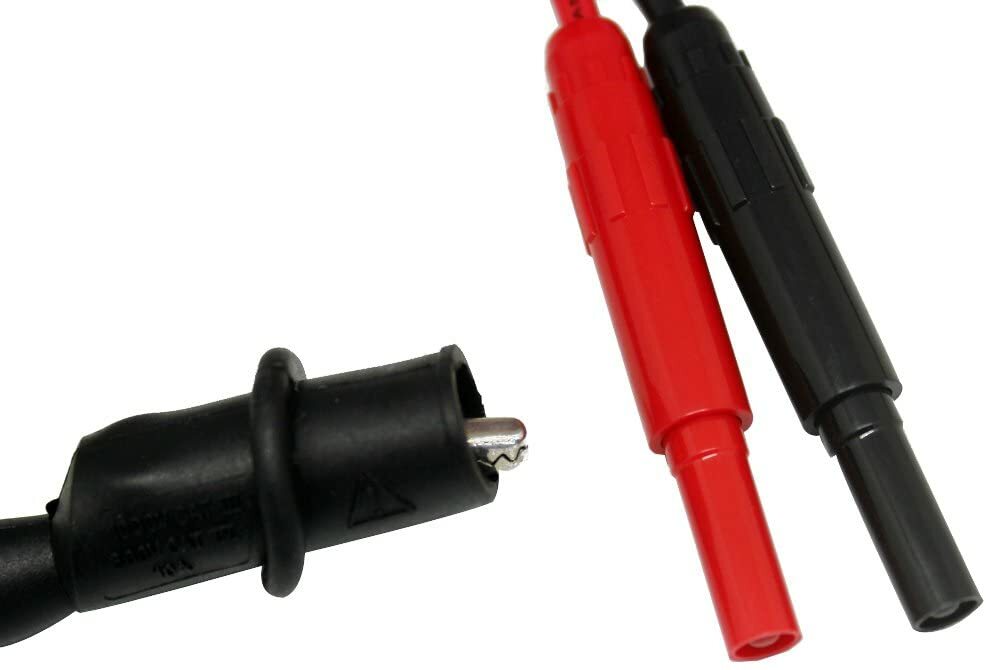

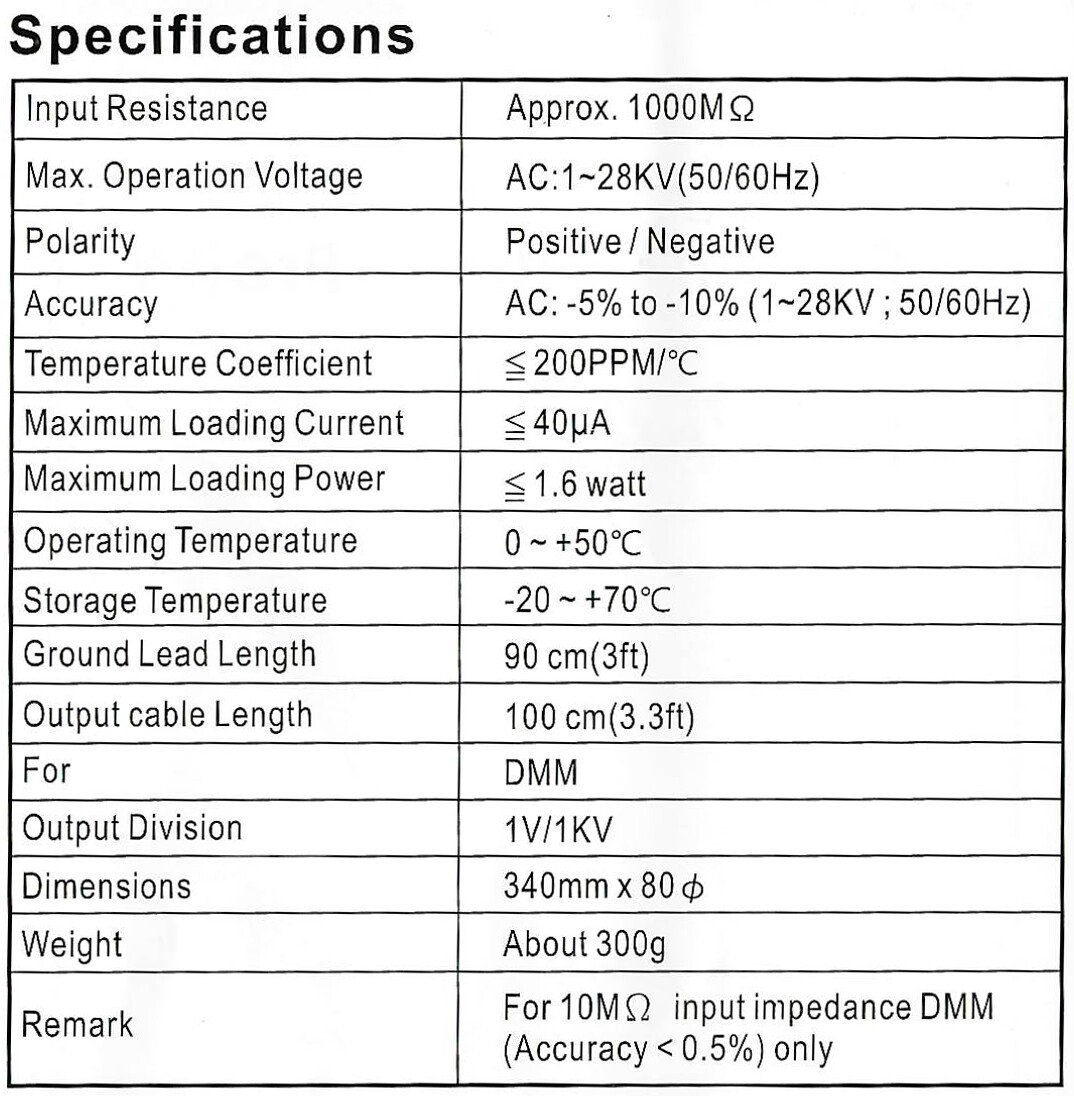

Science Purchase Our eBay Store About Us--> Contact Us--> Add to Favorite Sellers--> High Voltage Probe Model HVP-40 53.00 --> 40,000 volts max DC28,000 volts max AC (50/60 Hz)1,000MΩ input impedanceAccuracy DC: ±1% to 20KV, ±2% to 40KV. Accuracy AC: -5% to -10% (1~28KV ; 50/60Hz).Output Division: 1V/1KV Before taking any measurements, first connect the alligator clip of this probe to earth ground and make sure connection is electrically good. Full Specifications: Input impedance: 1000MΩ Max. Operation Voltage: DC: 0 ~ 40KV, AC: 1 ~ 28KV ( 50 / 60 Hz ) Polarity: Positive / Negative DC Accuracy: ±1% to 20KV, ±2% to 40KV AC Accuracy: -5% to -10% (1 ~ 28KV ; 50 / 60Hz ) Temperature Coefficient: ≦ 200ppm / ℃ Maximum Loading Current: ≦ 40μA Maximum Loading Power: ≦ 1.6 watt Operating temperature: 0 ℃ ~ + 50 ℃ Storage temperature: -20 ℃ ~ + 70 ℃ Ground Lead Length: 3 feet (90cm) Output cable Length: 3.3 feet (100cm) For: DMM Output Division: 1V/1KV Dimensions: 13.4" Long, 0.77" Diameter (3" at widest point) Weight: About 10.5 ounces Note: For 10MΩ input impedance DMM (Accuracy < 0.5%) only Operation: Connect the plugs to volts (Hi) and com (Lo) input terminals of your voltmeter. Select the desired voltmeter function and range, do not use autoranging. Whenever possible, turn the high voltage source off before making any connections. Connect the divider probe common lead (alligator clip) to a good earth ground or reliable chassis ground. Product Details Color Black, Red Length 13.4" Weight 10.5 ounces Thank you for viewing our listing. If you have any questions about this item, please click the "Contact seller" link above.
