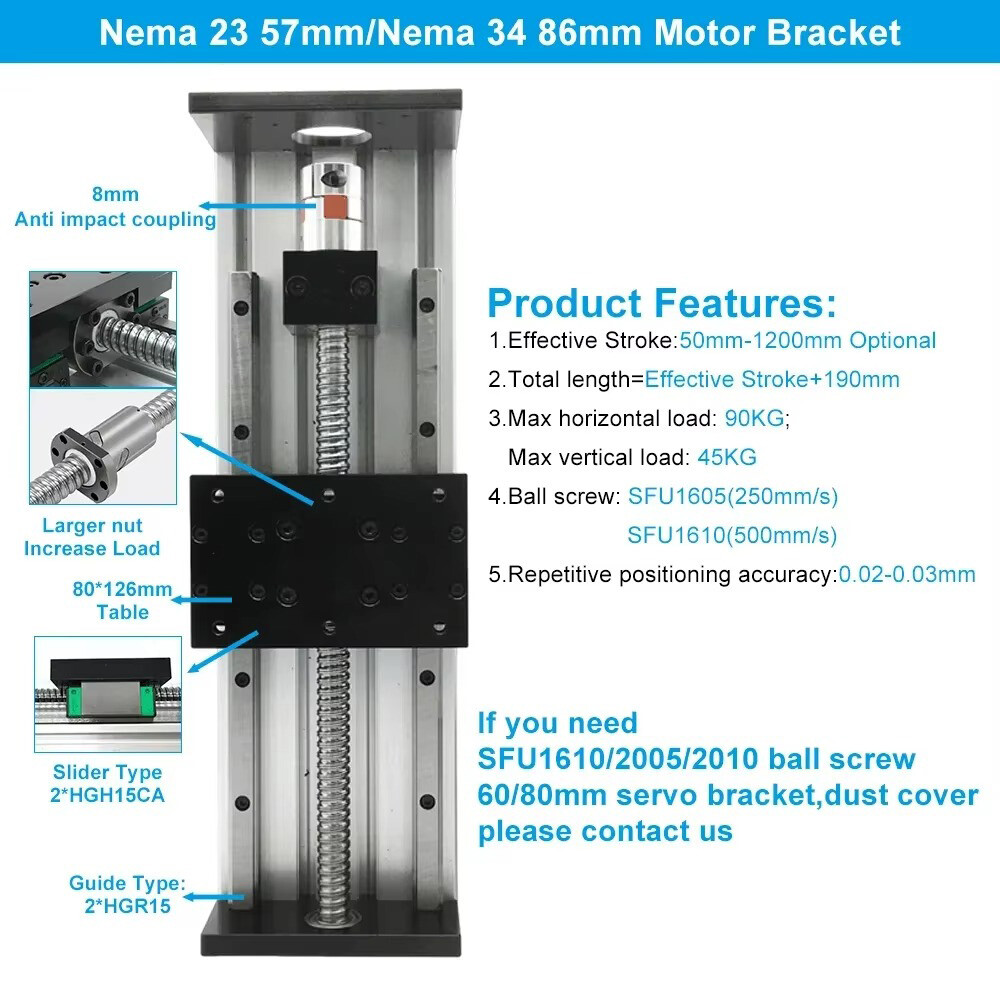

Heavy Duty Linear Rail Guide Stage Actuator Ball screw CNC Slide Table 90kg Load
USD 224.12 USD
Specifications
| Mobile Panel Size --*horizontal Load | 80mmx120mm---80kg load |
| Stroke Length | 100mm (4 in) |
| Brand | TEHIGHAUTO |
| Accuracy | 0.03MM-0.05MM |
| Materials | aluminum alloy |
| Speed | ≤500MM/s |
| Voltage | 24V |
| Rated Load | 112 lb |
Model: SXG80*120 Ballscrew type: SFU1605 (Screw Diameter 16mm, Pitch 5mm,the screw rod rotates once and the panel moves 5mm) / SFU1610 Ballscrew accuracy: C7 level Effective stroke: 50mm-1200mm Optional Total length: Effective Stroke+190mm Mobile panel size: 80*120mm Slider Type:2*HGH15CA Guide Type:2*HGR15 Horizontal load: 80KG (Max) Vertical load: 40KG(Max) Ballscrew Repeat positioning accuracy: ±0.3mm Material: Industrial Aluminum Profile.
