Heavy Duty Fully Sealed Ball Screw Slide Table 100-220lb CNC Linear Module Stage

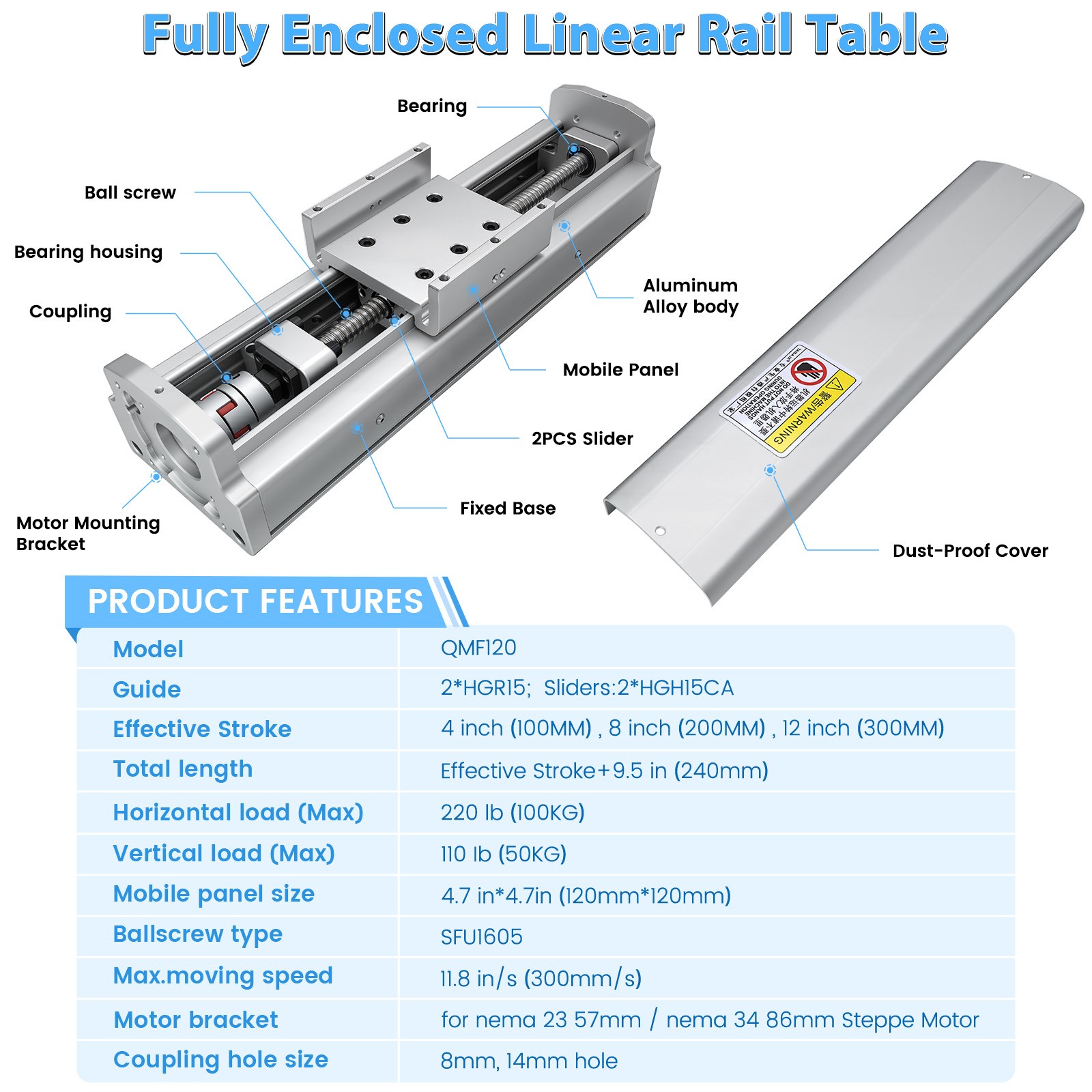

Specifications
| Brand | TOSEARSTARS |
| MPN | QMF120 |
| Type | Linear Motion System |
| Country/Region Of Manufacture | China |
| Module Width | 4.72 inch (120mm) |
| Block | 2PCS*HGH15CA |
| Horizontal Load(Max) | 220 Ib (100KG) |
| Vertical Load(Max) | 110 Ib (50KG) |

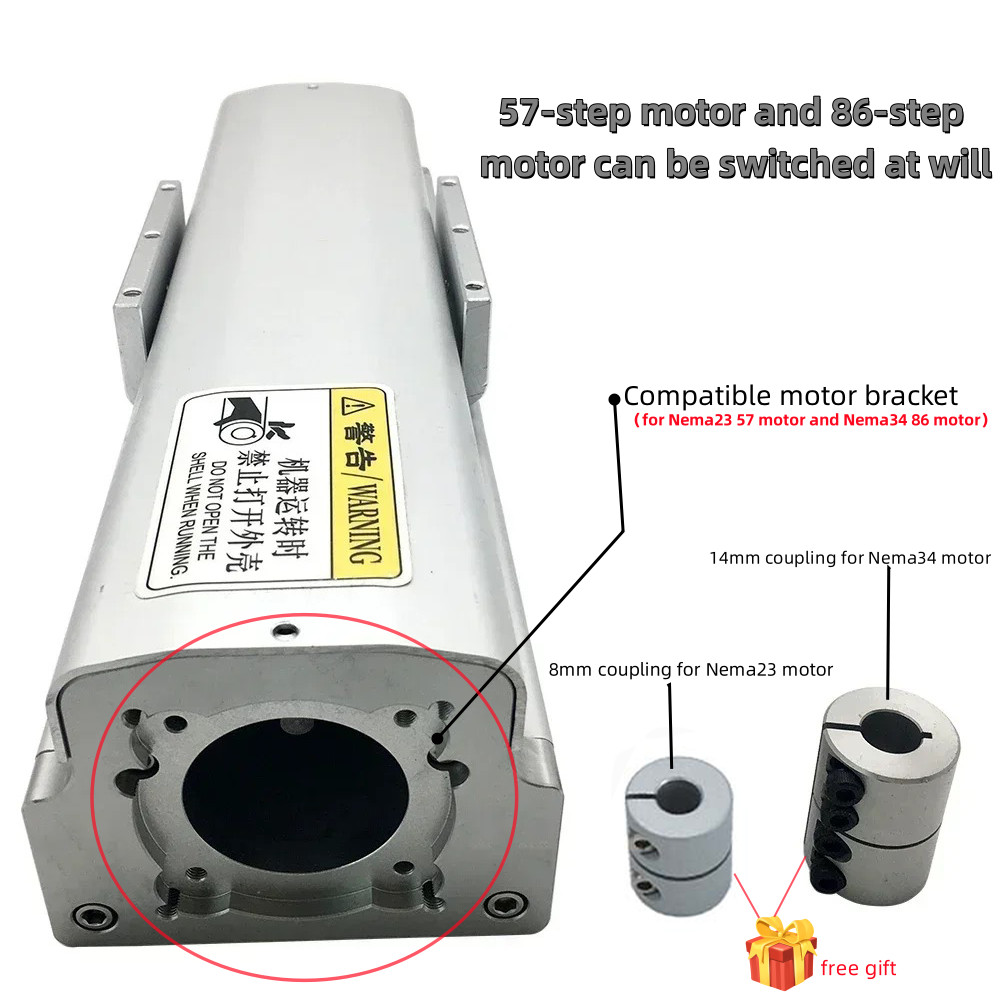

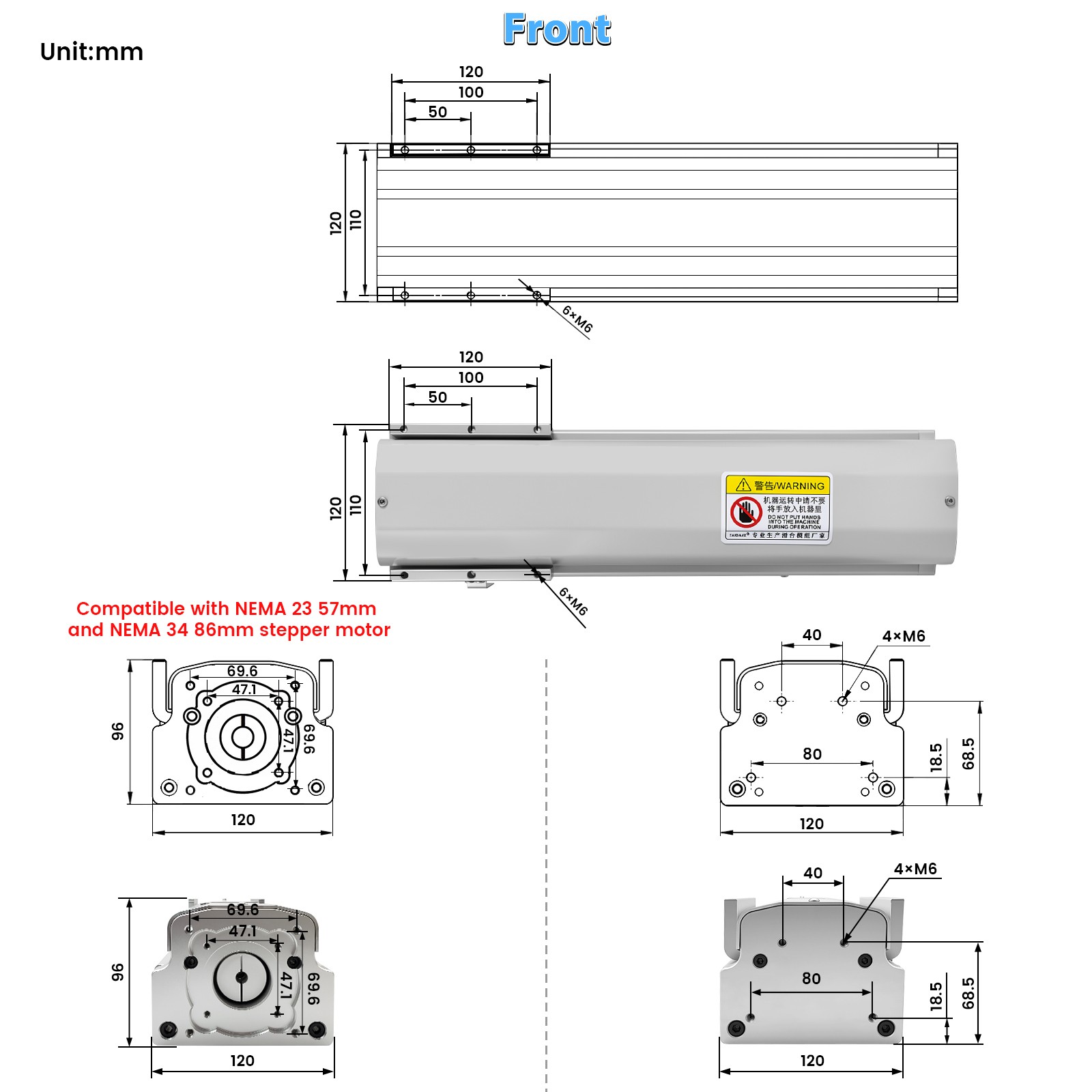

| Motor Bracket | for 57mm/86mm Stepper; |
| Slide Height | 3.77 inch (96mm) |
| Ballscrew Type | SFU1605 |
| Max.moving Speed | 11.8 inch/s (300mm/s) |
| Module Material | Aviation aluminum 6061 |

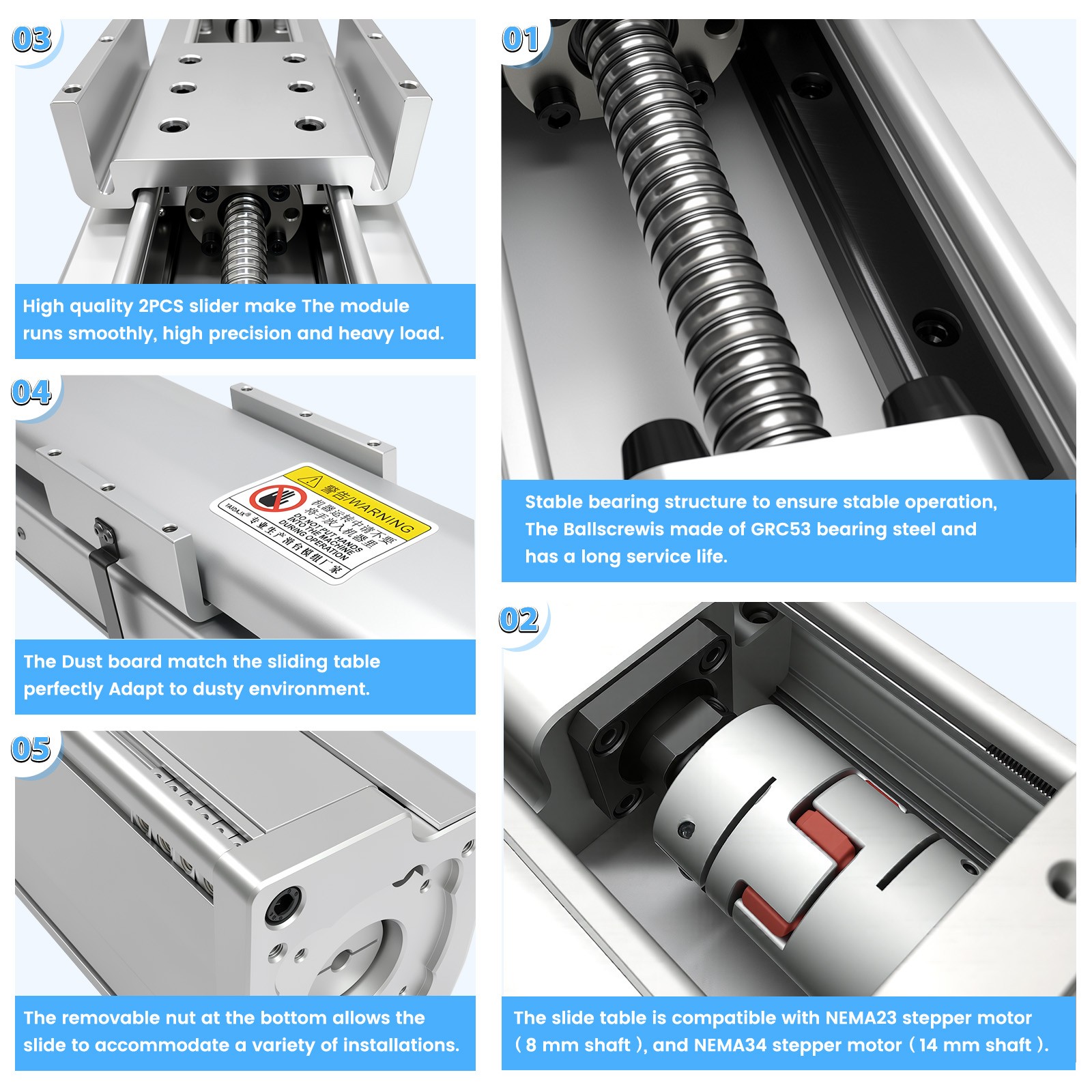

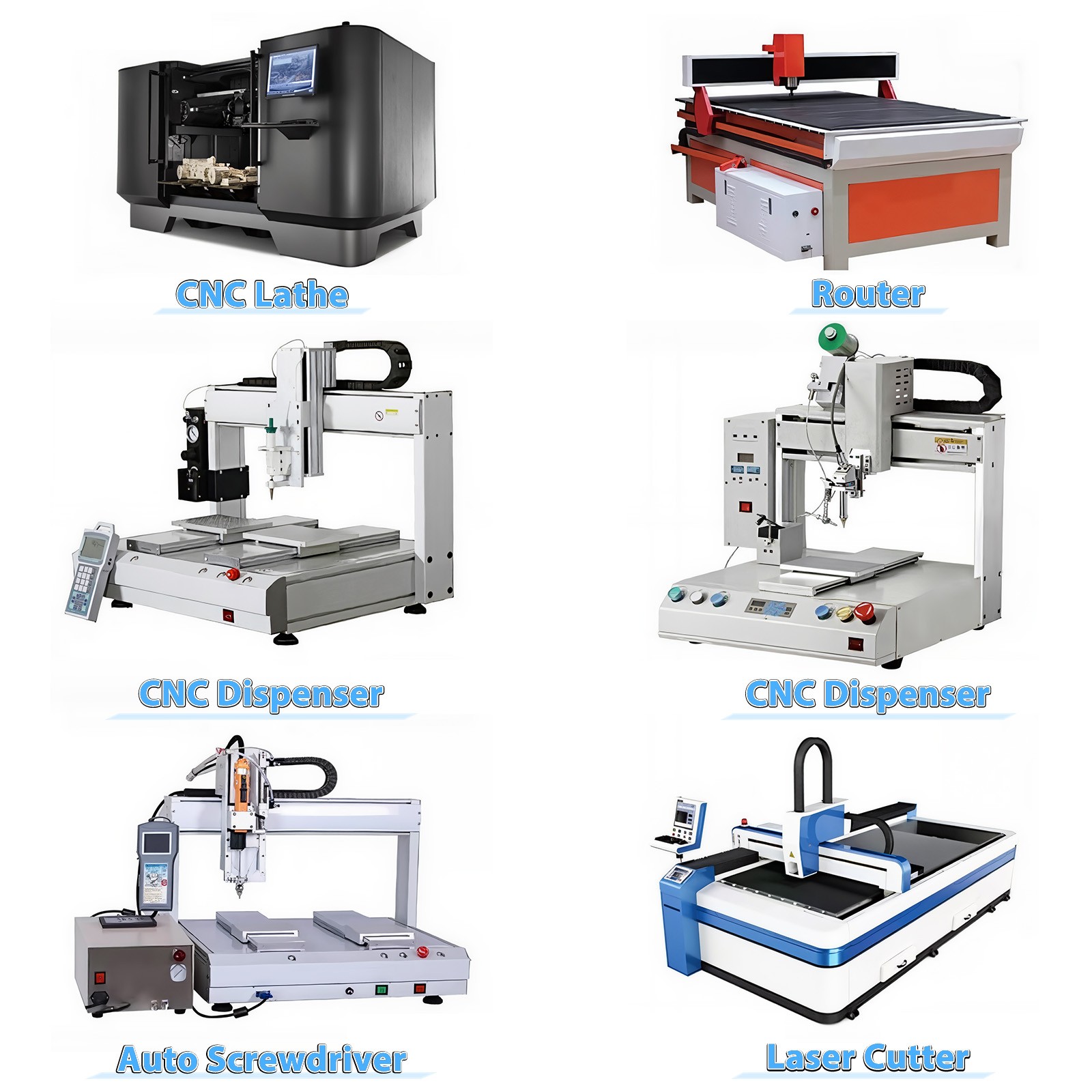

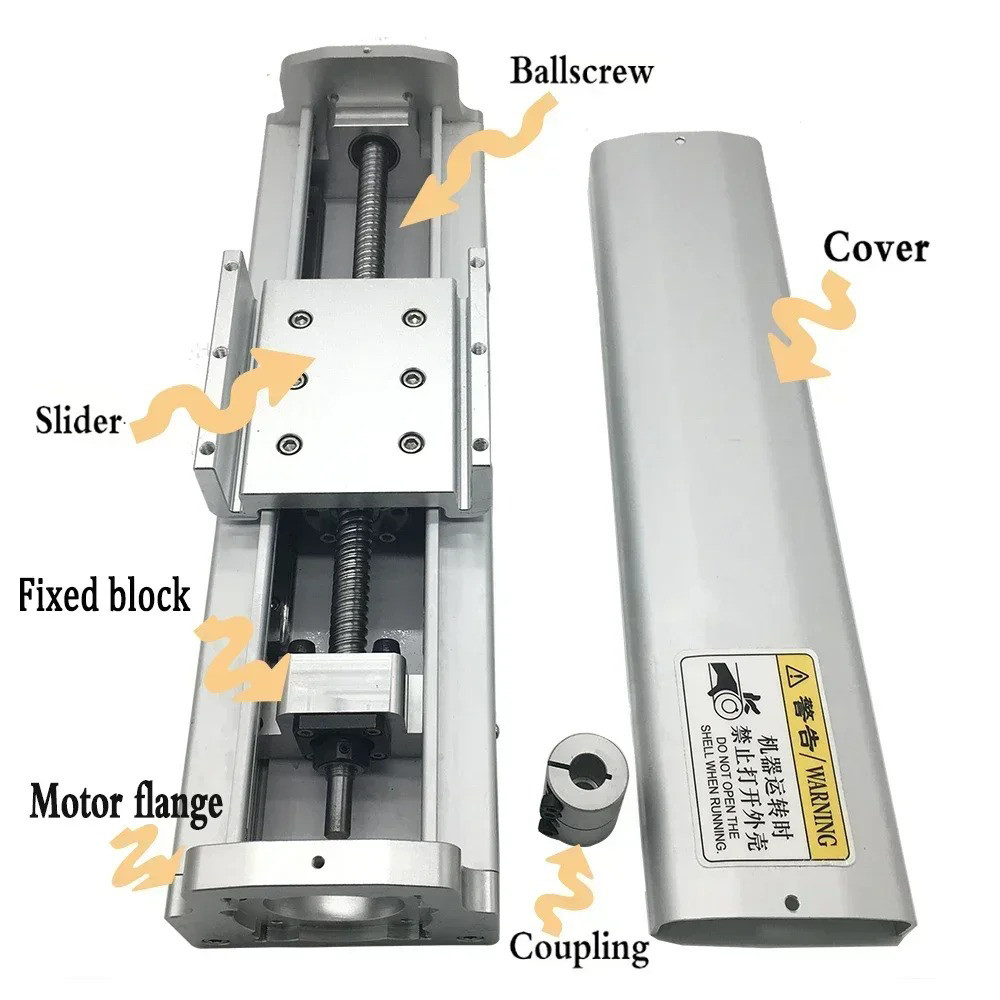

Product Overview Industrial-grade fully enclosed linear slide table with dual HGR15 guide rails and SFU1605 ball screw. Features 100KG horizontal load capacity, 300mm/s max speed, and dustproof aluminum cover for CNC, lab automation, and medical applications. Pre-assembled with motor couplings. Product Feature ✅ Military-Grade Sealing - Integrated dust cover prevents debris ingress in woodworking/CNC environments ✅ Precision Ball Screw Drive - SFU1605 C7-grade screw delivers ±0.05mm positioning accuracy ✅ Heavy-Duty Performance - Dual HGR15 rails support 220lb horizontal load (100KG) ✅ Aviation Aluminum Construction - 6061-T6 alloy with sandblasted oxidation resists corrosion ✅ Flexible Motor Integration - Pre-drilled mounts for 57mm/86mm steppers with coupling kit.
