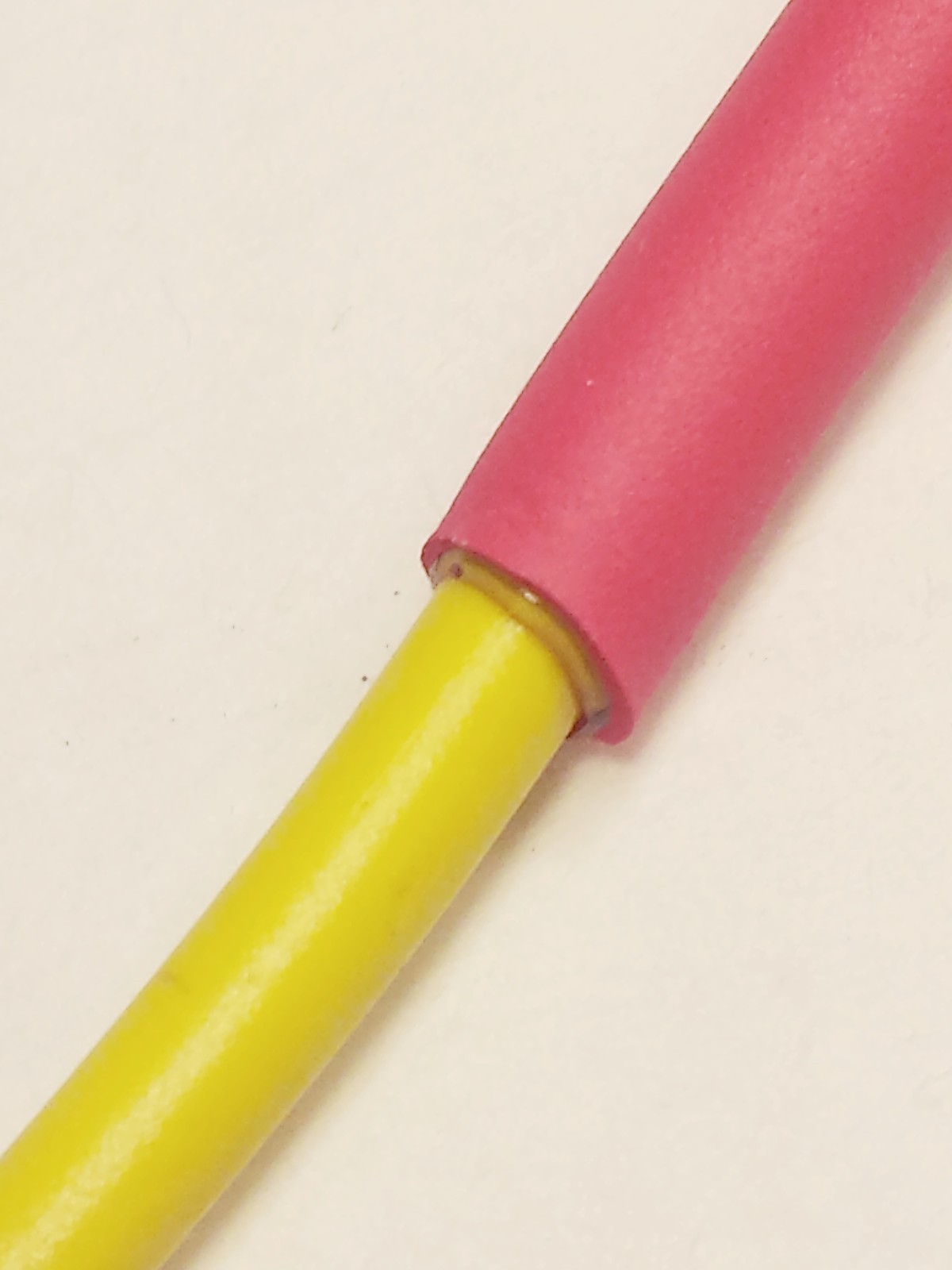

Heat Shrink Tubing Adhesive Glue Lined Tubes 5ft – 5 x 1ft Assorted Sizes Red
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Sheath Color | Red |
| MPN | HS-DW-MIX-RD5 |
| Custom Bundle | Yes |
| Brand | Battery Cables USA |
| Model | HS-DW-MIX-RD5 |
| Type | Heat Shrink |
This listing is for an assortment pack of 5 pieces of dual wall adhesive heat shrink tubing with meltable glue lining: COLOR: RED SIZES IN PACK: 1/4 inch diameter - 1 foot tube 3/8 inch diameter - 1 foot tube 1/2 inch diameter - 1 foot tube 3/4 inch diameter - 1 foot tube 1 inch diameter - 1 foot tube DescriptionDual wall heat shrinkable tubing is a 3:1 shrink ratio, flexible tubing, offering the advantages of integral, adhesive-lined construction. The tubing is made from flame retardant, flexible cross-linked polyolefin with an internal layer of excellent hot melt adhesive. The heat-shrinkable outer wall is durable, while maintaining the high flow and excellent adhesion of the inner sealant liner. When heated in excess of 125ºC (257ºF), the tubing rapidly shrinks to a skintight fit, forcing the melted adhesive lining to flow and cover the underlying surface. The adhesive forms a flexible bond with a wide variety of rubbers, plastics and metals. Upon cooling, the adhesive solidifies, forming a permanent, non-drying, flexible and water resistant barrier. LengthThe lengths offered in this listing are 12 inch (1 foot) pre-cut lengths. The tubing is precut to simplify shipping. We cannot provide continuous length tubes so a quantity of 6 would be 6 one foot tubes. The tubing is easily cut to your preferred length with scissors or razor blade but a razor blade cut on a flat surface is the preferable way for cuts to be made. Longitudnal shrink ratio is less than or equal to 8% Sizes and DimensionsSize (Nominal) InchWire Range Best Fit RecommendedExpanded I.D. (Minimum)Recovered I.D. (Maximum)Total Recovered Wall Thickness (Nominal)Meltable Recovered Wall ThicknessInch(mm)Inch(mm)Inch(mm)Inch(mm)1/418 to 10 AWG0.250(6,35)0.080(2,03)0.040(1,02)0.020(0,51)3/812 to 6 AWG0.375(9,53)0.120(3,05)0.055(1,40)0.025(0,62)1/28 to 4 AWG0.500(12,70)0.160(4,06)0.070(1,78)0.030(0,76)3/44 to 2/0 AWG0.750(19,05)0.250(6,35)0.085(2,16)0.035(0,89)12 to 4/0 AWG1.000(25,40)0.320(8,13)0.100(2,54)0.040(1,02) Agency Approvals &Self CertificationsUL Recognized (all colors except clear) UL File E-203950 at 600 Volts and 125C MaxSelf Extinguishing UL VW-1 Rated Flame Retardant (all colors except clear)ROHS Compliant ApplicationsDual wall adhesive heat shrink tubing offers excellent environmental protection for electronic components, wire splices, wire bundles and harness breakouts. Automotive, truck and marine wiring splices and harness breakouts are quickly and easily protected from harsh environments. Shrink RatioOur dual wall heat shrink tubing has a 3:1 shrink ratio. When freely recovered, the tubing will shrink 33% of its as-supplied diameter. The recovered wall thickness of the tubing is proportional to the degree of recovery. The continuous operating temperature range is from -45ºC (-49ºF) to 125ºC (257ºF), with a shrinking temperature minimum of 125ºC (257ºF).
