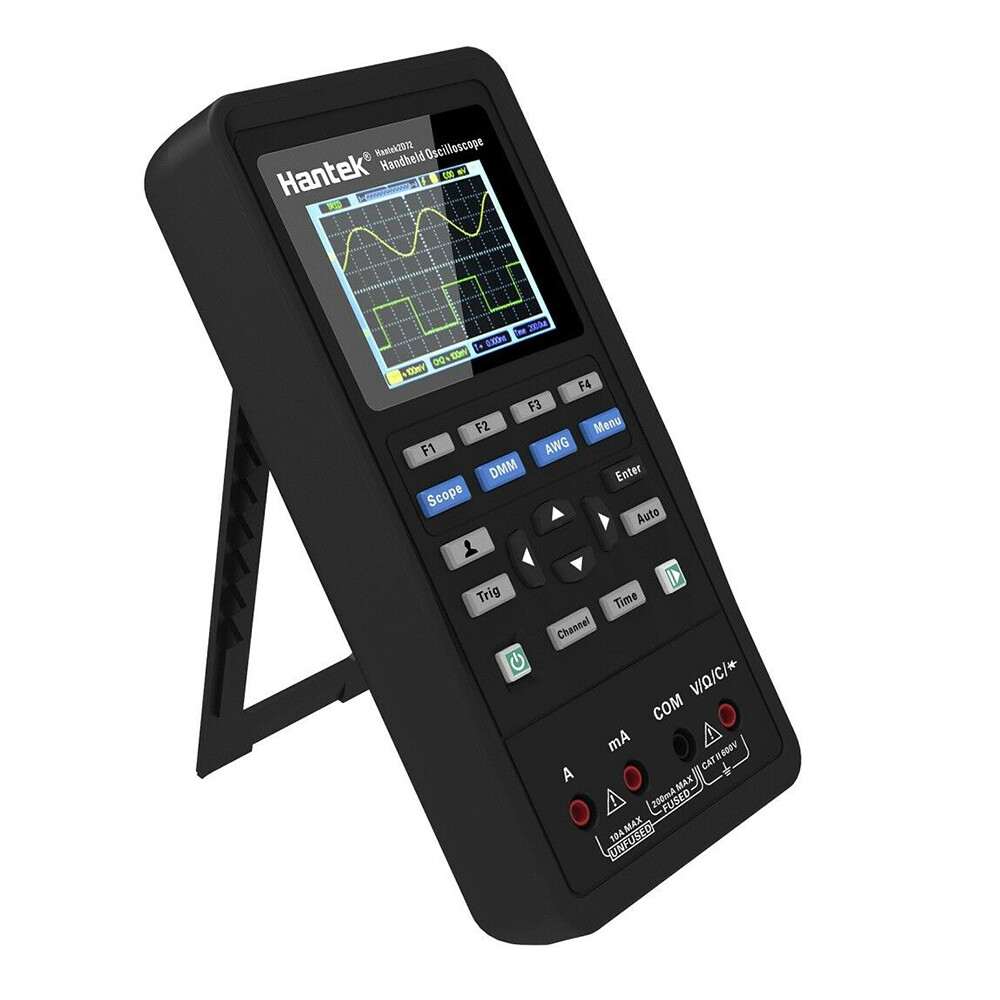

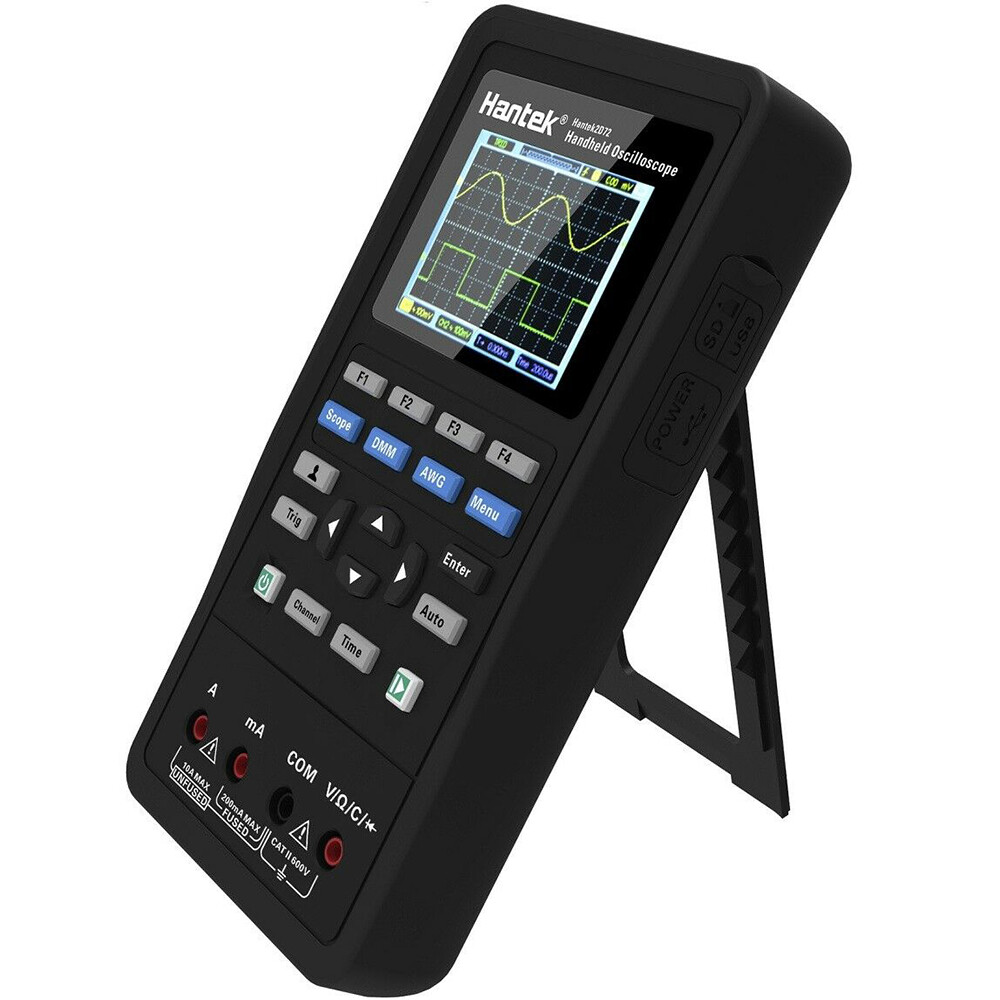

Hantek 2 in 1 Digital Oscilloscope + Multimeter 40MHz 70MHz 250MSa/s 2C42 2C72
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 60 Days |
| Brand | HANTEK |
| MPN | 2C42 2C72 |
| Oscilloscope Type | Digital Oscilloscope |
| Maximum Bandwidth | 100MHz |
| Features | Handheld/ Portable |
| Maximum Real-Time Sampling Rate | 250MSa/s |
| Digital Oscilloscope Resolution | 12-bit |
| Country/Region Of Manufacture | China |
| Bandwidth | 40-70MHz |
| Non-Domestic Product | Yes |
| Sample Rate | 250MSa/s |

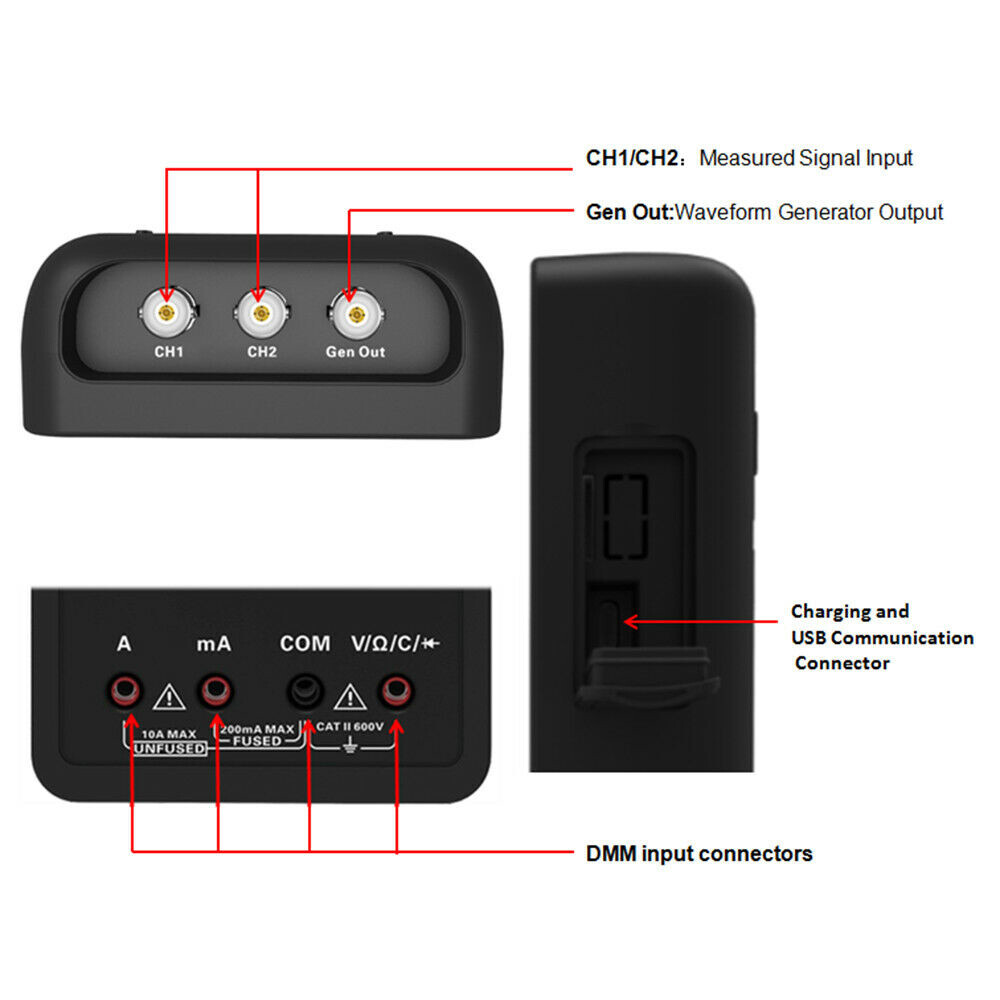

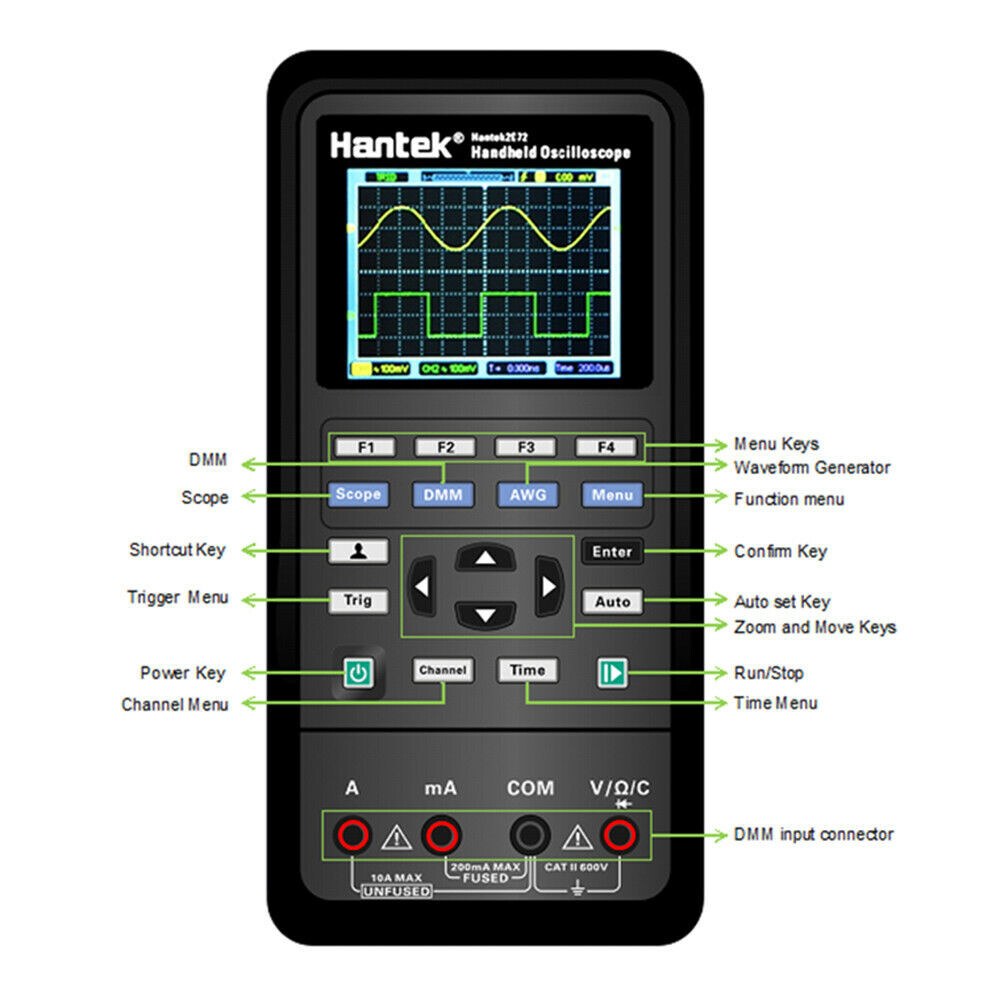

2in1 Hantek Digital Oscilloscope + Multimeter 40MHz 70MHz 250MSa/s 2C42 2C72 Description: Oscilloscope + Multimeter: This multi-purpose station own three universal test instrument functions. It is outgoing right-hand product for engineers. Intelligent charging control: Its lithium batteries can be recharged byeither high current-5V/2A or ordinary computer USB interface. Allow while charging, while using, very convenient and handy; Ultra-low power design: Type C charging interface, after every recharge of 2 hours, the device can be used continuously for a full day or standby more than two months; Large-capacity lithium battery power supply: Tesla style 18650 replaceable lithium battery power system, free from replace battery; 5V/2A charger + Type C charging cable: Type C power + data transfer interface, can share the charger and data cable with your mobile phone; AUTO one-key test: Magic tool and essential function for test newbie; Volume small, one hand holding: The 45 degree suspension bracket design provide you a work station anywhere anytime; One key page out, quick compare two groups of reference waveforms + 6 groups of waveforms storage, simple and effective; Digital voltmeter function: automatic frequency and amplitude measurement, convenient and worry-free; Its cursor measurement functionsupports time and voltage manual measurement, and measure the required waveforms accurately; One-click switching its Chinese and English language menu; Color LCD screen: exquisite and smooth lines make the waveforms clear and undistorted when magnify; Minimalist keyboard design simplify operation, convenient to use; Unibody casing:fine touch feeling, favorable impact resistance, outstanding heat resistance, easy to disassemble; Self-calibration function: free from level drift after long time unused; Universal multimeter function: voltage, current, resistance, diode, capacitor, on-off test; Function of video help：scan code on back of machine to get help of video course; Interface Review Powerful PC software Oscilloscope powerful functions: 20 kinds of automatic measurement, cursor measurement, waveform printing and saving functions, REF and Math functions, Pass / Fail functions. The waveform generator is able to draw and output arbitrary waveforms on its PC software Its multimeter with recorder function, which support the measurement resultsto nerate the curves and analyze them. Parameter: Model Hantek2D72 Hantek2D42 Hantek2C72 Hantek2C42 Oscilloscope Mode Bandwidth 70MHz 40MHz 70MHz 40MHz Channel 2CH+DMM+AWG 2CH+DMM+AWG 2CH+DMM 2CH+DMM Horizontal Sample Rate Range 250MSa/s(Single-channel), 125MSa/s(Dual-channel) Waveform Interpolation (sin x)/x Record Length Max. 6K for single-channel; 3K samples per dual-channel SEC/DIV Range 5ns/div~500s/div 1, 2, 5 sequence Vertical A/D Converter 8-bit resolution,each channel sampled simultaneously VOLTS/DIV Range 10mV/div~10V/divat input BNC Bandwidth Limit, typical 20MHz Low Frequency Response (-3db) ≤10Hz at BNC Rise Time at BNC, typical ≤5ns DC Gain Accuracy ±3% for Normal or Average acquisition mode, 10V/div to 10mV/div Note: Bandwidth reduced to 6MHz when using a 1X probe. Acquisition Acquisition Modes Normal Trigger Type Edge Mode Auto, Normal, single Level ±4 divisions from center of screen Trigger Level Accuracy 0.2div × volts/div within ±4 divisions from center of screen Slope Rising, Falling, Rising & Falling Source CH1/CH2 Input Coupling DC, AC or GND Input Impedance, 25pF±3 pF, 1MΩ±2% DC coupled Probe Attenuation 1X, 10X Supported Probe Attenuation Factors 1X, 10X, 100X, 1000X Maximum Input Voltage 150VRMS Measurement Cursor Voltage difference between cursors: △V Time difference between cursors: △T Automatic Measurements Frequency, Amplitude Arbitrary Waveform Generator Mode Waveform Frequency Sine: 1Hz~25MHz - - Square: 1Hz~10MHz - - Ramp: 1Hz~1MHz - - EXP: 1Hz~5MHz - - Sampling 250MSa/s - - Amplitude 2.5Vpp(50Ω) - - 5Vpp(Highimpedance) - - Frequency Resolution 0.10% - - Channel 1CH waveform output - - Waveform Depth 512Sa - - Vertical Resolution 12 bit - - Output Impedance 50 Ω - - DMM-Digital Multimeter Maximum Resolution 4000 Counts DMM Testing Modes Voltage,Current,Resistance,Capacitance,Diode &On-Off Maximum Input Voltage AC:600V, DC: 800V Maximum Input Current AC: 10A, DC:10A Input Impedance 10MΩ Measurement Term Range Accuracy Resolution DC Voltage 400.00mV ± (0.8% + 5) 100uV 4.000V 1mV 40.00V 10mV 400.0V 100mV 600.0V ± (1% + 2) 1V Overload protection: 400mV: 250V, other: 600Vrms. AC Voltage 4.000V ± (1.2% + 5) 1mV 40.00V 10mV 400.0V 100mV 600.0V ±(1.5% + 5) 1V Frequency: 40Hz~400Hz; Frequency of 400V and 600V: 40Hz~100Hz DC Current 40.00mA ± (1% + 2) 10uA 200.0mA ± (1.5% + 2) 100uA 4.000A ± (1.8% + 2) 1mA 10.00A ± (3% + 2) 10mA Overload protection: self restoring fuse: 200mA/250V, 4A and 10A range no fuse. AC Current 40.00mA ± (1.3% + 2) 10uA 400.0mA ± (1.8% + 2) 100uA 4.000A ± (2% + 3) 1mA 10.00A ± (3% + 5) 10mA Frequency: 40Hz~400Hz; self restoring fuse: 200mA/250V, 4A and 10A range no fuse. Resistance 400.0Ω ±(1% + 3) 0.1Ω 4.000KΩ ±(1.2% + 5) 1Ω 60.00KΩ 10Ω 400.0KΩ 100Ω 4.000MΩ 1KΩ 40.00MΩ ± (1.5%±3) 10KΩ Overload protection: 220Vrms Capacitance 40.00nF ±(3% + 5) 10pF 400.0nF 100pF 4.000uF 1nF 40.00uF 10nF 100.0uF 100nF Overload protection: 220Vrms Diode 0V~2.0V On-Off <50Ω General Specifications Display Display Type 2.8 inch64K color TFT Display Resolution 320 horizontal by 240 vertical pixels Display Contrast Adjustable Power Supply Supply Voltage 100V-240VAC, 50Hz-60Hz; DC INPUT: 5VDC, 2A Power Consumption <2.5W Fuse T, 3A Battery 2600mA*2 Environmental Operating Temperature 0~50 °C (32~122 °F) Storage Temperature -40~+71 °C (-40~159.8 °F) Humidity ≤+104℉(≤+40°C): ≤90% relative humidity 106℉~122℉ (+41°C ~50°C): ≤60% relative humidity Cooling Method Convection Altitude Operating and 3,000m (10,000 feet) Nonoperating Mechanical Shock Random Vibration 0.31gRMS from 50Hz to 500Hz, 10 minutes on each axis Nonoperating 2.46gRMS from 5Hz to 500Hz, 10 minutes on each axis Operating 50g, 11ms, half sine Mechanical Dimension 199 x 98x 40mm (L x W x H) Weight 624g Standard Accessories Probe*1, Clip Probe*2, Type Charging Cable*1, Power Adapter*1, Multimeter Probe*1 100MHz Oscilloscope Probe*1(plus) Probe*1, Clip Probe*2, Type Charging Cable*1, Power Adapter*1, Multimeter Probe*1 100MHz Oscilloscope Probe*1(plus) Probe*1, Clip Probe*1, Type Charging Cable*1, Power Adapter*1, Multimeter Probe*1 100MHz Oscilloscope Probe*1(plus) Probe*1, Clip Probe*1, Type Charging Cable*1, Power Adapter*1, Multimeter Probe*1 100MHz Oscilloscope Probe*1(plus) Payment 1.We only accept PayPal payment. 2.For combined shipping, do welcome to contact with us. Shipping 1.We ship to worldwide. 2.We only ship to PayPal confirmed address. Please ensure that your PayPal address is correct. 3.Orders will be shipped within 1-3 business days after payment has been cleared 4.We are not responsible for duties and customs fee. You can tell us the shipping value you want. We will meet your demand. Return 1.Any problem with your purchase, shipment return/exchange, please contact us before opening a case. 2.Please contact us within 14 days after receiving the items. 3.Return shipping should paid by buyers. 4.Refund will be given money back or replacement (buyers choice). Feedback 1.If youre satisfied with our products, please leave a positive feedback and perfect five stars. thank you in advance. 2.If you fee that we do not meet your demand ,or any problems with your purchase, shipping return/ exchange, please contact with us before opening a case or leaving us bad feedback ,thanks a lot.
