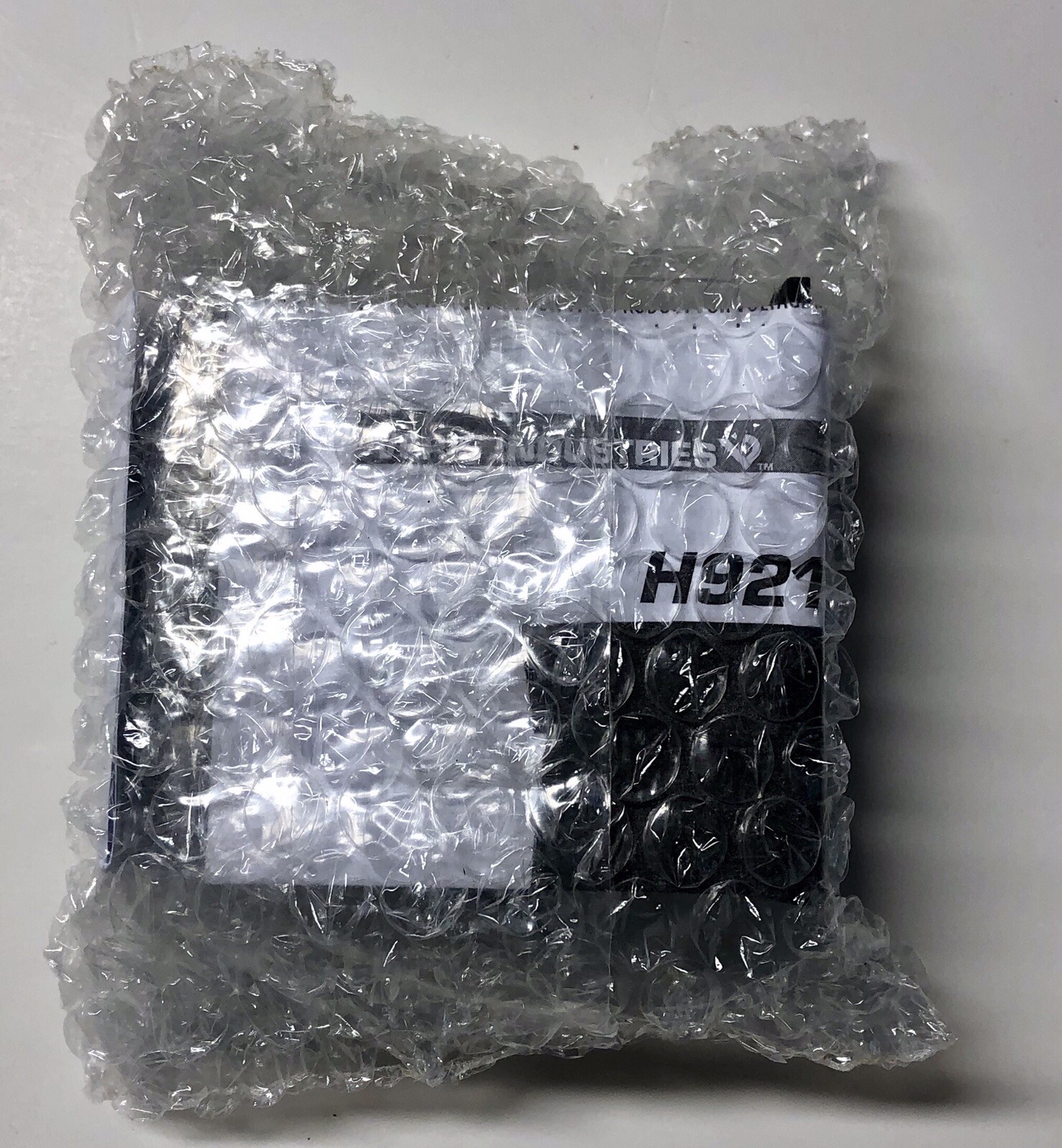

H921 (Split-Core, 4-20mA, Current Transducer)
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Brand | Hawkeye |
H921 (Split-Core, 4-20mA, Current Transducer) The Hawkeye 921 provides accurate load trending information with a proportional 4-20mA output signal. Preset slide-switches provide easy field setup of sensed amperage range with no need for jumpers. Split core, amperage range: 0 to 30/60/120A AC selectable, Analog output transducer: 4-20mA output, loop powered. CE, UL. ApplicationsLoad trendingMotor controlFan/Pump StatusLoop powered analog current sensor simplifies installation Power the sensor, and receive the signal with only two wires...lower cabling and commissioning costs than with traditional 3-wire sensorsSelf-gripping split-core for fast retrofit installation...no need to remove conductorSelectable factory calibrated ranges for increased flexibility and resolutionFactory calibrated switch-selectable ranges for high resolution and installation easeThree field-selectable ranges per unit...fewer versions to choose from, stock and installBracket can be installed in three different configurations..added flexibility100% solid state, no moving parts to failSpecificationsSensor Power 30mA (max) @ 12-30VDCInsulation Class 600VAC rms (UL), 300VAC RMS (CE)Frequency 50/60HzTemperature Range -15°C to 60°C (5° to 140°F)Humidity Range 10-90% RH, non-condensingAccuracy ±2%FS from 10% - 100% of selected range, but not less than ±0.4AResponse Time 2 sec.Terminal Block Maximum Wire Size 14 AWGTerminal Block Torque (nominal) 4 in-lbs (0.45 N-m)Agency Approvals UL 508 open device listing CE: EN61010-1:2001-2, CAT III, deg. 2, basic insulationFor applications requiring double or reinforced insulation, please contact the factory.
