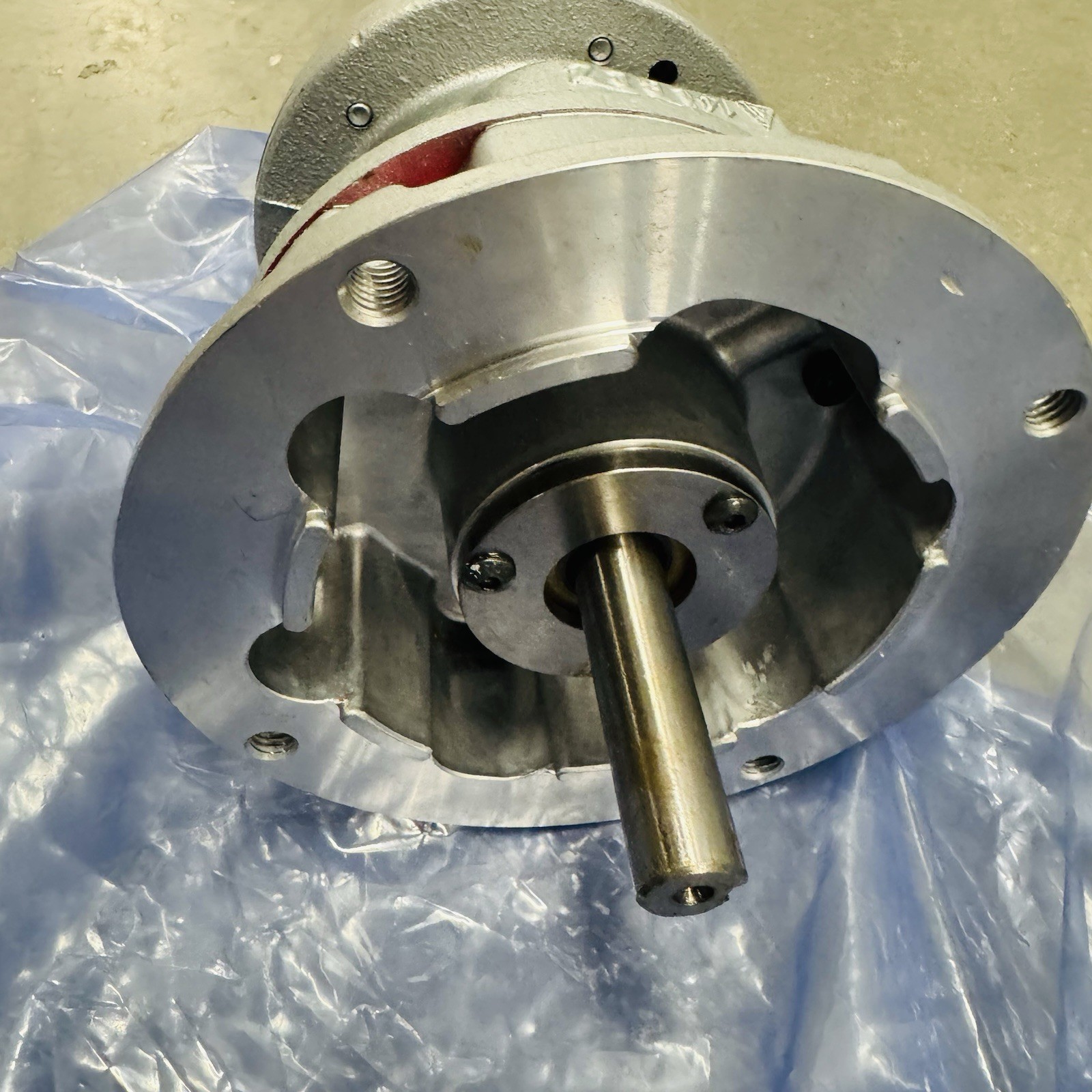

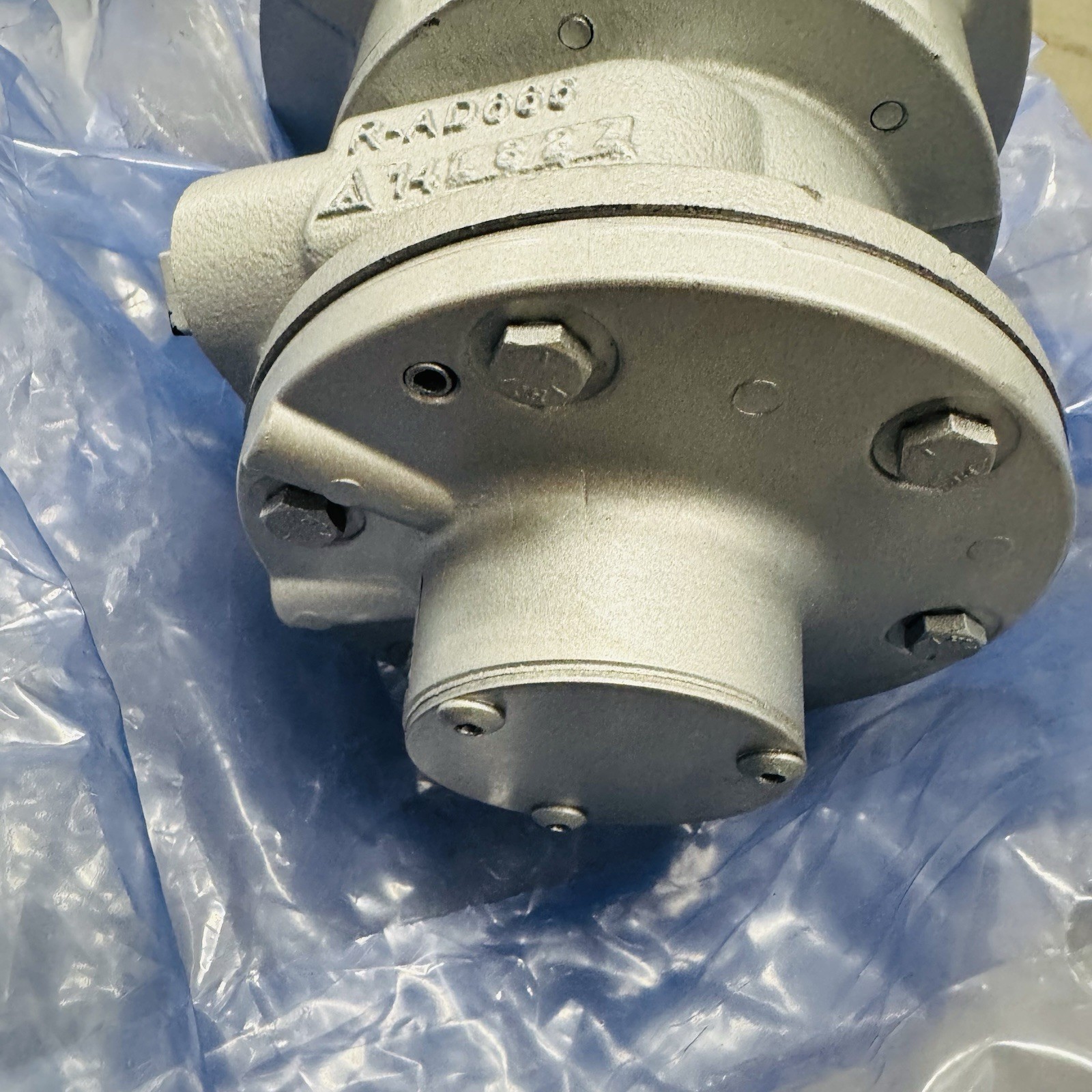

Gast 6AM-NRV-22A 4 HP 3000 RPM CW/CCW Reversible Vane Air Motor
USD 1690.98 USD
Specifications
| Country Of Origin | United States |
| Power Rating | 4 HP |
| Maximum Continuous Pressure | 100 psi |
| Certifications | CE, UKCA, ATEX, IECEx |
| Housing Material | Die-Cast Aluminum |
| Outlet Port Diameter | 1/2 in |
| Output Shaft Style | Square Keyed |
| Year Manufactured | 2025 |

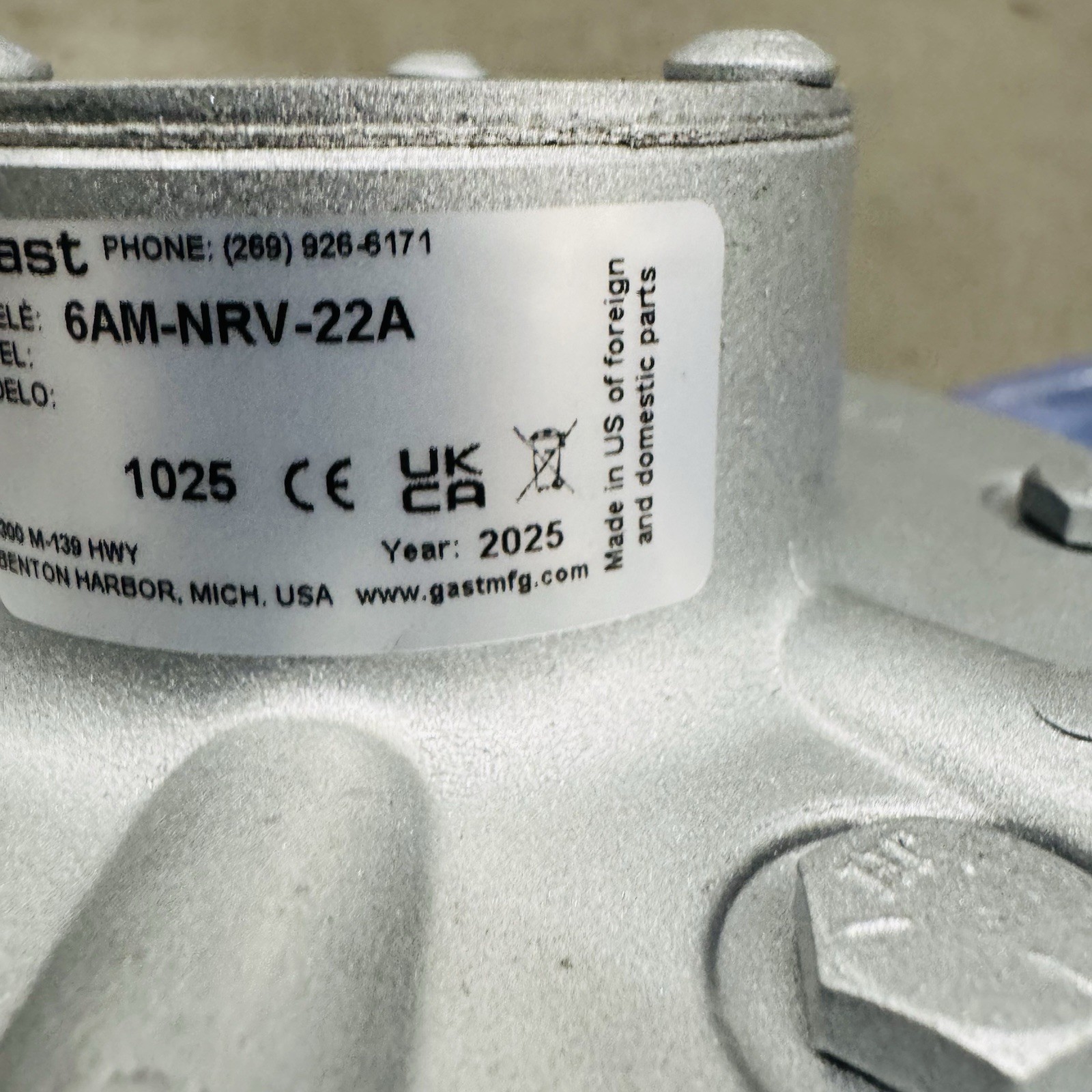

| MPN | 6AM-NRV-22A |
| Ambient Temp Range | -1°C to +40°C |
| Dust Ignition Protection | Ex h IIIC T135°C Db |
| Air Consumption | 130 CFM @ 90 PSI |
| Maximum No-Load RPM | 3000 RPM |
| Model / MPN | 6AM-NRV-22A |
| Motor Type | Vane Air Motor |
| Torque (Stall) | 84 in-lb |
| Mounting Style | Face / Flange Mount |
| Inlet Pressure (Nominal) | 90 PSI |
| Port Size | 1/2 in NPT |
| Mounting Type | Flange Mounted |
| Rotation | CW/CCW (Reversible) |
| Brand | Gast |

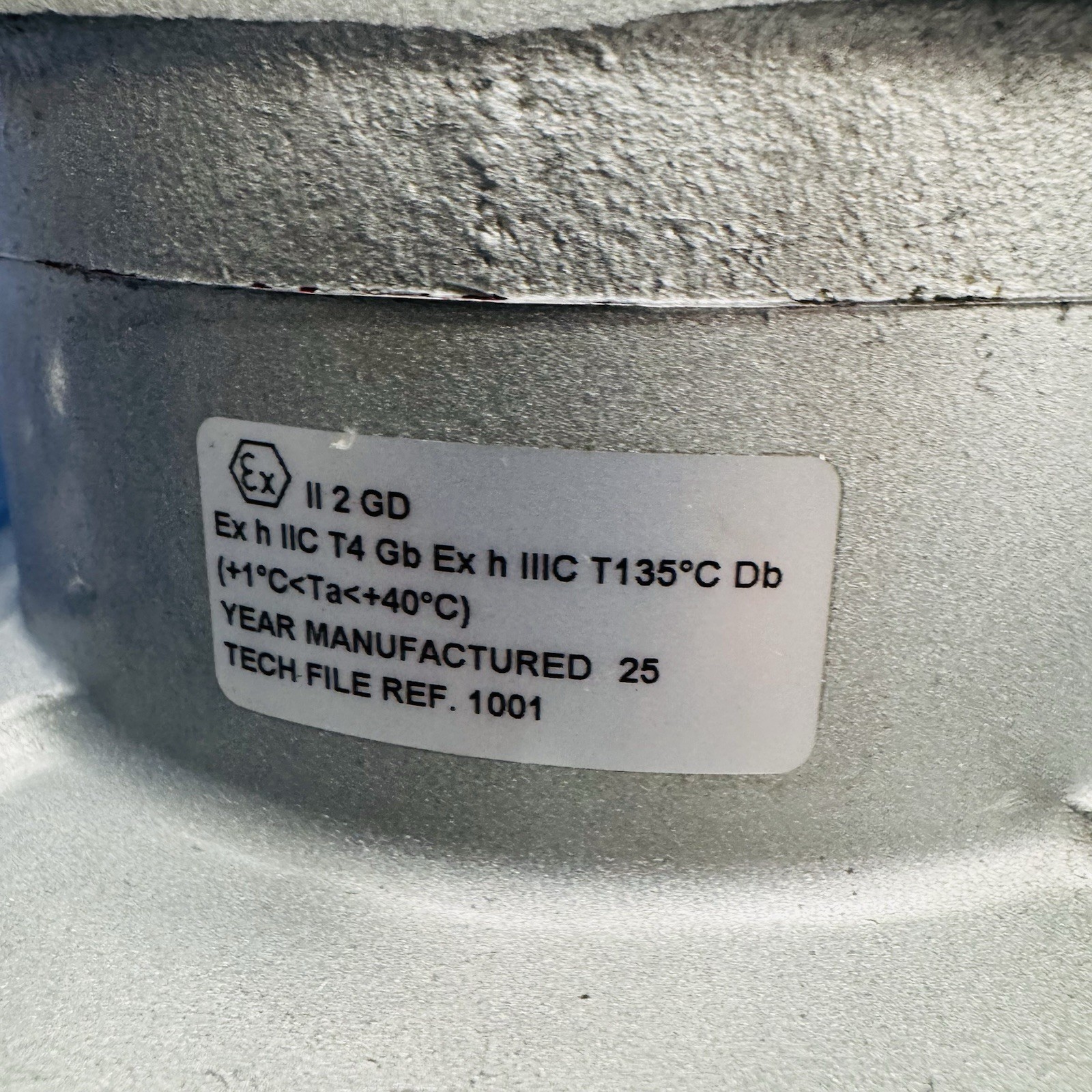

| ATEX / IECEx Category | II 2 GD |
| Free Speed (No Load) | 3,000 RPM |
| Gas Ignition Protection | Ex h IIC T4 Gb |

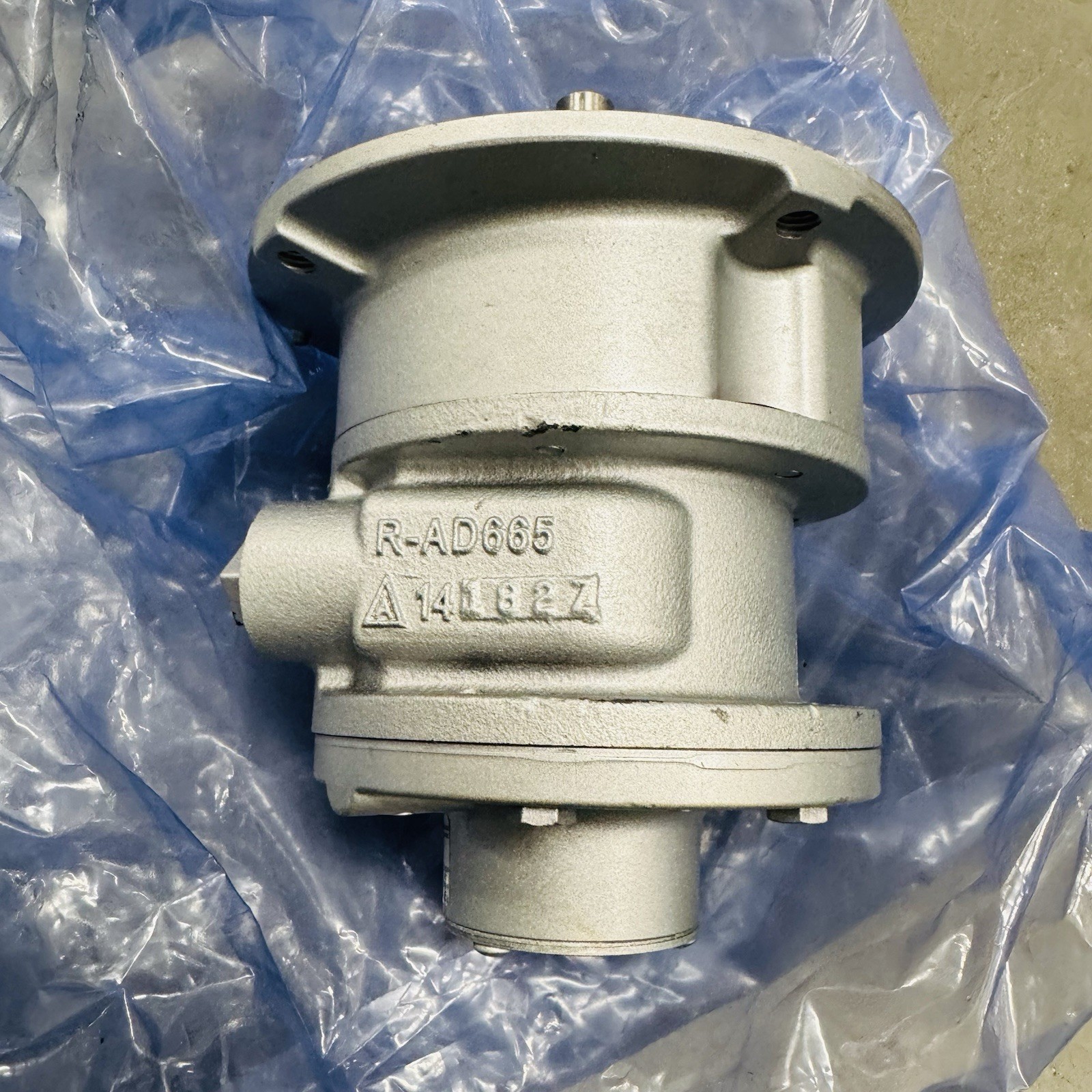

| Internal Reference | R-AD665 |
Gast 6AM-NRV-22A 4 HP 3000 RPM CW/CCW Reversible Vane Air Motor
